What Is the Discrete-Time Fourier Transform (DTFT) and When Do We Use It?
The Discrete-Time Fourier Transform (DTFT) is a fundamental analytical tool in signal processing that provides a frequency-domain representation of discrete-time signals. Unlike the Discrete Fourier Transform (DFT), which operates on finite-length sequences, the DTFT is defined for signals of infinite length and produces a continuous frequency spectrum.
Mathematically, for a discrete-time signal x[n], the DTFT is defined as
This expression transforms a sequence indexed in time into a continuous function of frequency.
Understanding the Role of DTFT
The DTFT(Discrete-Time Fourier Transform) serves as a bridge between theoretical signal processing and practical implementations. While real-world computations rely on the DFT and FFT, the DTFT allows us to
- Analyze ideal signal behavior
- Derive properties of systems and filters
- Understand how discrete signals map to frequency content
One key characteristic of the DTFT is that it is periodic in frequency with period 2π, which arises from the discrete nature of the time-domain signal.
Relationship to DTFT and DFT(FFT)
In practice, we rarely compute the DTFT directly. Instead
- The DFT samples the DTFT at discrete frequency points
- The FFT efficiently computes the DFT
Thus, the DTFT can be viewed as the continuous underlying spectrum, while the DFT provides sampled approximations of that spectrum.
Fourier-based Relationship
CTFS (Continous Time Fourier Series) → Fourier Series→ FS
CTFT (Continuous Time Fourier Transform) → Fourier Transform→ FT
DTFS (Discrete Time Fourier Series) → DFT(Discrete Fourier Transform) → FFT
DTFT (Discrete Time Fourier Transfom)

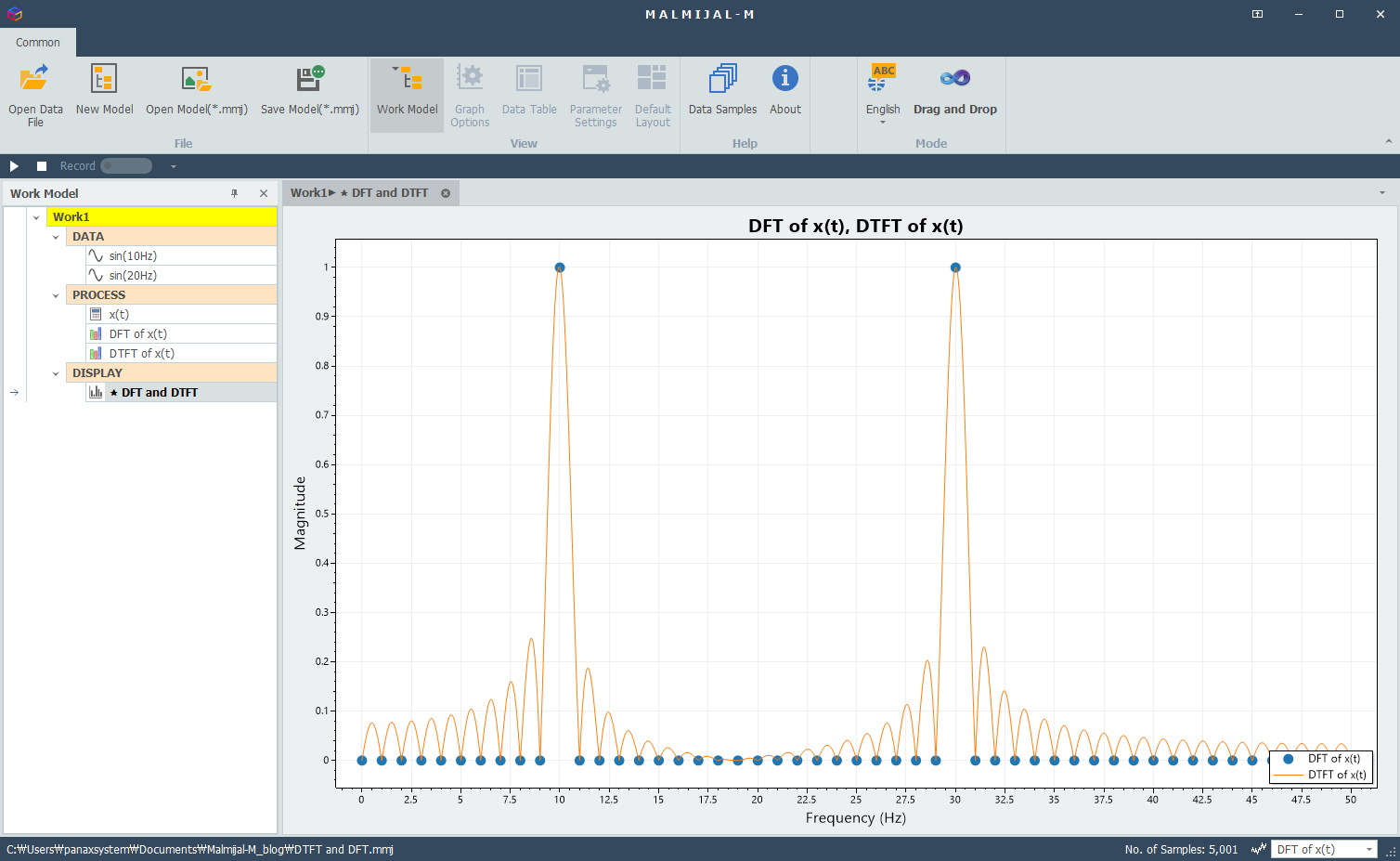

DFT and DTFT(continuous time assumed) of the sum of sine 10Hz and sine 30Hz
The observed repetition is due to the inherent periodicity of the DTFT
DFT(FFT) simply samples this periodic spectrum
DFT(FFT) result of discrete-time signal
Key Differences Between DTFT and DFT(FFT)
| Aspect | DFTF | DFT(FFT) |
|---|
| Concept | Fourier Transform of discrete-time signal | Sampled DTFT |
| Signal Length | Infinite (by definition) | Finite (periodically extended) |
| Frequencies | Continuous frequency | Discrete frequency |
| Periodicity | Periodic with period 2π (or Fs in Hz) | Periodic |
When Should You Use DTFT?
DTFT is particularly useful when
It is less about computation and more about conceptual understanding.
