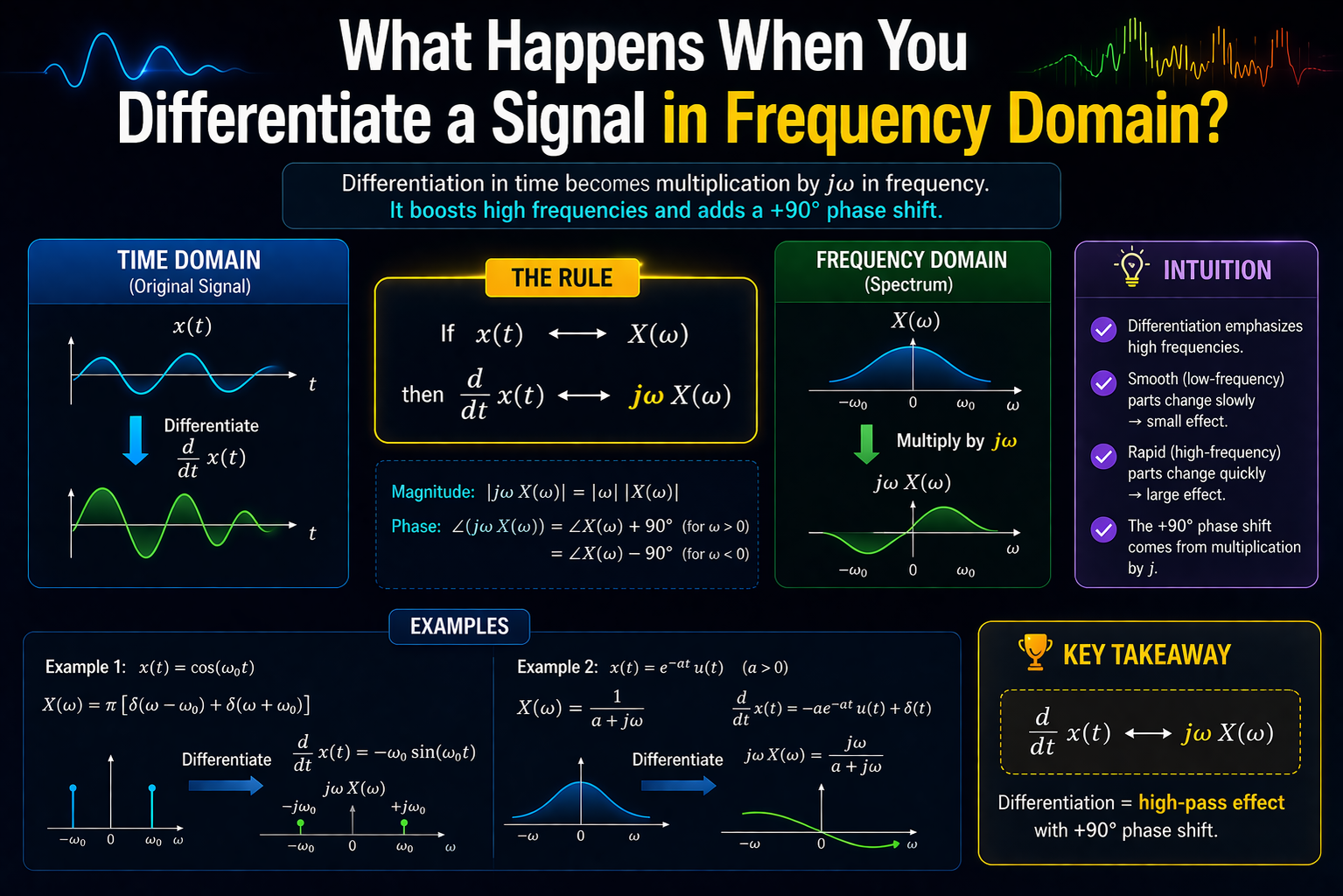

What Happens When You Differentiate a Signal in Frequency Domain?
Differentiation in time domain has a powerful and elegant effect in the frequency domain.
It does not just change the signal — it transforms how frequencies behave.
Key Idea
When you differentiate a signal, Each frequency component is scaled.
Mathematical Relationship
Meaning
- Time domain → derivative
- Frequency domain → multiplication by j2πf
Intuition
“Higher frequencies get amplified more”
What This Means
Differentiation(dx/dt) emphasize
- Rapid changes
- Sharp transitions
Key Insight
Slow changes → small effect
Fast changes → large effect

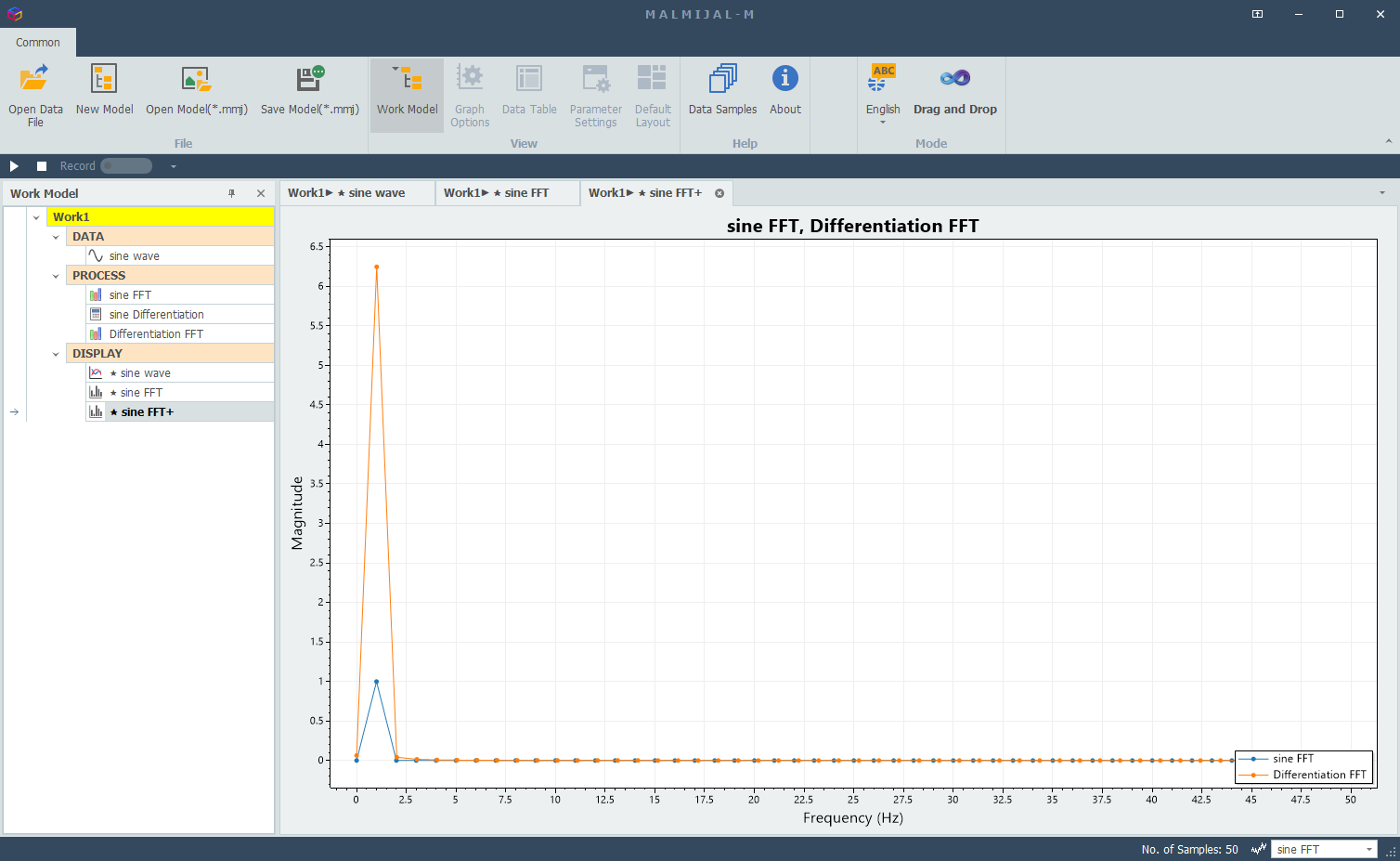

Sine wave → FFT result of differentiation
Effect on a Sine Wave
For a sine wave
After differentiation
Observations
- Same frequency
- Amplitude scaled by 2πf
- Phase shifted (90°), sine → cosine

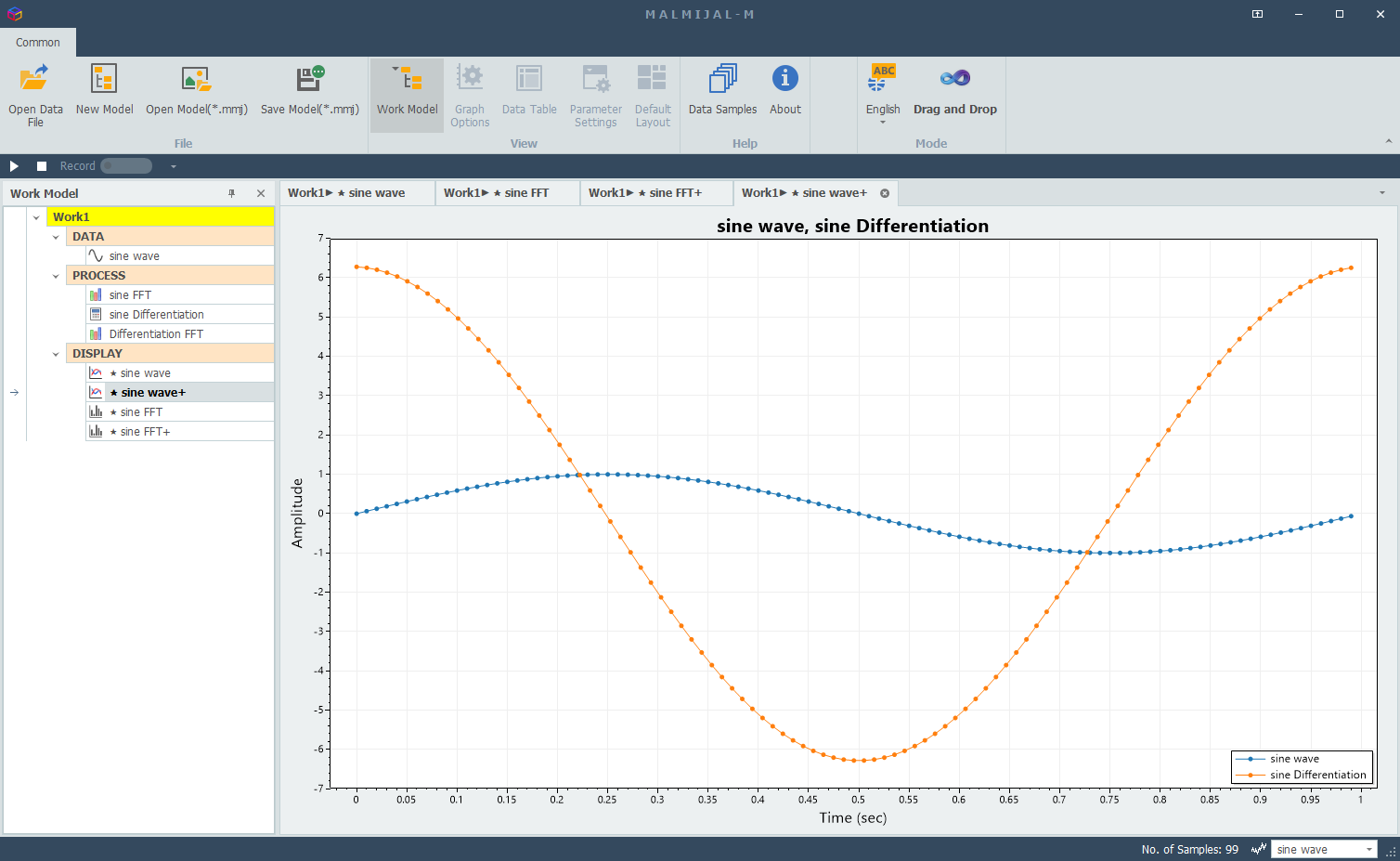

Sine vs cosine (phase shifted), amplitude increase
Frequency Domain Interpretation
Differentiation(dx/dt)
Multiplies spectrum by frequency
Result
- High frequencies → boosted
- Low frequencies → suppressed
Key Insight
Differentiation acts like a high-pass filter
Real-World Meaning
Vibration Analysis
- Highlights sudden impacts
Audio Processing
Edge Detection (Signals/Images)
Noise Amplification Warning
Important
Differentiation(dx/dt) also amplifies:
Problem
Solution
- Apply smoothing before differentiation
MALMIJAL Workflow
Differentiation Analysis
- Generate/Load a signal
- Apply Differentiation
- Apply FFT
- Compare spectrum

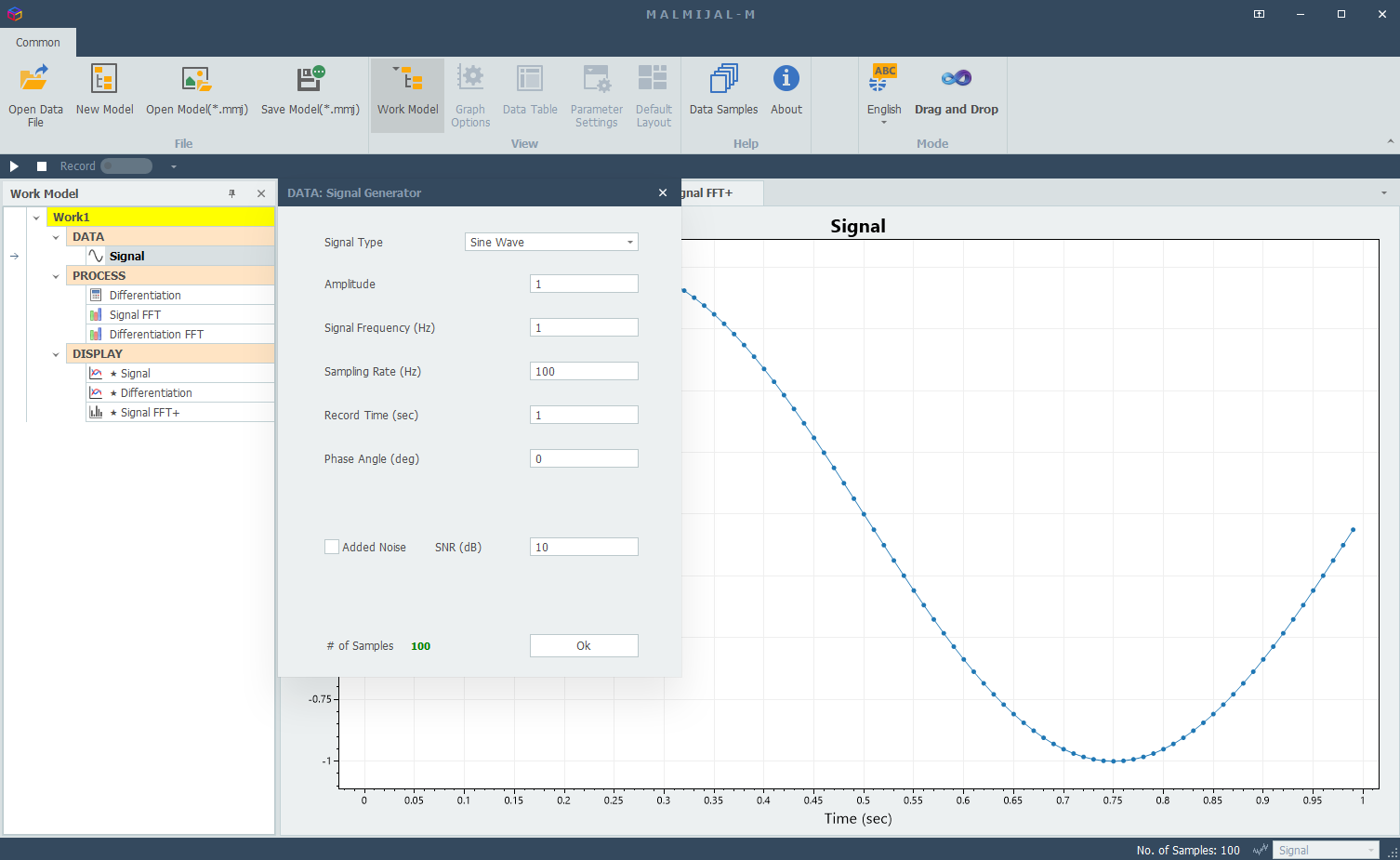

Generate signal (sine wave)

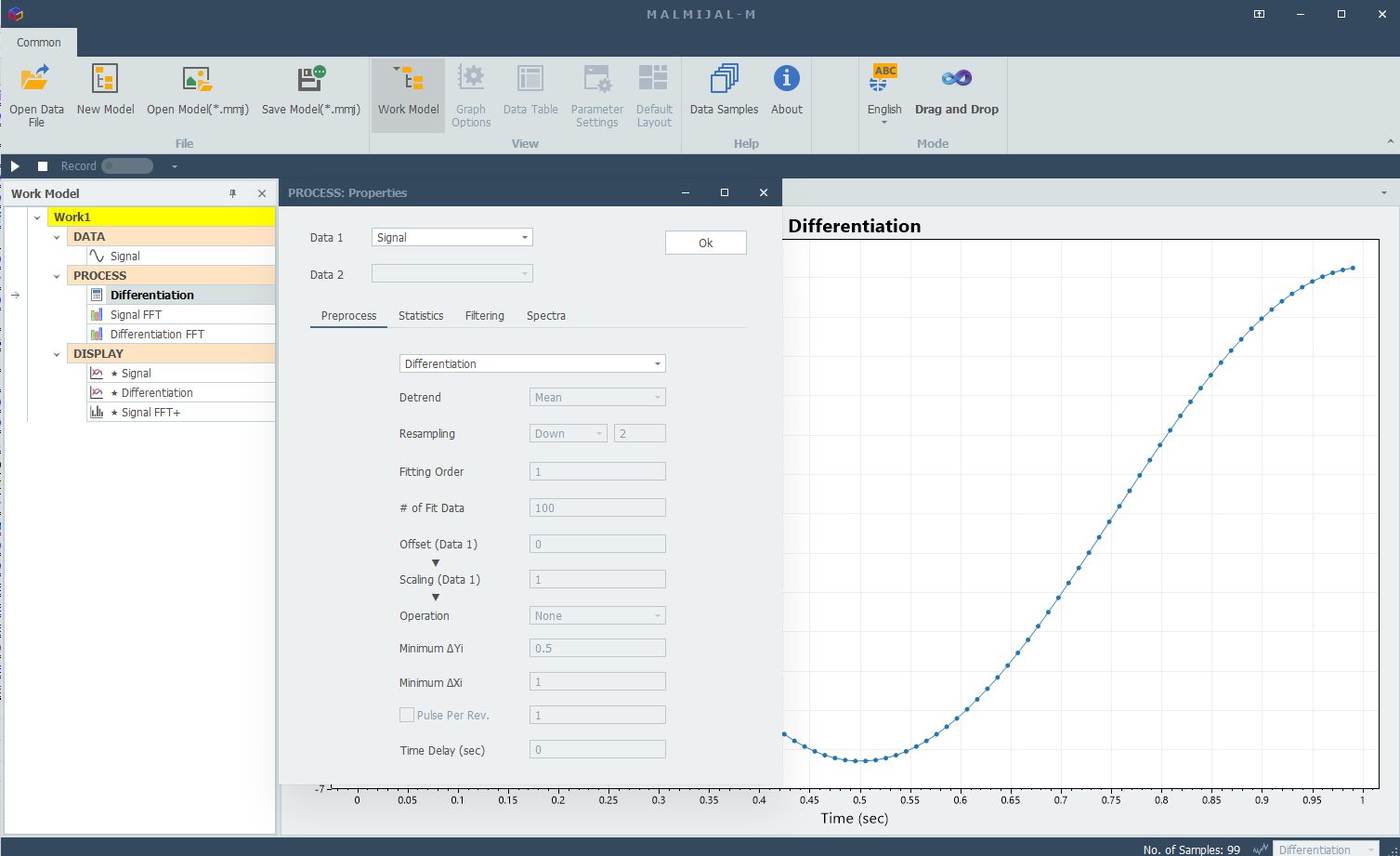

Apply Differentiation

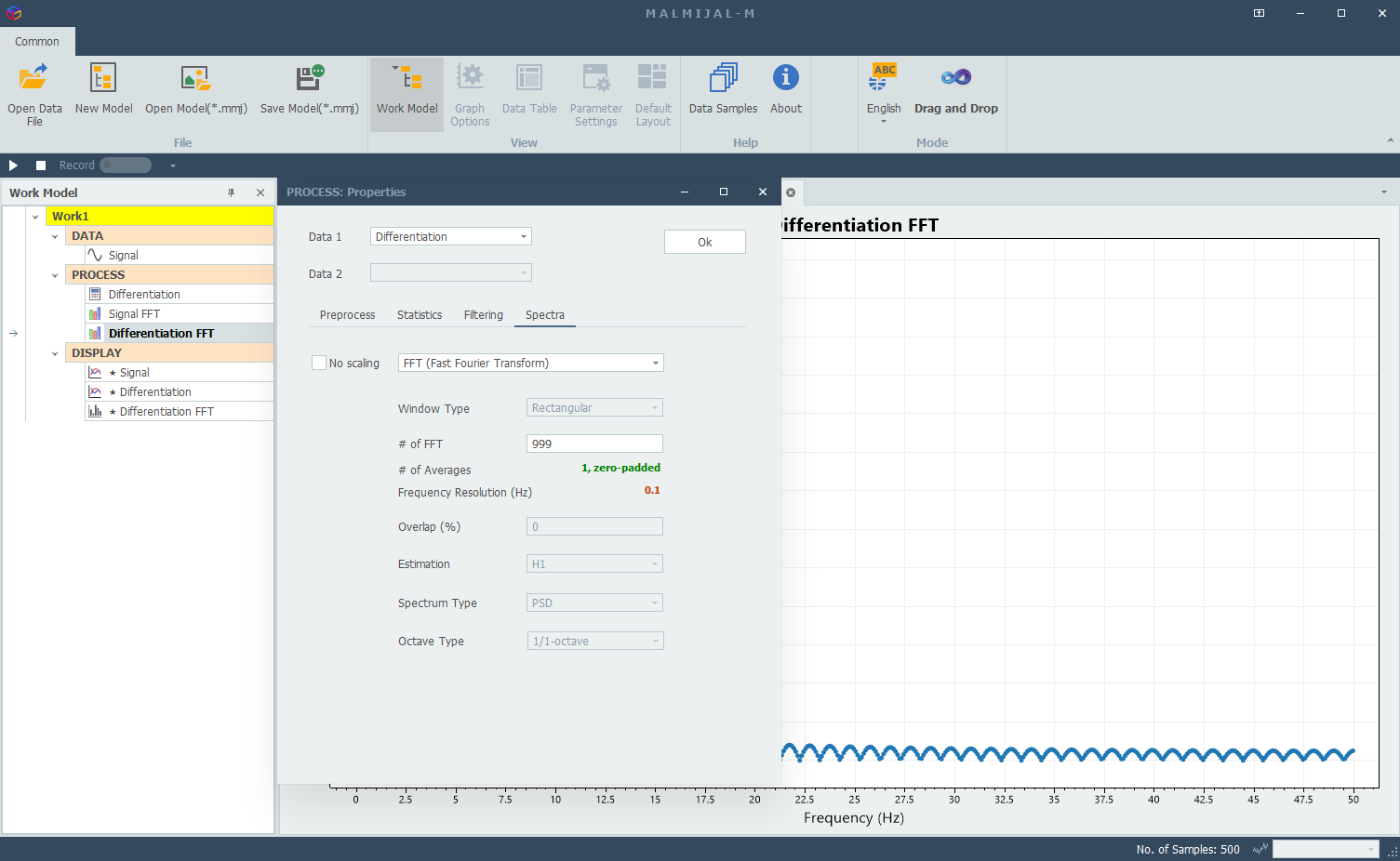

Apply FFT of differentiation, zero-padded for densed plotting

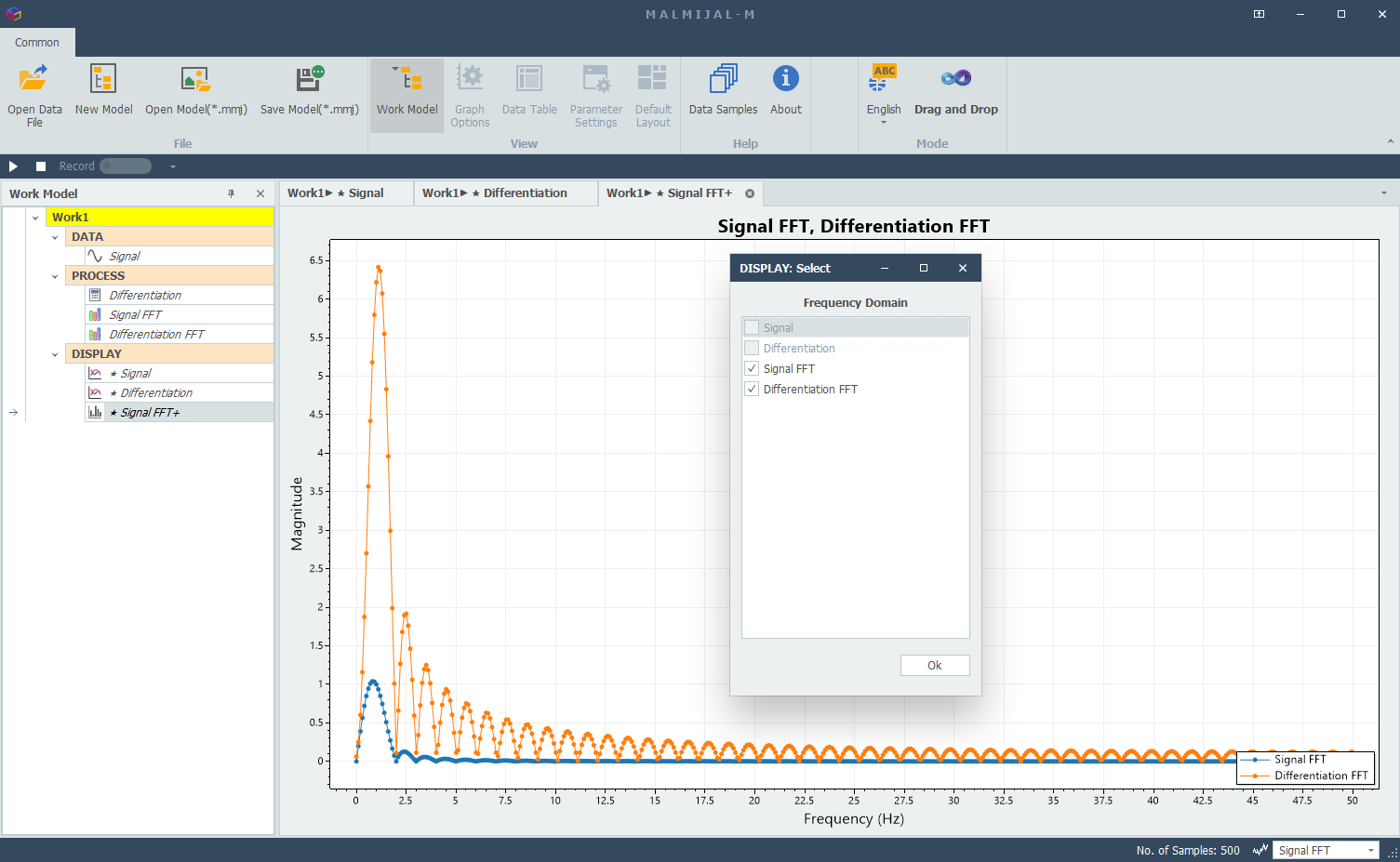

Compare spectra, plot densely using zero-padding
Key Takeaways
- Differentiation multiplies frequencies by f
- High frequencies are amplified
- Acts like a high-pass filter
- Sensitive to noise
Conclusions
Differentiation in the time domain has a clear and powerful effect in the frequency domain by scaling each frequency component proportionally to its frequency
- It amplifies high-frequency components while relatively suppressing low-frequency ones, effectively behaving like a high-pass filter
- This makes differentiation useful for highlighting rapid changes, sharp transitions, and edges in signals
- However, it also amplifies high-frequency noise, which can degrade signal quality if not handled properly
In summary,
differentiation enhances important fast-changing features in a signal, but requires careful use with filtering to avoid noise amplification
