Fourier Transform (FFT) of Common Signals (Step, Impulse, Ramp, etc.)

Certain signals appear repeatedly in signal processing and engineering analysis. Understanding their Fourier transforms (FFTs) provides valuable intuition for more complex scenarios.

Fourier Transform of Common Signals (Step, Impulse, Ramp, etc.)

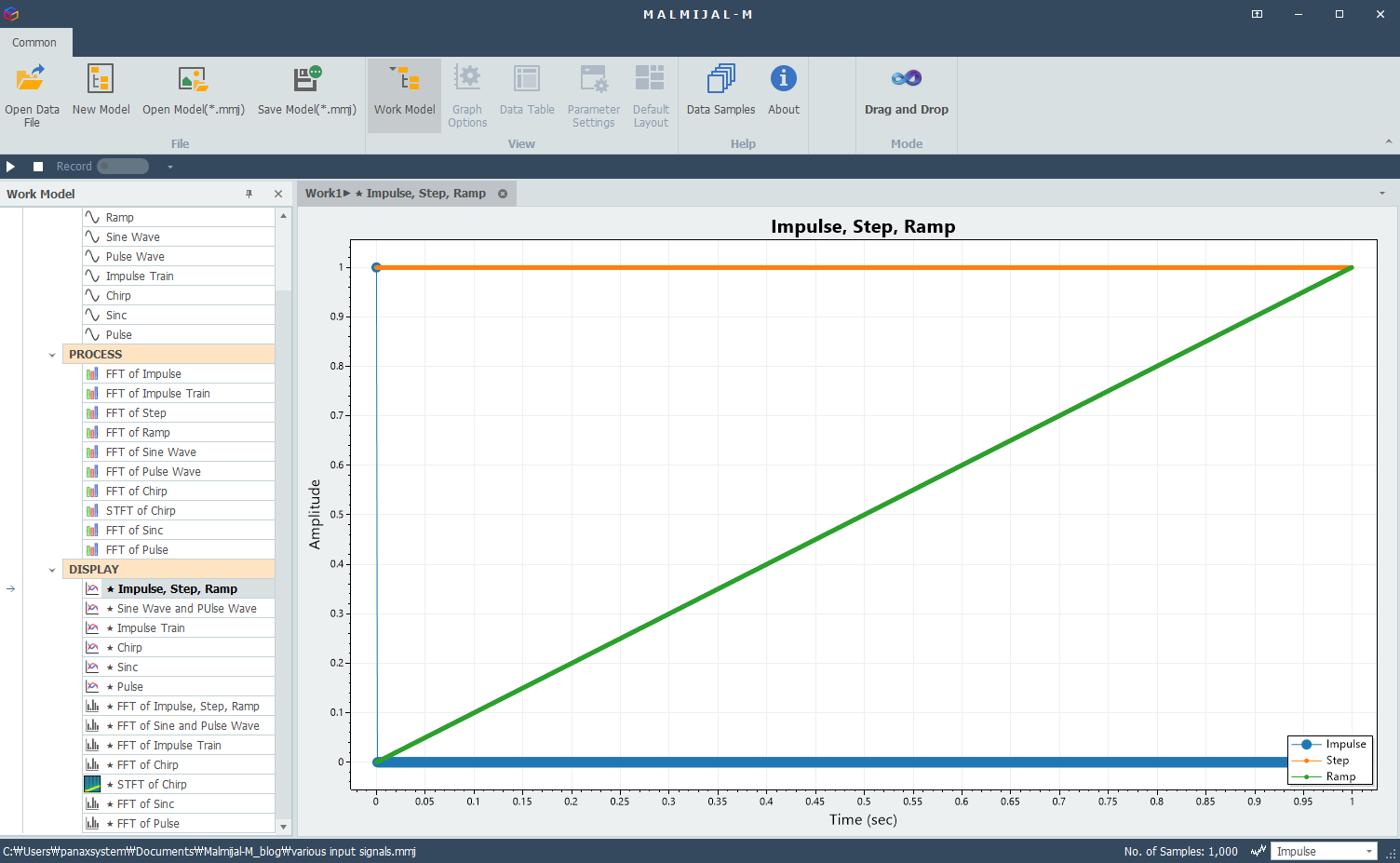

Various Input Signals

Unit impulse:
Unit step signal: make pulse using u(t) - u(t-τ)
Unit ramp signal: x(t) = a*t + b

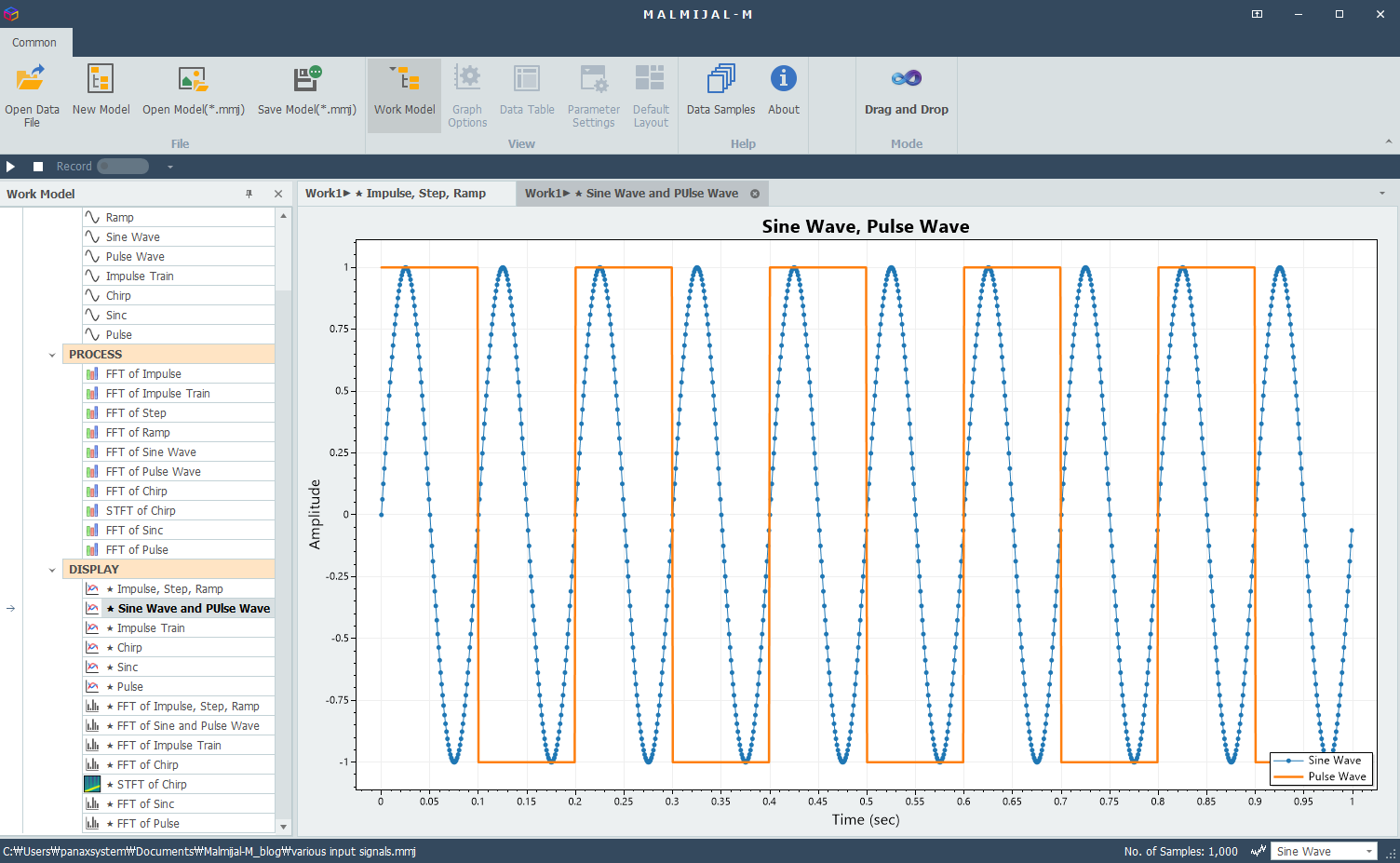

Sine Wave: make Cosine Wave using phase 90˚
Pulse Wave signal:
Impulse-Train:

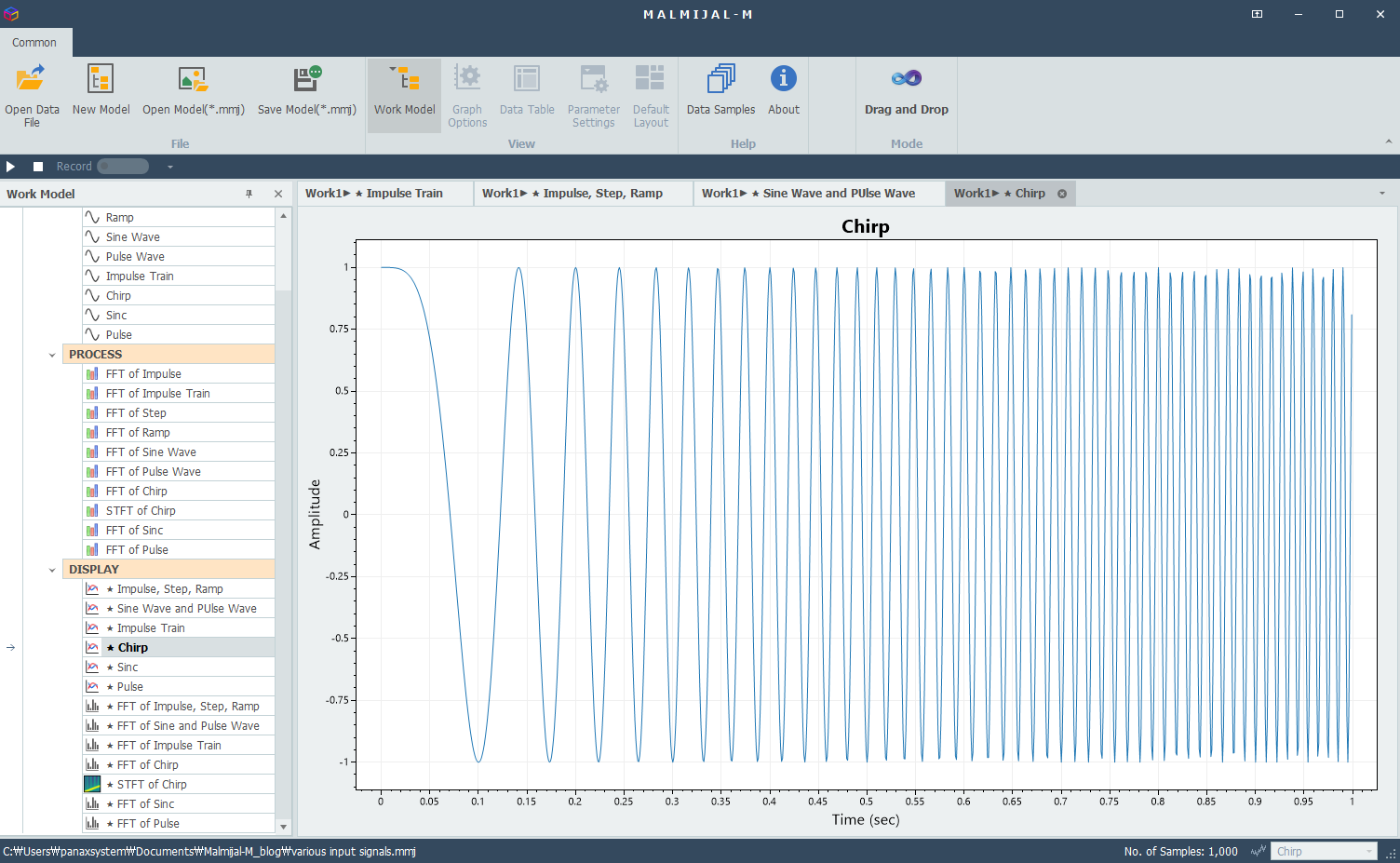

Chirp: swept sine wave, up-chirp / down-chirp

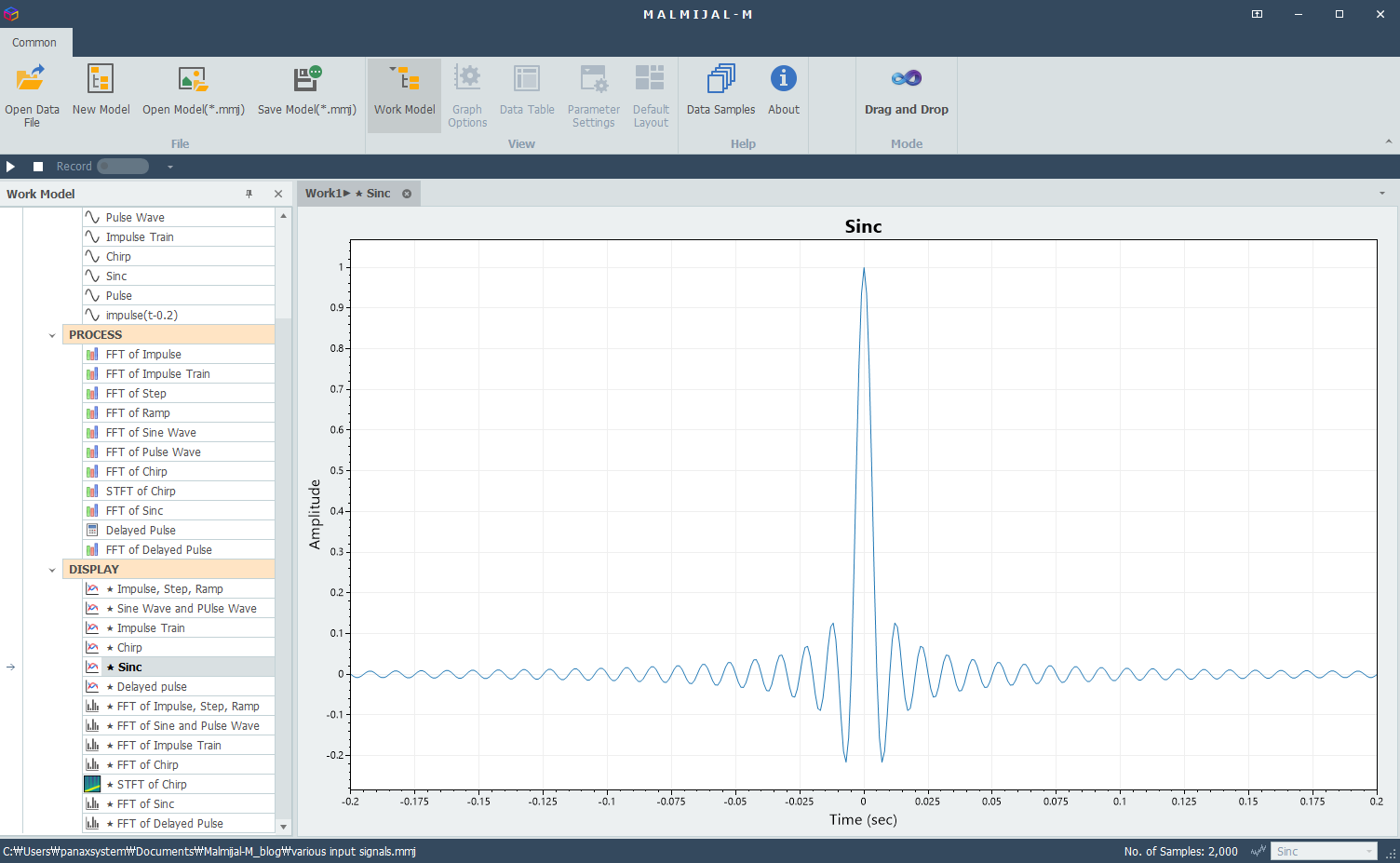

Sinc:

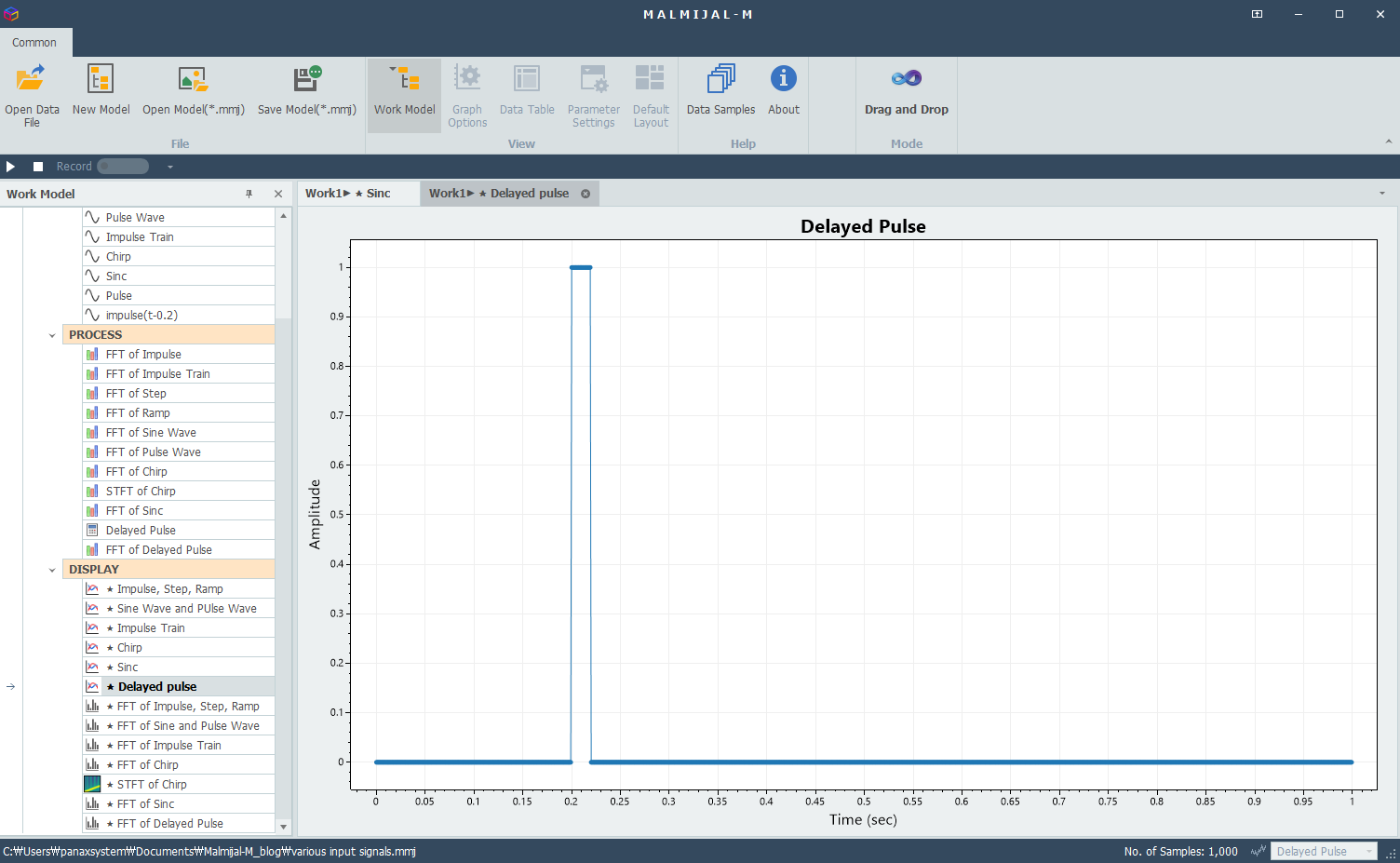

Pulse: one shot, rectangular window

Interpretation of FFT of Various Inputs

Unit impulse: all frequencies equally
Unit step signal: low-frequency dominance
Unit ramp signal: emphasizes even lower frequencies, high frequency decays rapidly
Sine Wave: pure-tone, single frequency component

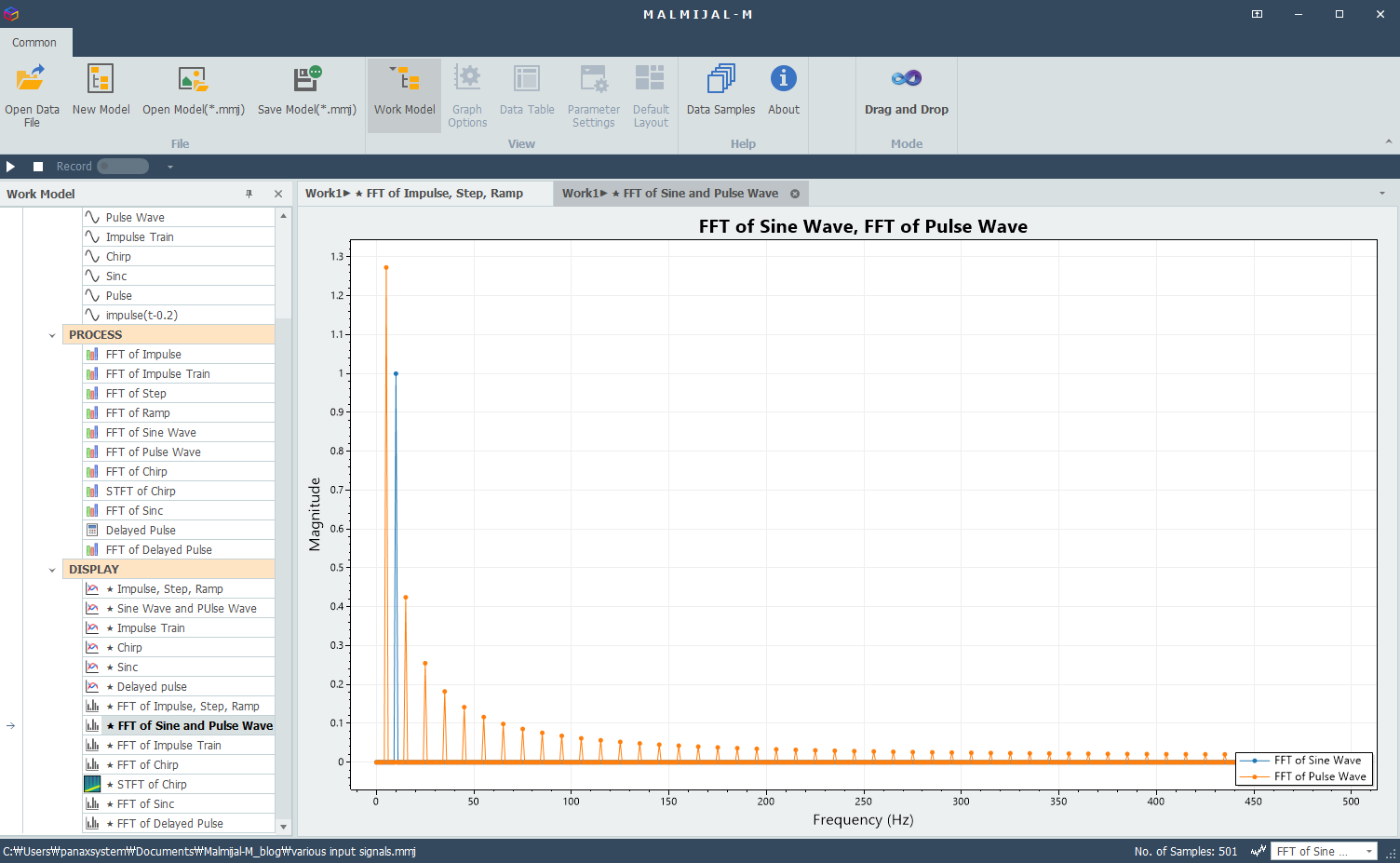

Pulse Wave signal: sum of sine waves, decreasing amplitudes and increasing frequencies

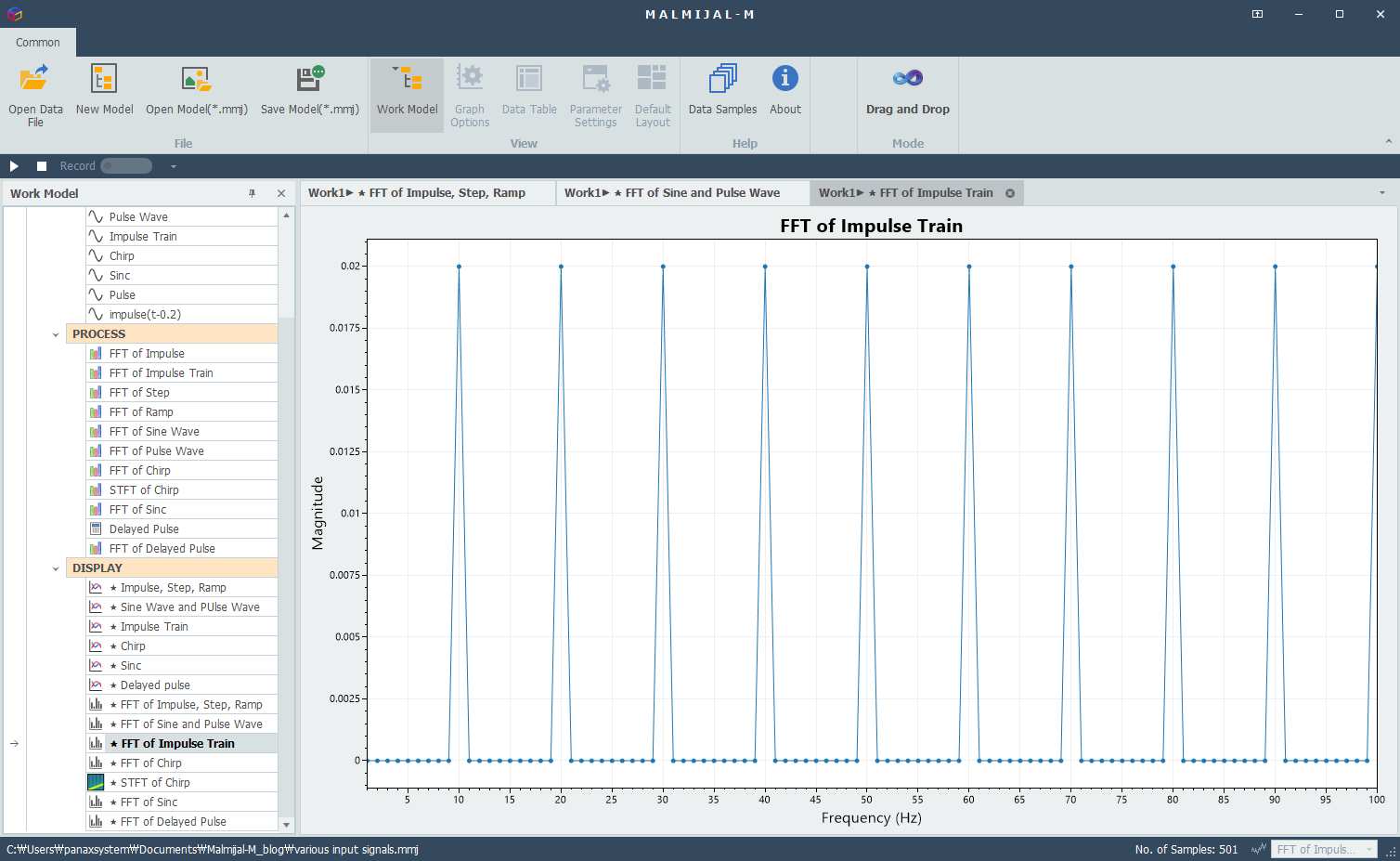

Impulse-Train: smaller period in time, large period in frequency

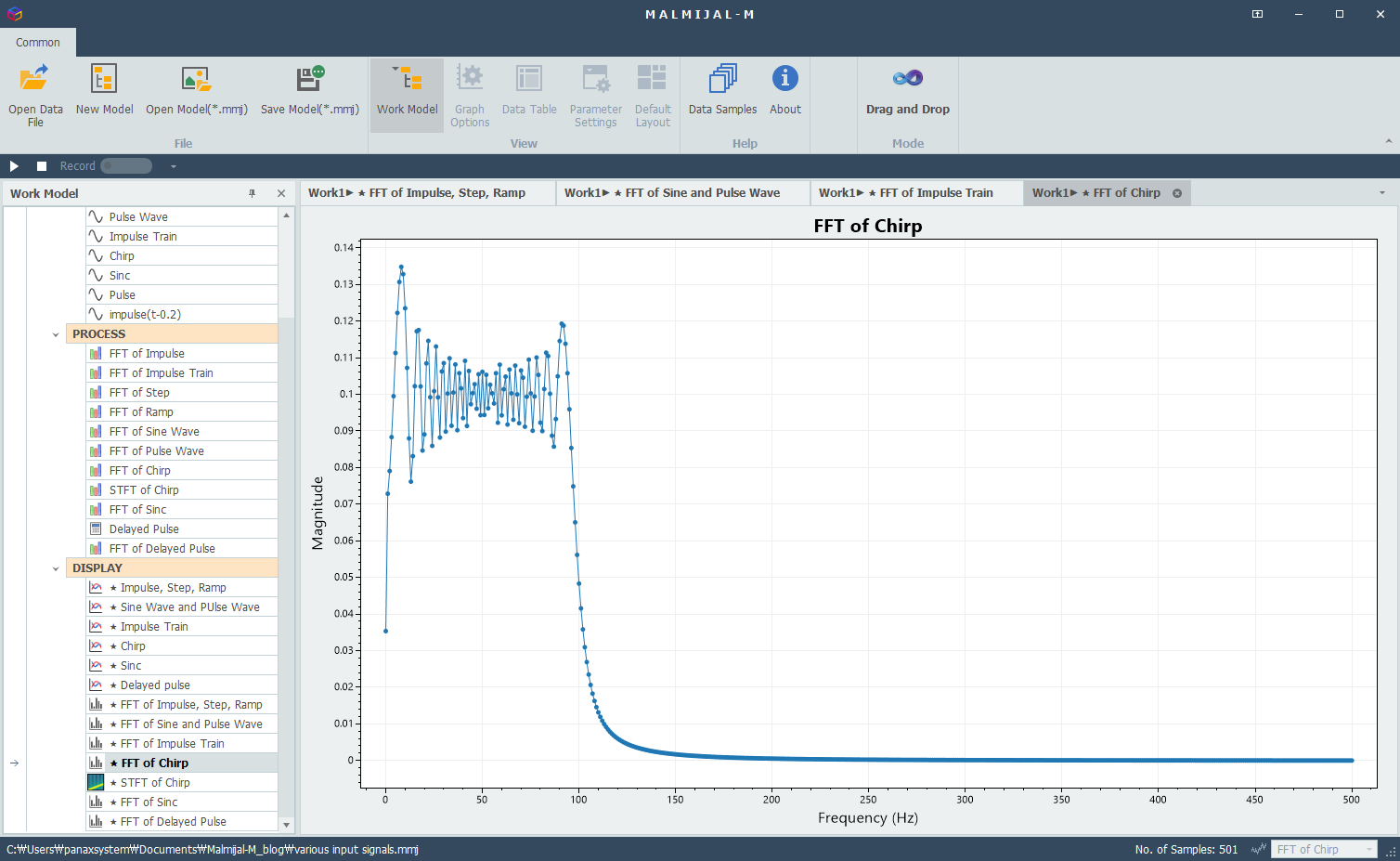

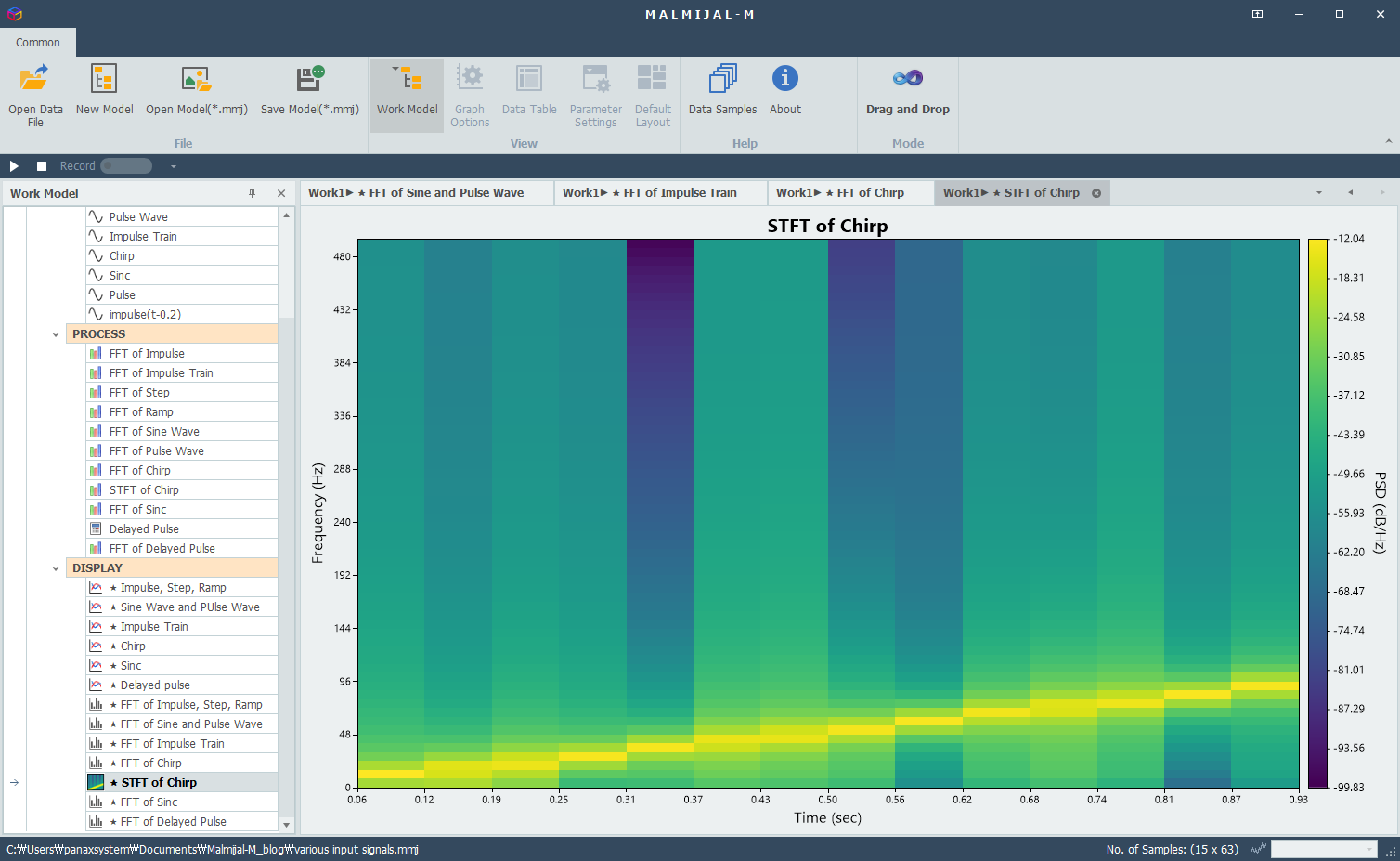

Chirp: non-stationary signal, needs Short-Time Fourier Transform

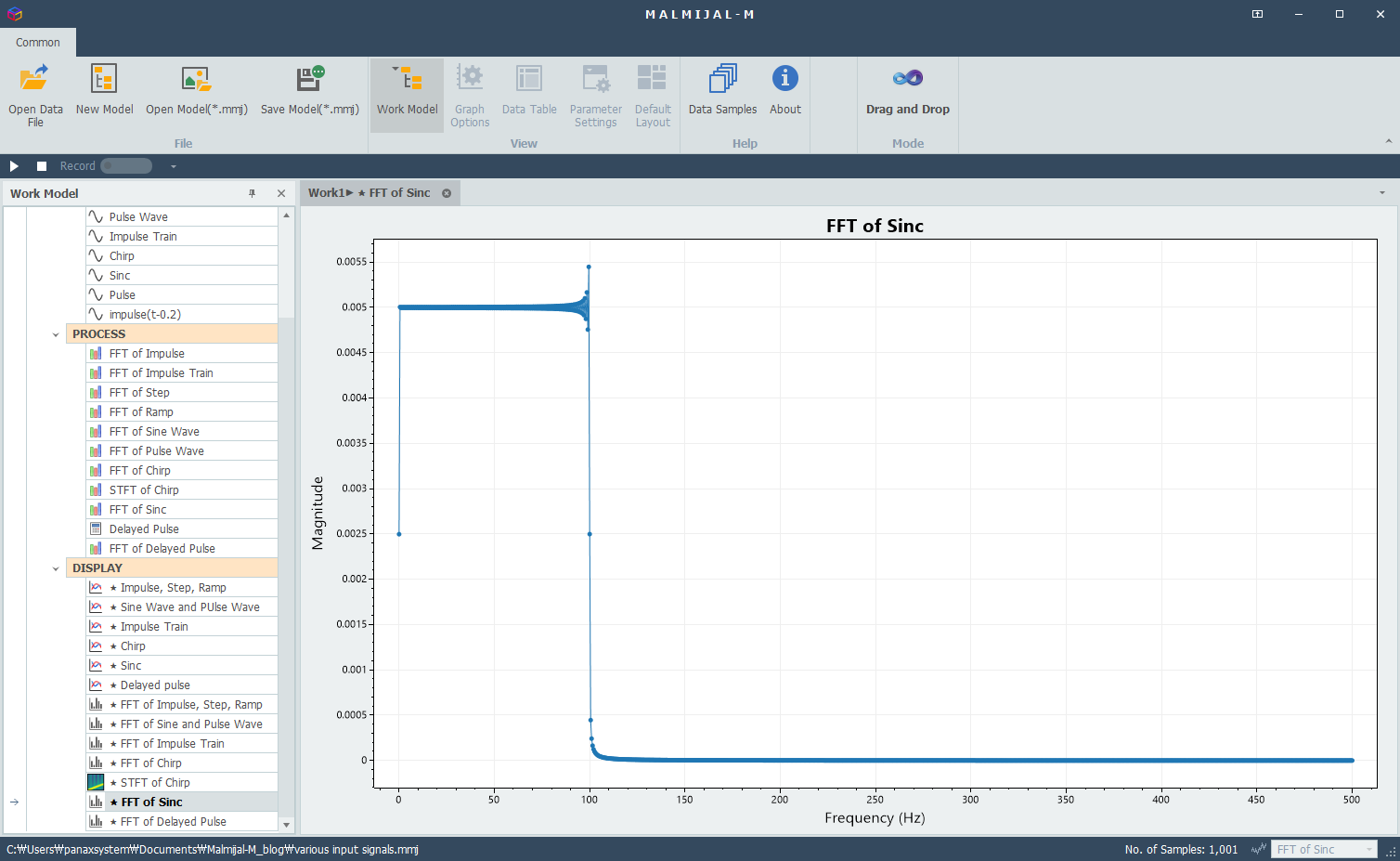

Sinc: ideal low-pass filter in frequency domain

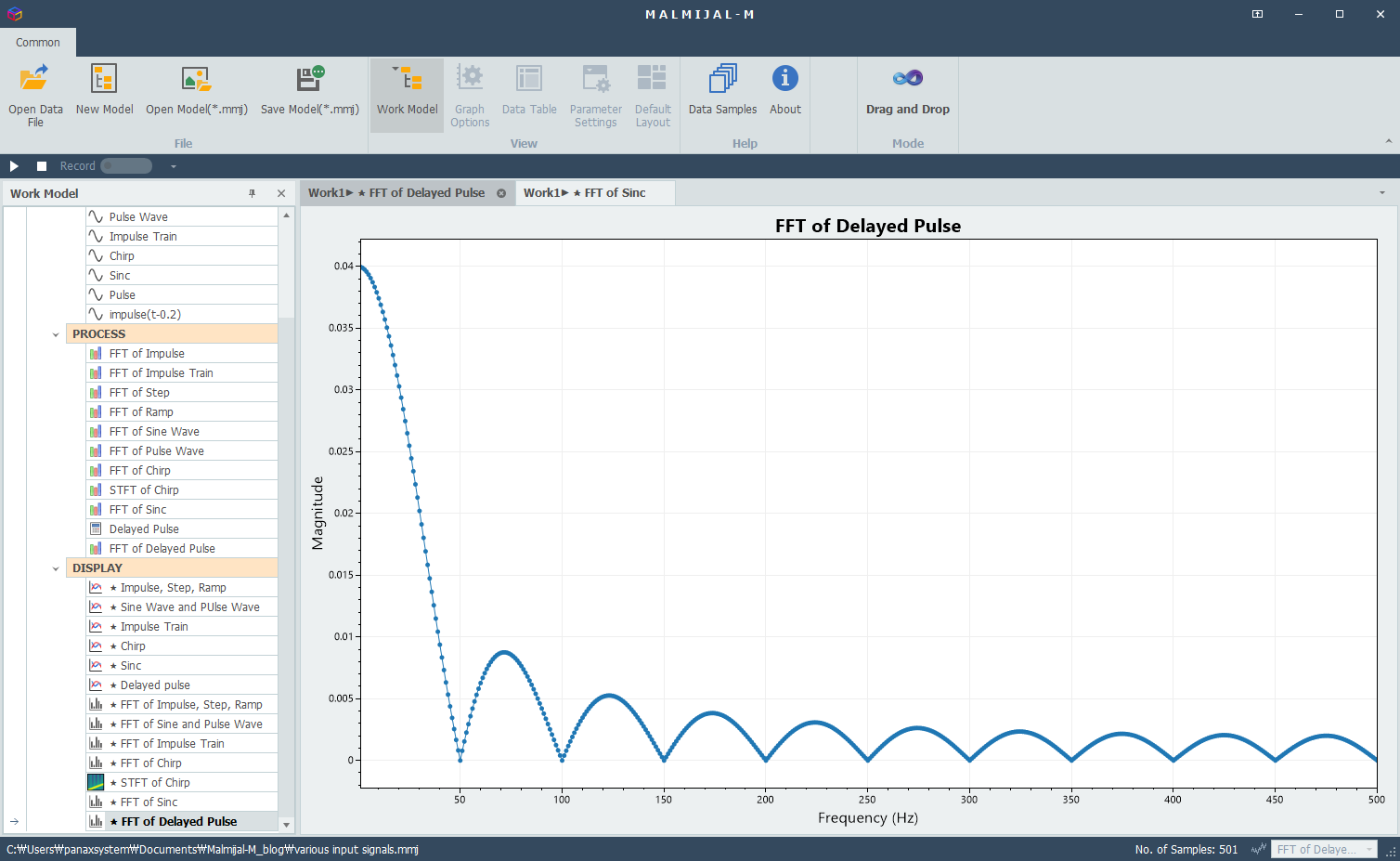

Pulse: u(t) - u(t-τ), Sinc in Frequency domain

Primary Purpose

Signal	Primary Purpose
Unit impulse	Full system characterization
Unit step	Time response and stability
Unit ramp signal	Tracking performance
Sine Wave	Single-frequency analysis
Pulse Wave signal	Practical sampling modeling
Impulse-Train	Ideal Sampling modeling
Chirp (Swept sine)	Frequency sweep
Sinc signal	Ideal filtering
Pulse signal	System excitation, impulse approximation

Key Insights

Time-domain behavior directly determines frequency-domain structure

Sharp changes → wide spectrum
Smooth signals → narrow spectrum
Periodicity → discrete frequencies

Why This Matters

These signals are building blocks for

System responses (impulse → system characterization)
Control systems (step → transient behavior)
Signal modeling (pulse, chirp, etc.)

Understanding them allows engineers to predict system behavior without numerical computation.

Predict system behavior
Interpret FFT results
Design filters intuitively

Conclusion

Simple signals reveal fundamental time-frequency relationships that apply to all signals
