Impulse Response vs Step Response: What’s the Difference?
Impulse response and step response are two fundamental ways to characterize a system. While they are closely related, they provide different insights into system behavior.
Concept
As Δt (pulse width) → 0, the pulse becomes and impulse, and the pulse response becomes the impulse response. The impulse response is the most fundamental - once you know it, you can derive the response to any input.

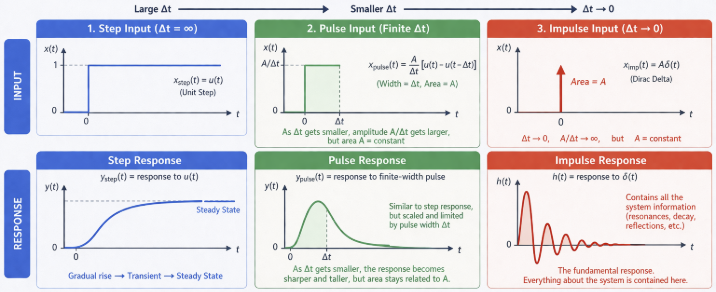

Unit step → Pulse → Impulse, and their corresponding responses
Unit Impulse Response
The impulse response h(t) is defined as the output of a system when the input is a Dirac delta function
Thus
Unit Step Response
The step response is the output when the input is a unit step function
The output is
Relationship Between Them
The step response is the integral of the impulse response, and conversely
Interpretation
- Impulse response reveals instantaneous system behavior and full system dynamics
- Step response shows cumulative behavior over time and how system reaches steady state
- Rise-time
- Overshoots
- Settling time
When Should You Use Each?
| Situation | Recommended |
|---|
| System identification | Unit Impulse response |
| Acoustic analysis | Unit Impulse response |
| Control system design | Unit step response |
| Stability analysis | Unit step response |
Real-World Insight
In practice
- Unit impulse responses are difficult to measure directly
- Unit step responses are easier to observe
MALMIJAL Implemenatation
Z-domain Transfer Function of Digital Filter System

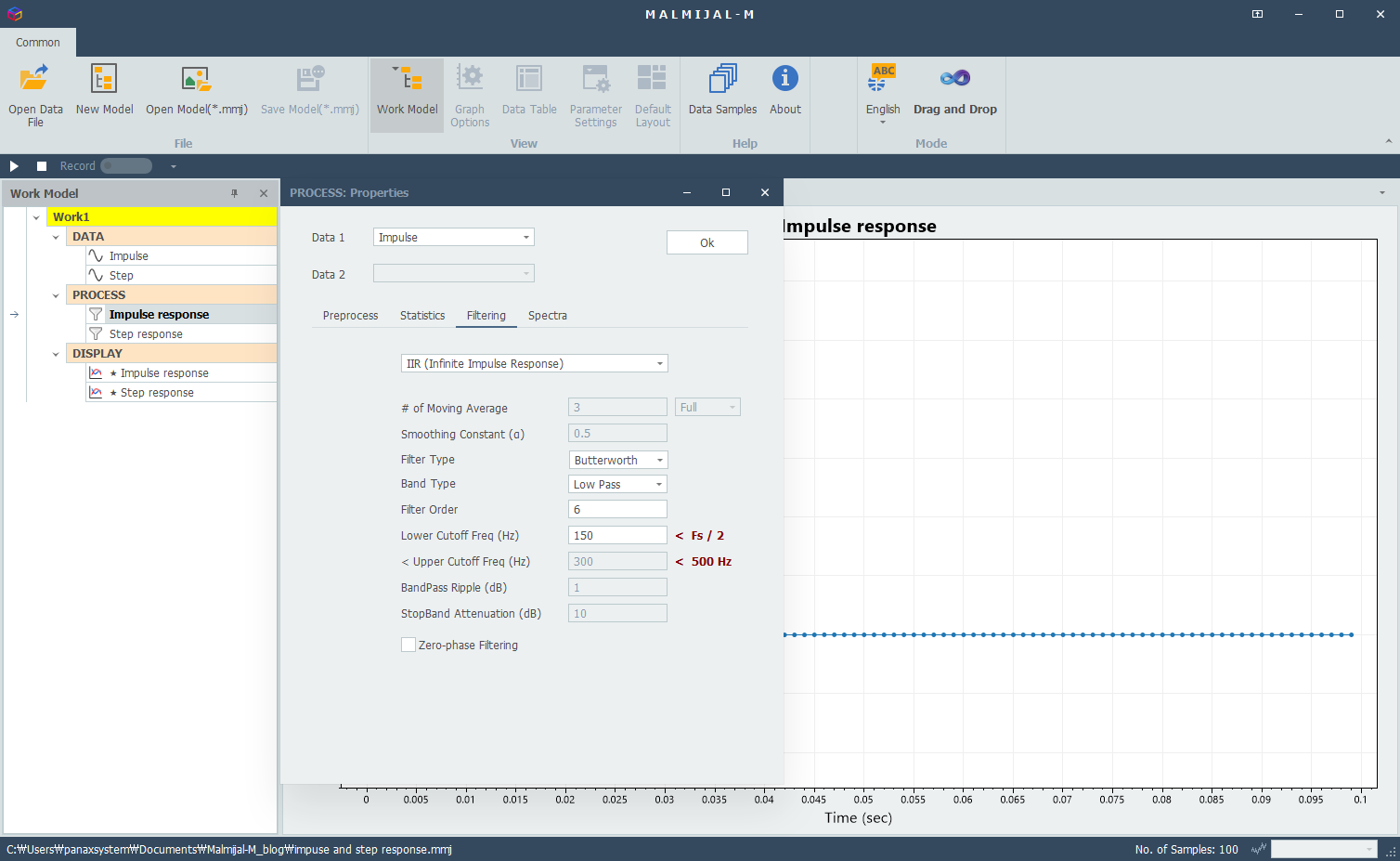

6th order IIR filter (dynamic system) for input tests

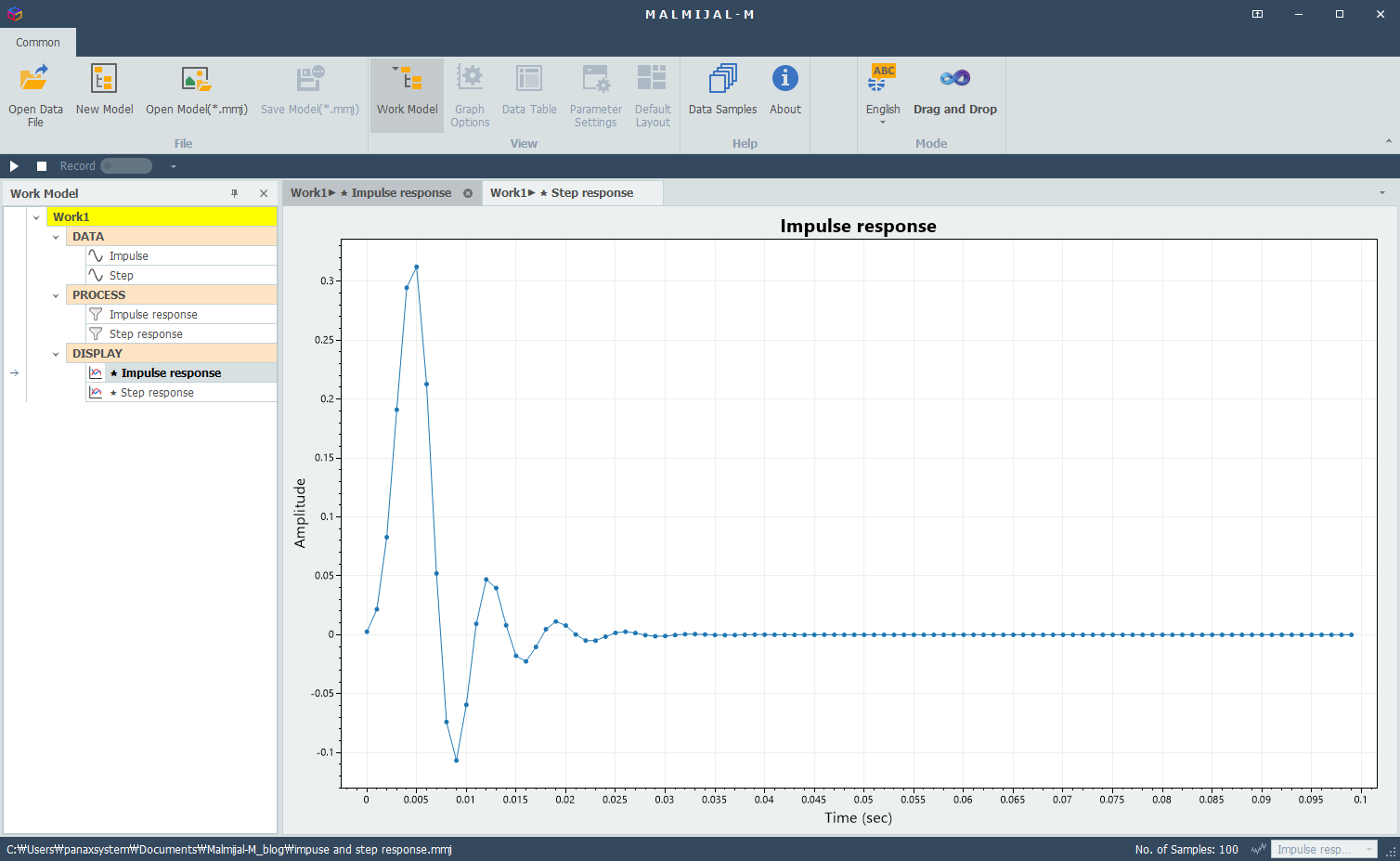

impulse response of dynamic system

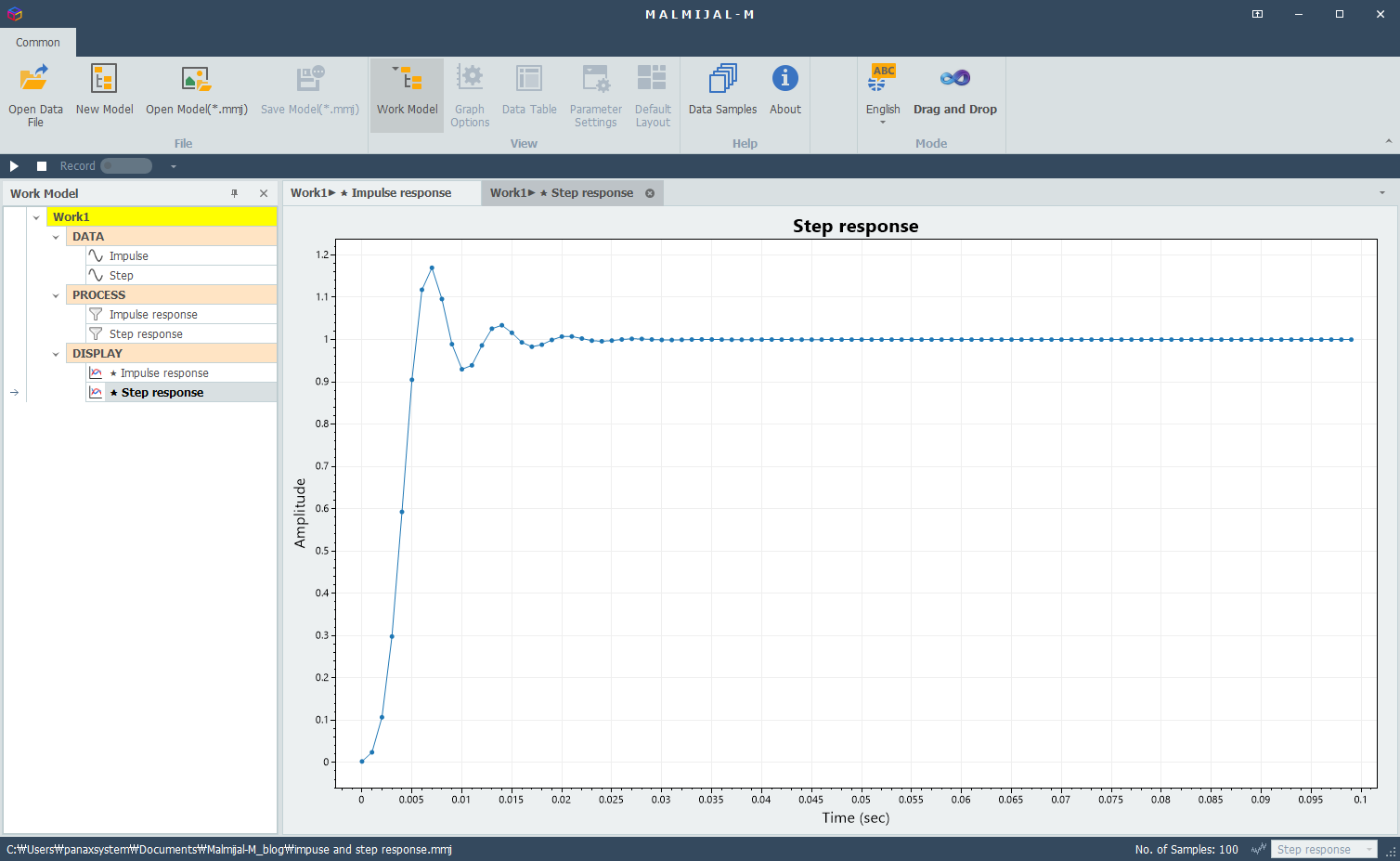

step response of dynamic system with some overshoot
Conclusion
Impulse response and step response describe the same system—but from different perspectives.
