What Is Multirate Signal Processing? Downsampling and Upsampling Explained
Multirate signal processing involves processing signals at multiple sampling frequencies within a system. It is widely used in modern digital systems to improve efficiency and reduce computational complexity.
Basic Operations
Two fundamental operations define multirate processing.
Downsampling
Decimation = anti-aliasing filter (LPF) โ Downsampling
This reduces the sampling frequency by a factor of M.
Upsampling
Interpolation = Upsampling โ anti-imaging filter (LPF)
This increases the sampling frequency by inserting zeros. Upsampling by interpolation fills in the empty spaces, which is equivalent to applying a low-pass filter.
Practical Interpretation
Downsampling
- Reduce data size
- Lower computation cost
Upsampling
- Increase resolution
- Match system sampling frequency
Key Challenge: Aliasing
Downsampling introduces aliasing unless the signal is pre-filtered (anti-aliasing filter).
Downsampling compresses the spectrum
- Frequency components overlap
- Information is lost
Apply a low-pass filter before downsampling to prevent aliasing. MALMIJALย doesn't include anti-aliasing filter when downsampling. You have to make anti-aliasing low pass filter among various filters.
Key Challenge: Imaging
Upsampling introduces spectral imaging unless the signal is post-filtered (anti-imaging filter).
Zero insertion creates
- Replicated spectra (images)
- High-frequency artifacts
Apply a low-pass filter after upsampling to prevent imaging. MALMIJALย adopts anti-imaging filter inherently when upsampling.
MALMIJAL Implementation
In MALMIJAL, downsampling is performed without an anti-aliasing filter, while upsampling(interpolation) includes an anti-imaging filter.ย

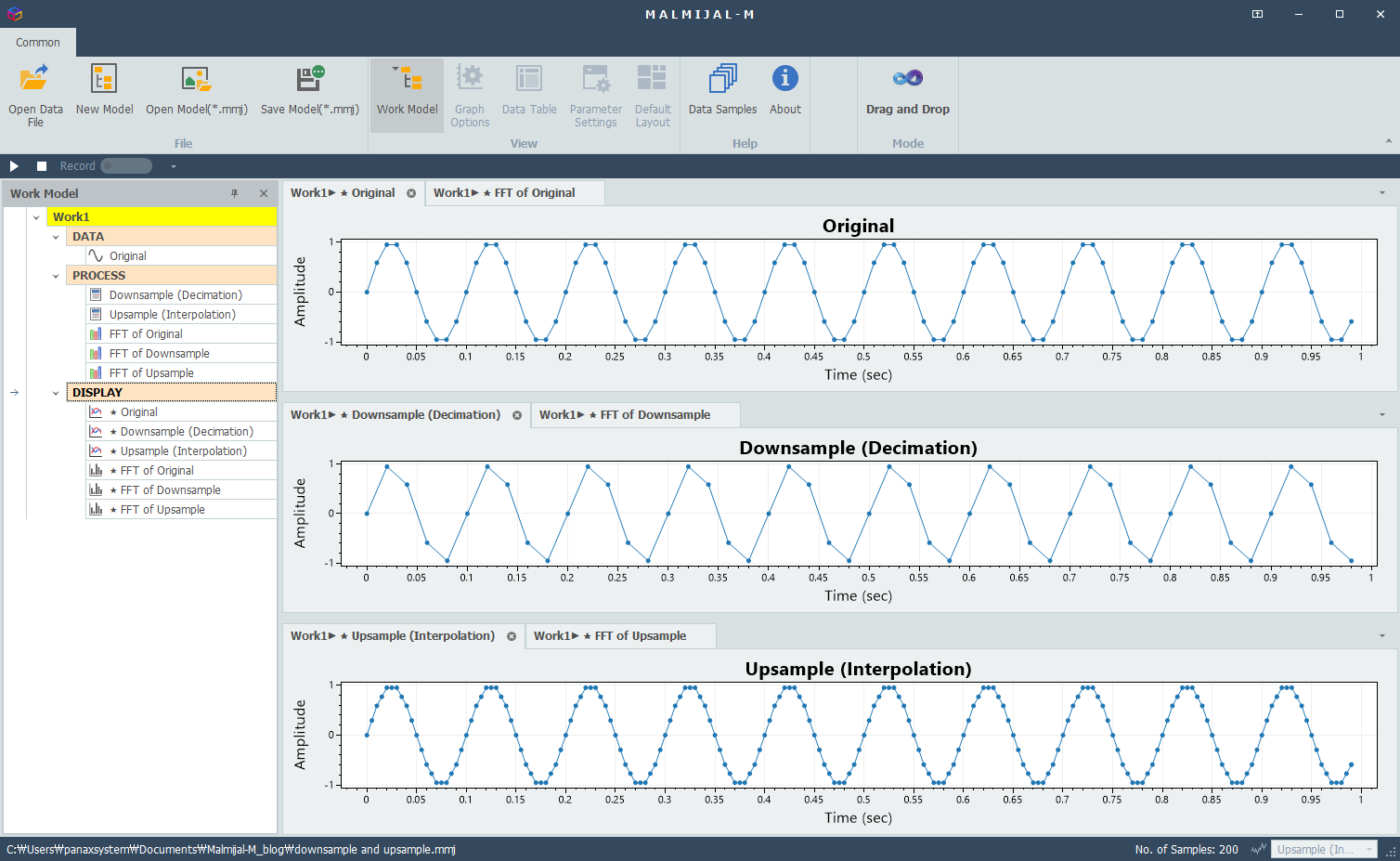

Original, downsampled, and upsampled(interpolated) signals by factor of 2

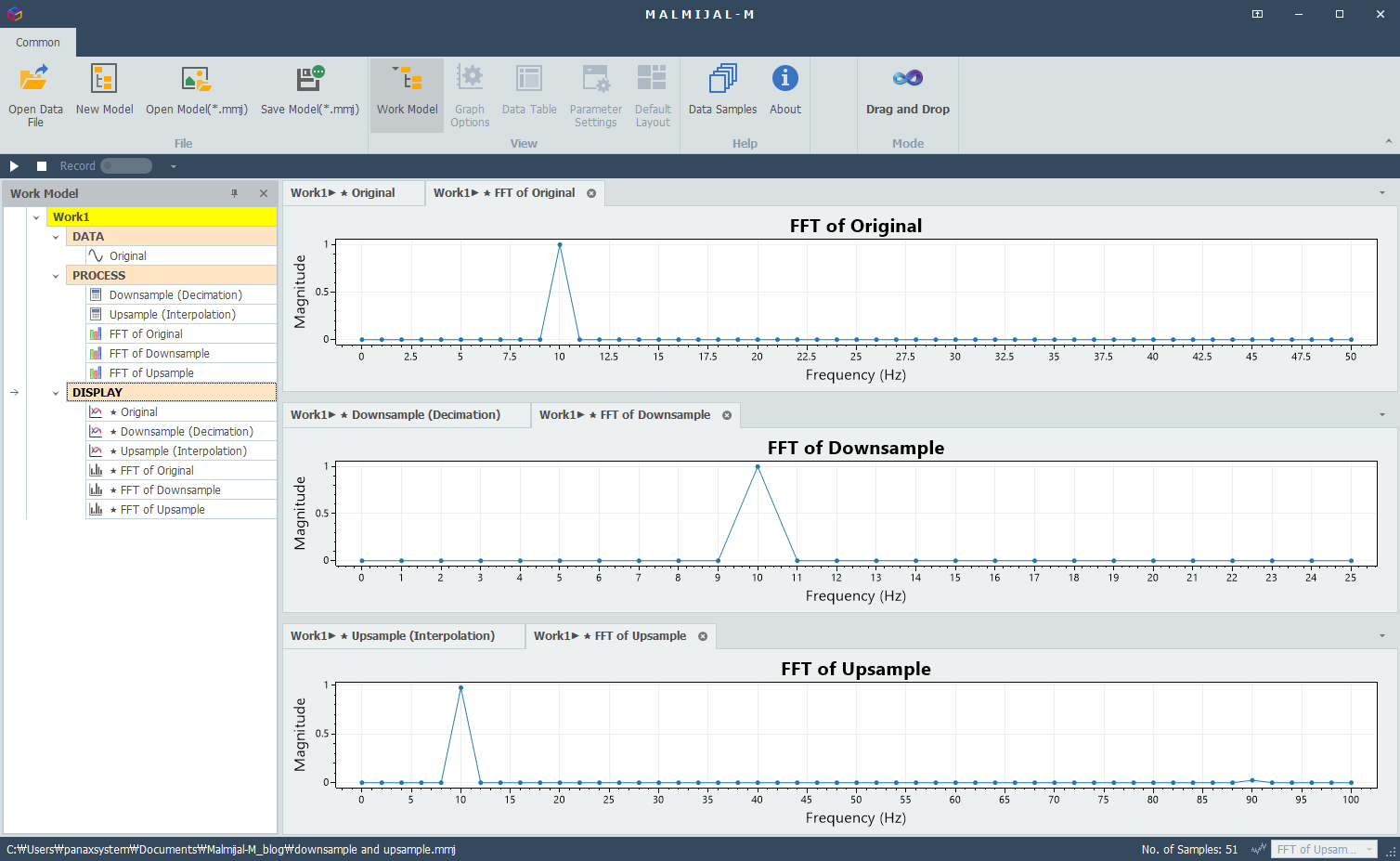

FFT of original, downsampled, and upsampled(interpolated) signals
Key Takeaways
Downsampling removes samples (risking aliasing), while upsampling inserts zeros and requires filtering to reconstruct the signal.ย
- Downsampling โ reduces data (with pre-filtering, anti-aliasing filter)
- Upsampling โ increases data (with post-filtering, anti-imaging filter)
Conclusion
Multirate signal processing enables efficient and flexible signal manipulation by changing sampling frequncies. Proper filtering is essential to preserve signal integrity in multirate systems. Downsampling needs pre-filtering to prevent aliasing, while upsampling needs post-filtering to remove imaging.ย
