Overview
Before interpreting an FFT, an important question arises:
How reliable is the spectrum?
A single FFT provides frequency content, but it does not guarantee statistical stability.
This is where spectral estimation becomes essential.
In practical signal processing (including MALMIJAL), two widely used methods are:
These techniques improve how we estimate the Power Spectral Density (PSD) of a signal.
What Is Spectral Estimation?
Spectral estimation refers to the process of estimating how signal power is distributed across frequency.
Instead of just computing:
- “What frequencies exist?” (FFT)
We ask:
- “How much power exists at each frequency, reliably?”
Periodogram
The Simplest Spectral Estimate

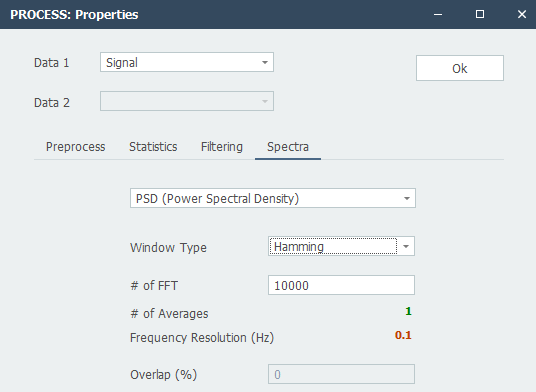

Periodogram: No sement and overlap 0%

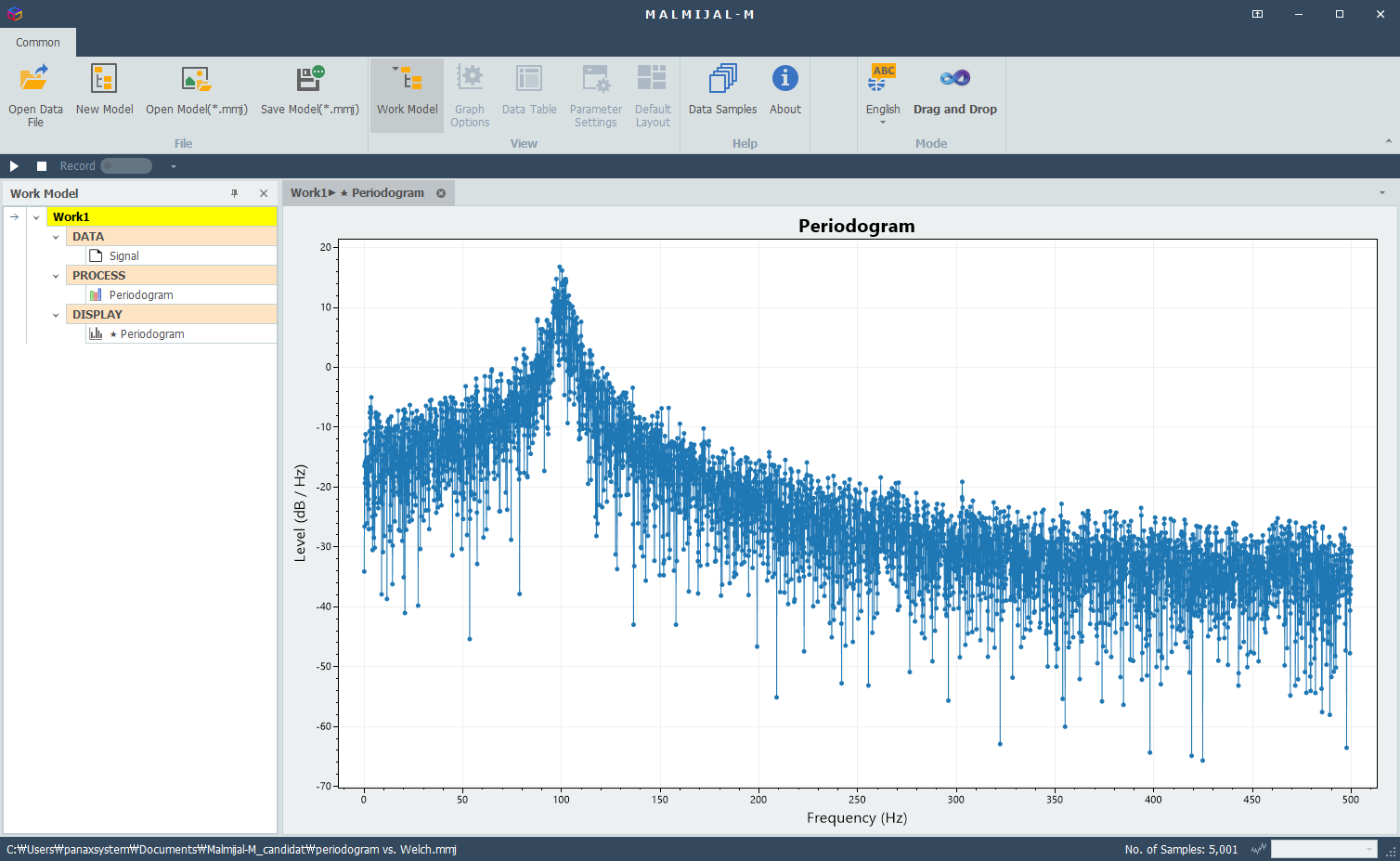

Result of Periodogram
The periodogram is simply:
- Compute FFT of the signal
- Take magnitude squared
Characteristics
| Feature | Description |
|---|
| Simplicity | Very easy to compute |
| Resolution | High (uses full data length) |
| Variance | Very high (no averaging) |
Key Limitation
The periodogram is noisy and unstable.
Even with the same signal, results can fluctuate significantly.
Welch Method
Averaging for Stability

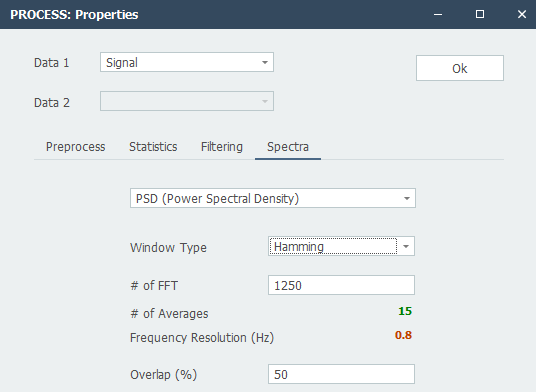

Welch: 8-segemented((10000/8 = 1250) and overlap 50%

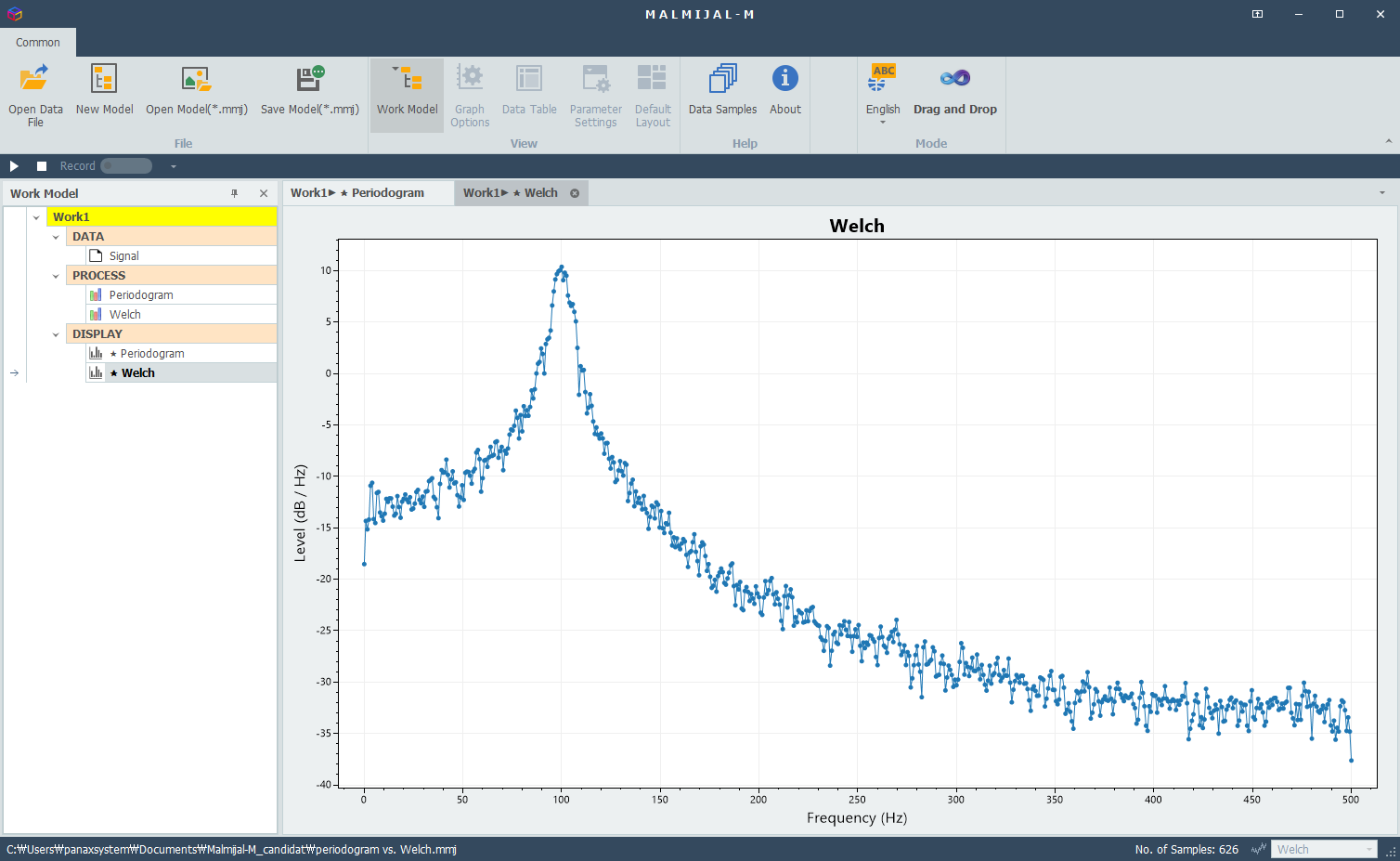

Result of Welch Method
The Welch method improves the periodogram by:
- Splitting signal into segments
- Applying window (e.g., Hamming)
- Computing FFT for each segment and make PSD
- Averaging results
Process Summary
| Step | Description |
|---|
| Segmentation | Divide signal into blocks, typically 8-segements |
| Overlap | Typically 50% overlap |
| Windowing | Reduce leakage (Hanning, Hamming) |
| Averaging | Reduce variance |
Key Advantage
- Dramatically reduces variance
- Produces smooth, stable PSD
Trade-off
| Property | Effect |
|---|
| Variance | ↓ Reduced |
| Frequency resolution | ↓ Slightly worse |
| Reliability | ↑ Much better |
Periodogram vs Welch
| Aspect | Periodogram | Welch |
|---|
| Data usage | Full signal | Segmented |
| Variance | High | Low |
| Resolution | High | Moderate |
| Stability | Poor | Excellent |
| Practical use | Debug/quick view | Enginerring analysis |

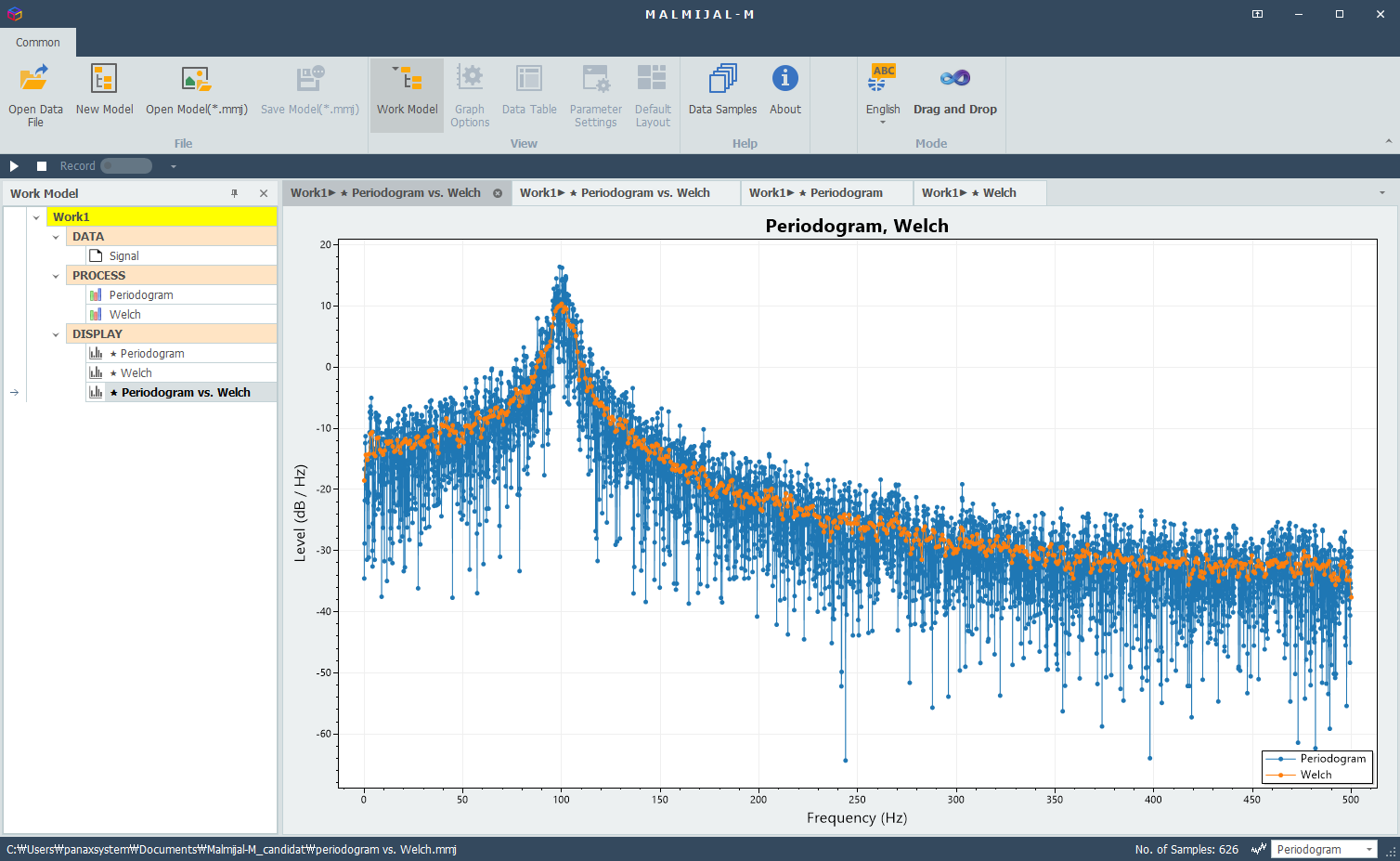

Periodogram vs. Welch Method
Real Impact in MALMIJAL
Case 1: Periodogram
- Sharp peaks but unstable baseline
- Noise floor fluctuates
- Difficult to trust small components
Case 2: Welch
- Smooth noise floor
- Repeatable results
- Small signals become detectable
Especially important in:
- NVH analysis
- SEA / TPA workflows
- Low SNR environments
Key Insight
The key takeaway is:
- FFT alone is not enough
- Spectral estimation improves reliability
- Averaging is essential in real-world data
When Should You Use Each Method?
| Scenario | Recommended Method |
|---|
| Quick frequency check | Periodogram |
| Noise analysis | Welch |
| Acoustic measurement | Welch |
| Low SNR signal | Welch (required) |
| Real-time lightweight | Periodogram |
Practical Guideline (MALMIJAL)
Typical settings:
- Window: Hamming or Hanning
- Overlap: 50%
- nFFT: N / 8 (8-segments)
- Averaging: automatic (Welch)
This balances:
- resolution
- variance
- computational cost
Conclusion
Spectral estimation is not optional—it is essential for reliable frequency analysis.
Without it:
- PSD is noisy
- Results are unstable
- Engineering decisions become unreliable
With Welch method:
- Stable spectrum
- Clear noise floor
- Trustworthy analysis
