Overview
In acoustics, frequency analysis is often simplified using octave bands instead of full FFT spectra.
Two commonly used formats are:
- 1-octave Band
- 1/3-octave Band
Both use logarithmic frequency spacing, but they differ in resolution and purpose.
ย
What Is the Difference?
1-octave Band
Each band spans a factor of 2 in frequency:
- Wide frequency range
- Fewer bands
- Strong smoothing effect
1/3-octave Band
Each octave is divided into 3 smaller bands:
- Narrower bands
- More detail
- Less smoothing
ย
Typical Center Frequenciesย
1-octave Band (9 center frequencies)
31.5, 63, 125, 250, 500, 1000, 2000, 4000, 8000Hz
1/3-octave Band (9*3 = 27 center frequencies)
25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000Hz
Key Differences
| Aspect | 1-octave Band | 1/3-octave Band |
|---|
| Band Width | Wide | Narrower than 1-Octave |
| Resolution | Low | Medium |
| Number of Bands | Few (typically 9) | Many (3 times) |
| Smoothing | Strong | Moderate |
| Detail | Low | Higher |
| Typical Use | Reporting | Engineering |
Why Does This Matter?
1. Resolution vs Simplicity
- 1-octave โ simpler, easier to interpret
- 1/3-octave โ more detailed, better for diagnosis
Trade-off:
2. Tonal Detection
- 1-octave โ may hide narrow peaks
- 1/3-octave โ reveals tonal components
Important for:
- Machinery noise
- Tonal complaints
3. Human Perception
- Both are logarithmic
- 1/3-octave better approximates critical bands
Closer to how humans perceive frequency differences
Comparing 1-Octave vs 1/3-Octave

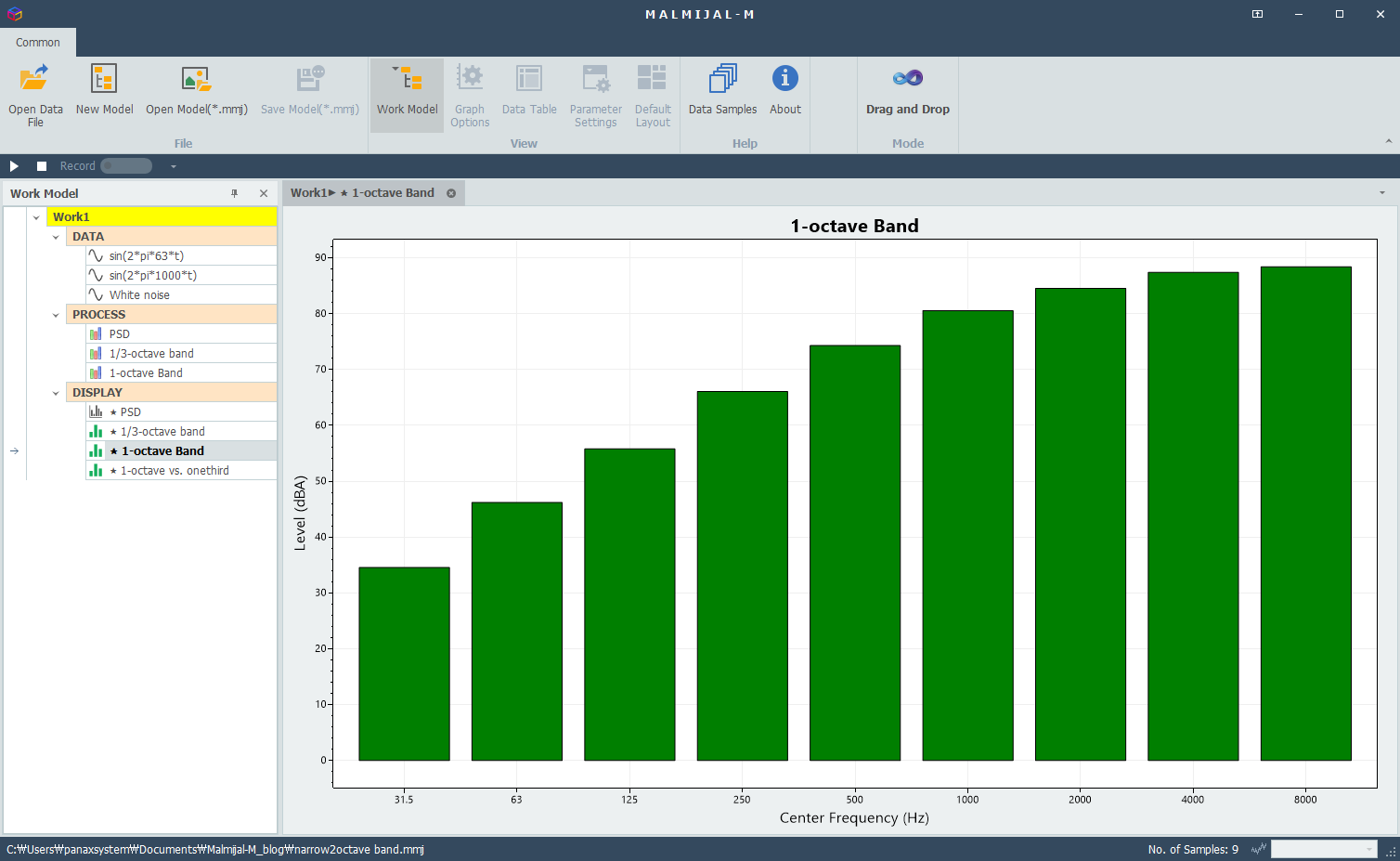

1-octave band analysis resultย

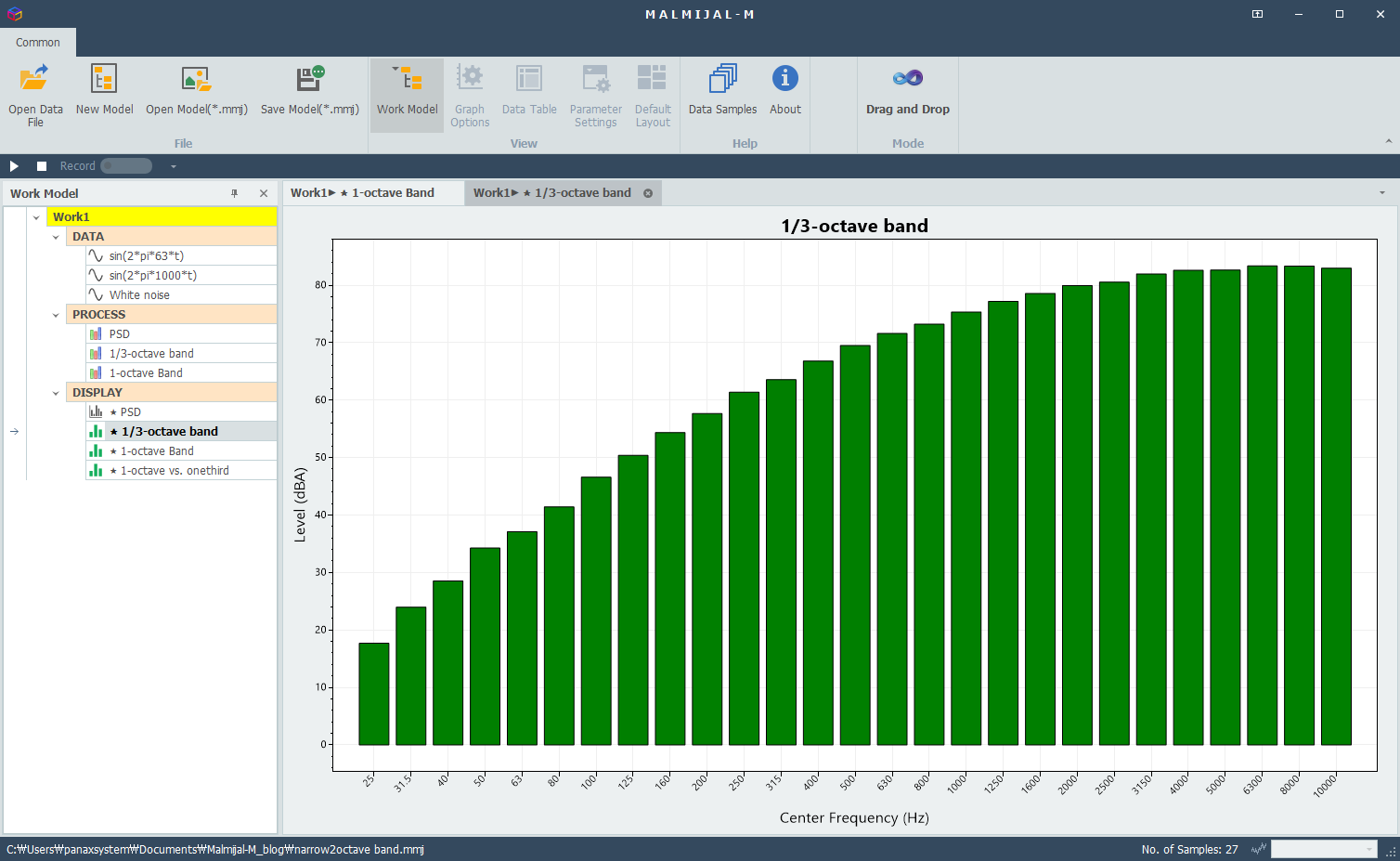

1/3-octave band analysis result

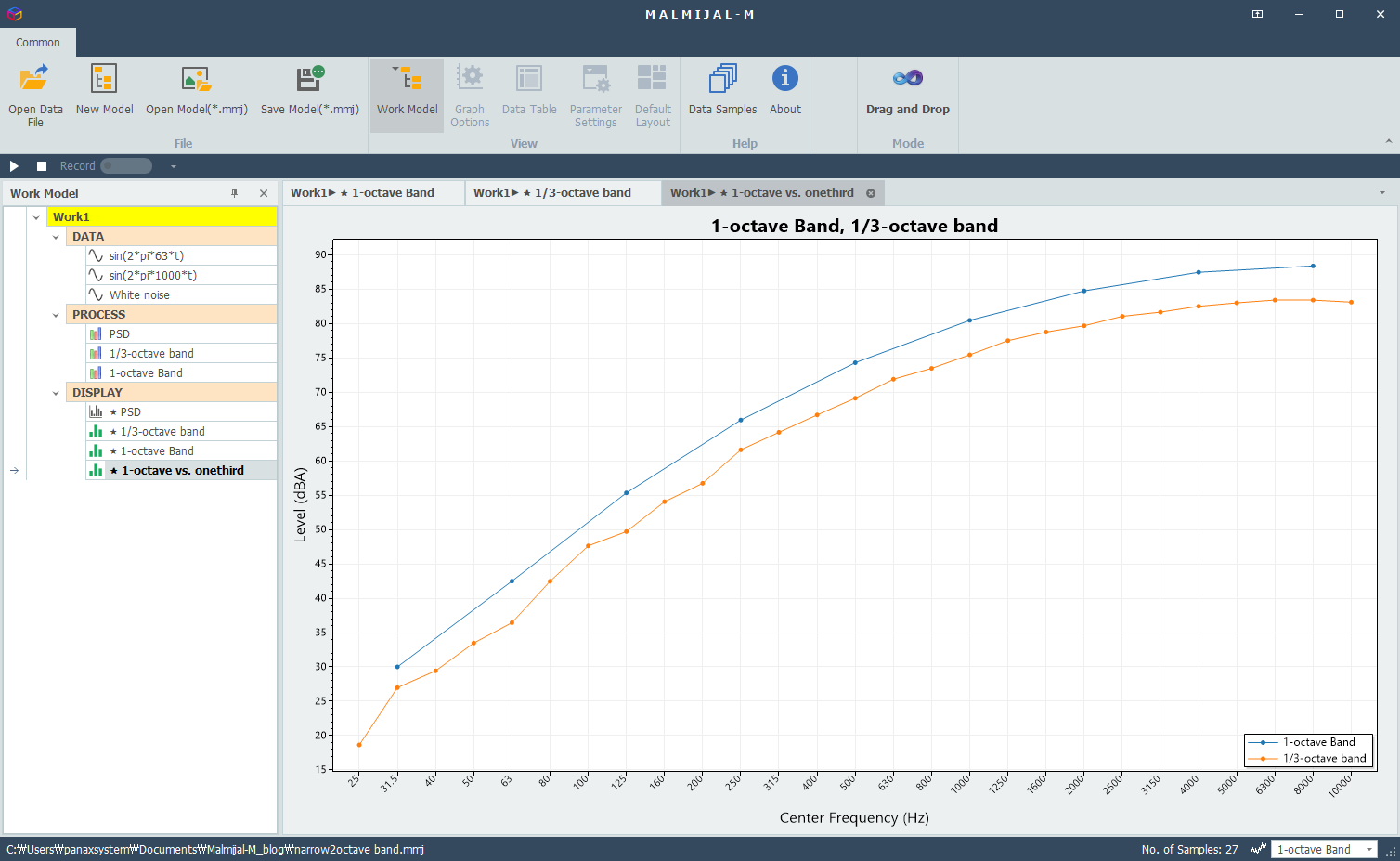

Comparison between 1-octave and 1/3-octave(lower than 1-octave level) band analysis results
Key Takeaways
- 1-octave shows the big picture
- 1/3-octave shows the detailsย
Conclusion
1/3-Octave and 1-Octave bands are not competing methodsโthey are complementary.
- 1-octave โ simplicity and reporting
- 1/3-octave โ detail and analysis
