Introduction
In frequency-domain analysis, much attention is often given to magnitude spectra, while phase information is frequently overlooked. However, the phase spectrum plays a critical role in signal reconstruction and interpretation.
A Fourier transform produces complex-valued output:
where ∣X(f)∣ represents magnitude and ∠X(f) represents phase.
Why Phase Is Important
The phase spectrum encodes information about time alignment and structure of the signal. Two signals with identical magnitude spectra but different phase spectra can produce entirely different waveforms in the time domain.
This becomes especially important in:
What Is Phase?
Phase describes the relative position (shift) of a signal in time.

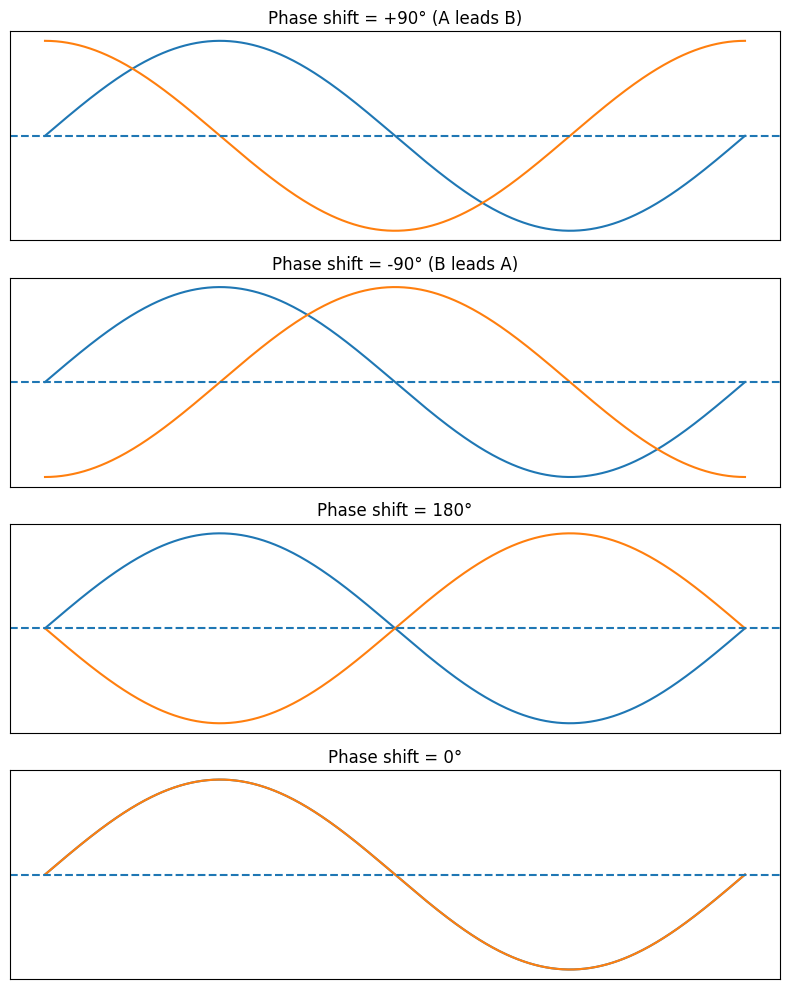

Phase Relationships Between Sinusoidal Waveforms
Simple Example
Consider two signals:
They have same frequency and amplitude but one is shifted in time.

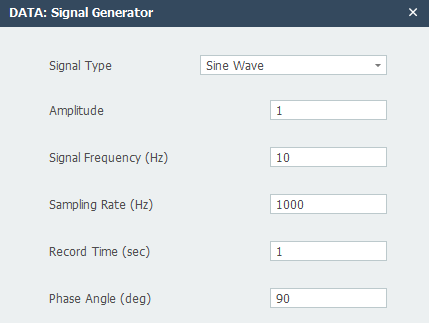

Set phase parameter 90°

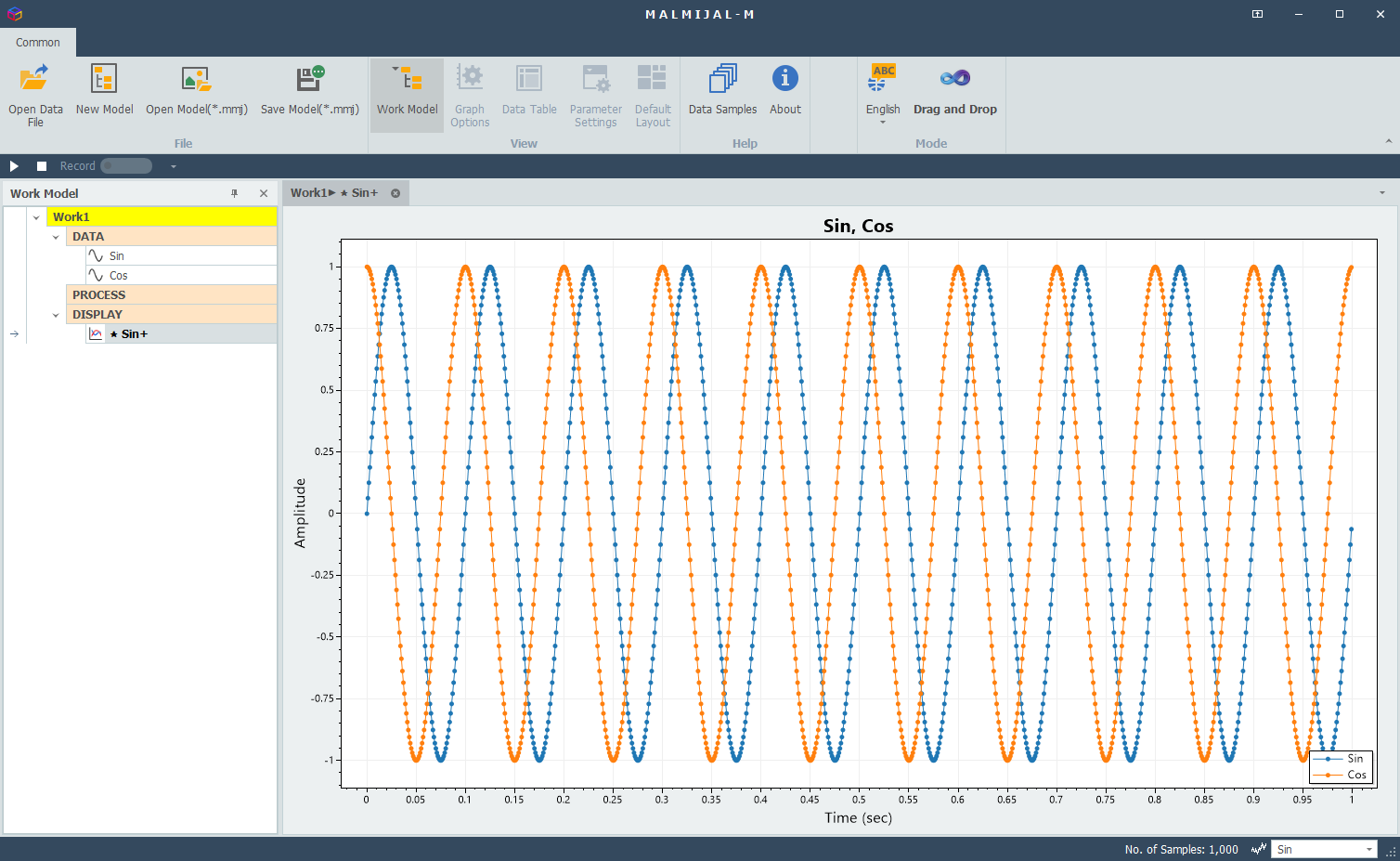

Cosine wave as a sine wave with a 90° phase shift
Core Interpretation
Why Phase Is Critical?
Signal Shape Depends on Phase
Phase Represents Time Delay
Real Engineering Meaning
In practical tools like MALMIJAL:
Phase is used for:

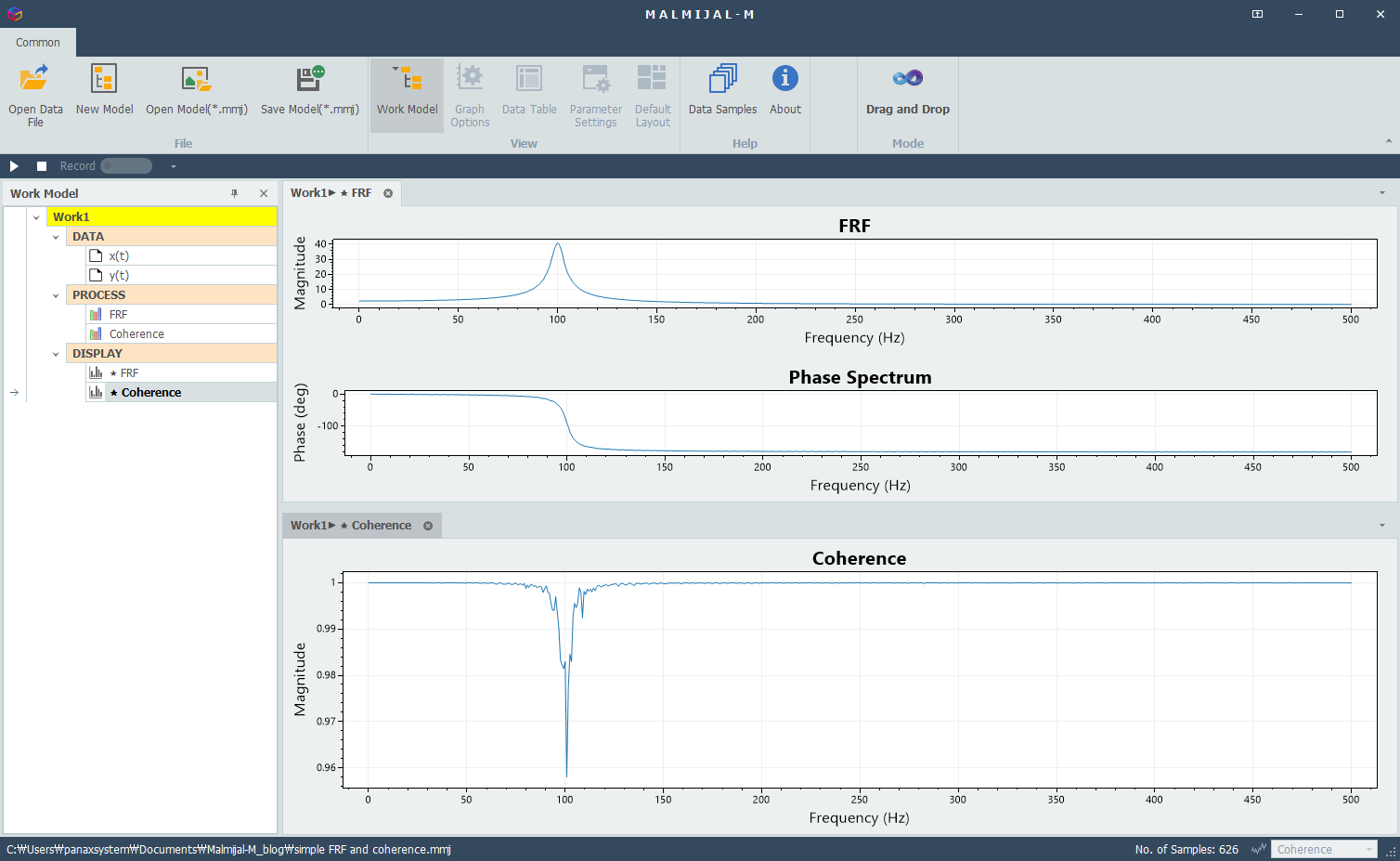

FRF and its coherence
Suggested Further Reading
