Introduction
In real-world signals, especially audio and vibration signals, the relationship between peak amplitude and average energy (RMS) is not fixed. Two signals may share the same peak value, yet sound or behave completely differently.

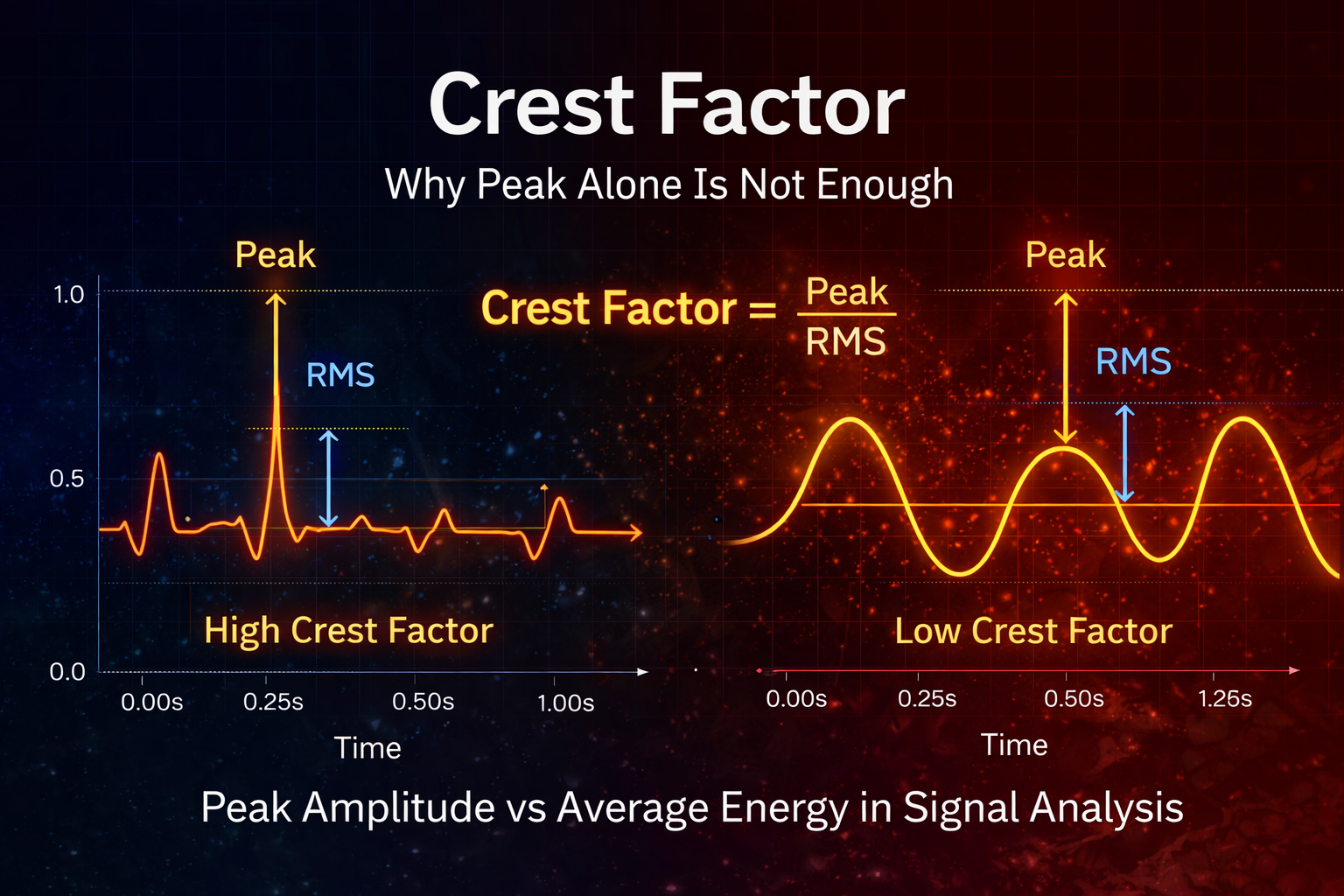

This gap between instantaneous peaks and sustained energy is quantified using the Crest Factor.
where:
In decibel form:
Why Crest Factor Exists
Crest Factor emerged from a very practical engineering problem:
Engineers realized that peak amplitude alone cannot represent how “intense” or “loud” a signal feels or behaves.
Consider two extreme cases:
| Signal Type | Peak | RMS | Perceived Loudness |
|---|
| Impulse signal | High | Very low | Not loud (short duration) |
| Sine wave | Same peak | High | Much louder |
This mismatch created confusion in:
- Audio engineering (why does this signal clip but not sound loud?)
- Electrical systems (why does equipment overload despite low RMS?)
- Vibration analysis (why do small signals still cause damage?)
Crest Factor was introduced to capture signal “peakedness” — how extreme the peaks are relative to its energy.
Intuition: What Crest Factor Really Means
Crest Factor answers a simple but powerful question:
“How spiky is this signal?”
- Low Crest Factor (~1.4 for sine wave)
→ Energy is evenly distributed
→ Smooth and continuous signal - High Crest Factor (>5, >10)
→ Rare but very large peaks
→ Impulsive or transient signal
Typical Values
| Signal | Crest Factor |
|---|
| DC signal | 1 |
| Sine wave | √2 ≈ 1.414 |
| Square wave | 1 |
| Music / speech | 3 ~ 10 |
| Impulse-like signal | Very high |

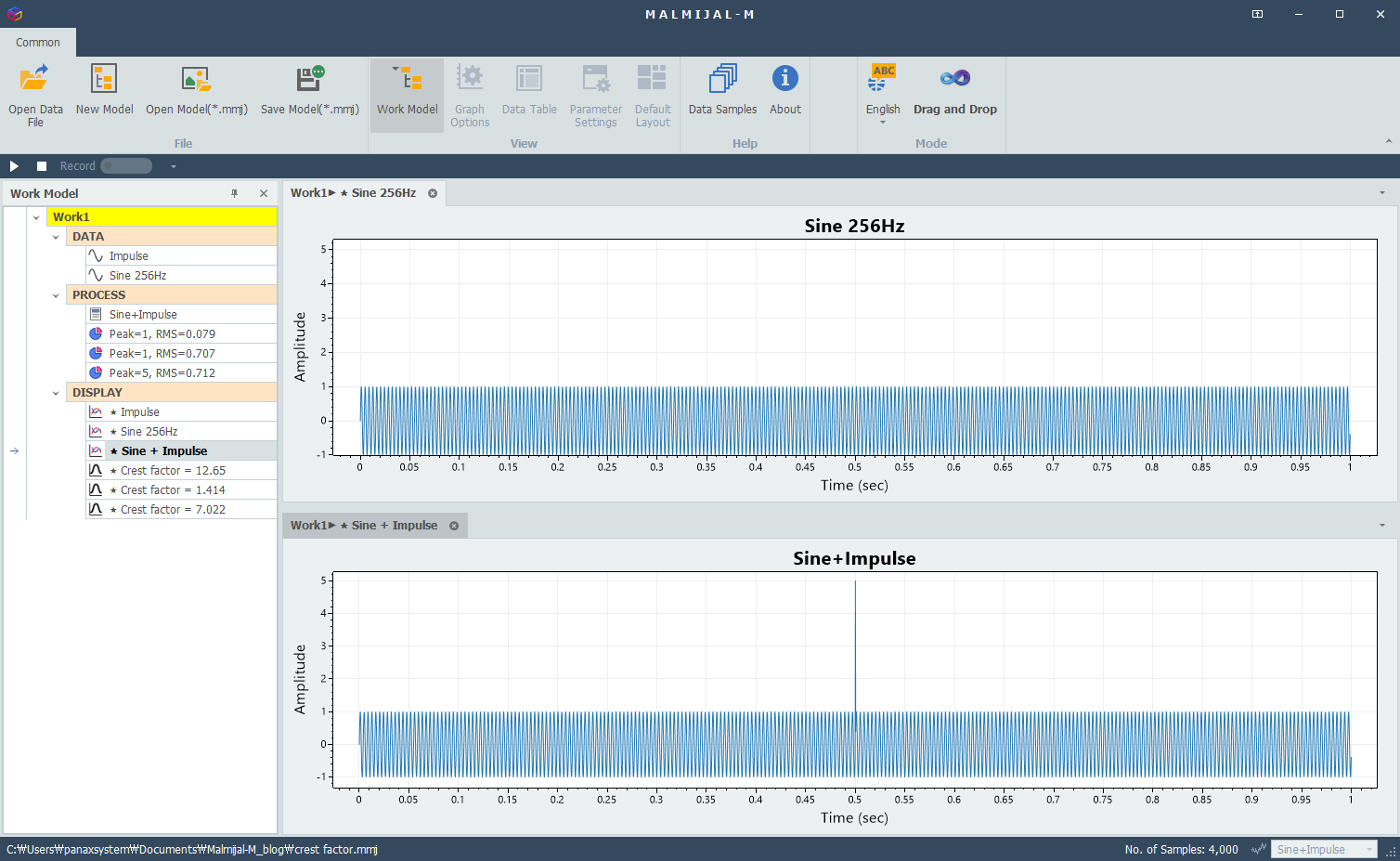

Similar values of RMS of Sine wave (0.707) and Sine+Impulse (0.712)

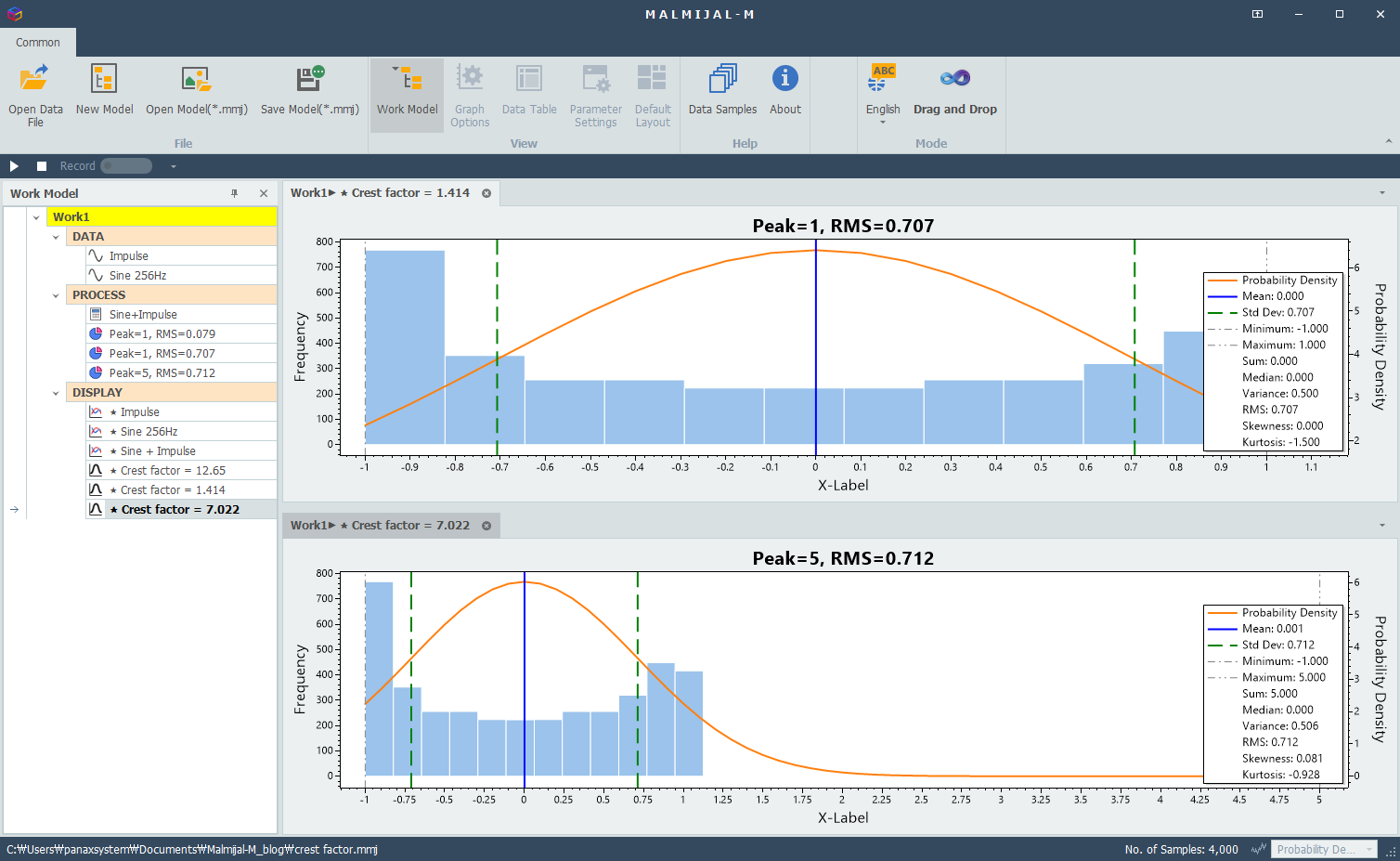

Different values of CF of Sine wave (Peak / RMS = 1 / 0.707 = 1.414) and Sine+impulse (5 / 0.712 = 7.022)

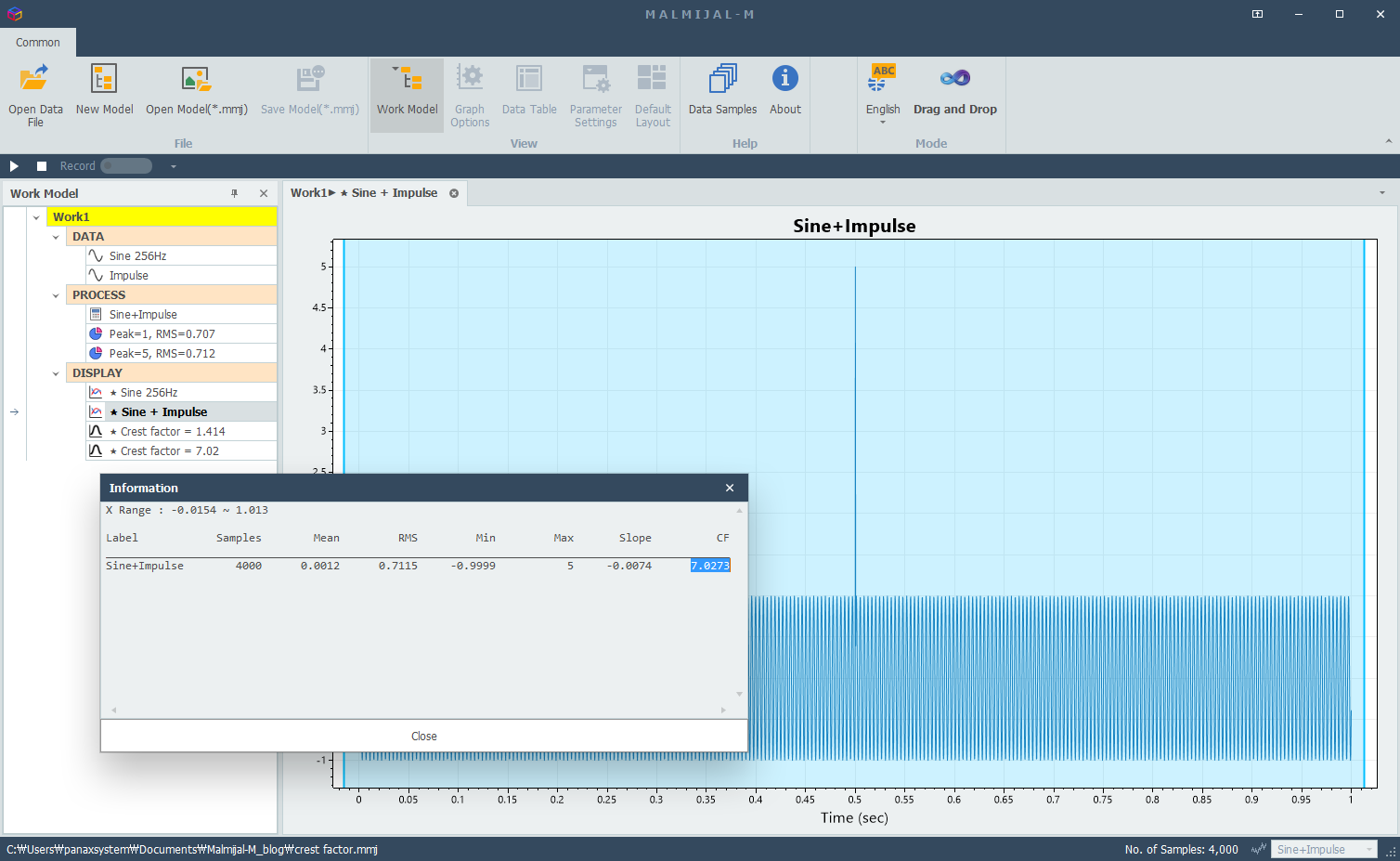

More intuitive and accurate method to check CF(Crest Factor) in MALMIJAL, Ctrl+Shift+Click+Drag&Drop all range
Connection to Loudness
Now the important part — how it relates to perceived loudness.
1. Human hearing is energy-based (RMS-like)
Perceived loudness depends primarily on:
- Average energy over time (RMS)
- Frequency sensitivity
- Temporal integration (~200 ms window)
NOT peak amplitude
2. High Crest Factor = Lower Loudness (for same peak)
Two signals with identical peaks:
- High crest factor → low RMS → sounds quieter
- Low crest factor → high RMS → sounds louder
This explains:
3. Loudness normalization reduces Crest Factor
Modern audio processing (streaming, broadcasting):
- Uses compression & limiting
- Reduces peaks
- Increases RMS
Result: Lower Crest Factor → Higher perceived loudness
Crest Factor and Listening Fatigue
In audio discussions, it is often claimed that genres such as EDM tend to cause listening fatigue due to their low crest factor, while classical music feels more comfortable because of its higher crest factor. While this statement contains some truth, it requires a more precise interpretation.
Crest factor itself is not the direct cause of listening fatigue. Instead, it reflects the relationship between peak amplitude and average signal energy (RMS), which plays a more critical role in perception.
In heavily compressed audio such as EDM, dynamic range is reduced and RMS levels are consistently high. This leads to a low crest factor, meaning the signal maintains a high energy level over time. Because the human auditory system integrates sound energy over short time windows, this sustained intensity leaves little room for perceptual “rest,” resulting in increased listening fatigue.
In contrast, classical music typically exhibits a high crest factor due to its wide dynamic range. Quiet passages are interspersed with louder moments, allowing the auditory system to recover between peaks. As a result, even when peak amplitudes are high, the overall perceived loudness and fatigue remain lower.
Therefore, crest factor should be understood as an indicator rather than a cause. Listening fatigue is more directly influenced by sustained RMS levels, spectral content (especially in sensitive frequency ranges), and temporal density. Crest factor simply reflects how these elements are distributed within the signal.
Practical Meaning Across Fields
Audio Engineering
- High crest factor → dynamic, natural sound
- Low crest factor → compressed, loud sound
Trade-off:
Signal Processing / DSP
- Crest Factor indicates signal distribution
- Useful for:
- Feature extraction
- Event detection
- Transient identification
Mechanical / Vibration Analysis
- High crest factor → impacts, faults, shocks
- Used in:
- Bearing fault detection
- Structural health monitoring
Electronics / Power Systems
- High crest factor signals:
- Stress components
- Cause unexpected failures
- Require higher headroom
Practical Example in MALMIJAL
Extract RMS and Crest Factor

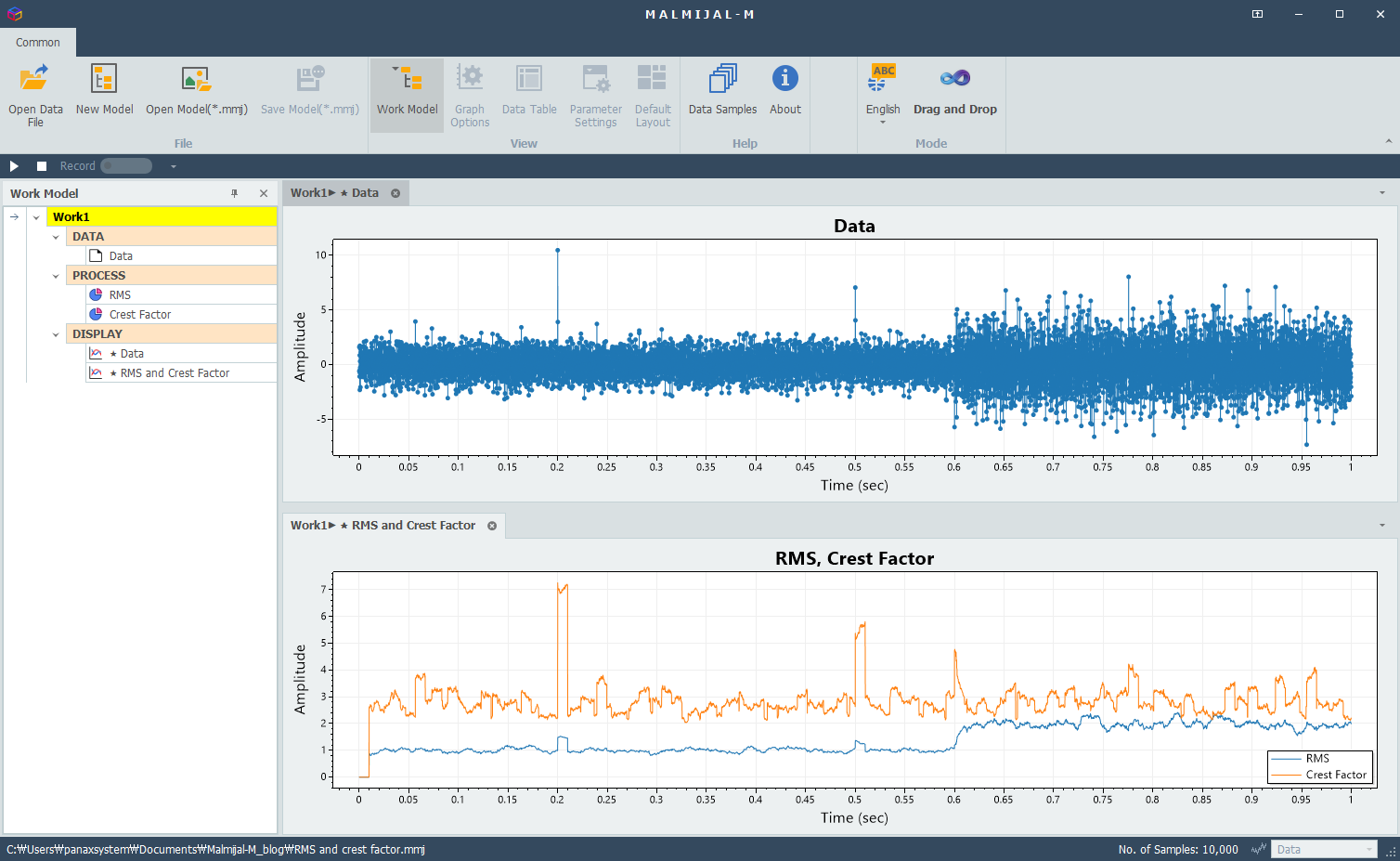

Extract RMS and Crest Factor from the raw data by sliding window (100samples)
Intuitive Summary
If RMS tells you:
“How strong is this signal on average?”
Then Crest Factor tells you:
“How extreme are its peaks compared to its average energy?”
Key Insight
- Peak amplitude → instantaneous maximum
- RMS → sustained energy
- Crest Factor → relationship between the two
Loudness is not determined by peak
It is governed by energy (RMS)
Crest Factor explains why these two can differ dramatically
