Introduction
Digital audio files are often described using a wide range of technical parameters: sample rate, bit depth, bitrate, codec, and many others. While these terms are commonly listed together, they represent fundamentally different aspects of how audio is captured, stored, compressed, and reproduced.
Understanding these parameters is not just about memorizing definitions. It is about recognizing how they interact to determine:
- Signal fidelity
- Storage efficiency
- Perceptual quality
- System compatibility
This article provides a structured and in-depth explanation of the key parameters that define digital audio.
Core Signal Representation Parameters
These define how the original analog signal is digitized.
Sample Rate (Sampling Frequency)
The sample rate defines how many samples per second are taken from a continuous-time signal.
(Nyquist criterion)
Why it matters
- Determines maximum representable frequency
- Controls time resolution
Typical values
Use Case
| Sample Rate
|
|---|
CD Audio
| 44.1 kHz
|
Video / Pro Audio
| 48 kHz
|
High-resolution audio
| 96 kHz / 192 kHz
|
Bit Depth
Bit depth defines the number of discrete amplitude levels.
Why it matters
- Controls quantization noise
- Determines dynamic range
Where does 6.02 come from?
Dynamic range is defined as the ratio between the maximum signal level and the quantization noise floor.
For an N-bit system, the number of quantization levels is 2N.
The dynamic range in decibels is:
20 log10(2N) = 20 × N × log10(2)
Since log10(2) ≈ 0.301
20 × 0.301 ≈ 6.02
Thus
Dynamic Range ≈ 6.02N dB
Typical values
Use Case
| Bit Depth
| Dynamic Range
|
|---|
Consumer audio
| 16-bit
| 16 × 6.02 ≈ 96 dB
|
Studio recording
| 24-bit
| 24 × 6.02 ≈ 144 dB
|
Internal DSP
| 32-bit float
| 32 × 6.02 ≈ 193 dB
|
More precise
When quantization noise is modeled as a uniform random signal, the actual dynamic range becomes:
Dynamic Range ≈ 6.02N + 1.76 dB
The additional 1.76 dB accounts for the statistical distribution of quantization noise.
Channels
Channels represent independent audio streams.
Common configurations
Type
| Description
|
|---|
Mono
| Single channel
|
Stereo
| Left + Right
|
5.1 / 7.1
| Surround sound
|
Why it matters
- Spatial perception
- Directionality
- Immersion
Duration
The total length of the audio signal.
Why it matters
- Directly affects file size
- Defines time-domain coverage
Data Rate and Storage Parameters
Digital audio storage behaves very differently depending on whether the signal is stored as raw PCM data or as a compressed format.
For this reason, it is essential to distinguish between parameters that apply to:
- Uncompressed audio (e.g., WAV)
- Compressed audio (e.g., MP3, AAC)
Bitrate (Compressed Audio Context)
Bitrate refers to the amount of data used per second:
Important Clarification
Bitrate (e.g., 128 kbps, 320 kbps) is a quantity, not a mode.
Bitrate Control Modes
CBR, VBR, and ABR are not different types of bitrate—they are encoding strategies:
Mode
| Description
|
|---|
CBR (Constant Bitrate)
| Fixed data rate throughout
|
VBR (Variable Bitrate)
| Allocates bits dynamically based on complexity
|
ABR (Average Bitrate)
| Targets an average bitrate over time
|
Key Insight
These modes are primarily used in lossy compression codecs such as MP3, AAC, and Opus.
PCM Data Rate (Uncompressed Audio)
For uncompressed PCM audio (e.g., WAV), data rate is determined directly by signal parameters:
where:
- fs : sample rate
- N : bit depth
- C : number of channels
Example
44.1 kHz, 16-bit, stereo:
(≈ 1.4 Mbps)
Byte Rate (PCM-Specific)
Byte rate is the number of bytes per second:
Where It Applies
- Primarily used in WAV / PCM formats
- Defined explicitly in file headers
Why It Matters
- Playback timing
- Buffering
- Streaming raw PCM data
Block Align (PCM-Specific)
Block align defines the number of bytes per sample frame:
Interpretation
- One “frame” = all channel samples at a given time instant
- Ensures correct decoding alignment
Key Point
Block align is meaningful only for interleaved PCM data
Why These Concepts Do Not Apply to Compressed Audio
In compressed formats:
- Data is not stored as fixed-size samples
- Frames vary in size
- Bit allocation is dynamic
Therefore:
Parameter
| PCM
| Compressed
|
|---|
Sample Rate
| ✔
| ✔
|
Bit Depth
| ✔
| ❌ (implicit)
|
Byte Rate
| ✔
| ❌
|
Block Align
| ✔
| ❌
|
Bitrate
| ❌
| ✔
|
Compression and Encoding Parameters
Codec
A codec defines how audio is compressed and reconstructed.
Two Major Categories
Type
| Examples
|
|---|
Lossless
| FLAC, ALAC
|
Lossy
| MP3, AAC, Opus
|
Key Role
- Determines compression efficiency
- Defines perceptual trade-offs
Container Format
A container defines how encoded data is stored.
Important Distinction
A container does not define how audio is compressed.
Examples
Container
| Codec Inside
|
|---|
WAV
| PCM
|
MP4
| AAC
|
MKV
| Multiple
|
Compression Ratio
Typical Values
Format
| Ratio
|
|---|
FLAC
| ~2:1
|
MP3
| ~10:1
|
Encoder
The encoder is the implementation of a codec.
Why It Matters
Even with the same codec:
- Different encoders produce different results
- Psychoacoustic models vary
Example
- LAME MP3 encoder vs older encoders
Perceptual and Signal Quality Parameters
Audio Quality
Not a single measurable value.
Depends on:
- Bitrate
- Codec
- Psychoacoustic model
- Listening environment
Bandwidth
The frequency range represented.
Example
System
| Bandwidth
|
|---|
Telephone
| ~300 - 3400 Hz
|
CD Audio
| ~20 Hz - 22 kHz (Audible Frequency)
|
Dynamic Range
Difference between minimum and maximum signal levels.
Why it matters
- Determines expressive detail
- Affects perceived loudness
Data Representation Details
Endianness
Defines byte order.
Type
Type
| Description
|
|---|
Little-endian
| Least significant byte first
|
Big-endian
| Most significant byte first
|
Why it matters
- Cross-platform compatibility
- Binary interpretation
PCM vs Floating Point
Type
| Description
|
|---|
PCM
| Integer representation
|
Float
| Higher precision, avoids clipping
|
Additional Advanced Parameters
Quantization Type
- Uniform
- Non-uniform (μ-law, A-law)
Dithering
- Randomizes quantization error
- Reduces distortion
Noise Shaping
- Moves noise to less audible frequencies
Interleaving
- Multi-channel data arrangement
Frame Size
- Defines chunk size in compressed formats
Latency
- Delay introduced by processing
Jitter
- Timing variation in sampling
Psychoacoustic Model
- Used in lossy codecs
- Removes inaudible components

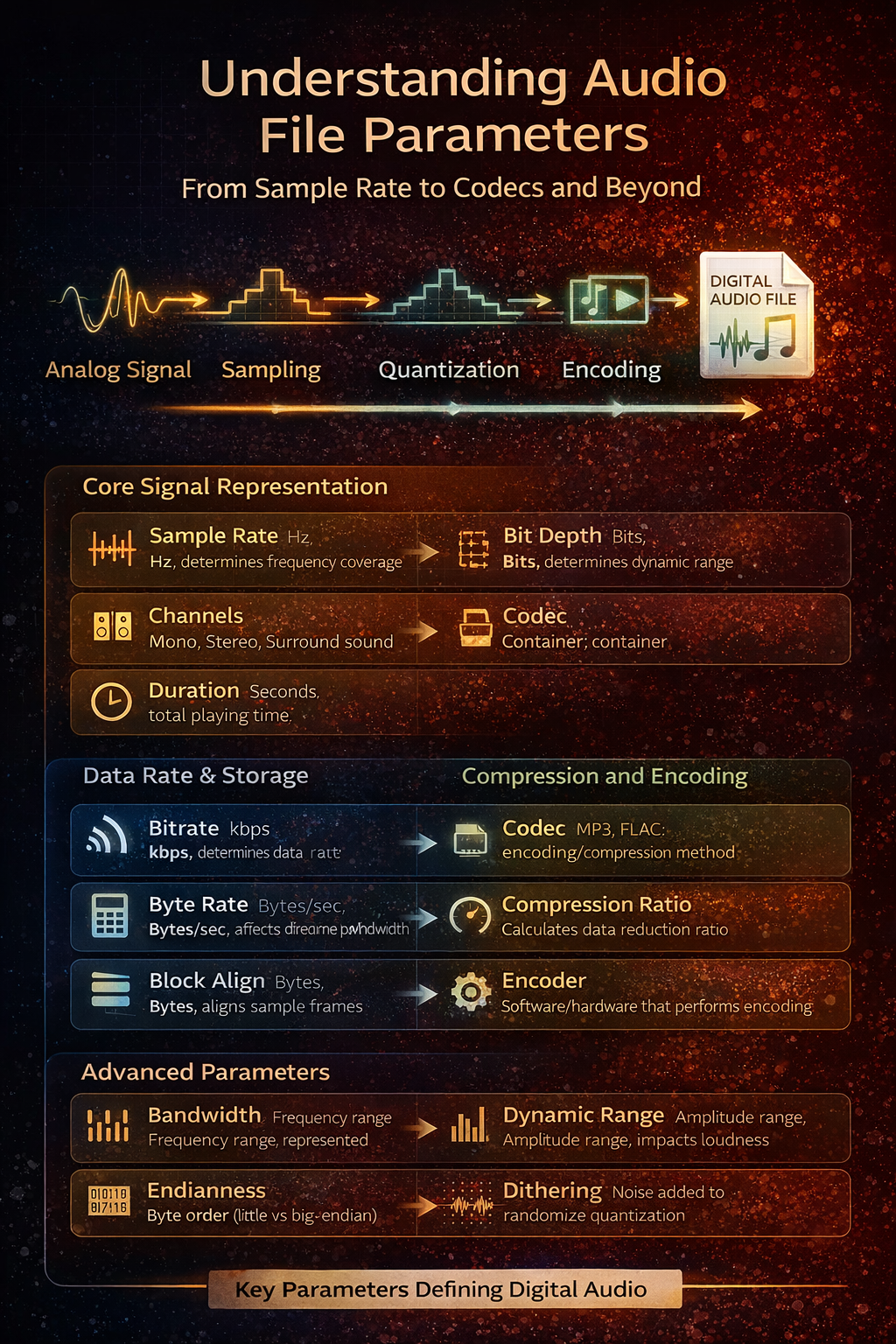

How Everything Connects
Analog Signal
↓ Sampling (Sample Rate)
↓ Quantization (Bit Depth)
↓ Encoding (Codec → compression)
↓ Packaging (Container → file format)
↓ Storage / Transmission (Bitrate involved)
Audio file
Key relationship
Parameter
| Role
|
|---|
Sample Rate
| Maximum representable frequency range
|
Bit Depth
| Amplitude resolution
|
Bitrate
| Data rate controlling compression quality
|
Codec
| Compression algorithm (lossy or lossless)
|
Container
| File format encapsulating encoded audio streams and metadata
|
Practical Engineering Insight
Audio Production
- High sample rate → improved editing flexibility (e.g., time-stretching, pitch shifting)
- High bit depth → increased headroom and reduced quantization noise
Streaming
- Low bitrate → reduced bandwidth usage and faster transmission
- High compression → potential quality degradation (depending on codec efficiency)
Real-time Systems
- Low latency is critical
- Block size affects latency and computational load
Key Insight
Digital audio is not defined by a single parameter.
It is the result of multiple interacting design choices across sampling, quantization, compression, and representation.
Trade-offs are unavoidable: improving one parameter often impacts others.
