Analog vs Digital Signal Processing: Sampling, Quantization, and Reconstruction Explained
Modern systems rely on a fundamental transformation: Converting continuous real-world signals into digital data, and back again. The physical world is continuous, but digital systems operate on discrete values.

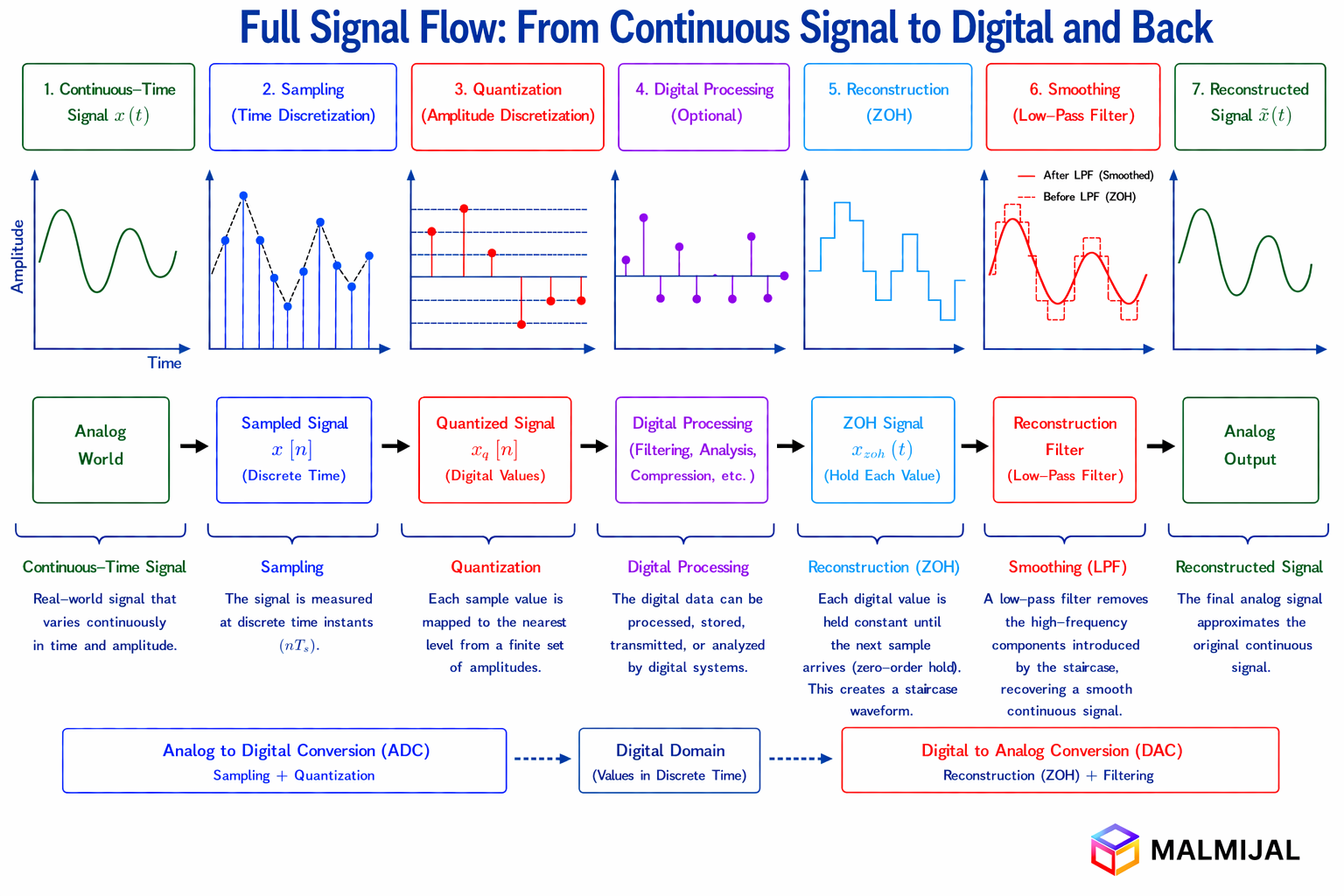

This mismatch is resolved through three key processes
- Sampling
- Quantization
- Reconstruction
The Core Problem
Real-world signals (sound, light, motion) vary continuously, but computers require
- Discrete time points
- Finite numerical values
So the central question is "How can a continuous signal be represented digitally and then reconstructed back into a usable physical signal?"
1. Sampling — Discretizing Time
Sampling converts a continuous signal into a sequence of measurements taken at specific time intervals.
- Continuous-time signal → discrete time points
- Only selected moments are observed
Intuition
Like taking frames in a video.
Sampling Rate
Higher sampling rates capture more detail and preserve higher-frequency components, while lower sampling rates may miss information and cause aliasing.
2. Quantization — Discretizing Amplitude
After sampling, each value must be mapped to a finite set of levels.
- Continuous amplitude → discrete levels
- Introduces approximation (quantization error)
Intuition
A smooth curve is forced onto a staircase.
Sampling vs Quantization
- Sampling → time axis
- Quantization → amplitude axis
Sampling slices when, quantization limits how much
3. Reconstruction — Returning to Continuous Signals
Digital data must be converted back into a physical signal.
This is reconstruction.
- Stored values → time-varying signal
- Required for speakers, displays, actuators
Zero-Order Hold (ZOH): The First Reconstruction Step
A common conceptual model is Zero-Order Hold (ZOH):
- Each sample value is held constant until the next one
- Produces a staircase waveform
However, ZOH is not the final signal, but an intermediate representation
Smoothing via Reconstruction Filter
The staircase signal contains artificial high-frequency components.
To recover a smooth signal:
- A low-pass filter is applied (anti-imaging/reconstruction filtering)
- Removes sharp transitions
- Approximates the original continuous waveform
Why This Matters
These processes are not just limitations—they enable
- Storage
- Transmissions
- Processing
- Automation
They are the foundation of
- Audio systems
- Cameras
- Sensors
- Medical devices
- Consumer electronics
Key Insights
- Sampling defines when we observe
- Quantization defines how precisely we represent
- Reconstruction defines how we return to reality
These are not imperfections, but the essential structure that makes digital signal processing possible.
Conclusion
Sampling discretizes time, quantization discretizes amplitude, and reconstruction restores a continuous signal from digital data.
