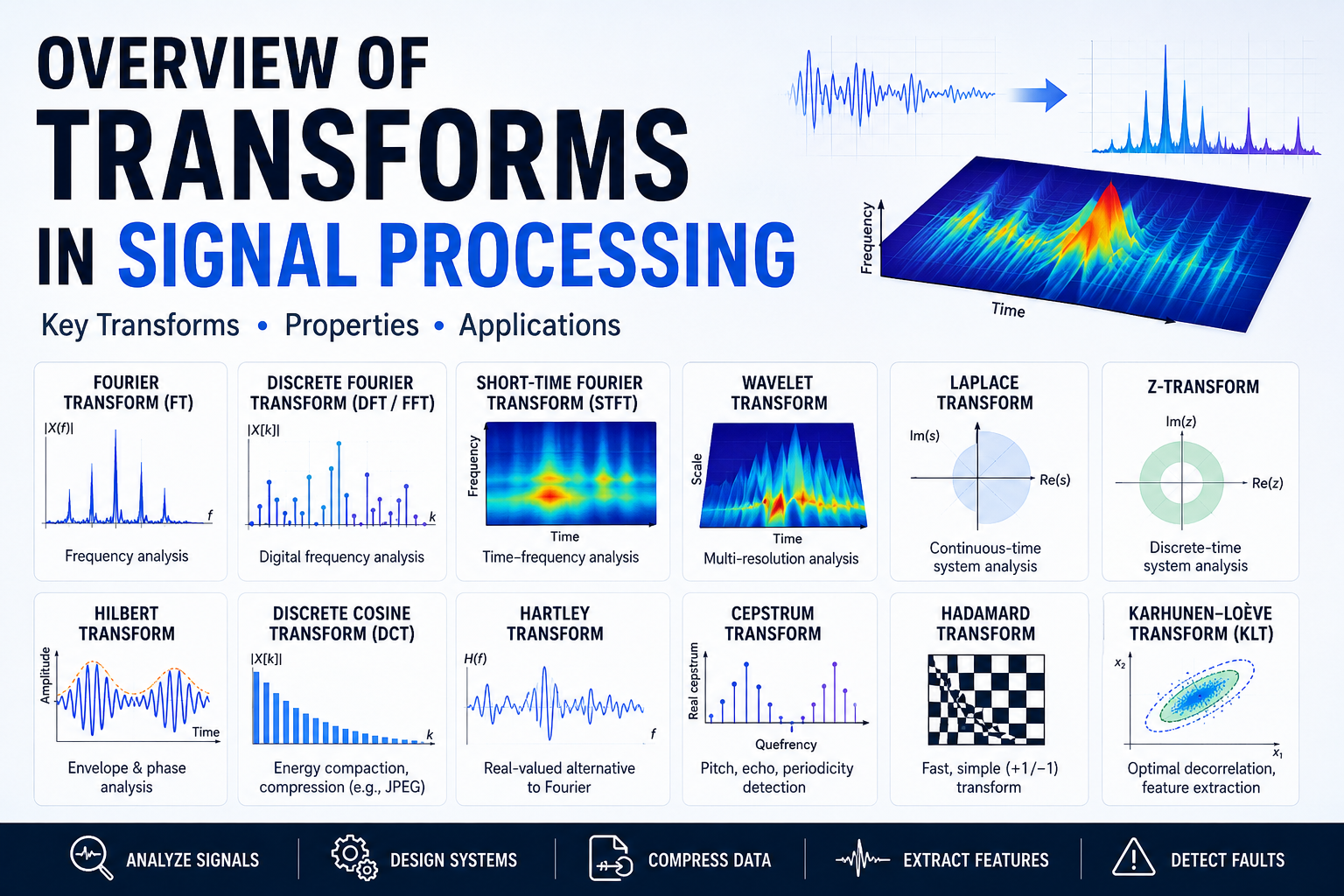

Overview of Transforms in Signal Processing
In signal processing, a transform is a mathematical operation that converts a signal from one representation into another.
The purpose of a transform is to make signal analysis, filtering, compression, feature extraction, or system modeling easier.
Most transforms convert signals from the
- Time domain → Frequency domain
- or into a joint time-frequency representation
Different transforms are designed for different types of signals and applications.
Why Are Transforms Important?
A signal may look complicated in the time domain but become much easier to interpret after transformation.
For example,
- A vibration signal may reveal clear frequency peaks after an FFT.
- A transient fault may become visible in a wavelet transform.
- A modulated signal may reveal its envelope using the Hilbert transform.
Transforms allow engineers to
- Identify dominant frequencies
- Detect faults or anomalies
- Analyze system dynamics
- Compress data
- Remove noise
- Extract hidden patterns
1. Fourier Transform (FT)
The Fourier Transform is the foundation of modern signal processing.
It decomposes a signal into sinusoidal frequency components.
Main Idea
A complex signal can be represented as a sum of sine and cosine waves.
Applications
- Spectrum analysis
- Acoustics
- Communications
- Vibration analysis
Limitation
The Fourier Transform provides frequency information but loses time localization.
2. Discrete Fourier Transform (DFT)
The DFT is the digital version of the Fourier Transform.
It analyzes finite-length sampled signals.
Features
- Used in digital signal processing
- Produces discrete frequency bins
- Implemented numerically
3. Fast Fourier Transform (FFT)
The FFT is an efficient algorithm for computing the DFT.
Importance
Without FFT, modern DSP would be impractical for large datasets.
DFT: O (N2)
FFT: O (N log N)
Applications
- Real-time spectrum analyzers
- Audio processing
- Medical devices
- Rotating machinery diagnostics

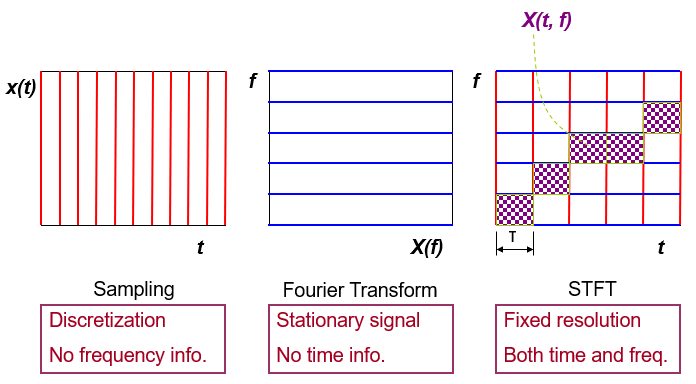

4. Short-Time Fourier Transform (STFT)
The STFT analyzes how frequency content changes over time.
A sliding window is applied to the signal before performing the Fourier Transform.
Applications
- Speech analysis
- Music analysis
- Non-stationary signals
- Spectrogram generation
Trade-Off
STFT suffers from a time-frequency resolution trade-off.

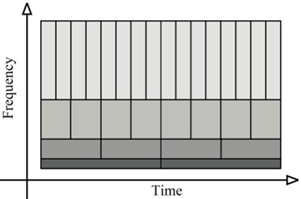

5. Wavelet Transform
The Wavelet Transform provides multi-resolution time-frequency analysis.
Unlike STFT, wavelets use variable-sized windows.
Advantages
- Good time resolution at high frequencies
- Good frequency resolution at low frequencies
Applications
- Fault detection
- Biomedical signals
- Image compression
- Transient analysis

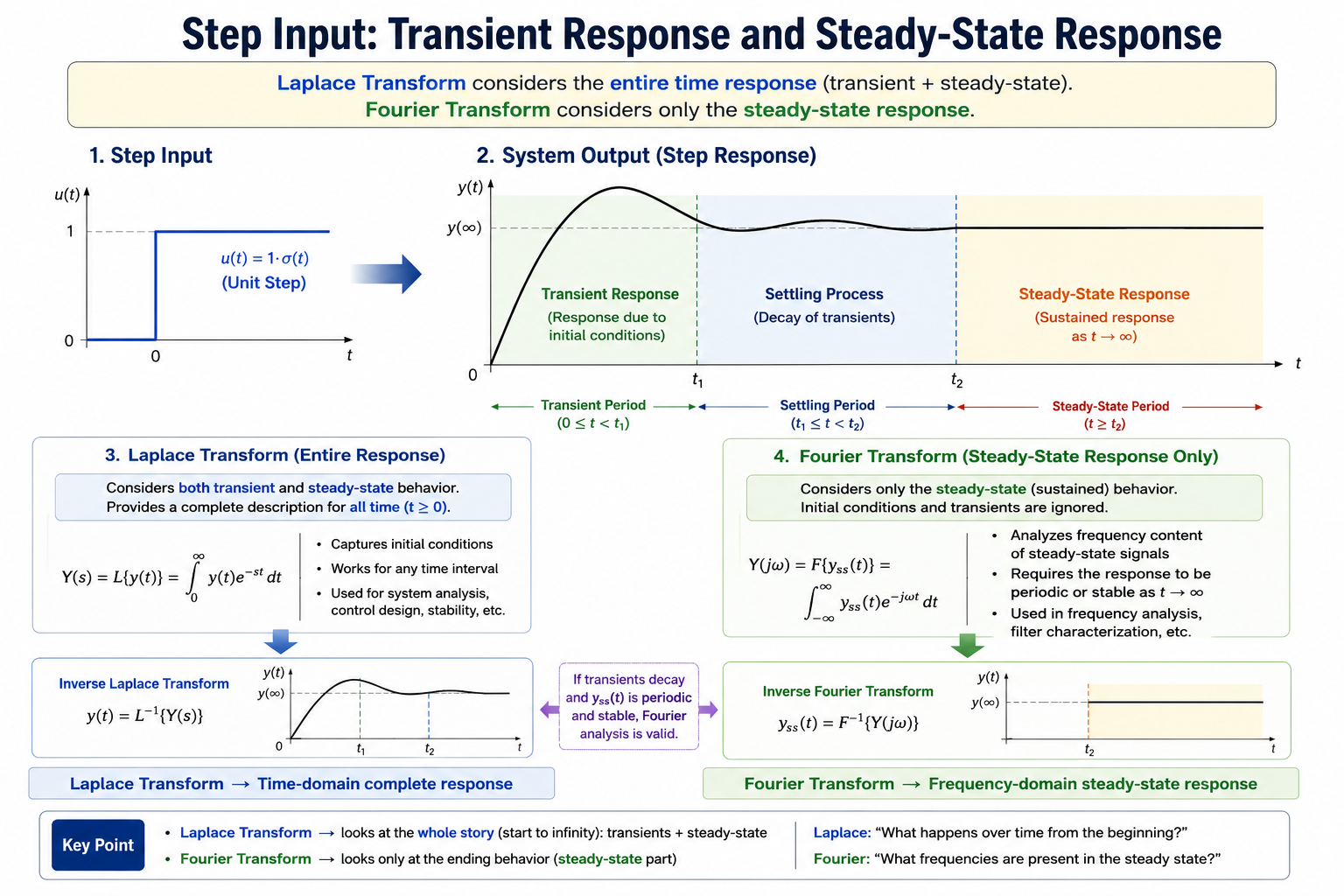

6. Laplace Transform
The Laplace Transform is widely used in system and control analysis.
Features
- Extends the Fourier Transform into the complex plane
- Useful for solving differential equations
- Used to define the transfer function of continuous-time systems
Applications
- Control systems
- Stability analysis
- Electrical circuits

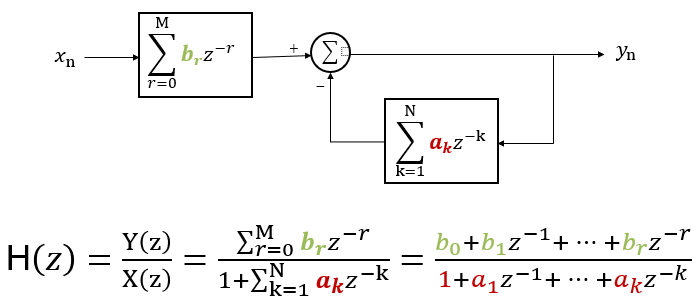

7. z-Transform
The z-Transform is the discrete-time counterpart of the Laplace Transform. It's useful for solving difference equations and defining the transfer function of discrete-time systems.
Applications
- Digital filter design
- DSP system analysis
- Pole-zero analysis

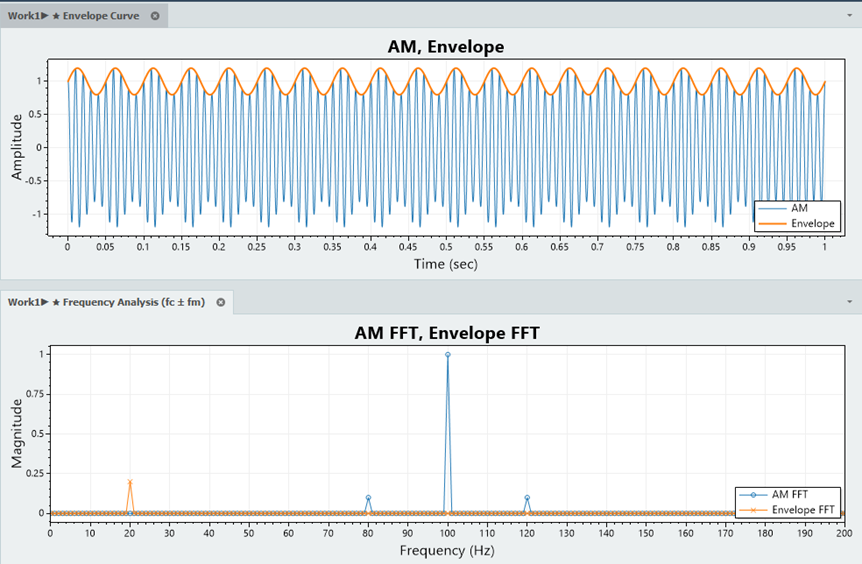

8. Hilbert Transform
The Hilbert Transform generates the analytic signal.
Applications
- Envelope(Amplitude) detection
- AM demodulation
- Bearing fault diagnosis
- Instantaneous phase analysis
9. Discrete Cosine Transform (DCT)
The DCT represents signals using cosine basis functions.
Major Application
JPEG image compression.
Advantages
- Strong energy compaction
- Efficient data compression
- Uses only real-valued cosine functions
Features
Unlike the Fourier Transform, the DCT does not explicitly represent complex phase information.
Because the DCT uses only cosine basis functions
- the transform coefficients are real-valued,
- phase is not independently expressed,
- and most signal energy tends to concentrate in low-frequency components.
This property makes the DCT highly effective for compression applications such as JPEG.
10. Hartley Transform
The Hartley Transform is similar to the Fourier Transform but uses only real-valued operations.
where, cas(2πft) = cos(2πft) + sin(2πft)
Features
- Avoids complex arithmetic
- Historically useful in early DSP systems
Today, FFT-based Fourier methods are more common.
11. Cepstrum Transform
The cepstrum analyzes periodic structures in the spectrum.
Procedure
- FFT
- Log magnitude
- Inverse FFT
Applications
- Pitch detection
- Echo detection
- Gearbox diagnostics
Choosing the Right Transform
Different transforms are suitable for different problems.
| Transform | Best Use |
|---|
| FFT (Fast Fourier Transform) | Stationary frequency analysis |
| STFT (Short-Time Fourier Transform) | Time-varying spectra |
| Wavelet Transform | Transient events |
| Hilbert Transform | Envelope(Amplitude) analysis |
| Laplace Transform | Continuous-time systems |
| z-Transform | Discrete-time systems |
| DCT (Discrete Cosine Transform) | Compression |
| Cepstrum Transform | Harmonic spacing detection |
Conclusions
Transforms are essential tools in signal processing because they reveal information that may not be obvious in the original signal representation.
In practice
- Fourier-based transforms dominate frequency analysis.
- Wavelets are powerful for transient and non-stationary signals.
- Laplace and Z-transforms are fundamental in system theory.
- Specialized transforms such as Hilbert, DCT, and Cepstrum serve targeted engineering purposes.
Understanding when and why to use each transform is a core skill in modern signal processing.
