What Is the Difference Between Convolution and Correlation?

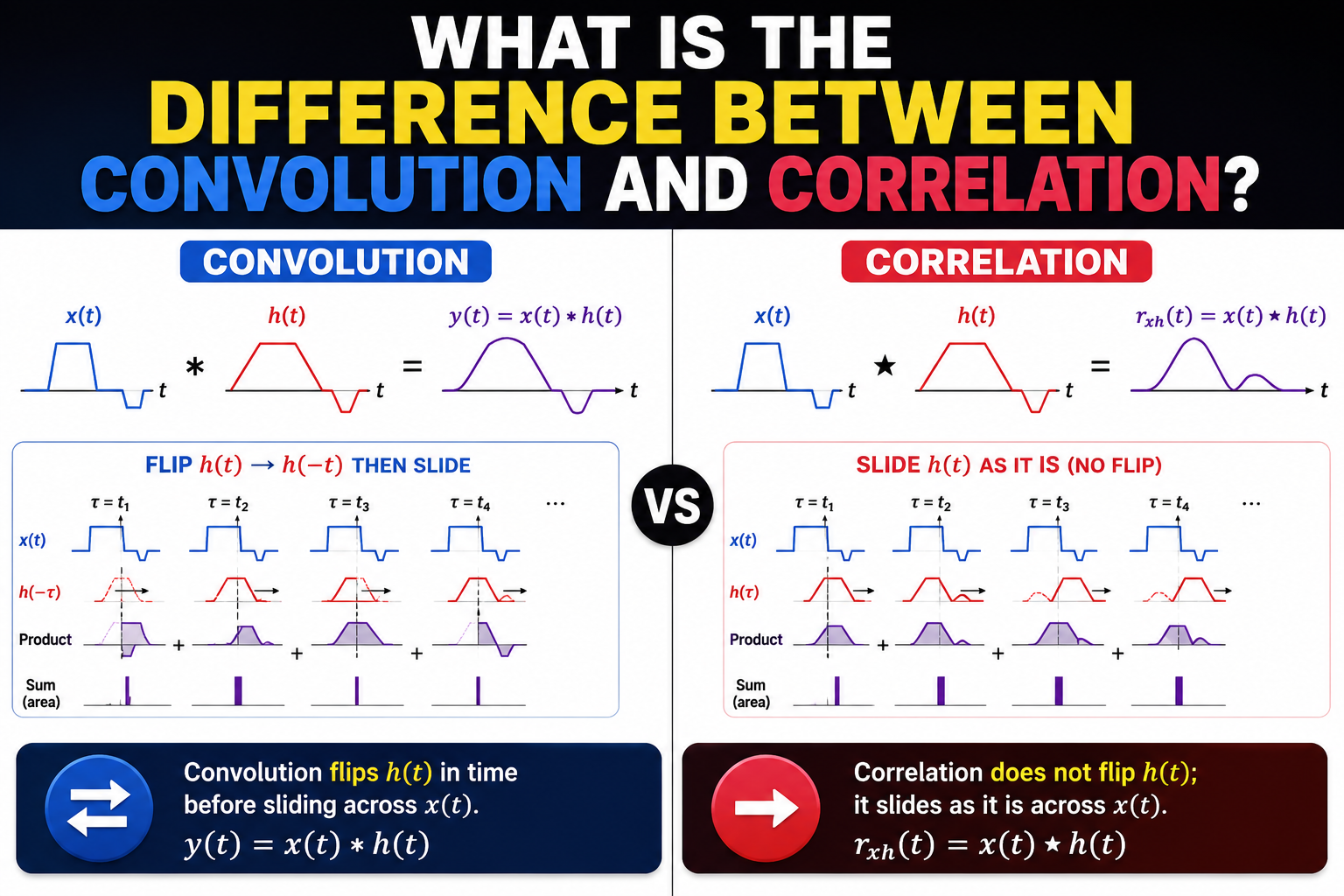

Convolution and correlation are two fundamental operations in signal processing. They appear mathematically similar, but they serve different purposes.
- Convolution describes how a system modifies a signal
- Correlation measures similarity between signals
What is Convolution?
Definition
For continuous-time signals
For discrete-time signals
Key Operation
One signal is
- flipped
- shifted
- multiplied and accumulated
The important point h (t−τ) contains time reversal.
Physical Meaning
Convolution describes
- filtering
- system response
- LTI system behavior
Interpretation
How an input signal changes after passing through a system.
What is Correlation?
Definition
For continuous-time signals
For discrete-time signals
Key Operation
One signal is
- shifted
- multiplied and accumulated
Usually, no flipping interpretation in practical similarity analysis (although mathematically correlation can be viewed as convolution with conjugated reversal)
Physical Meaning
Correlation measures
- similarity
- alignment
- matching between signals
Interpretation
How similar two signals are at different delays.
Main Difference

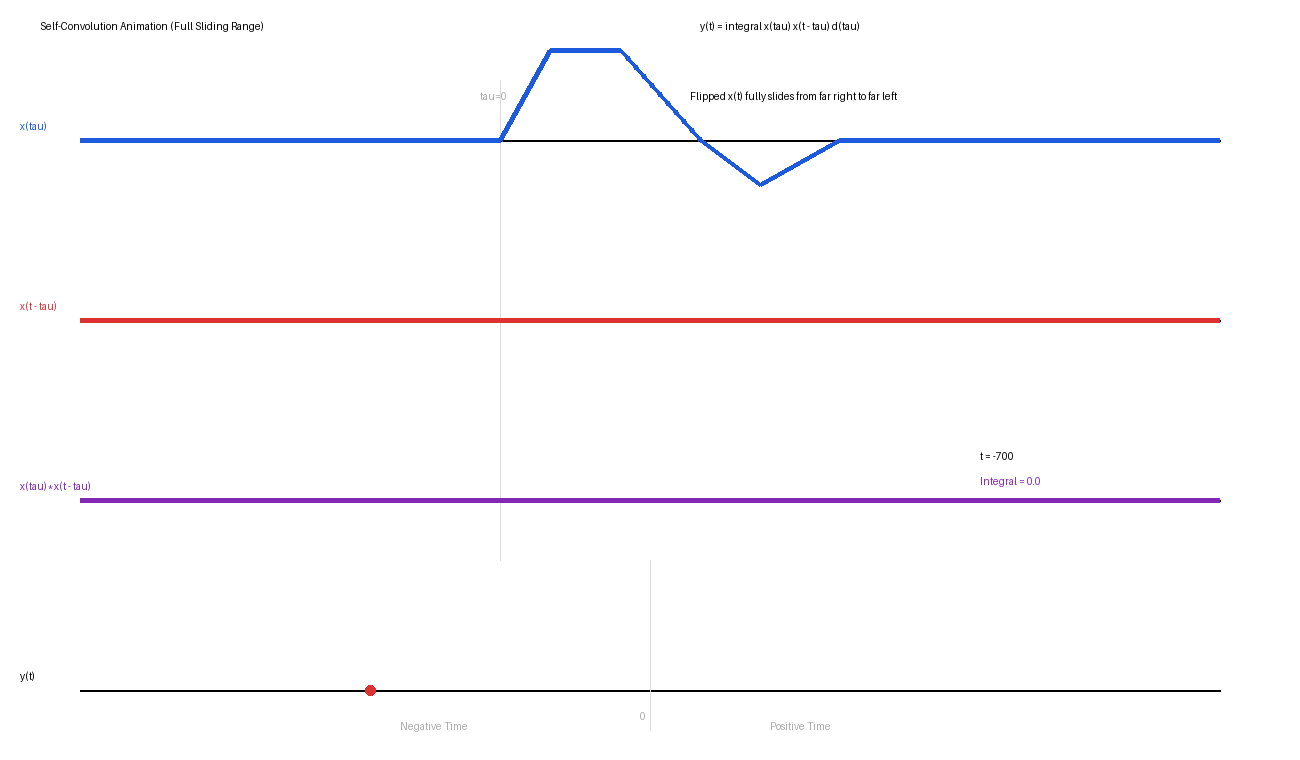

Animation of self-convolution (flipped x(t) slides from left to right
Result: self-convolution produces smoother and broader signals in time

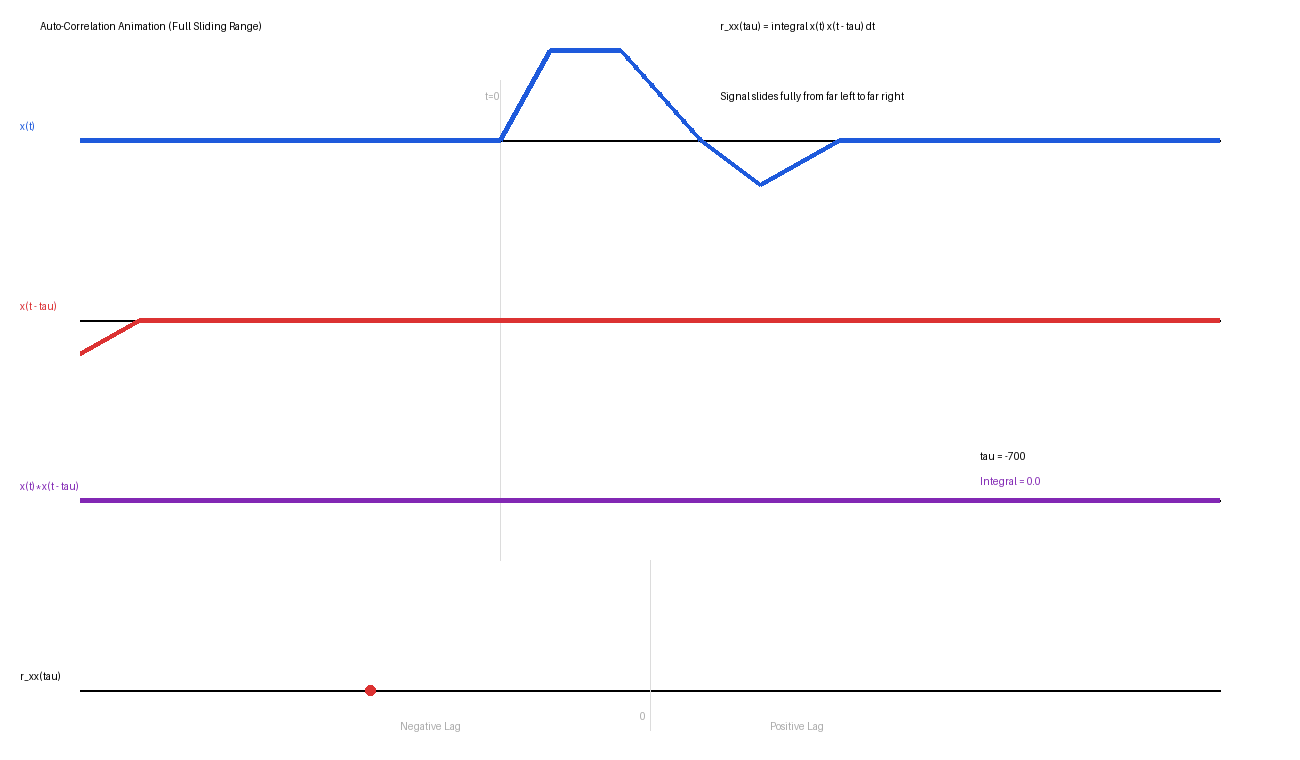

Animation of auto-correlation (unflipped x(t) slides from left to right)
Result: auto-correlation has a maximum at τ = 0 and is symmetric
| Feature | Convolution | Correlation |
|---|
| Purpose | System response | Similarity measurement |
| Meaning | Filtering | Pattern matching |
| Time reversal* | Yes (in the mathematical definition)
| No (conceptually) |
| Output | System output | Similarity score |
| Use | LTI systems, filtering | Detection, synchronization |
| Commutative law | Yes, x(t) * h(t) = h(t) * x(t) | Generally No, Rxy(τ) ≠ Ryx(τ) but Rxy(τ) = Ryx(-τ) |
* In the impulse-response interpretation of LTI systems, convolution is typically explained as a sum of shifted impulse responses rather than a time-reversal operation.
Frequency Domain Relationship
Convolution Theorem
Convolution in time = Multiplication in frequency
Multiplication in time = Convolution in frequency
Correlation Relationship (Wiener-Khinchin theorem)
FFT of auto-correlation function = Power Spectral Density (PSD)
FFT of cross-correlation function = Cross Spectral Density (CSD)
Practical Applications
Convolution Applications
- FIR filtering
- image blur
- system simulation
- reverb effects
Correlation Applications
- radar detection
- echo finding
- synchronization
- fault detection
- feature matching
MALMIJAL Example
Convolution (Filtering Effect)

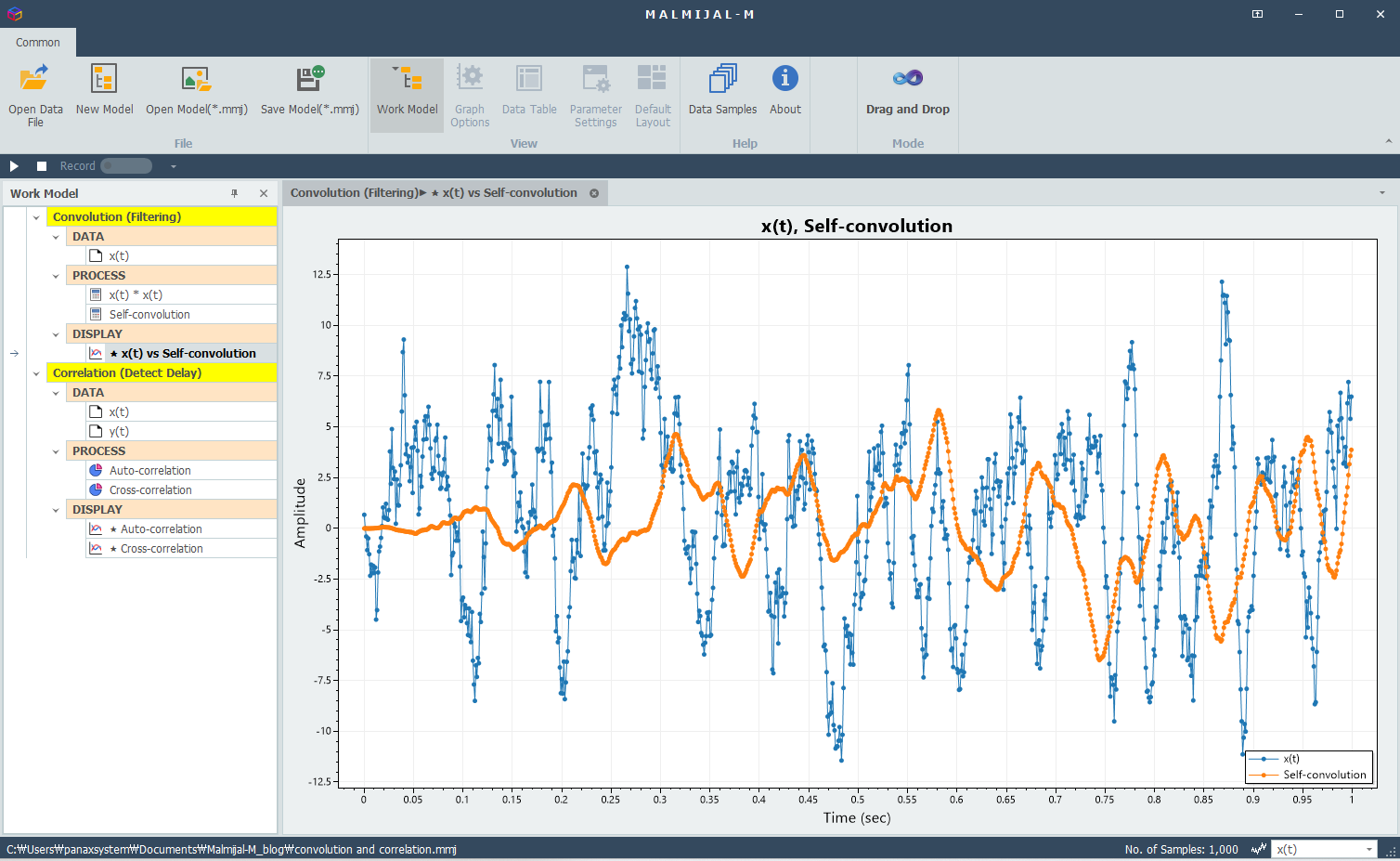

Self-convolution seems like smooth filtering (low-pass)
Correlation (Detect Delay)

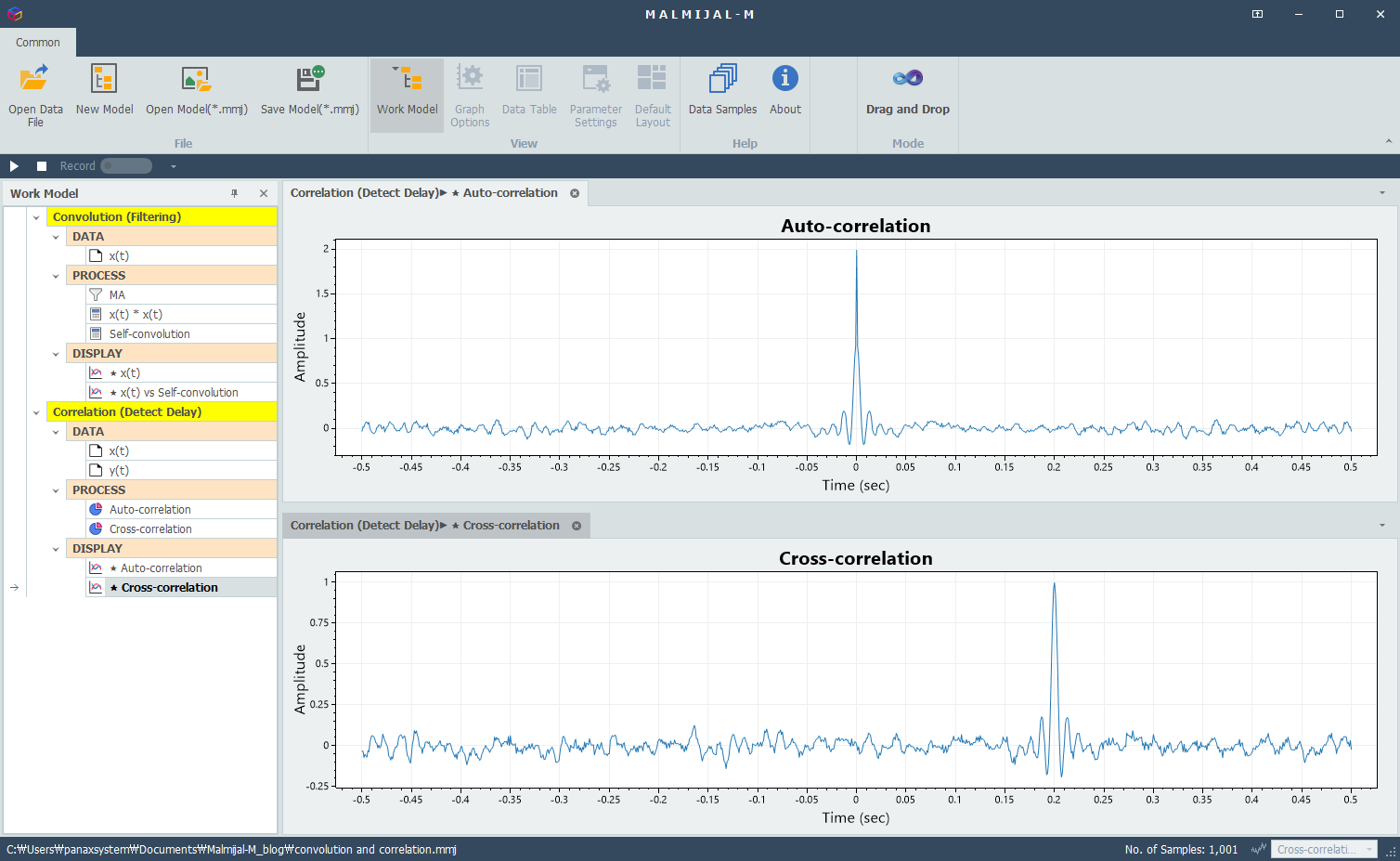

Detect delay between x(t) and y(t) using Cross-correlation (delay = 0.2)
Key Insights
- Convolution is about signal transformation
- Correlation is about signal comparison
Conclusions
Although convolution and correlation look mathematically similar, they serve fundamentally different purposes.
- Convolution models system behavior and filtering
- Correlation detects similarity and alignment
Understanding the distinction is essential in signal processing, communications, machine learning, and system analysis.
