Difference Between Steady State, Stationary, and Equilibrium State
The terms steady state, stationary, and equilibrium state are frequently used in engineering, physics, signal processing, and statistical analysis. Although they all imply some form of โunchanging behavior,โ they describe fundamentally different concepts. Understanding their differences is important because they refer to different types of stability
- dynamic behavior
- statistical behavior
- or physical balance
Steady State
Definition
A system is in a steady state if its observable behavior has settled and no longer changes significantly with time.
Steady state usually refers to system response after transient effects disappear.
Example
Consider a sinusoidal system response:
Although the signal continuously changes with time, its amplitude, frequency, and overall behavior remain constant.
Thus the system is in steady state.
Important Point
Steady state does NOT necessarily mean constant value. A periodic signal can still be steady state.
In Signal Processing
Steady-state concepts commonly appear in
- harmonic response
- FRF analysis
- rotating machinery vibration
- sinusoidal excitation
- filter responses
Intuitive Meaning
โThe system behavior has settled.โ
Stationary
Definition
A random process is stationary if its statistical properties do not change with time.
Examples of stationary statistics include mean, variance, correlation structure.
Example
White Gaussian noise fluctuates randomly, but
- its mean remains constant
- its variance remains constant
- its statistical behavior does not change over time
Thus it is stationary.
Important Point
Stationarity refers to statistical consistency, not waveform constancy. The signal itself may vary continuously and randomly.
In Signal Processing
Stationarity is essential in
- FFT analysis
- PSD estimation
- Welch averaging
- correlation analysis
- Wiener-Khinchin theorem
Most spectral analysis assumes stationarity.
Intuitive Meaning
โThe statistics remain the same over time.โ
Equilibrium State
Definition
An equilibrium state exists when all net forces, flows, or energy exchanges are balanced.
This concept mainly originates from physics, thermodynamics, mechanics.
Example
A mass hanging from a spring reaches equilibrium when gravitational force = spring restoring force.
Then no net force exists.
Important Point
Equilibrium generally implies no net driving imbalance, no net change tendency.
Intuitive Meaning
โEverything is balanced.โ
Key Differences
| Concept | Main Meaning | Primary Context |
|---|
| Steady State | behavior has settled | control systems / DSP |
| Stationary | statistics do not change | random processes / DSP |
| Equilibrium State | forces or energy are balanced | physics / thermodynamics |
Important Distinctions
Steady State โ Stationary
A sinusoidal signal x(t) = sin(ฯt)ย is steady state but not stationary in the strict stochastic sense because its value depends directly on time.
Stationary โ Equilibrium
A stationary random noise process may still involve continuous fluctuations, energy exchange, dynamic behavior. Thus stationarity does not necessarily imply physical equilibrium.
Equilibrium โ Steady State
A rotating motor operating continuously may be in steady operation but not in equilibrium because energy continuously enters and leaves the system.
Signal Processing Perspective
Steady State
Used in
- harmonic analysis
- FRF measurements
- vibration testing
- periodic response analysis
Stationary
Used in
- random vibration analysis
- PSD estimation
- FFT averaging
- stochastic signal analysis
Equilibrium State
Appears more indirectly in DSP through
- thermal noise models
- statistical mechanics
- physical system modeling

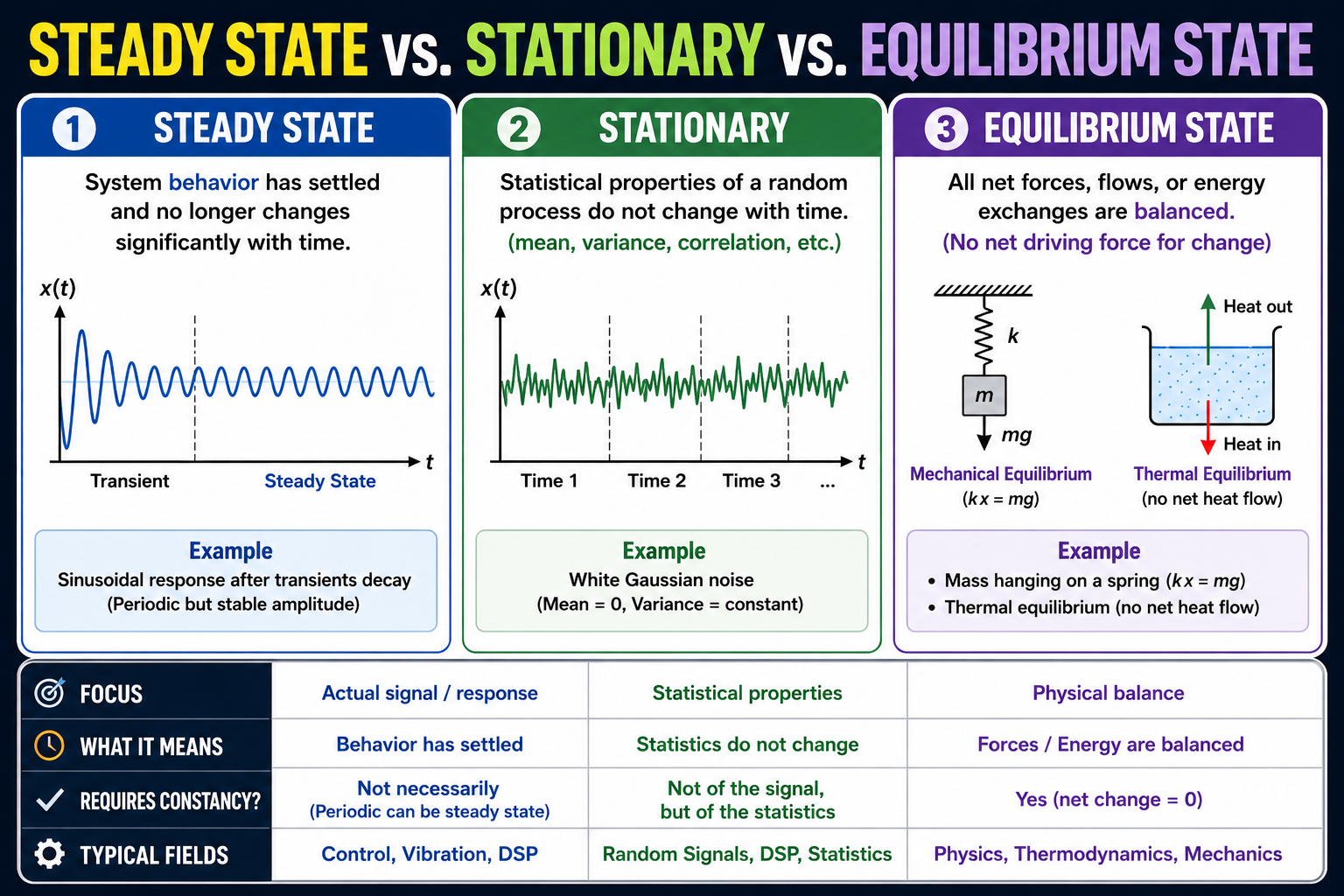

Very Intuitive Interpretation
Conclusion
Although steady state, stationary, and equilibrium state all describe forms of stability, they refer to fundamentally different concepts.
- Steady state describes settled system behavior.
- Stationary describes time-invariant statistical properties.
- Equilibrium state describes physical balance of forces or energy.
Understanding these distinctions is important in signal processing, vibration analysis, control systems, thermodynamics, and statistical modeling because each concept addresses a different aspect of system behavior and stability.
