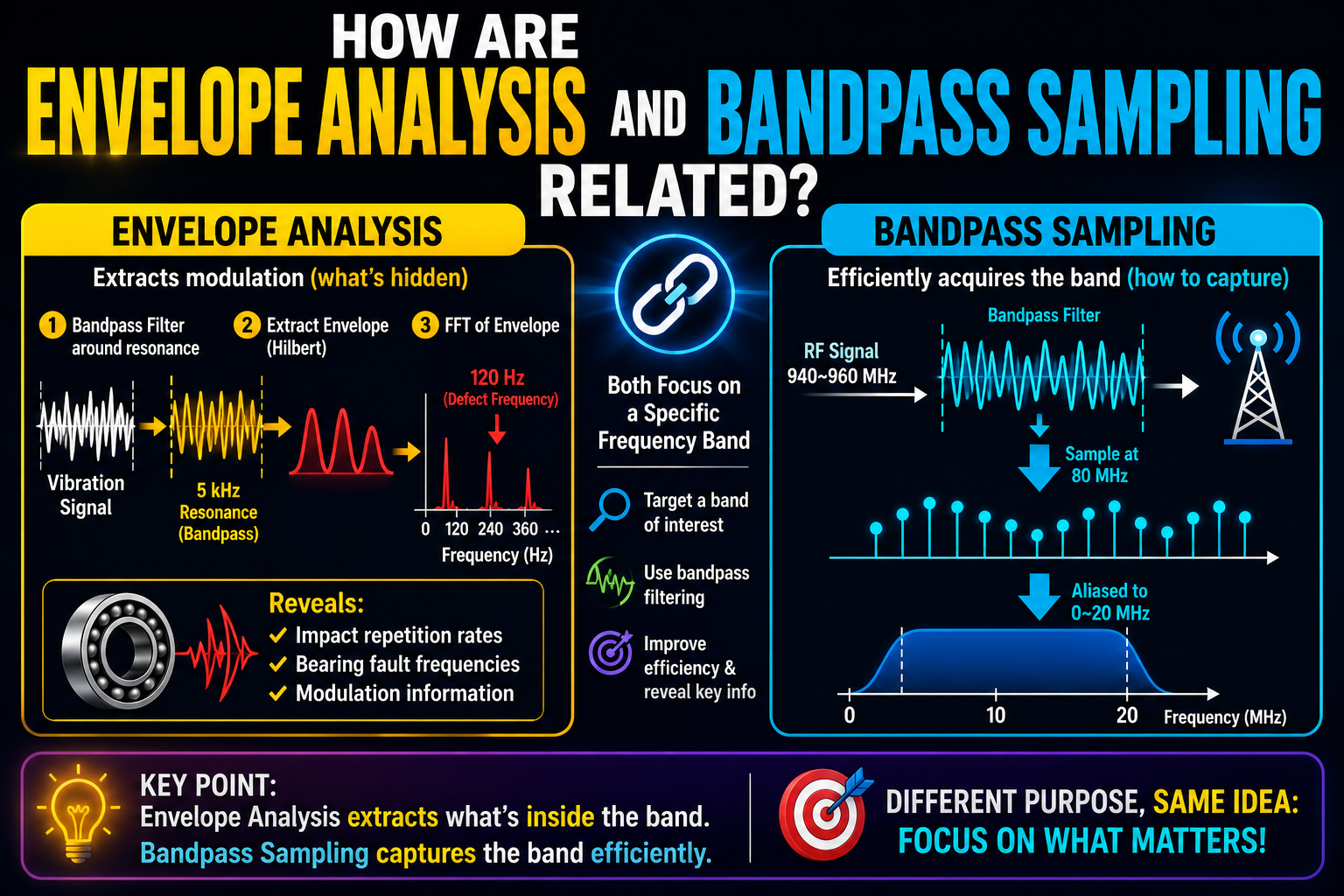

How Are Envelope Analysis and Bandpass Sampling Related?

Envelope analysis and bandpass sampling are used in very different fields

  • Envelope analysis is commonly used in vibration analysis and condition monitoring.
  • Bandpass sampling is widely used in RF and communication systems.

At first glance, they appear unrelated. However, both techniques share a common idea. They focus on the information contained within a specific frequency band rather than the entire spectrum.

Both methods exploit the fact that the signal of interest occupies only a limited portion of the frequency spectrum.

How Are Envelope Analysis and Bandpass Sampling Related?

The Common Idea: A Band-Limited Signal

Consider a signal concentrated around a carrier frequency


where

  • f is a high-frequency carrier,
  • A(t)  is a slowly varying modulation signal.

Examples include

  • a bearing resonance excited by impacts
  • an AM radio signal
  • a vibration resonance containing fault information

Both envelope analysis and bandpass sampling focus on this band-limited signal, but they process it differently.


Envelope Analysis Extracts the Modulation

Envelope analysis asks "What information is hidden inside the amplitude variations of this frequency band?"

The typical procedure is

  1. Bandpass filter around the carrier frequency.
  2. Extract the envelope (often using the Hilbert transform) → demodulation.
  3. Analyze the envelope spectrum.

The result is A(t)

which contains

  • bearing defect frequencies
  • impact repetition rates
  • modulation frequencies

In other words, envelope analysis removes the carrier and keeps the modulation.


Bandpass Sampling Preserves the Modulation

Bandpass sampling asks "Can this band-limited signal be sampled at a lower rate without losing information?"

Instead of sampling above 2fc, the signal is sampled at a carefully chosen lower rate.

The carrier band aliases into a lower-frequency region, but the modulation information remains intact.

For example, 940∼960 MHz may be sampled at 80 MHz and folded into 0∼20 MHz without losing the information carried by the signal instead of sampling above 2fc = 2*960 = 1920 MHz.

In other words, bandpass sampling preserves both the carrier and its modulation through controlled aliasing.


Both Exploit Redundancy in the Spectrum

Neither technique needs the entire spectrum.

Envelope analysis recognizes that the fault information exists in the modulation, not in the resonance frequency itself.

Bandpass sampling recognizes that the signal occupies only a narrow frequency band, not the entire range from DC to the carrier frequency.

Thus both methods use prior knowledge of the signal's spectral structure.


A Bearing Fault Example: refer to the MALMIJAL example below

Suppose a bearing defect generates impacts at 120 Hz which excite a resonance at 5000 Hz.

The vibration signal can be modeled as x(t) = A(t) ⋅ cos ⁡(2π⋅5000t)

where

  • the 5000 Hz resonance is the carrier
  • the 120 Hz impacts appear in the modulation A(t)

As a result, the spectrum contains sidebands around the resonance frequency 5000 ± 120, 5000 ± 240, 5000 ± 360,… rather than a single peak at 5000 Hz.


Envelope Analysis

Envelope analysis first isolates the resonance band around 5000 Hz using a band-pass filter. The envelope of the filtered signal is then extracted using rectification or the Hilbert transform.

The FFT of the envelope reveals 120 Hz, 240 Hz, 360 Hz, and other fault frequencies. Thus, envelope analysis converts a high-frequency resonance signal into a low-frequency fault signature that is easier to interpret.


Bandpass Sampling

Notice that the useful information is not the 5000 Hz carrier itself, but the relatively narrow band around it. For example, if the resonance occupies 5000 ± 500 Hz, the signal bandwidth is only B = 1000 Hz.

Although the carrier frequency is 5000 Hz, the information bandwidth is only 1000 Hz.

Therefore, bandpass sampling can intentionally alias the 5000 Hz resonance band to a lower frequency while preserving its modulation structure. As long as the bandpass sampling conditions are satisfied Fs > 2B, the defect information contained in the sidebands remains intact.

After sampling, the carrier frequency may move to a different frequency due to aliasing, but the modulation frequencies (120 Hz, 240 Hz, 360 Hz, ...) are still preserved and can be recovered through envelope analysis.


Conceptually, Both Are Forms of Frequency Translation

There is an interesting conceptual similarity.

Envelope Analysis

Performs a type of demodulation fc → 0. The modulation is moved from around the carrier frequency to baseband.


Bandpass Sampling

Performs a type of aliasing-based frequency translation fc → falias. The carrier band is moved to a lower frequency region through sampling.


Thus both methods effectively relocate information from one frequency region to another.

The difference is that

  • envelope analysis intentionally removes the carrier
  • bandpass sampling intentionally preserves it


Comparison

FeatureEnvelope AnalysisBandpass Sampling
CategorySignal-processing techniqueSampling technique
Main purposeExtract amplitude modulationReduce sampling rate
ApplicationFault diagnosisSignal acquisition
Uses aliasing?No (uses demodulation)Yes (intentionally)
Uses modulation?YesNo
Remove carrier?YesNo
Preserve carrier?NoYes
Reveals defect frequencies?YesNo
Reduces ADC requirements?NoYes
Typical fieldVibration analysisRF communications



MALMIJAL Examples (Fs = 50kHz)

Envelope Analysis

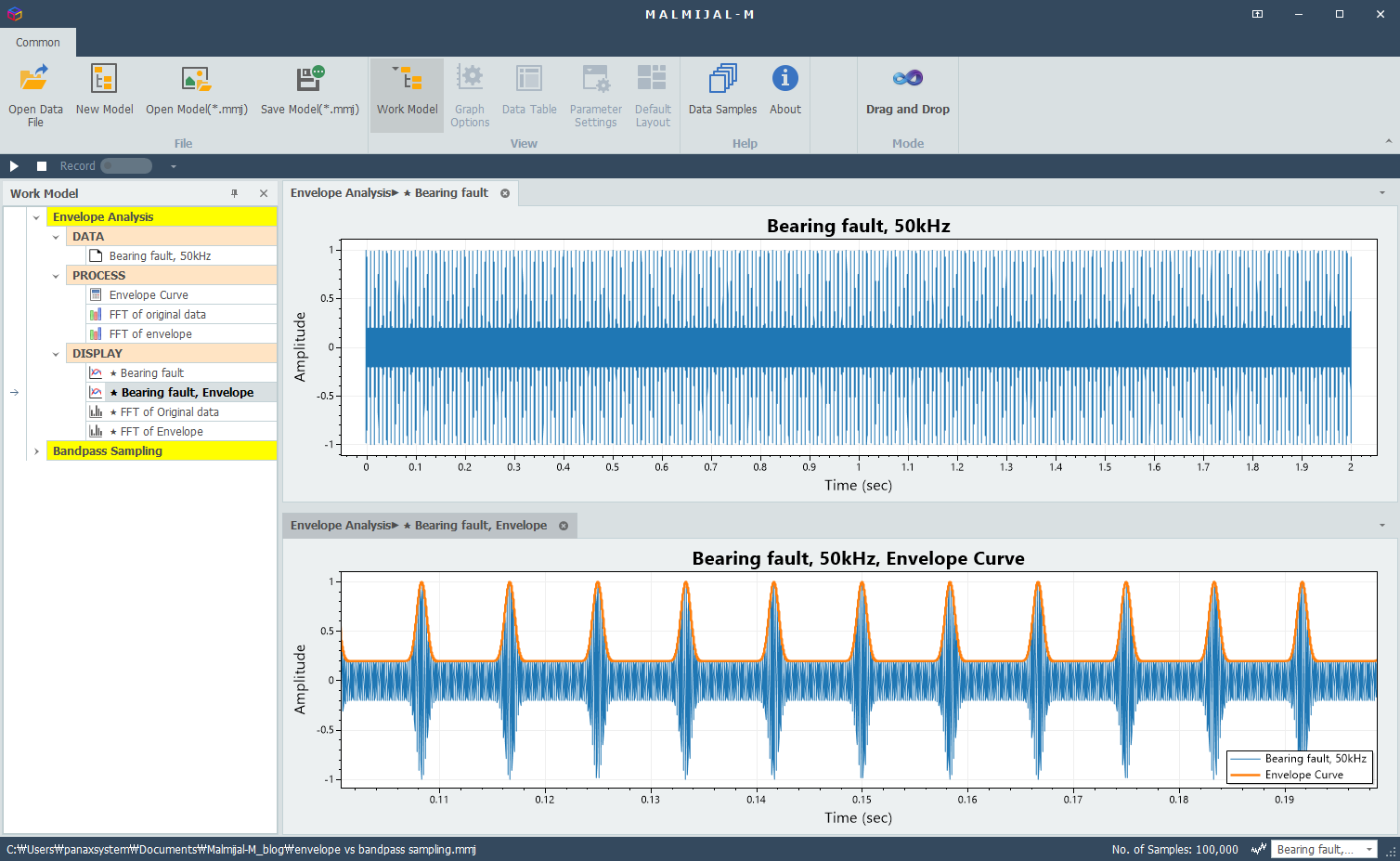

Original data and it envelope curveOriginal data and it envelope curve

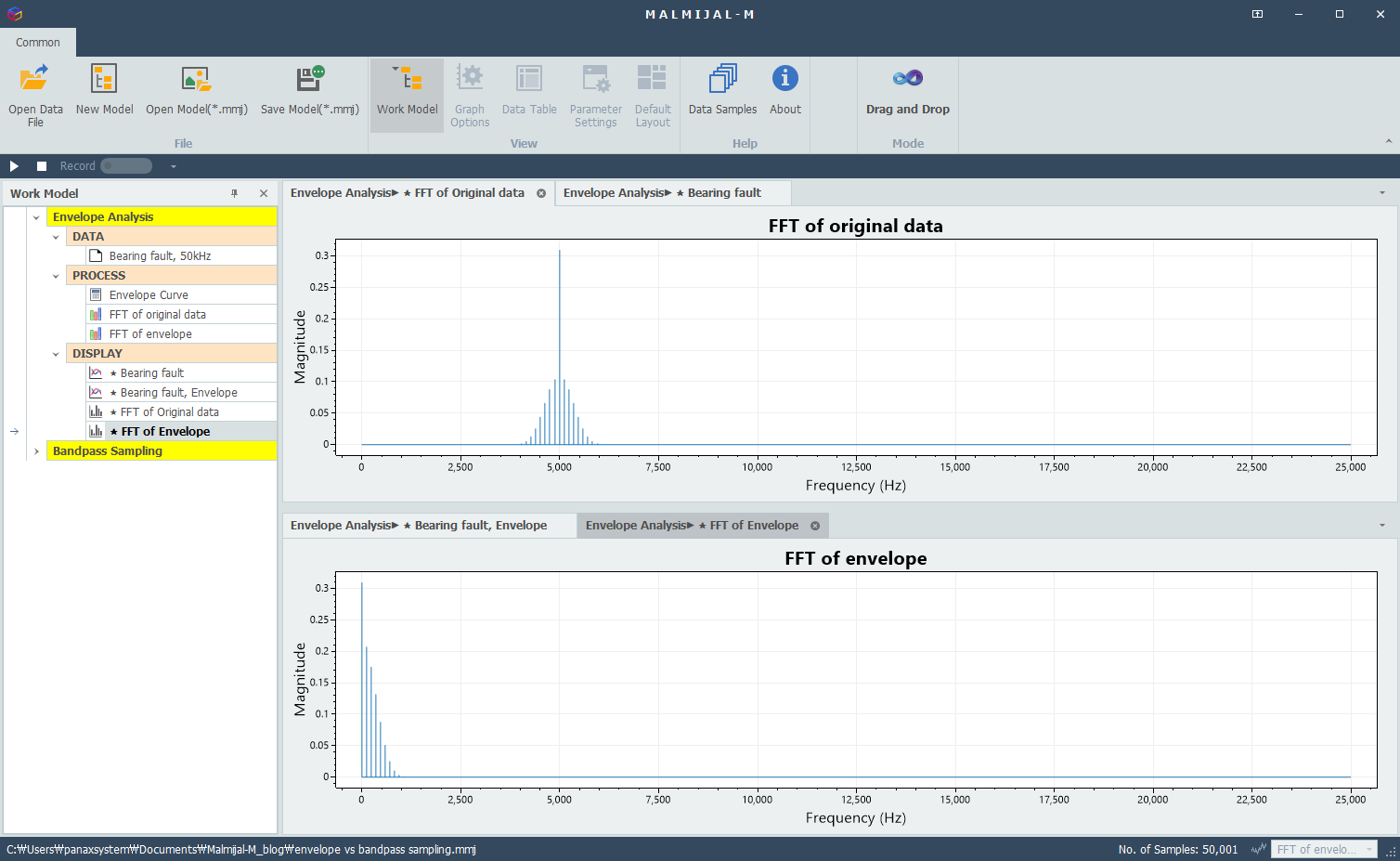

FFTs of original data and its envelopeFFTs of original data and its envelope


Bandpass Sampling

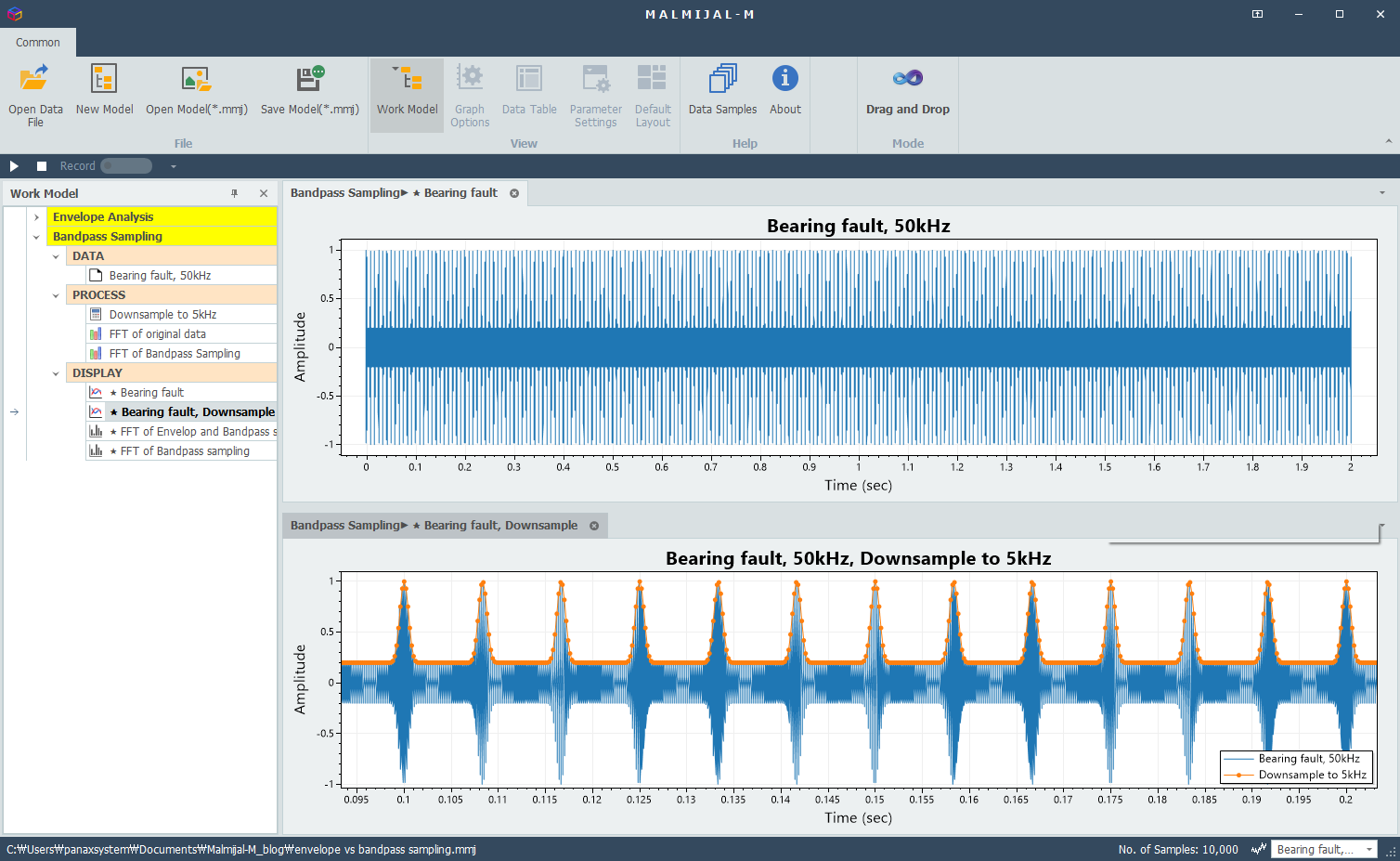

Original data and its downsampling → Bandpass sampling (controlled aliasing)Original data and its downsampling → Bandpass sampling (controlled aliasing) → same profile as envelope curve

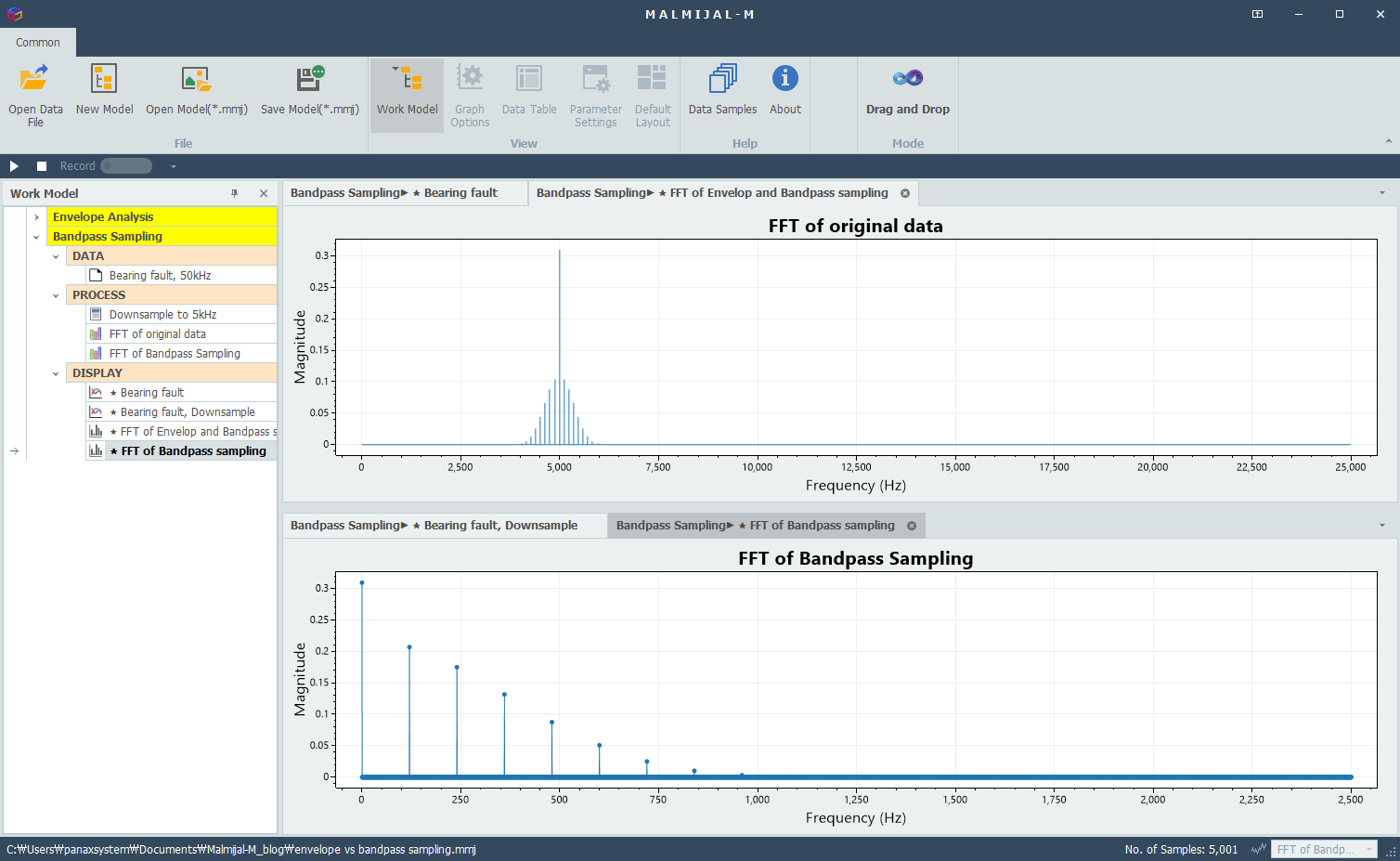

FFT of Bandpass SamplingFFT of Bandpass Sampling

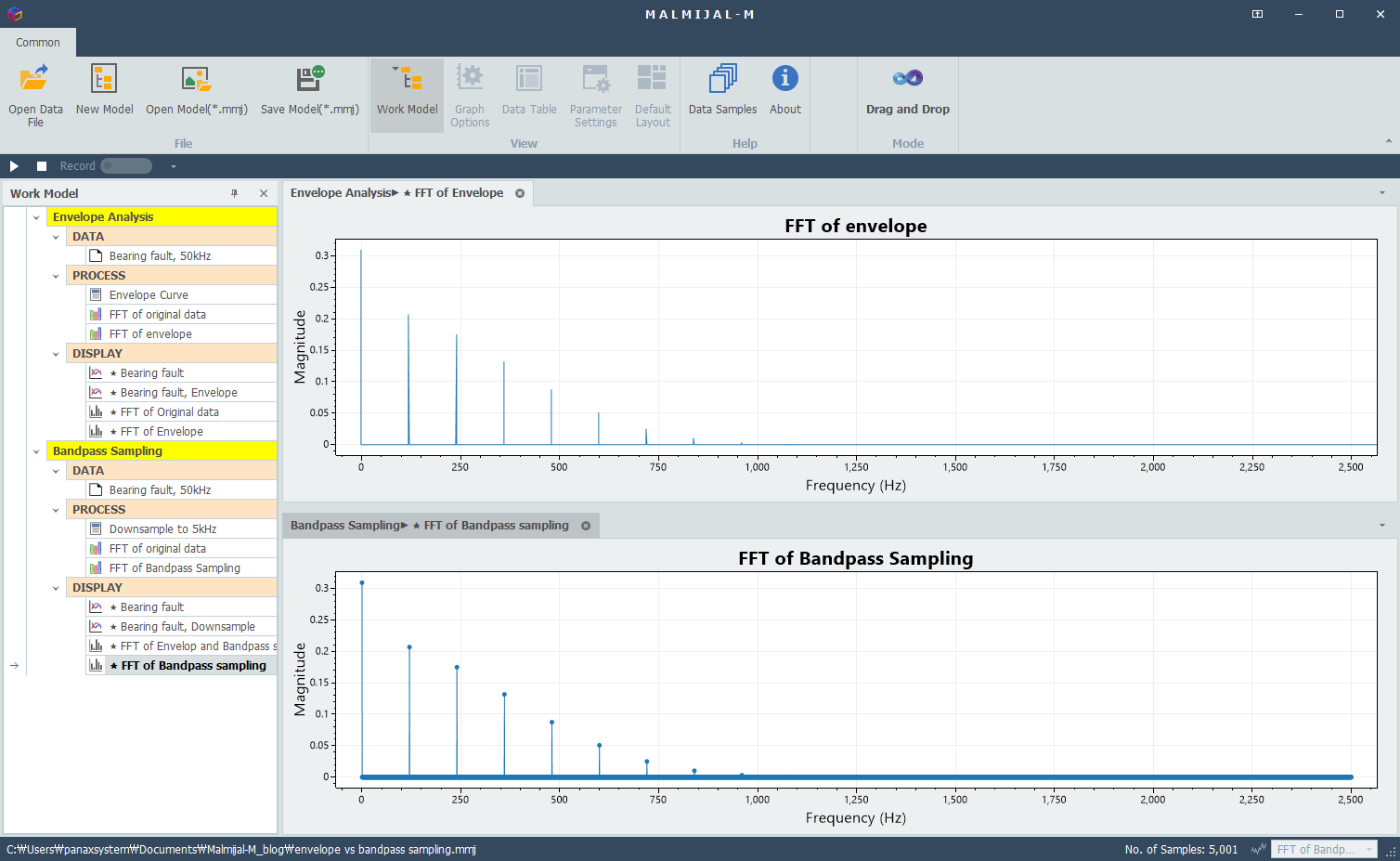

FFT of envelope(set x-axis limit) vs FFT of bandpass samplingFFT of envelope(set x-axis limit) vs FFT of bandpass sampling (same result)


Intuitive Interpretation

Envelope analysis asks "What is hidden inside this resonance band?"

Bandpass sampling asks "Can I acquire this resonance band more efficiently?"

One extracts information from the band, while the other acquires the band efficiently.


Conclusion

Although envelope analysis and bandpass sampling serve different purposes, they share a common philosophy: both focus on a specific frequency band and exploit the fact that the information of interest occupies only a small portion of the spectrum.

Envelope analysis extracts the modulation hidden within a carrier, whereas bandpass sampling preserves that carrier and its modulation while reducing the required sampling rate through controlled aliasing.

In one sentence, envelope analysis extracts the information contained in a frequency band, while bandpass sampling efficiently acquires that same frequency band by intentionally translating it to a lower-frequency region.
