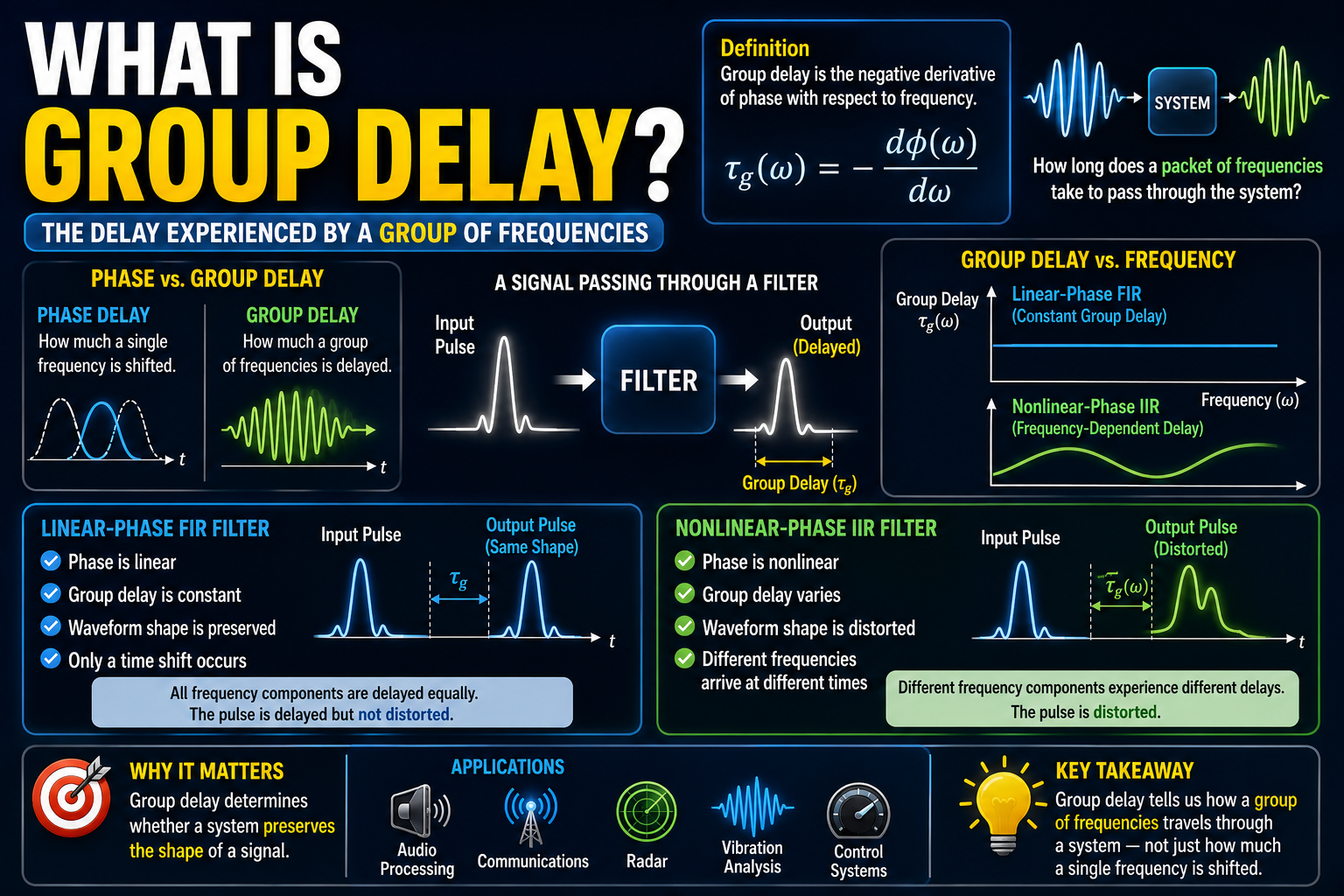

What Is Group Delay?
When a signal passes through a system or filter, different frequency components may experience different amounts of delay. While phase response describes how each frequency is shifted in phase, it is often more useful to know how much time delay each frequency component experiences.
This quantity is known as group delay.
Group delay is particularly important because it determines whether the shape of a signal is preserved as it passes through a system.
Definition
Group delay is defined as the negative derivative of phase with respect to angular frequency.
where
- τg(ω) = group delay (seconds)
- ϕ(ω) = phase response
- ω = angular frequency (rad/s)
Physical Meaning
Group delay answers the question "How long does a narrow band of frequencies take to pass through the system?"
In other words
- Phase tells us how much a sinusoid is shifted.
- Group delay tells us how much a packet of frequencies is delayed.
Why Is It Called "Group" Delay?
Real signals are usually composed of many frequencies grouped together.
For example
- pulses
- speech signals
- vibration transients
- communication symbols
These signals consist of a group of nearby frequency components.
Group delay measures how this group of frequencies is delayed as a whole.
Linear-Phase Example
Consider a filter with phase response ϕ(ω) = −ωT.
Then, τg(ω) = T for all frequencies.
This means
- every frequency experiences the same delay,
- waveform shape is preserved.
This is the characteristic of an ideal linear-phase filter.
Nonlinear-Phase Example
If the phase response is curved low frequencies may be delayed more, but high frequencies may be delayed less.
Then
- different frequency components arrive at different times
- waveform distortion occurs
Even if the amplitude response is perfect, the signal shape may change.
Relation to Signal Distortion
Group delay is often more important than phase itself.
Two systems may have identical magnitude responses, but different group-delay responses.
The system with highly varying group delay may
- smear transients
- distort pulses
- reduce timing accuracy
Group Delay and FIR Filters

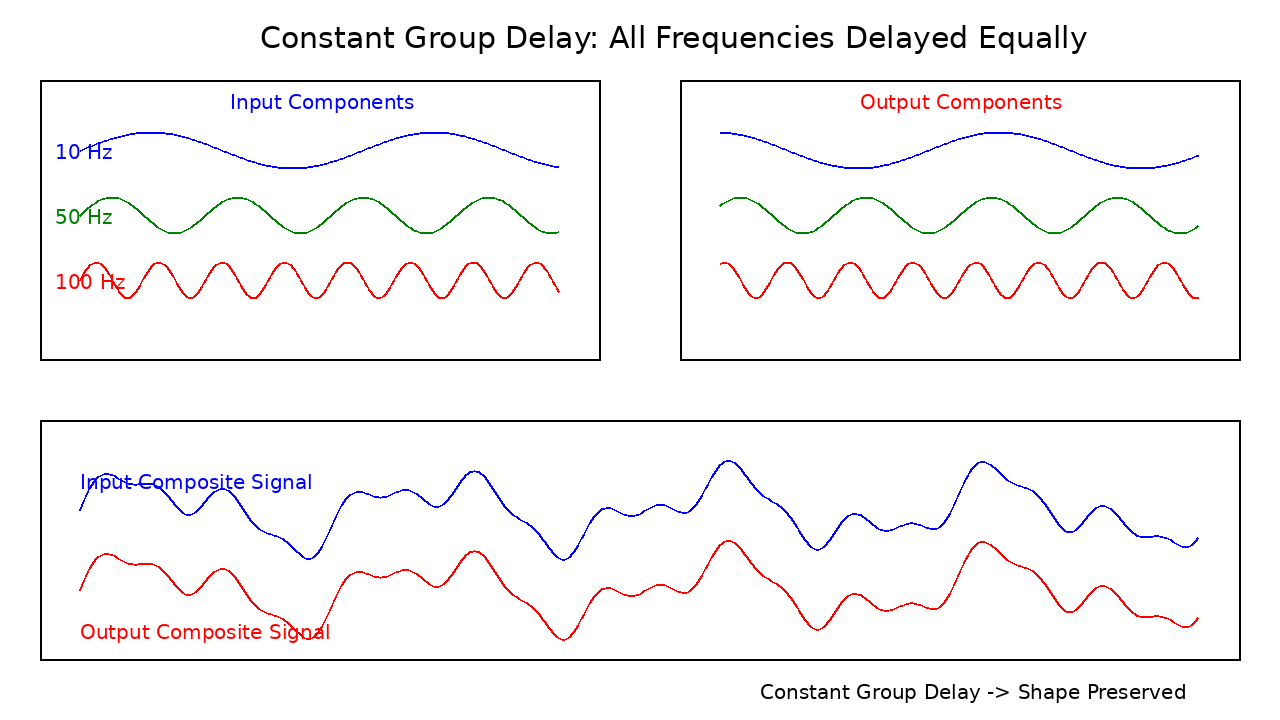

Linear-phase FIR filters have constant group delay. τg(ω) =T for all frequencies.
This means
- every frequency component experiences exactly the same delay
- the waveform shape is preserved
- only a time shift occurs
As a result, a pulse, transient, or speech waveform exits the filter with the same shape as the input.
Why FIR Filters Are Often Preferred
In applications where waveform preservation is important, linear-phase FIR filters are often preferred because constant group delay, minimal waveform distortion, and predictable timing behavior.
Typical examples include
- audio processing
- data communications
- speech processing
- vibration transient analysis
- measurement systems
Group Delay and IIR Filters

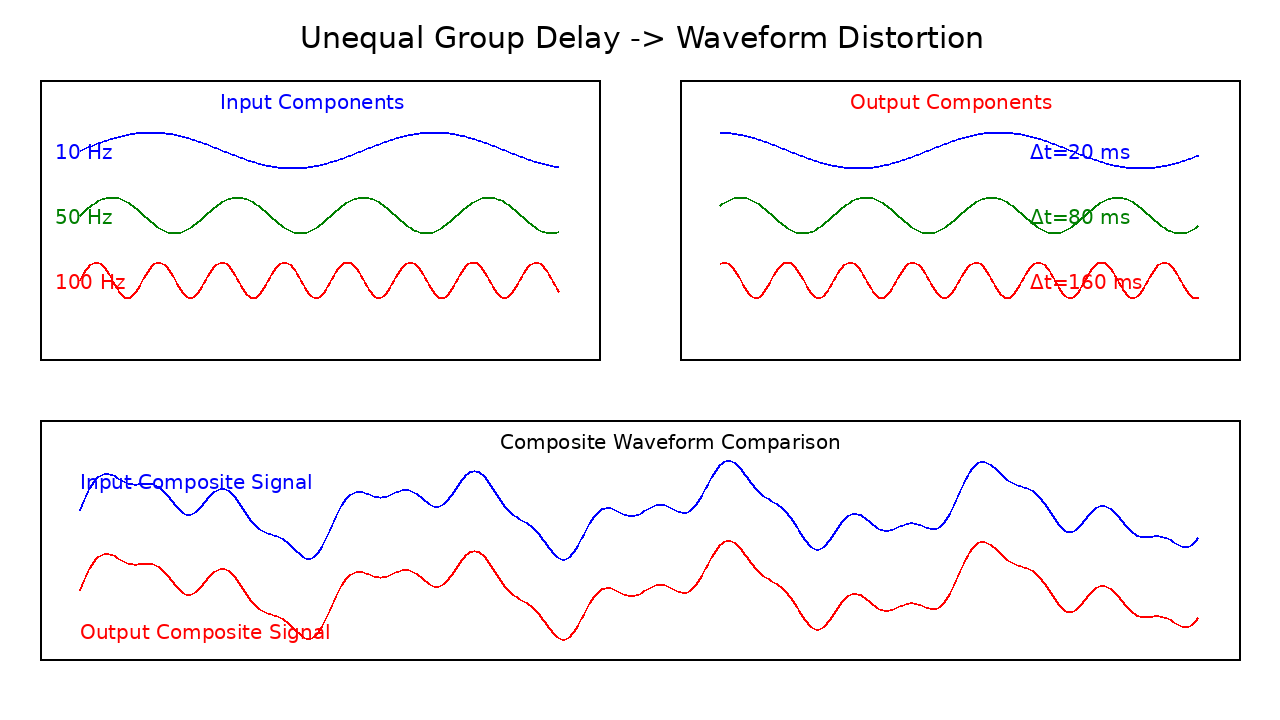

IIR filters generally have nonlinear phase and frequency-dependent group delay. τg(ω) varies with frequency.
This means
- some frequencies are delayed more than others
- frequency components no longer arrive simultaneously
- waveform distortion occurs
- transient signals may become smeared
Although the amplitude response may remain excellent, the time-domain waveform can change significantly. This can distort transient signals.
Why IIR Filters Are Still Widely Used
Despite their nonlinear group delay, IIR filters offer significant advantages fewer coefficients, lower computational cost, and sharper transitions for the same filter order.
Therefore, when waveform shape is less important than computational efficiency, IIR filters are often the preferred choice.
Typical examples include
Applications
Group delay is important in
- digital filter design
- audio processing
- communications
- radar systems
- vibration analysis
- control systems
Intuitive Interpretation

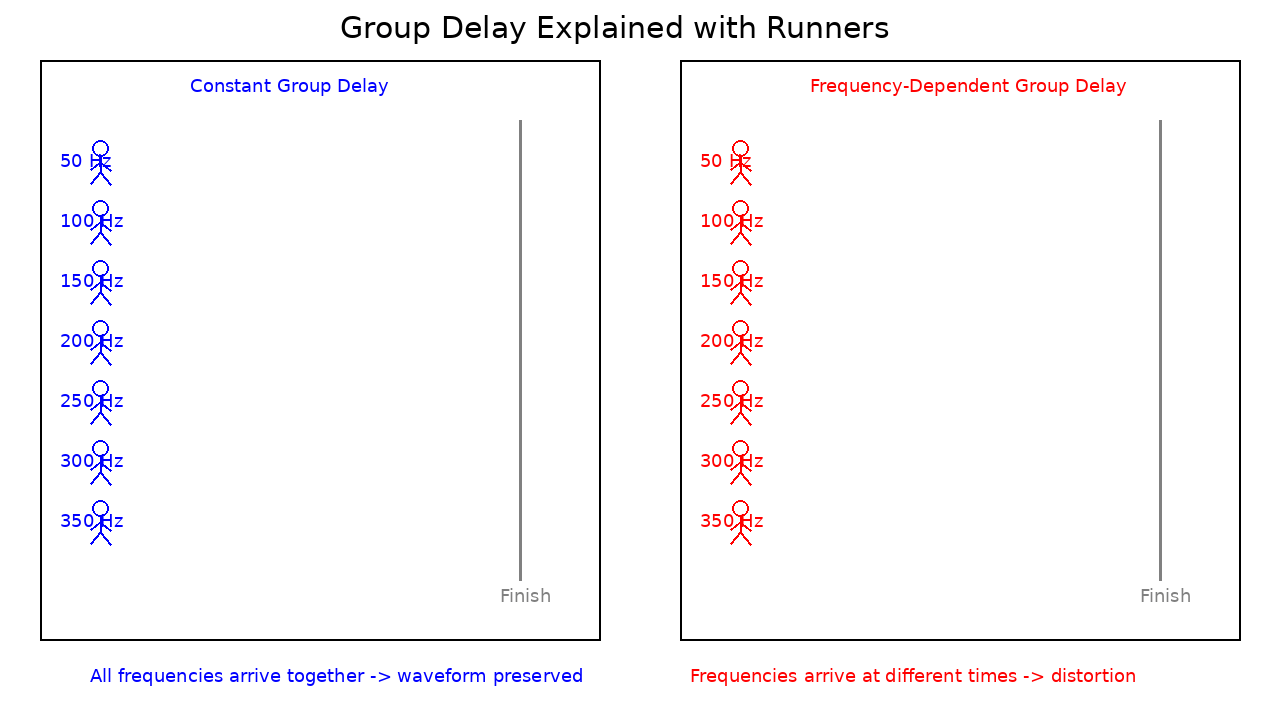

Imagine a group of runners starting together.
- If all runners travel at the same speed, they arrive together.
- If some runners are faster than others, the group spreads out.
Group delay measures how the group of frequency components travels through the system.
Group Delay vs Phase Delay
Phase delay is
It describes the delay of a single sinusoidal frequency.
Group delay is
It describes the delay of a group of nearby frequencies.
- Phase delay → individual frequency component.
- Group delay → information-bearing signal or waveform.
If the phase delay and group delay are equal at all frequencies, the phase response must be linear. Consequently, the system exhibits a constant group delay and preserves waveform shape.
MALMIJAL Example of Group Delay and Phase Delay

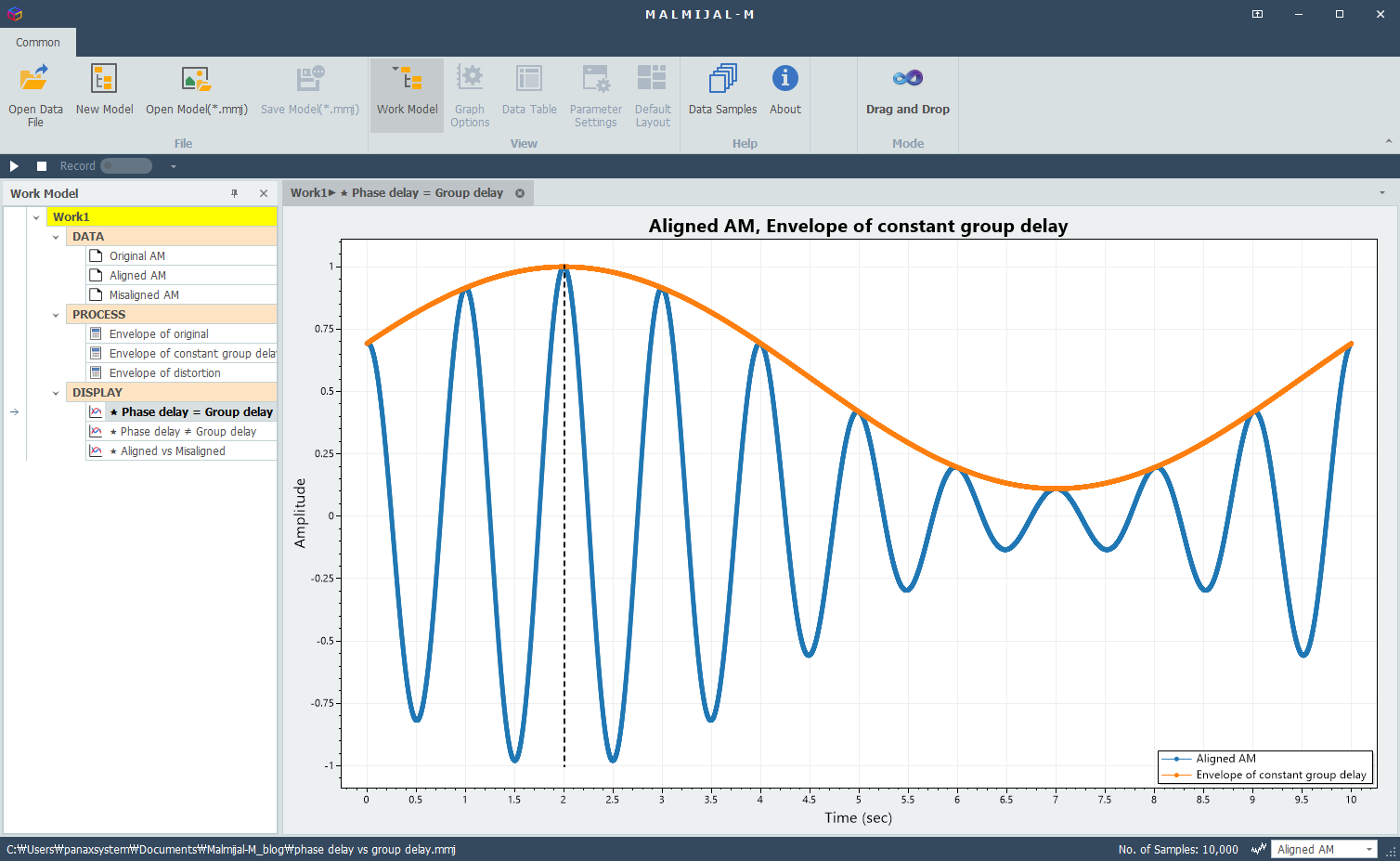

Delay of envelope(group delay) is equal to the delay of carrier(phase delay) due to constant group delay

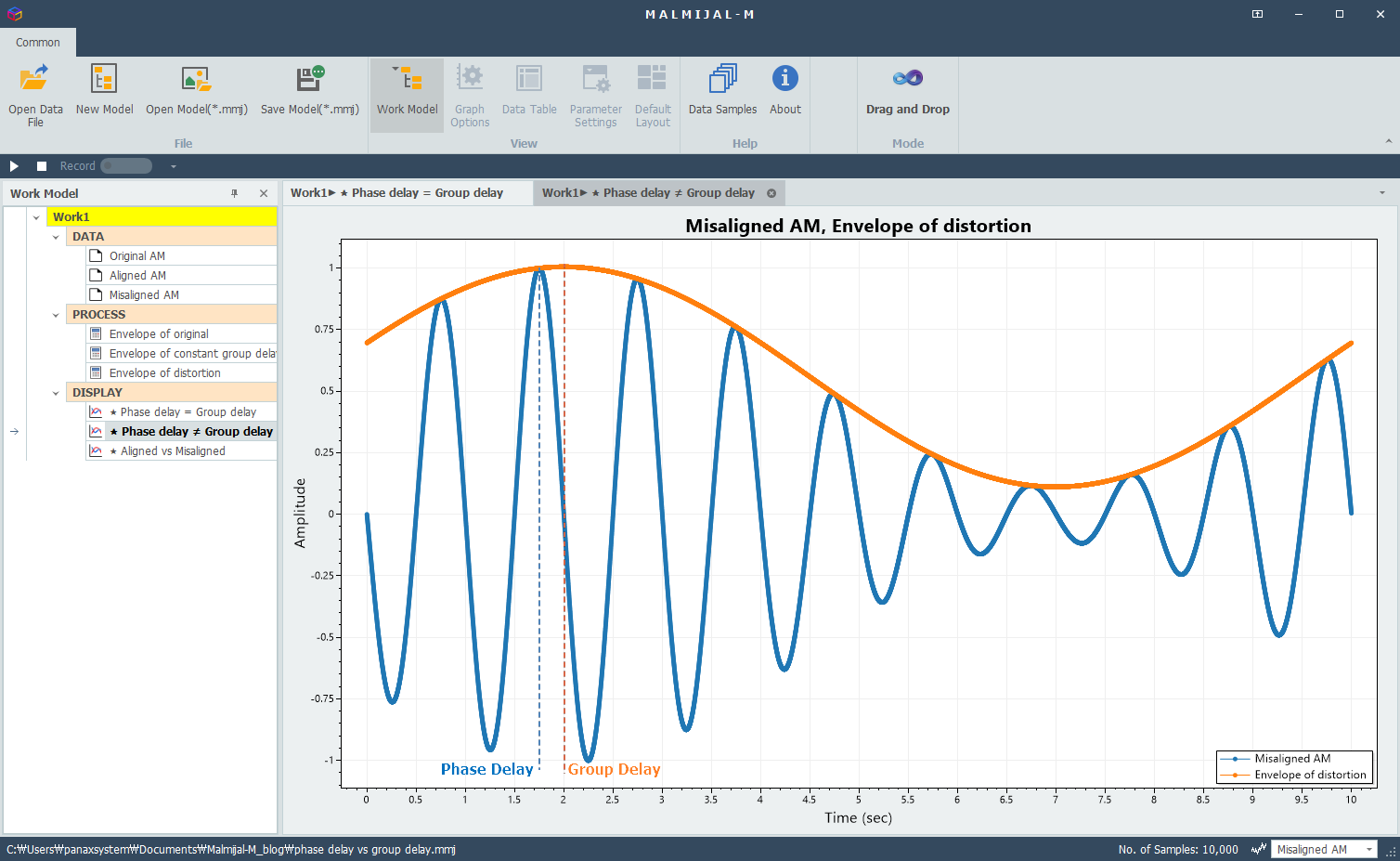

Group delay is not equal tothe phase delay due to frequency-dependent group delay

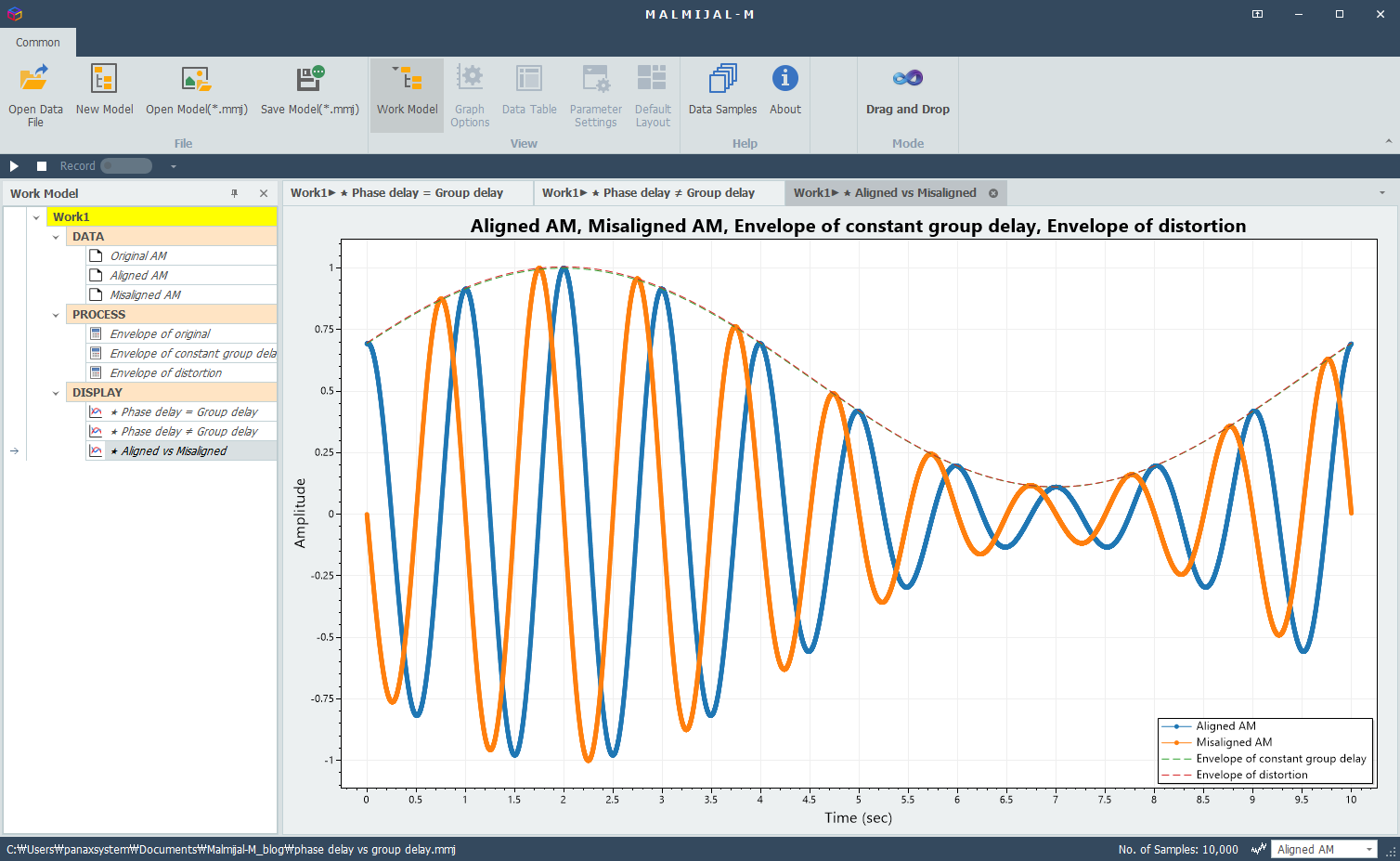

Comparison between constant and frequency-dependent group delay
Conclusion
Group delay measures how long a group of nearby frequency components is delayed by a system. It is the negative slope of the phase response with respect to frequency and plays a critical role in determining whether a signal's waveform is preserved.
A constant group delay indicates that all frequency components experience the same delay, resulting in minimal waveform distortion, while varying group delay can cause transient smearing and signal distortion even when the magnitude response remains unchanged.
In one sentence, group delay is the time delay experienced by a group of frequencies and is one of the most important indicators of waveform preservation in a signal-processing system.
Suggested Further Reading
