Common Probability Distributions Used in Signal Processing
Probability distributions play a fundamental role in signal processing because many real-world signals contain randomness. Noise, vibration, communication signals, measurement errors, and spectral estimates are often modeled using statistical distributions.
Different distributions are useful for describing different physical phenomena and signal-processing applications.

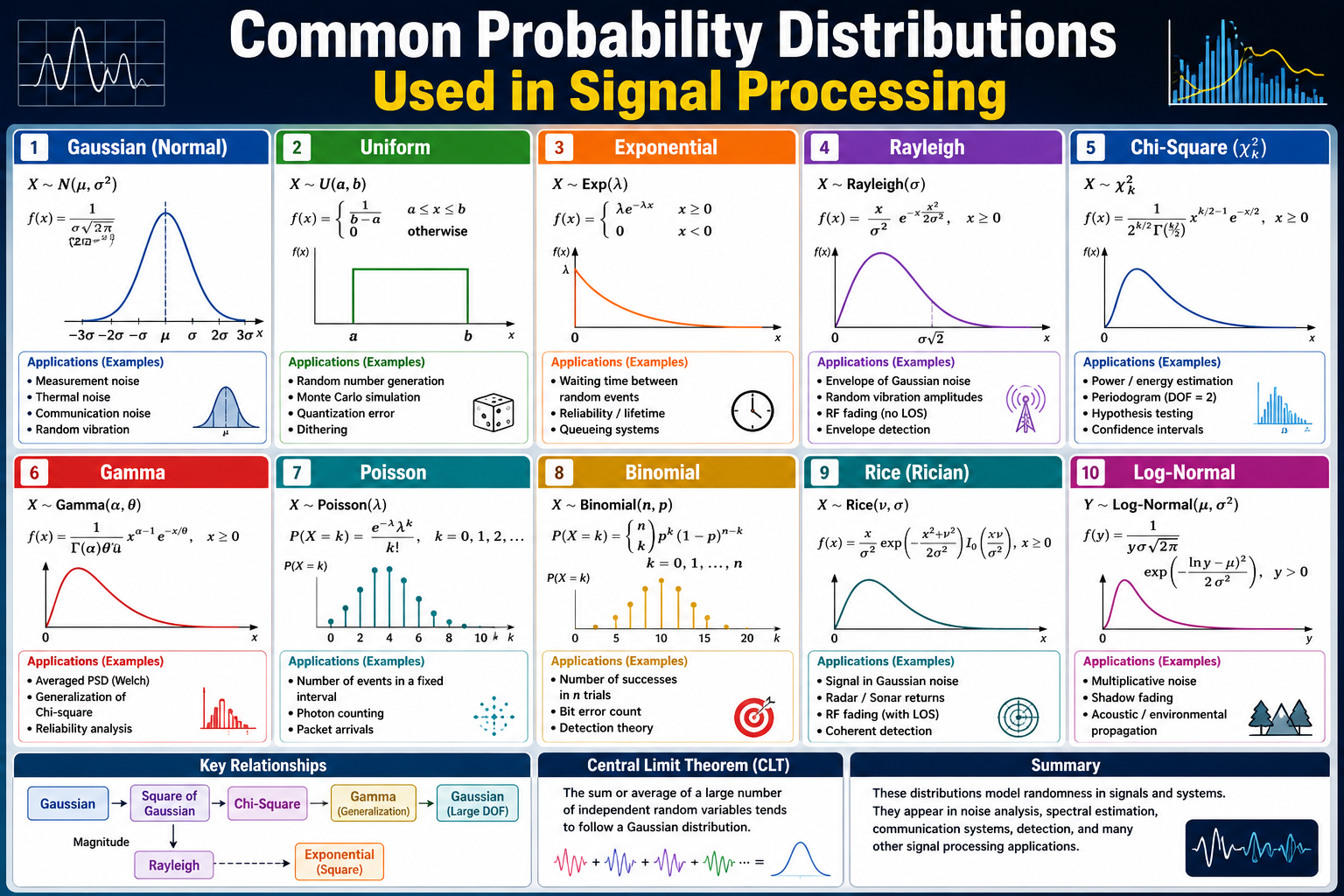

This article introduces some of the most commonly encountered probability distributions in signal processing and explains where they are used.
1. Gaussian (Normal) Distribution
The Gaussian distribution is arguably the most important probability distribution in signal processing.
Its probability density function (PDF) is
Characteristics
- Bell-shaped curve
- Symmetric about the mean
- Fully described by mean and variance
- Naturally arises from the Central Limit Theorem (CLT)
Applications
- Measurement noise
- Sensor noise
- Thermal noise
- Communication channel noise (AWGN)
- Kalman filtering
- Random vibration analysis
Why It Is Important
Many independent random effects combine to produce approximately Gaussian behavior. Therefore, Gaussian noise is often the default noise model in signal processing.
2. Uniform Distribution
A uniform distribution assigns equal probability to all values within a specified range.
Characteristics
- All values are equally likely
- Constant probability density
Applications
- Random number generation
- Monte Carlo simulation
- Quantization error modeling
- Dithering
Example
A fair die roll follows a discrete uniform distribution: 1, 2, 3, 4, 5, 6
3. Exponential Distribution
The exponential distribution describes waiting times between random events.
Characteristics
- Positive-valued
- Memoryless property
- Right-skewed
Applications
- Poisson process inter-arrival times
- Reliability analysis
- Failure modeling
- Queueing systems
Signal Processing Example
Arrival times of random impulses or events are often modeled using an exponential distribution.
4. Rayleigh Distribution
Rayleigh distributions commonly arise when two independent Gaussian variables form a magnitude.
Characteristics
If
then
follows a Rayleigh distribution.
Applications
- Random vibration amplitudes
- RF fading channels
- Narrowband noise envelopes
- Envelope detection
Signal Processing Example
The envelope of Gaussian noise is Rayleigh distributed.
5. Chi-Square Distribution
The Chi-square distribution is formed by summing squared Gaussian variables.
where
Characteristics
- 2DOF (ν = 2) → Exponential distribution
- Large DOF → the distribution approaches a Gaussian shape
Applications
- Power estimation
- Spectral estimation
- Hypothesis testing
- Confidence intervals
Signal Processing Example
A single FFT-based power estimate follows approximately a
distribution.
This is why periodograms exhibit high variance.
6. Gamma Distribution
The Gamma distribution generalizes the Chi-square distribution.
Characteristics
- Positive-valued
- Flexible shape
- Includes Chi-square as a special case
Applications
- Averaged PSD estimates
- Welch's method
- Reliability analysis
Signal Processing Example
As multiple periodograms are averaged in Welch's method, the PSD estimate approaches a Gamma distribution with increasing degrees of freedom.
7. Poisson Distribution
The Poisson distribution models the number of random events occurring within a fixed interval.
Characteristics
- Discrete distribution
- Counts random occurrences
Applications
- Photon counting
- Packet arrivals
- Random event detection
- Impulse occurrence modeling
Signal Processing Example
The number of impulses detected during a given measurement interval often follows a Poisson distribution.
8. Binomial Distribution
The binomial distribution models repeated independent experiments with two outcomes.
Characteristics
- Discrete distribution, Success or failure
- Fixed number of trials
Applications
- Digital communication errors
- Bit error rate (BER) analysis
- Detection theory
Signal Processing Example
The number of bit errors in a communication frame can often be modeled using a binomial distribution.
9. Rice (Rician) Distribution
The Rice distribution extends the Rayleigh distribution by including a deterministic component.
Characteristics
- Signal plus Gaussian noise
- Magnitude distribution
Applications
- Radar systems
- Wireless communications
- Coherent signal detection
Signal Processing Example
A sinusoidal signal embedded in Gaussian noise often produces a Rician-distributed magnitude.
10. Log-Normal Distribution
A variable is log-normal if its logarithm follows a Gaussian distribution.
Characteristics
- Positive-valued
- Strongly skewed
Applications
- Multiplicative noise
- Wireless shadow fading
- Acoustic propagation
Signal Processing Example
Environmental sound levels and propagation losses often exhibit approximately log-normal behavior.

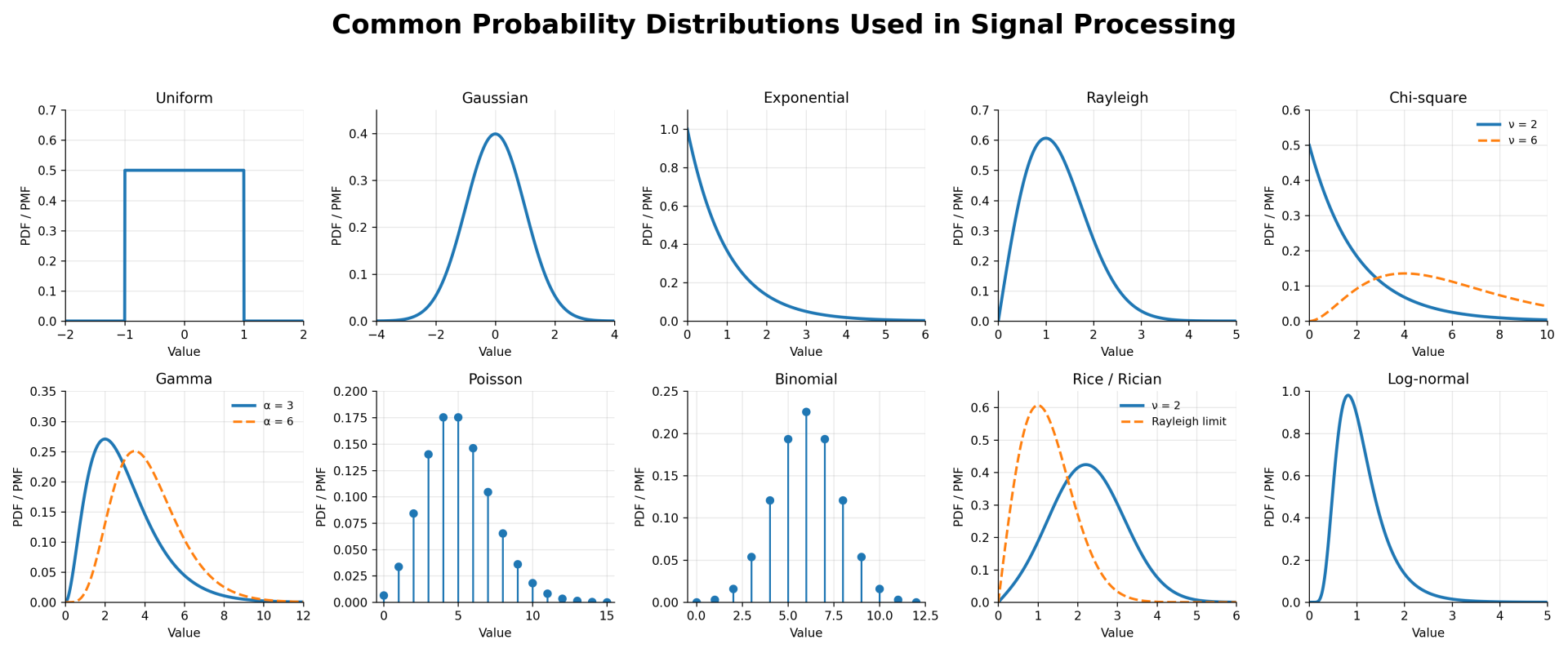

Most Important Distributions in Signal Processing
| Distribution | Typical Application | Gaussian Approximation for Large DOF / Sample Size? |
|---|
| Gaussian | Noise modeling | Already Gaussian |
| Uniform | Random number generation | No* |
| Exponential | Waiting times | No* |
| Rayleigh | Noise envelope | No* |
| Chi-square | PSD estimation | Yes |
| Gamma | Welch PSD averaging | Yes |
| Poisson | Event counting | Yes |
| Binomial | Bit error rate (BER) analysis | Yes |
| Rice | Signal + noise magnitude | No* |
| Log-Normal | Propagation and multiplicative effects | Generally No |
* The distribution itself does not become Gaussian, but the sum or average of many independent variables from that distribution approaches a Gaussian distribution according to the Central Limit Theorem (CLT)

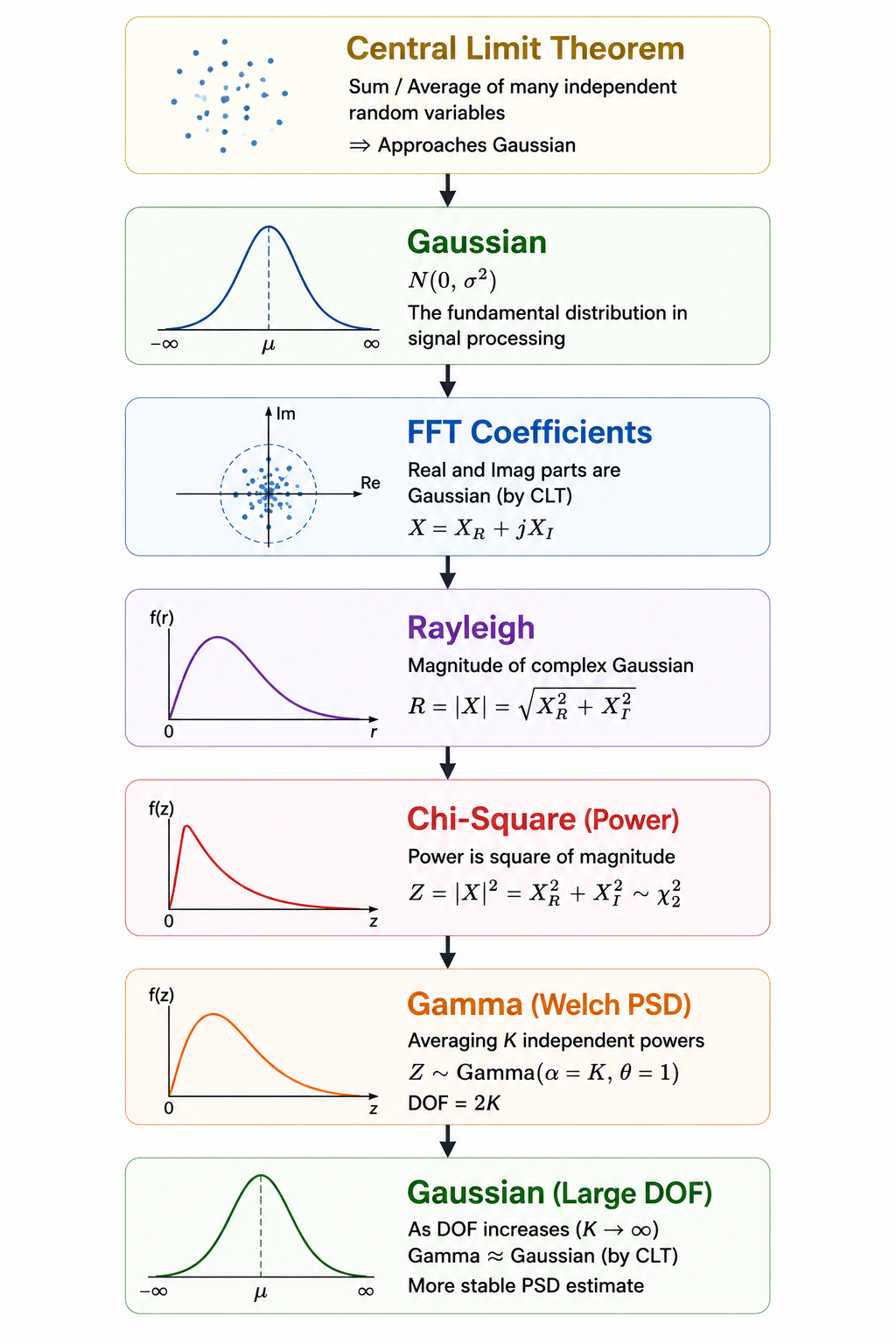

Key Relationships Among Probability Distributions in Signal Processing
Conclusion
Probability distributions provide the mathematical foundation for modeling randomness in signal processing. Among them, the Gaussian distribution is the most fundamental due to the Central Limit Theorem, while distributions such as Rayleigh, Chi-square, Gamma, and Rice naturally arise in practical applications including noise analysis, spectral estimation, communication systems, and machinery diagnostics.
In one sentence, signal processing relies heavily on probability distributions because noise, spectral estimates, communication signals, and random events are inherently statistical in nature.
