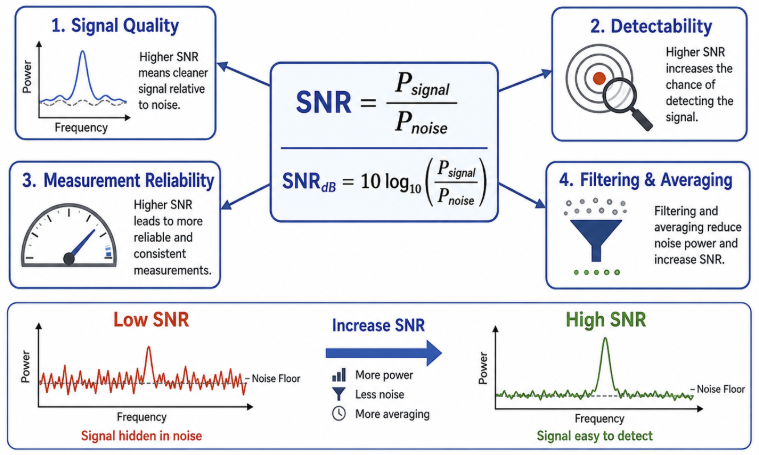

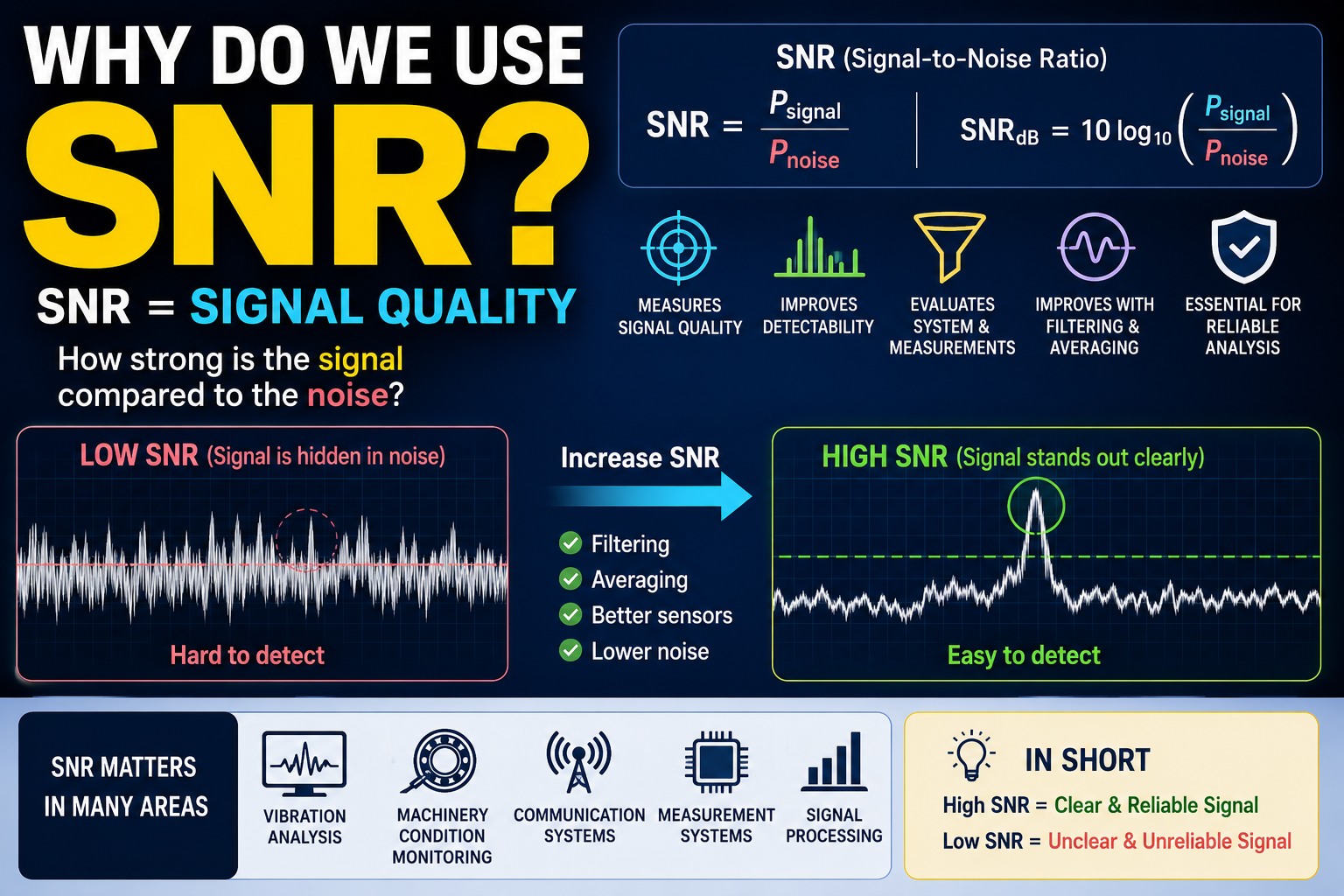

Why Do We Use SNR?
SNR, or Signal-to-Noise Ratio, is used to express how strong a desired signal is compared with unwanted noise. It is one of the most important measures in signal processing, acoustics, vibration analysis, communication systems, measurement systems, and data acquisition.
In simple terms, SNR answers the question:
How clearly can we observe the signal of interest?\text{How clearly can we observe the signal of interest?}How clearly can we observe the signal of interest?
Basic Meaning of SNR
SNR is the ratio between signal power and noise power
It is commonly expressed in decibels
For amplitude-like quantities such as voltage, pressure, acceleration, or vibration amplitude, if RMS values are used
because power is proportional to the square of amplitude.
Why SNR Is Useful
The absolute signal level alone is often not enough. A signal may be large, but if the noise is also large, the useful information may still be difficult to extract.
| Case | Signal | Noise | Interpretation |
|---|
| High signal, low noise | Large | Small | Signal is clear |
| High signal, high noise | Large | Large | Signal may still be unclear |
| Low signal, very low noise | Small | Very small | Signal may be detectable |
| Low signal, high noise | Small | Large | Signal may be buried |
Therefore, SNR is used because it describes signal quality, not just signal magnitude.
Interpretation of SNR Values
| SNR | Meaning |
|---|
| Negative SNR | Noise power is larger than signal power |
| 0 dB | Signal power equals noise power |
| 3 dB | Signal power is about 2 times noise power |
| 10 dB | Signal power is 10 times noise power |
| 20 dB | Signal power is 100 times noise power |
| 40 dB | Signal power is 10,000 times noise power |

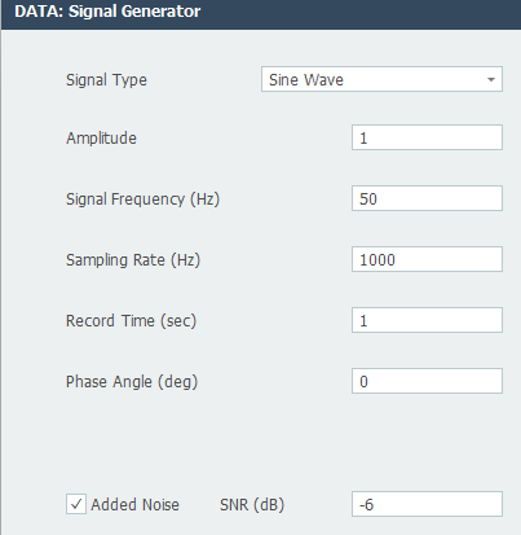

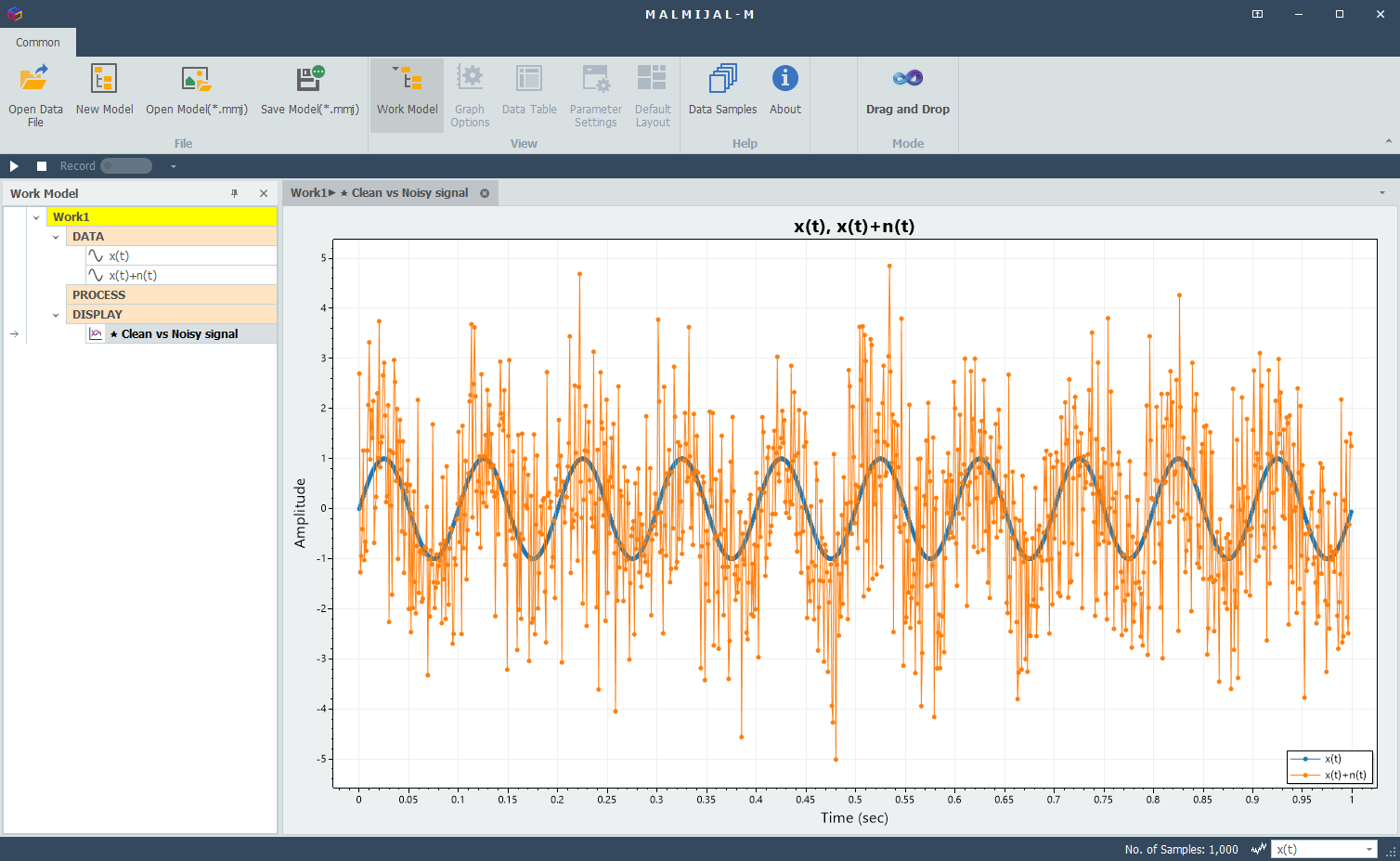

For example, if SNR = -6 dB, then Pnoise = Psignal x 10 -SNR / 10 = 4 Psignal
A higher SNR generally means that the desired signal is easier to detect, analyze, or reproduce.
SNR in Signal Processing
In signal processing, SNR is used to evaluate whether a signal contains enough useful information for analysis.
For example
- In FFT analysis, a low SNR may hide spectral peaks.
- In envelope analysis, bearing fault frequencies may be buried in broadband noise.
- In order tracking, weak order components may be difficult to distinguish from noise.
- In filter design, filtering is often used to improve SNR by reducing noise outside the frequency band of interest.
- In averaging, random noise can be reduced while coherent signal components remain.
Thus, SNR is closely related to detectability, measurement reliability, and analysis accuracy.
SNR in Measurement Systems
In measurement systems, SNR helps evaluate the quality of sensors, amplifiers, ADCs, and acquisition hardware.
A measurement system with poor SNR may produce data that looks noisy even if the actual physical signal is meaningful.
| System component | Why SNR matters |
|---|
| Sensor | Determines how weak a signal can be detected |
| Amplifier | Low-noise amplificatin preserves signal quality |
| ADC (Analog to Digital Converter) | Quantizatino noise limits measurable resolution |
| Cable and grounding | Electrical noise can reduce SNR |
| Data acquisition system | Determines usable dynamic range |
For example, if a vibration signal from a small bearing defect is weaker than the sensor noise, the defect may not be detected reliably.
SNR and Detectability
One of the main reasons for using SNR is to determine whether a signal can be detected.
If the SNR is high, the signal is visually and statistically distinguishable from noise.
If the SNR is low, the signal may be hidden.
For example, in a noisy vibration signal
Low SNR ⇒ fault feature is difficult to detect
High SNR ⇒ fault feature is easier to identify
This is why many signal processing methods are designed to improve SNR before feature extraction.
SNR and Filtering
Filtering can improve SNR when the signal and noise occupy different frequency regions.
For example, if the useful signal is concentrated around a resonance band while noise is spread over a wide frequency range, a bandpass filter can suppress unnecessary frequency components.
Raw signal → filtering → improved SNR
However, filtering improves SNR only when the filter preserves the signal of interest and removes irrelevant noise. If the signal and noise overlap strongly in frequency, filtering alone may not be sufficient.
SNR and Averaging
Averaging is another common method for improving SNR.
If a signal is repeated consistently but the noise is random, averaging multiple measurements reduces the random noise component.
For uncorrelated random noise, averaging NNN records improves SNR approximately by 10 log10 (N) in power terms.
| Number of averages | Approximate SNR improvement |
|---|
| 2 | +3 dB |
| 4 | +6 dB |
| 10 | +10 dB |
| 100 | +20 dB |
This is why ensemble averaging, synchronous averaging, and Welch averaging are widely used.
SNR vs Dynamic Range
SNR is related to dynamic range, but they are not exactly the same.
| Term | Meaning |
|---|
| SNR | Ratio between desired signal and noise |
| Dynamic range | Ratio between the largest and smallest usable signal levels |
| Noise floor | Background level below which signals are difficult to distinguish |
A system with a low noise floor usually allows higher SNR for weak signals.
Conclusion
SNR is used because it provides a practical measure of signal quality. It tells us whether the desired signal is strong enough compared with the noise to be detected, measured, analyzed, or transmitted reliably.
In short, SNR tells us how clearly the desired signal stands out from noise.
A high SNR means the signal is clear and reliable. A low SNR means the signal may be hidden, distorted, or difficult to analyze.
