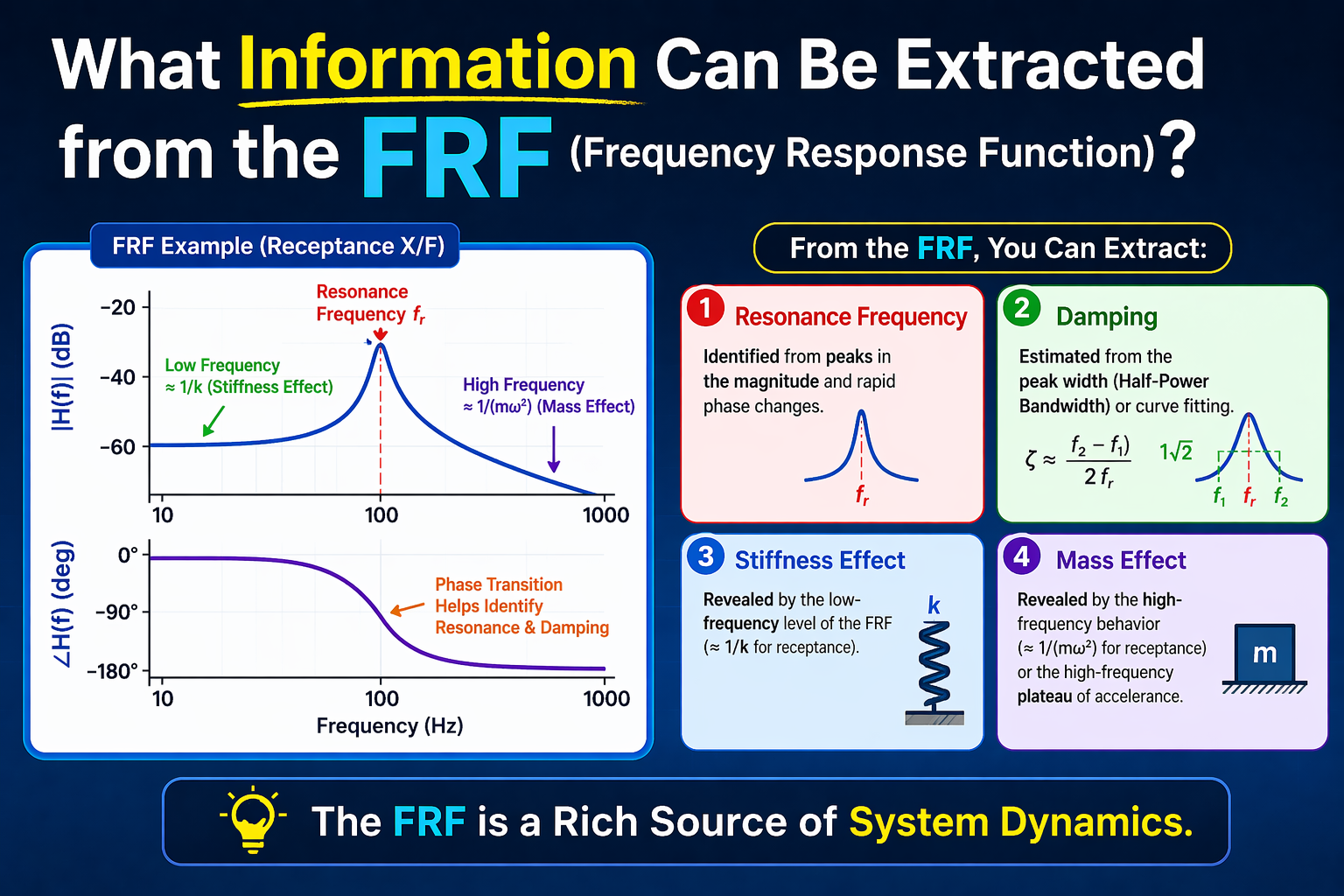

What Information Can Be Extracted from the FRF (Frequency Response Function)?

The Frequency Response Function (FRF) provides a complete description of how a system behaves across frequency. By analyzing its magnitude and phase, a wide range of physical and dynamic properties can be extracted.


1. Resonance Frequencies

Peaks in the FRF magnitude indicate resonances

  • Locations of natural frequencies
  • Frequencies where the system responds most strongly

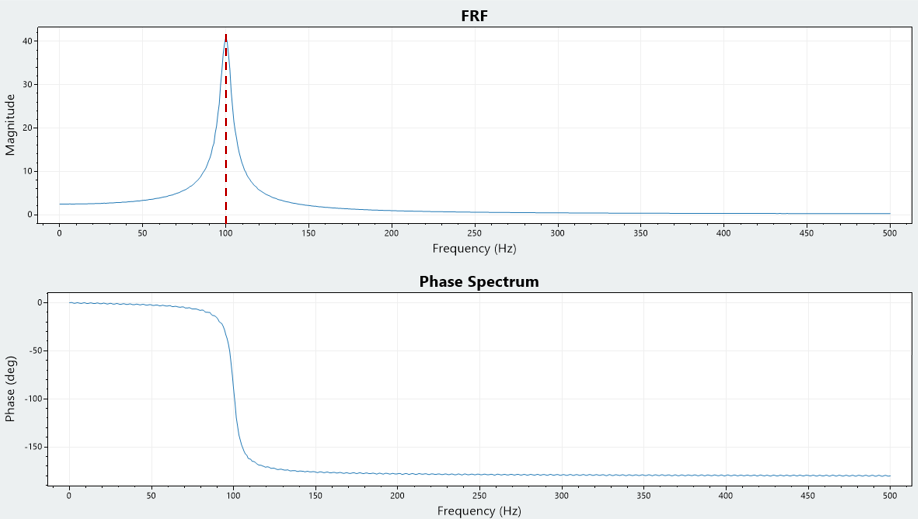

Resonance frequency fr = 100Hz in this case

Resonance frequency fr = 100Hz in this case


2. Damping Characteristics

The shape and width of resonance peaks reveal damping

  • Narrow peak → low damping
  • Broad peak → high damping

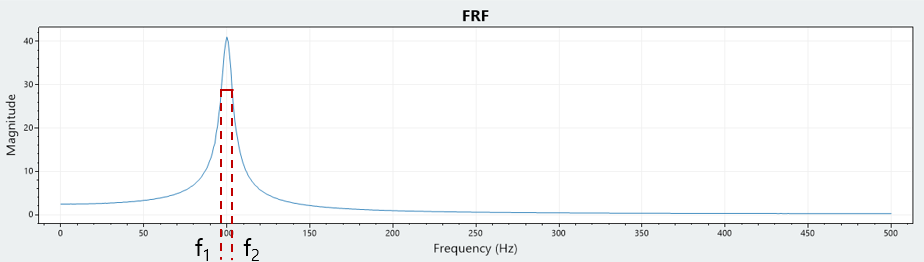

Quality factor Q = 100 / 15.4 ≒ 6.49351, Damping ratio ζ = 1 / (2*6.49351) ≒  0.077


Quality factor Q = 100 / 15.4 ≒ 6.49351, Damping ratio ζ = 1 / (2*6.49351) ≒  0.077


Typical calculation methods

  • Half-power (-3dB) bandwidth → Half-power points occur at 1/sqrt(2) of the peak magnitude
  • Curve fitting estimates damping by fitting a theoretical dynamic model to the measured FRF data


3. System Gain (Amplitude Response)

| H (f)  |

Shows how much the system

  • amplifies
  • attenuates

input signals at each frequency → Frequency-dependent sensitivity


4. Phase Response

H (f)

Indicates

  • phase lag between input and output
  • dynamic delay


Key feature

  • Rapid phase change near resonance
  • Timing behavior of the system


5. Modal Properties

From FRF, we can extract intrinsic dynamic characteristics of the structure

  • Natural frequencies
  • Mode shapes (with multiple measurements)
  • Modal damping ratios



6. System Type and Dynamics

FRF reveals whether the system behaves like physical nature of the system

  • Mass dominated (high frequency)
  • Stiffness dominated (low frequency)
  • Damping dominated (near resonance)

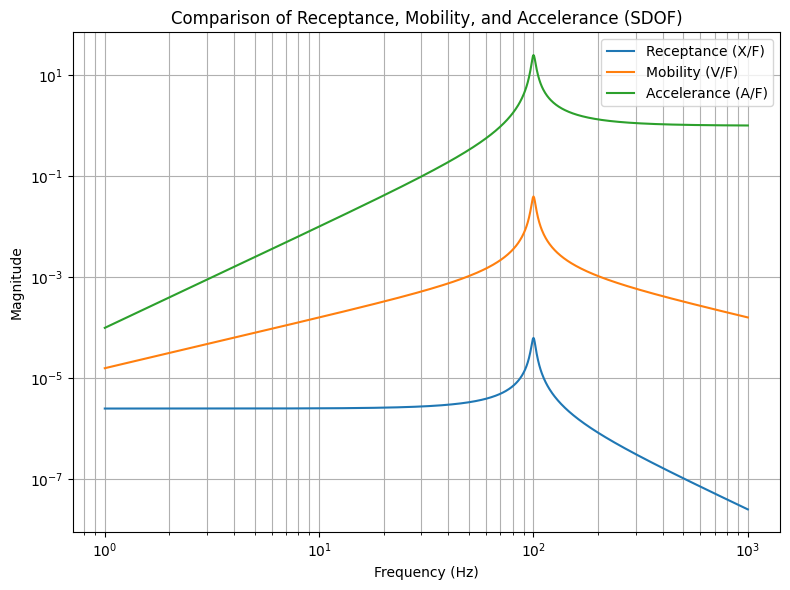

comparison of receptance, mobility, and accelerance

DomainStandard FRFNameInverse FRFName
DisplacementsX / FReceptance
Admittance
Dynamic Compliance
Dynamic Flexibility
F / XDynamic Stiffness
VelocityV / FMobilityF / VMechanical Impedance
AccelerationA / F Accelerance
Inertance
F / AApparent Mass
Dynamic Mass



7. Transfer Characteristics

FRF identifies

  • Filters (low-pass, high-pass, band-pass, band-stop)
  • Structural transmission paths → TPA (Transfer Path Analysis)
  • Isolation effectiveness

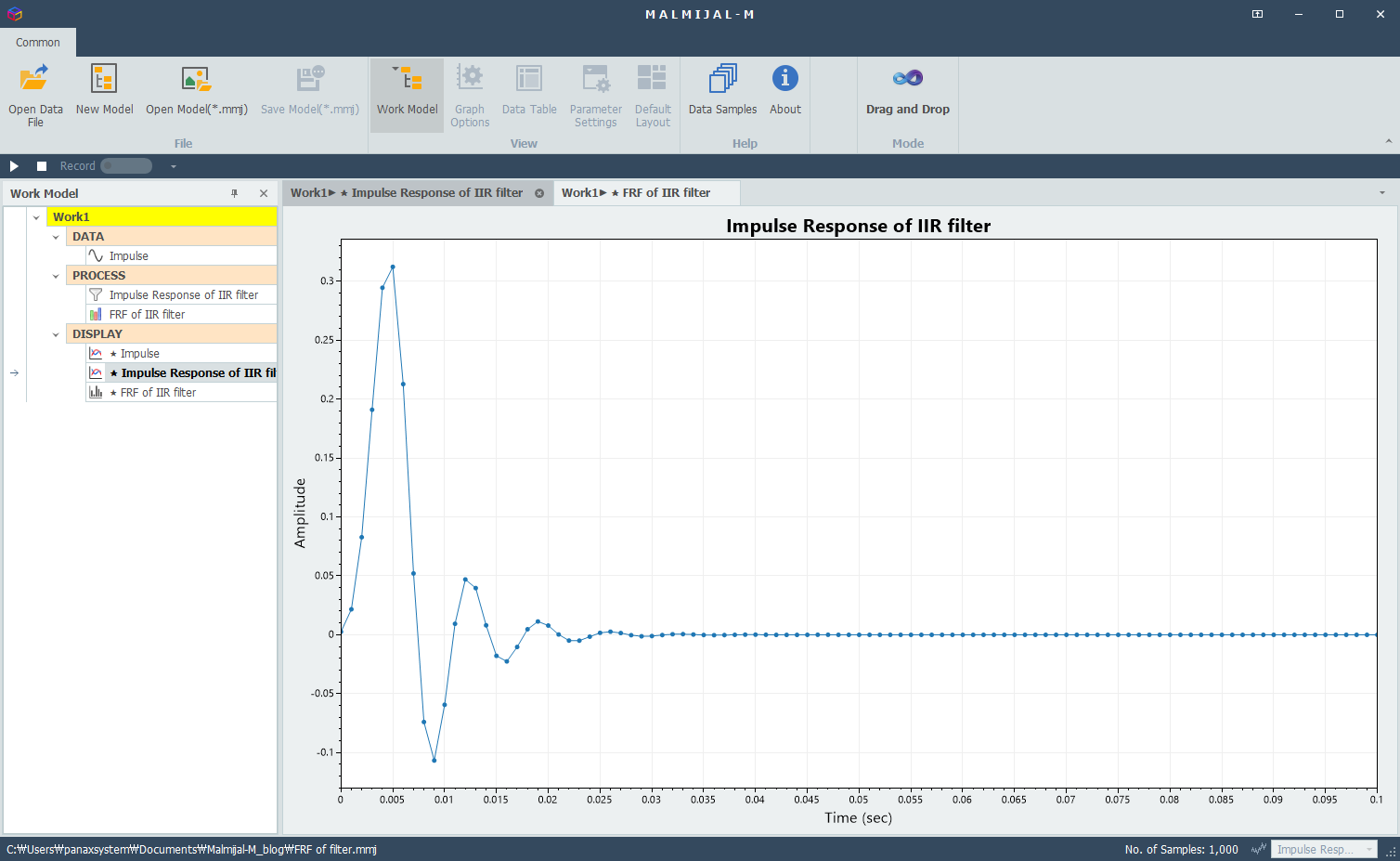

Impulse response of lowpas IIR filterImpulse response of IIR low-pass filter

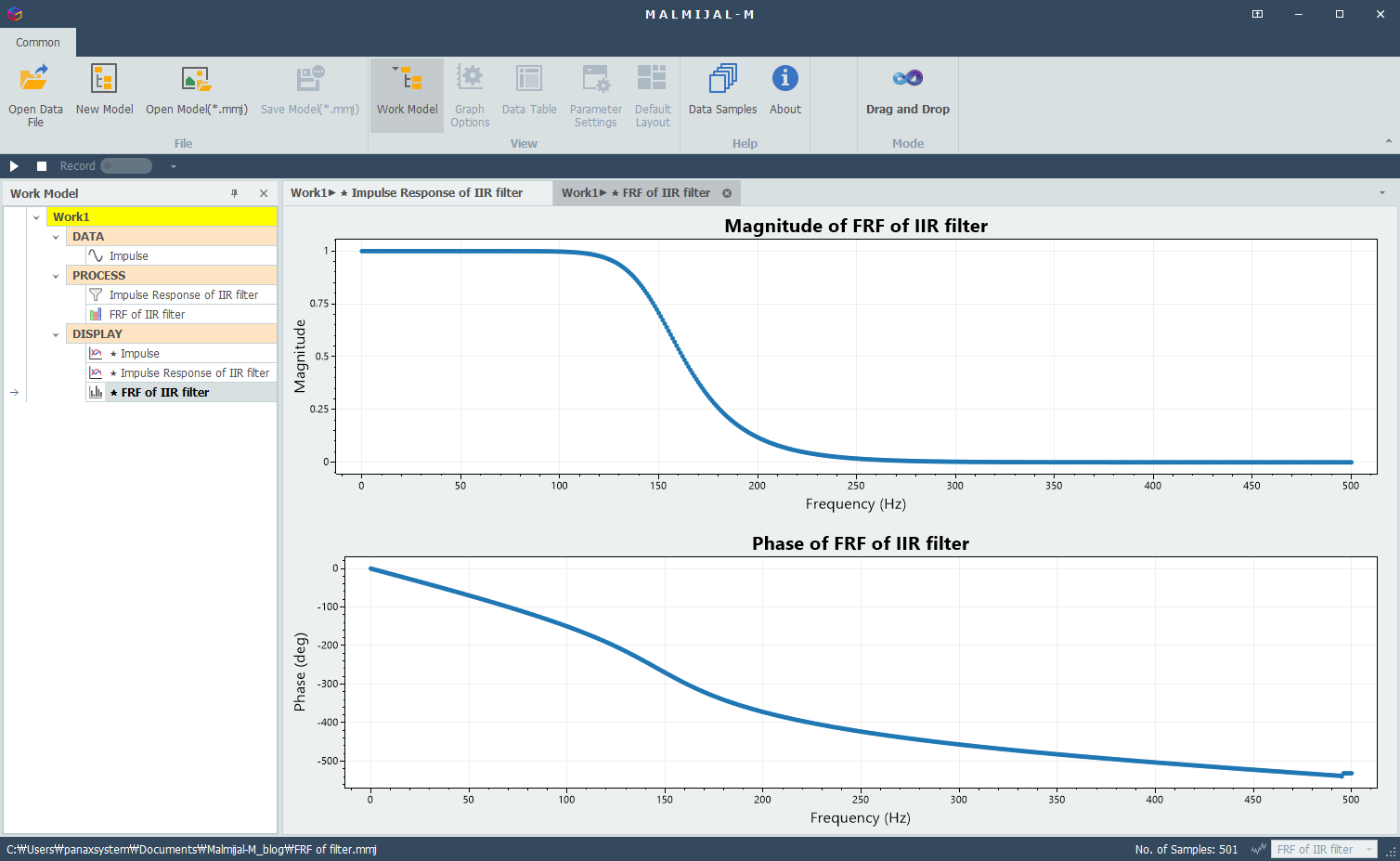

FRF of IIR filter, magnitude vs. phaseFRF of IIR low-pass filter


8. Nonlinear or Measurement Issues

via Magnitude-squared Coherence

Although not part of FRF itself

  • Low coherence value → unreliable FRF
  • Indicates noise, nonlinearity, or poor excitation

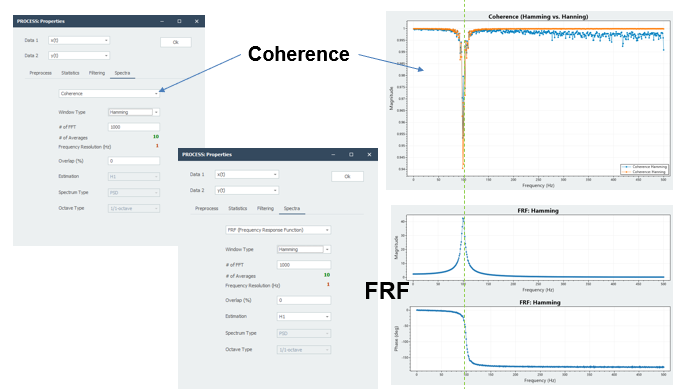

Relationship between coherence and FRFRelationship between magnitude-squared coherence and FRF


Key Insight

  • FRF is not just a curve—it is a complete fingerprint of the system’s dynamics
  • The FRF allows extraction of resonance, damping, gain, phase, and modal properties, providing a comprehensive understanding of a system’s dynamic behavior


Conclusion

The FRF is one of the most powerful tools for understanding and quantifying system behavior in the frequency domain.

By analyzing the FRF, engineers can

  • identify system characteristics
  • diagnose problems
  • design and validate dynamic systems
