Why Do Signals Repeat? Understanding Periodicity
In signal processing, many signals repeat over time.
This behavior is called periodicity.
Understanding periodicity helps us:
- Analyze signals more efficiently
- Predict future behavior
- Simplify frequency analysis
What Is a Periodic Signal?
A signal is periodic if it repeats after a fixed time interval.
This interval is called the period (T)
x (t) = x (t + T)
Intuition
“The signal pattern repeats again and again”
Waveform with repeated segments
Examples of Periodic Signals
Common Examples:
- Sine wave → smooth repetition
- Square wave → digital signals
- Machine rotation → vibration cycles
Why Do Signals Repeat?
Signals repeat because of underlying physical processes
Key Reasons:
1. Oscillation
- Systems naturally oscillate
- Example: pendulum, AC signals
2. Rotation
- Rotating machines create repeating patterns
- Example: motors, gears
3. Cyclic Systems
- Repeating processes in nature or systems
- Example: heartbeats, seasonal signals

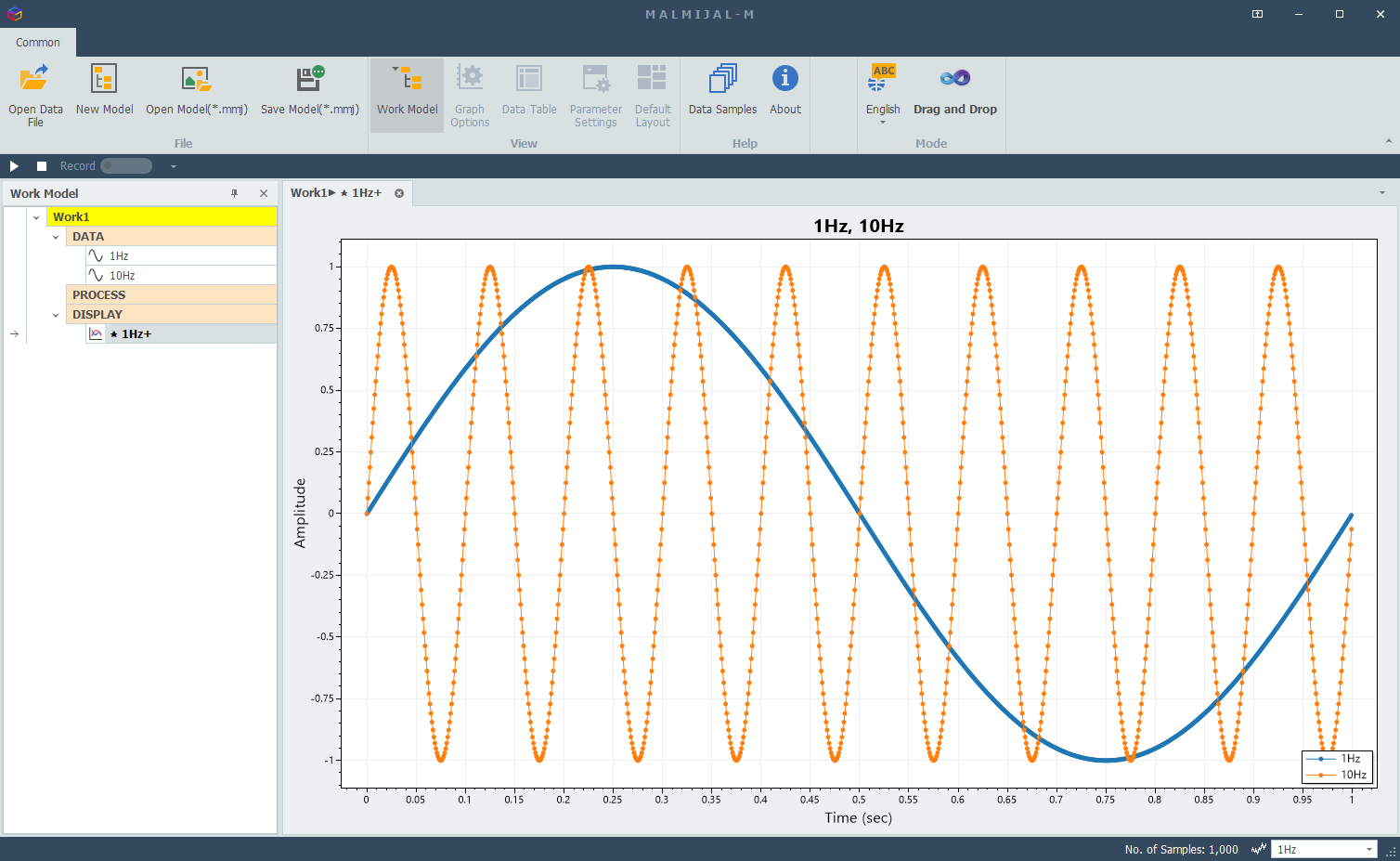

Frequency and Period Relationship
Frequency tells how often a signal repeats.
Key Insight
- Short period → high-frequency
- Long period → low-frequency
How to Detect Periodicity
Method:
1. Visual Inspection
- Look for repeating patterns
2. Autocorrelation
- Peak values indicate repetition
3. FFT Analysis
- Periodic signals produce spectral peaks at the fundamental frequency and its harmonics (under coherent sampling and sufficient SNR)
MALMIJAL Application
- Autocorrelation analysis
- FFT / Power Spectrum

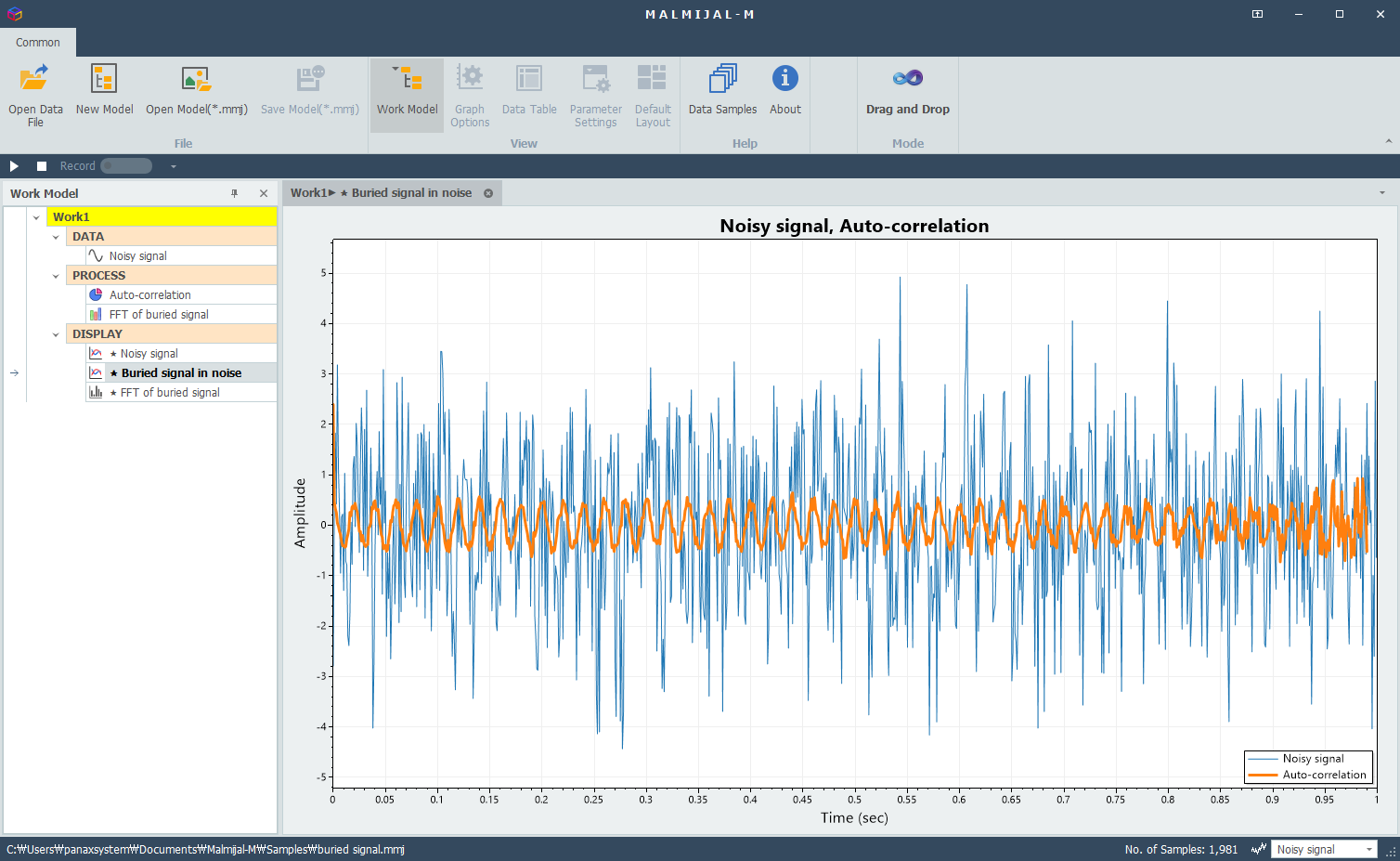

Hidden periodic signal in noise (refer to Samples/buried signal.mmj)
Periodic vs Non-Periodic Signals
Type | Description |
|---|
Periodic | Repeats regularly |
Non-periodic | No repetition |
Examples:
- Periodic → sine wave
- Non-periodic → random noise

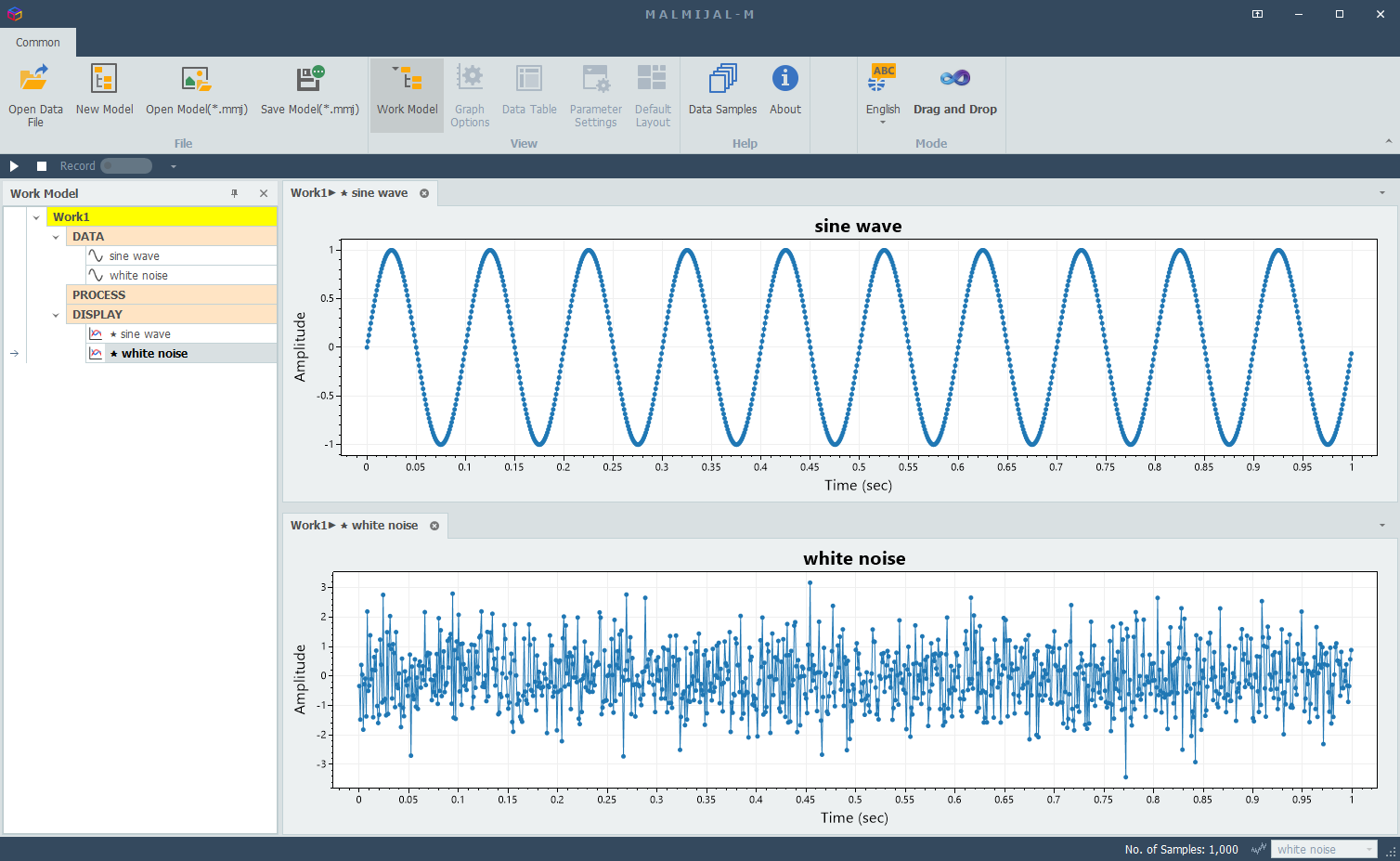

Sine vs noise comparison
Practical Importance
- Machine fault detection
- Audio signal analysis
- Communication systems
Periodicity reveals hidden structure
Key Takeaways
- Periodicity = repeating signal pattern
- Defined by periodic time (T)
- Strongly linked to frequency
- Detectable via autocorrelation and FFT
Conclusion
Periodicity describes signals that repeat over time and is a fundamental concept in signal processing.
- It allows us to identify patterns, predict behavior, and simplify analysis, especially in systems with repeating motion or cycles.
- Period and frequency in signal are closely related, providing two ways to describe the same repeating behavior.
- Periodicity can be effectively detected using methods such as visual inspection, autocorrelation, and FFT analysis.
In summary,
understanding periodicity helps reveal the underlying structure of signals and is essential for analyzing real-world systems such as machines, audio, and communication signals.
