What Is Frequency in Simple Terms? (With Real Examples)
In signal processing, frequency describes how often a signal repeats over time. It is one of the most important concepts for understanding signals.
What Is Frequency?
Frequency tells us How many times a signal repeats per second. It is measured in Hertz (Hz).
Intuition
“How fast something repeats”
Example
- 2 Hz → repeats twice per second
- 10 Hz → repeats 10 times per second

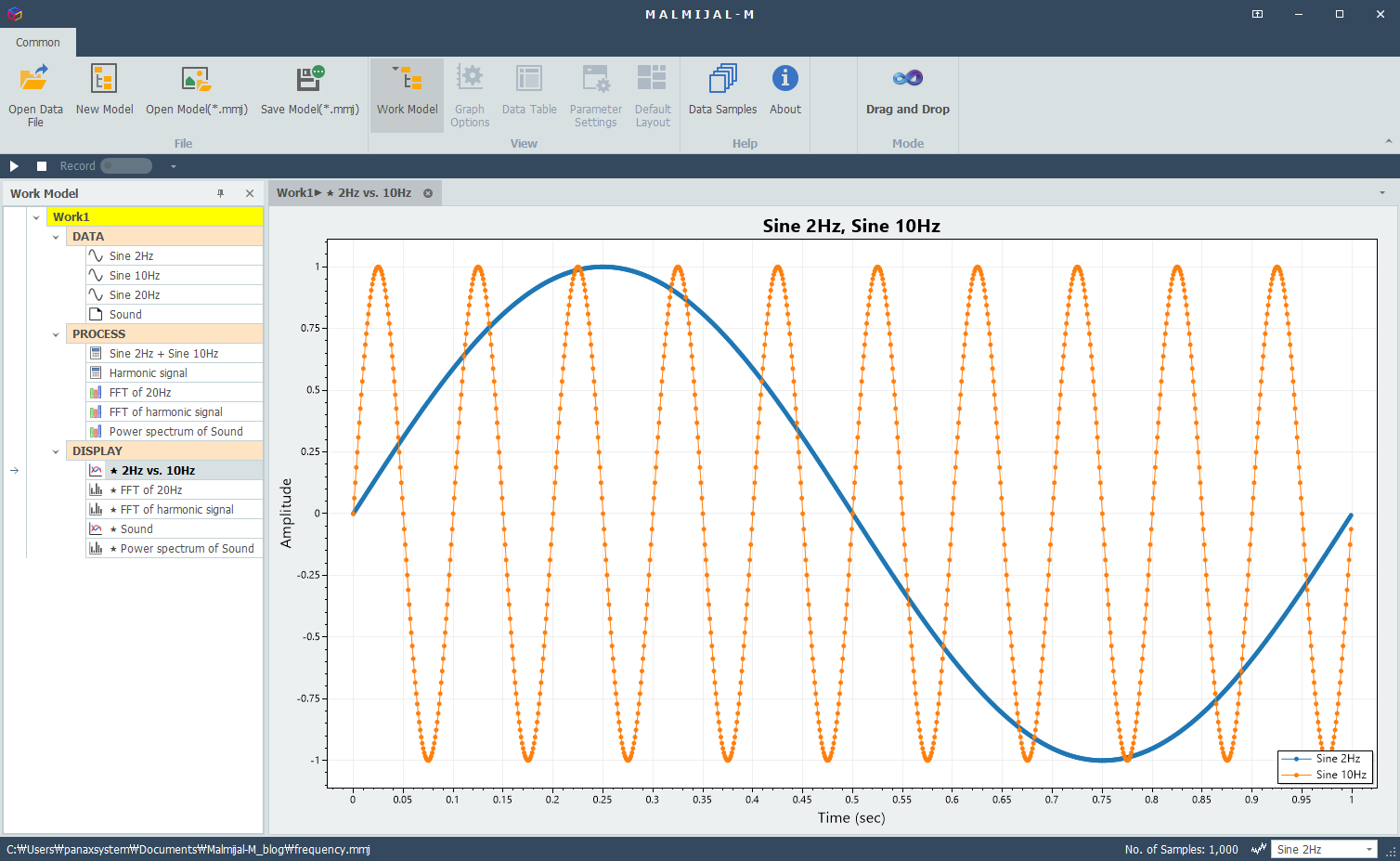

Two signals with different frequencies
Real-World Examples
Sound (Audio)
- Low frequency → deep bass
- High frequency → sharp sound
Machine Vibration
- Rotating machine → frequency = rotation speed
Heartbeat
- Frequency → beats per second
Frequency in Signals
Signals can have
- Single frequency → pure tone
- Multiple frequencies → complex signal
Example
- A Sine wave → one frequency
- Harmonic signals → several frequencies
- Sound → many frequencies

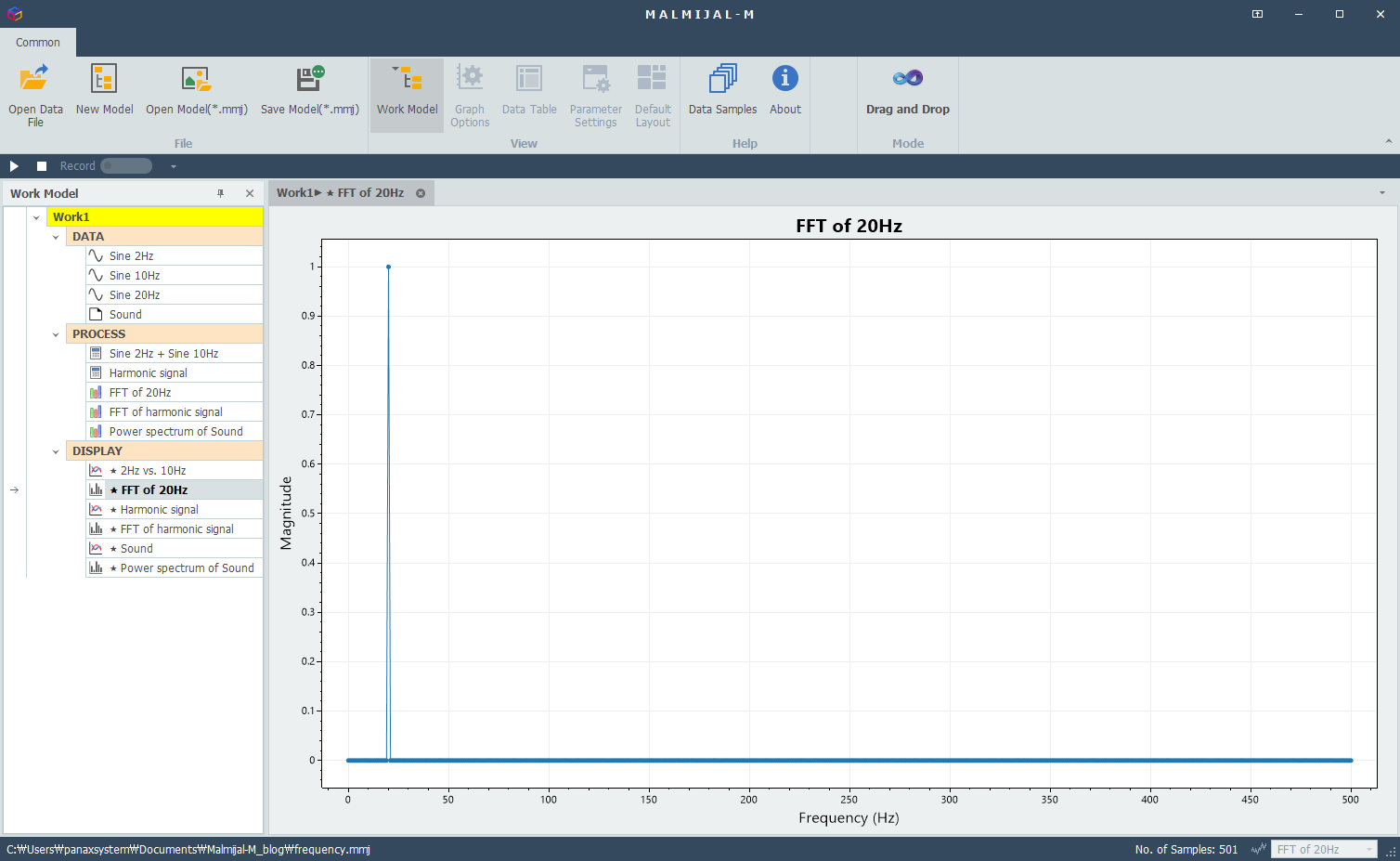

FFT of a sine wave having 20Hz
How to Find Frequency?
1. Time Domain
2. FFT Analysis
- Convert to frequency domain
- Identify peaks
Example
Harmonic signals (2Hz, 10Hz, 20Hz) having fundamental frequency 2Hz

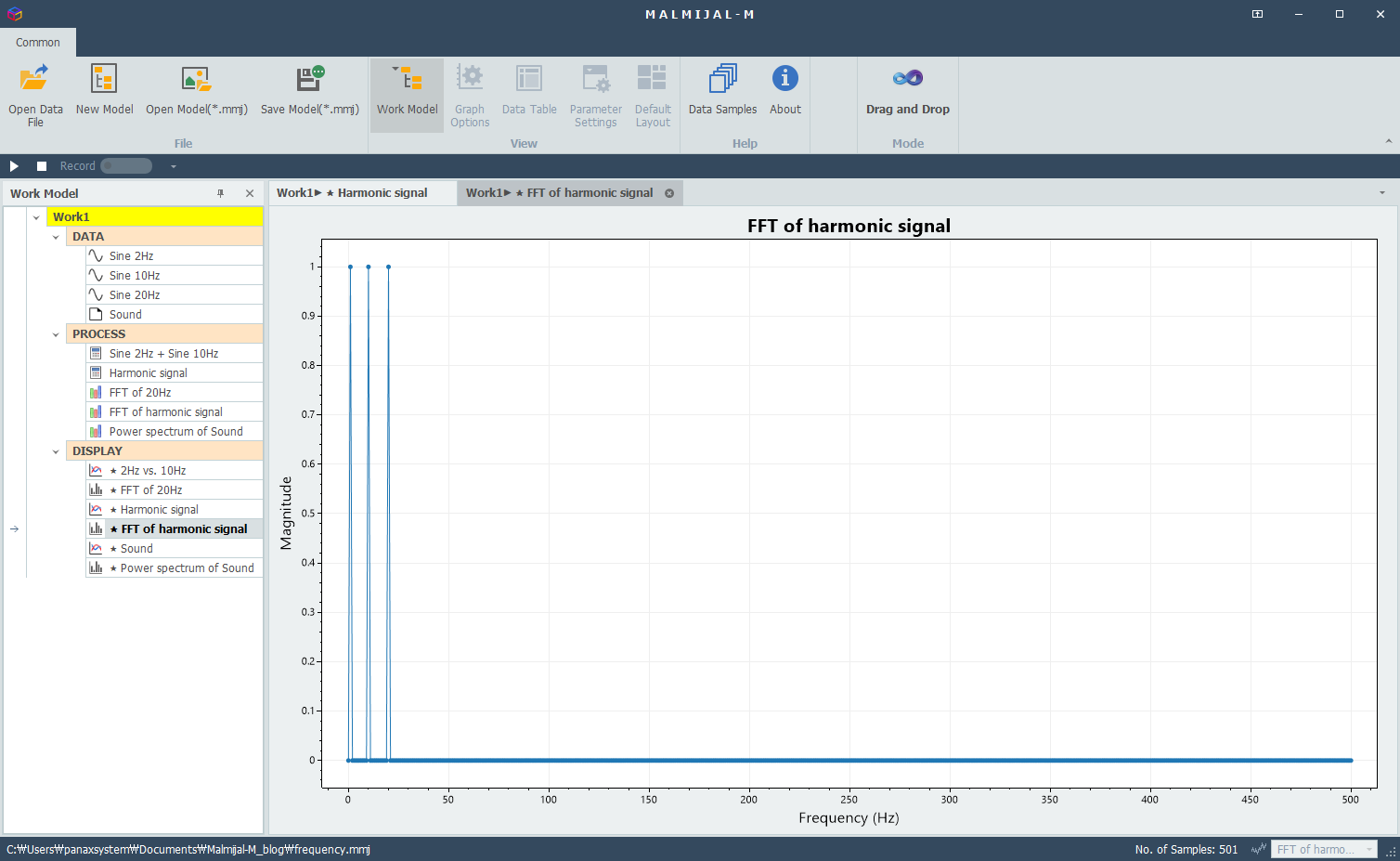

FFT of Harmonic signals

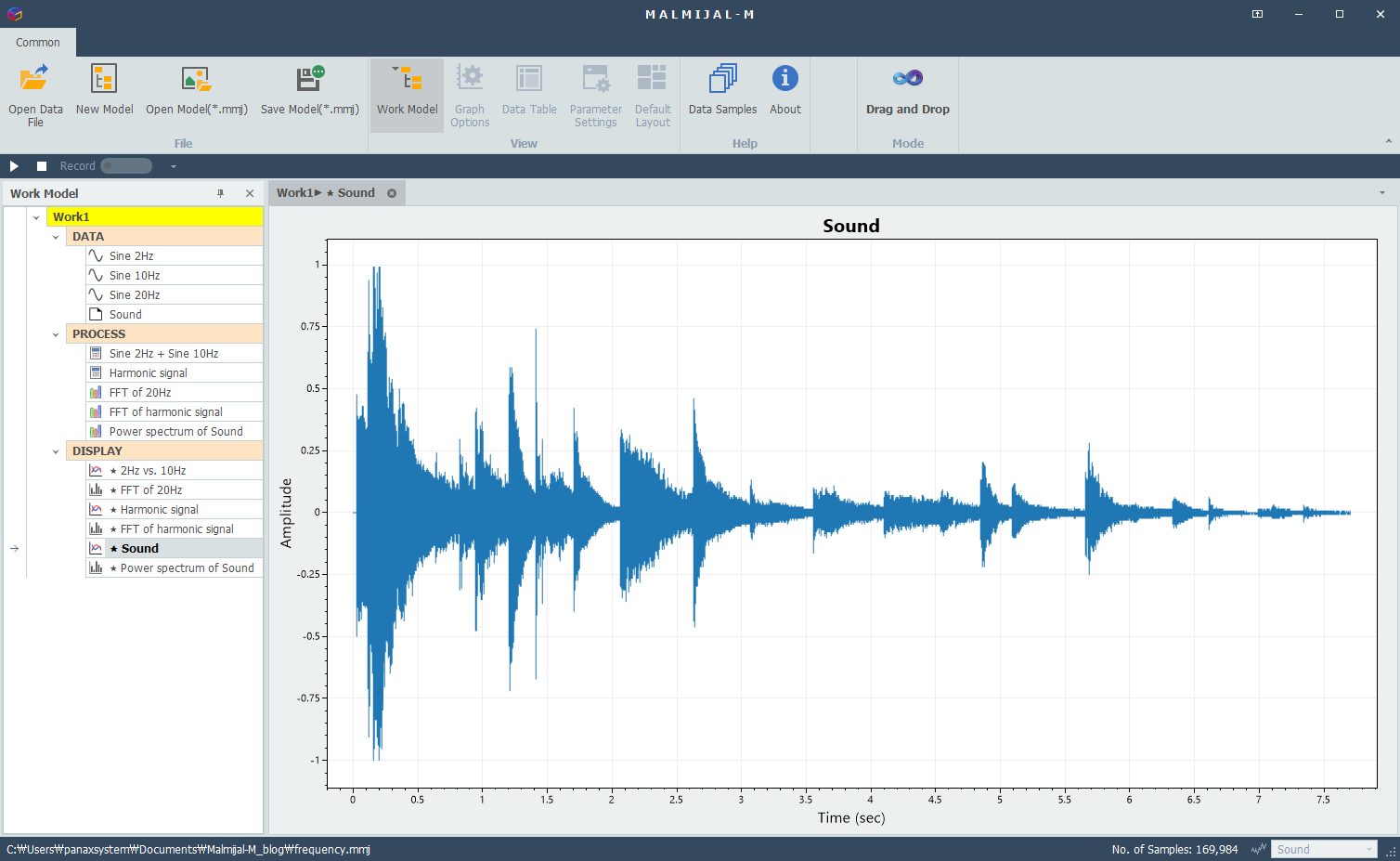

Sound signal in time domain

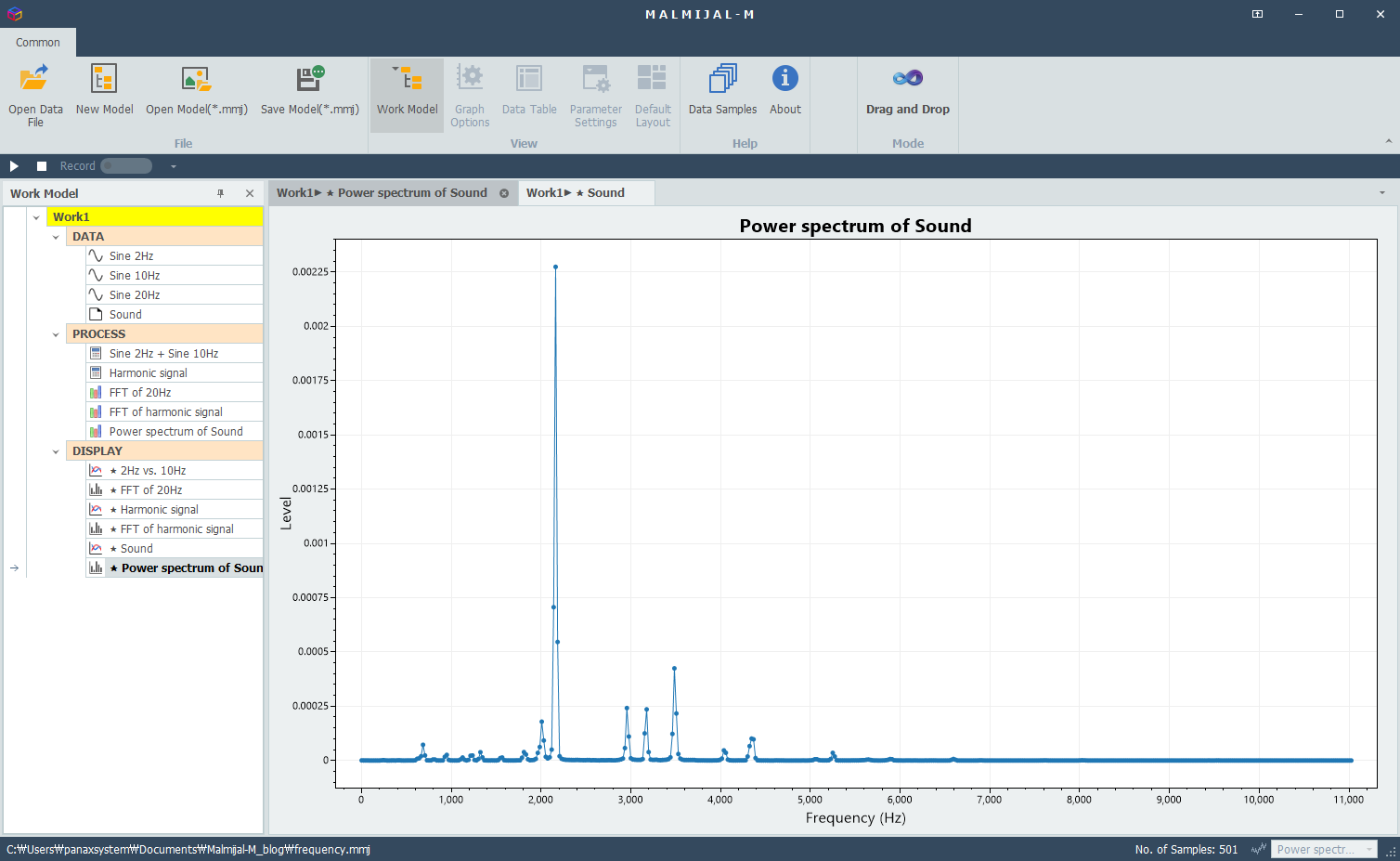

Power spectrum of Sound signal to identify frequency components
Why Frequency Matters
- Helps understand signal behavior
- Essential for filtering
- Used in diagnostics and analysis
Key Takeaways
- Frequency = how often a signal repeats
- Measured in Hz

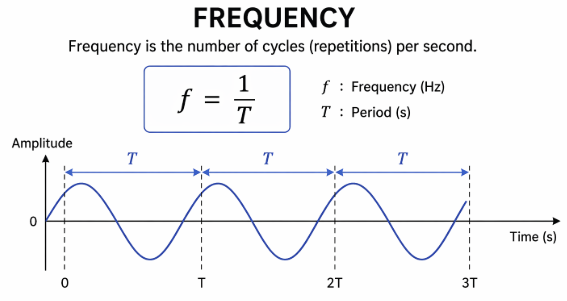

- Related to period
- Core concept in all signal analysis
Conclusion
Frequency describes how often a signal repeats over time and is a core concept in signal processing.
- It provides essential insight into signal behavior, from simple repeating patterns to complex multi-frequency signals.
- Frequency in signal is directly related to period, offering two complementary ways to understand repetition.
- It can be determined through time-domain measurement or more effectively using FFT and power spectrum analysis.
In summary,
frequency is fundamental to analyzing, interpreting, and processing signals, and plays a critical role in applications such as filtering, diagnostics, and system analysis.
