What Happens If You Change Sampling Time?

Sampling time (or sampling interval) determines how often a signal is measured

Changing sampling time directly affects

Signal resolution
Frequency analysis accuracy
Data size

What Happens If You Change Sampling Time

What Is Sampling Time?

Sampling time T_s is the time gap between samples

Small T_s → more samples
Large T_s → fewer samples

Related to sampling frequency (sample rate, sampling rate)

What Happens When Sampling Time Decreases?

(High sampling frequency)

Effects

More detailed signal representation
Better capture of fast changes
Higher frequency detection possible

Pros

Accurate waveform
Better FFT resolution (high-frequency range)

Cons

Larger data size
More computation

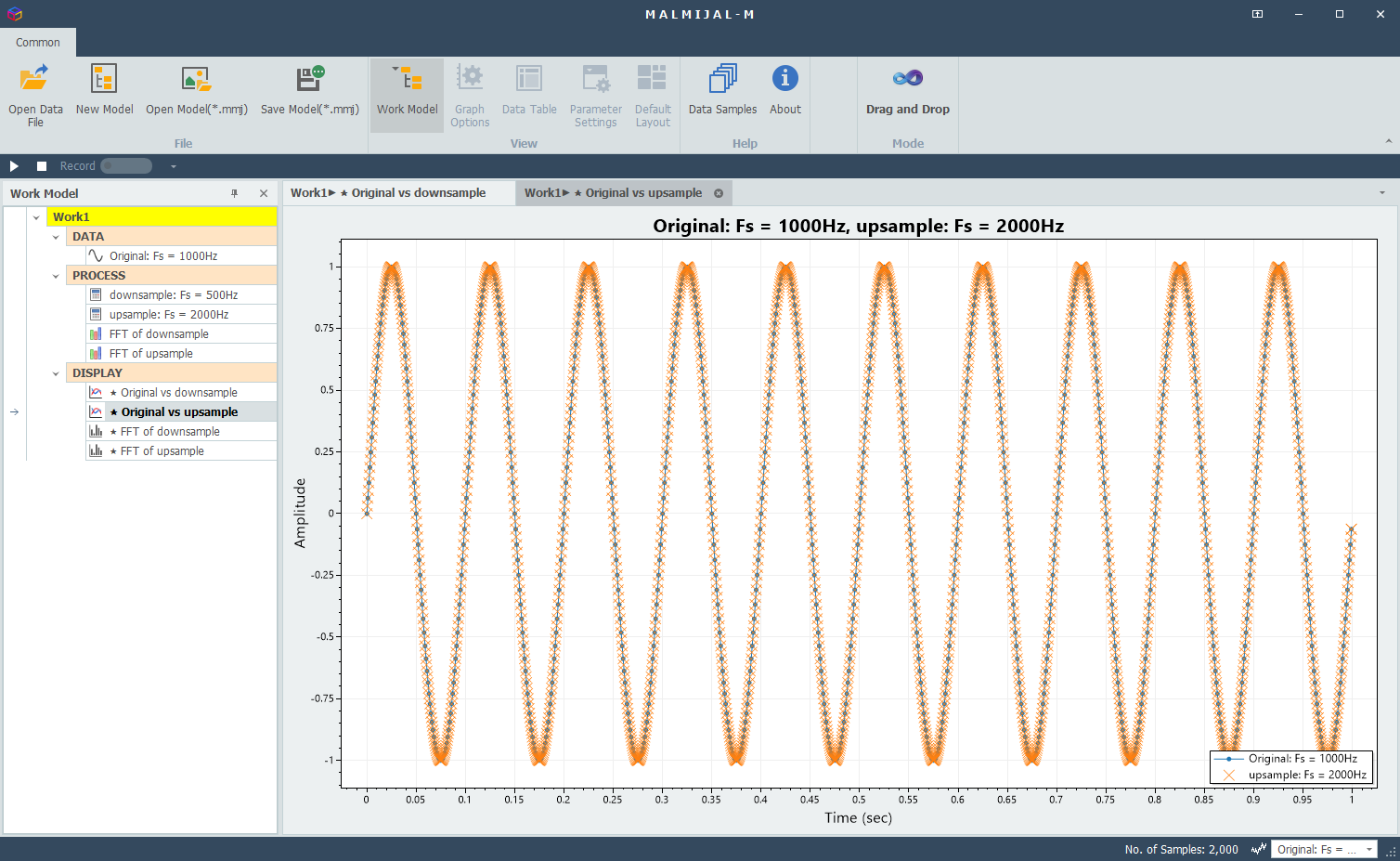

Original vs upsampling

Original vs up-resampled signal

What Happens When Sampling Time Increases?

(Low sampling frequency)

Effects

Loss of detail
Missed rapid changes
Risk of aliasing

Pros

Smaller data size
Faster processing

Cons

Distorted signal
Inaccurate analysis

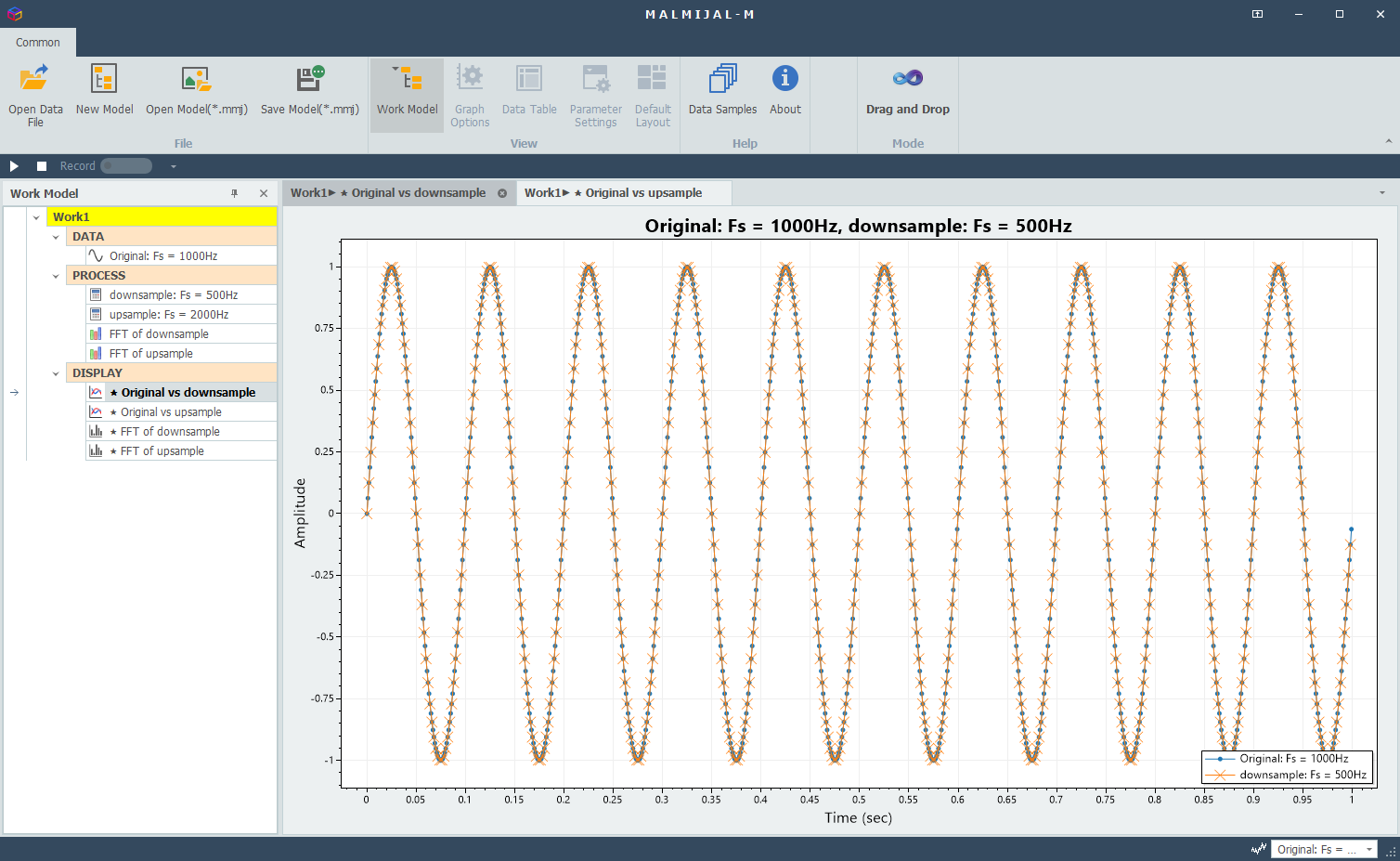

Original vs downsampling

Original vs down-resampled signal

Aliasing: The Critical Problem

If sampling is too slow, high-frequency components appear as lower frequencies. This is called Aliasing

For details about anti-aliasing, refer to What Is an Anti-Aliasing Filter?

Impact on Frequency Analysis (FFT)

Sampling affects

Frequency Range

Max frequency range = 0 ~ F_s / 2 (Nyquist)

Frequency Resolution

Depends on signal length and sampling frequency
Δf = F_s / N

Key Insight

Too low sampling(undersampling) → frequency loss
Too high sampling(oversampling) → unnecessary data

FFT comparison, downsampling vs upsampling

FFT comparison, downsampling vs upsampling

Key Takeaways

Smaller sampling time → more detail, more data
Larger sampling time → less detail, risk of aliasing
Always follow Nyquist rule
Apply a low-pass filter (anti-aliasing filter) before downsampling to prevent aliasing

Conclusion

Sampling time (Ts) is a critical factor that directly determines both the accuracy and efficiency of signal analysis.

Smaller T_s (high sampling rate)
Provides more detailed signal representation and accurate high-frequency analysis, but increases data size and computational load

Larger T_s (low sampling rate)
Reduces data and processing requirements, but leads to loss of detail and increases the risk of aliasing, which can distort the signal
