What Is Time Domain Data? A Simple Explanation
In signal processing, time domain data is the most basic way to represent a signal.
It shows how a signal changes over time.
What Is Time Domain Data?
Time domain data represents a signal as
Amplitude vs Time
- X-axis → Time
- Y-axis → Signal value (amplitude)
Intuition
“How does the signal behave as time passes?”

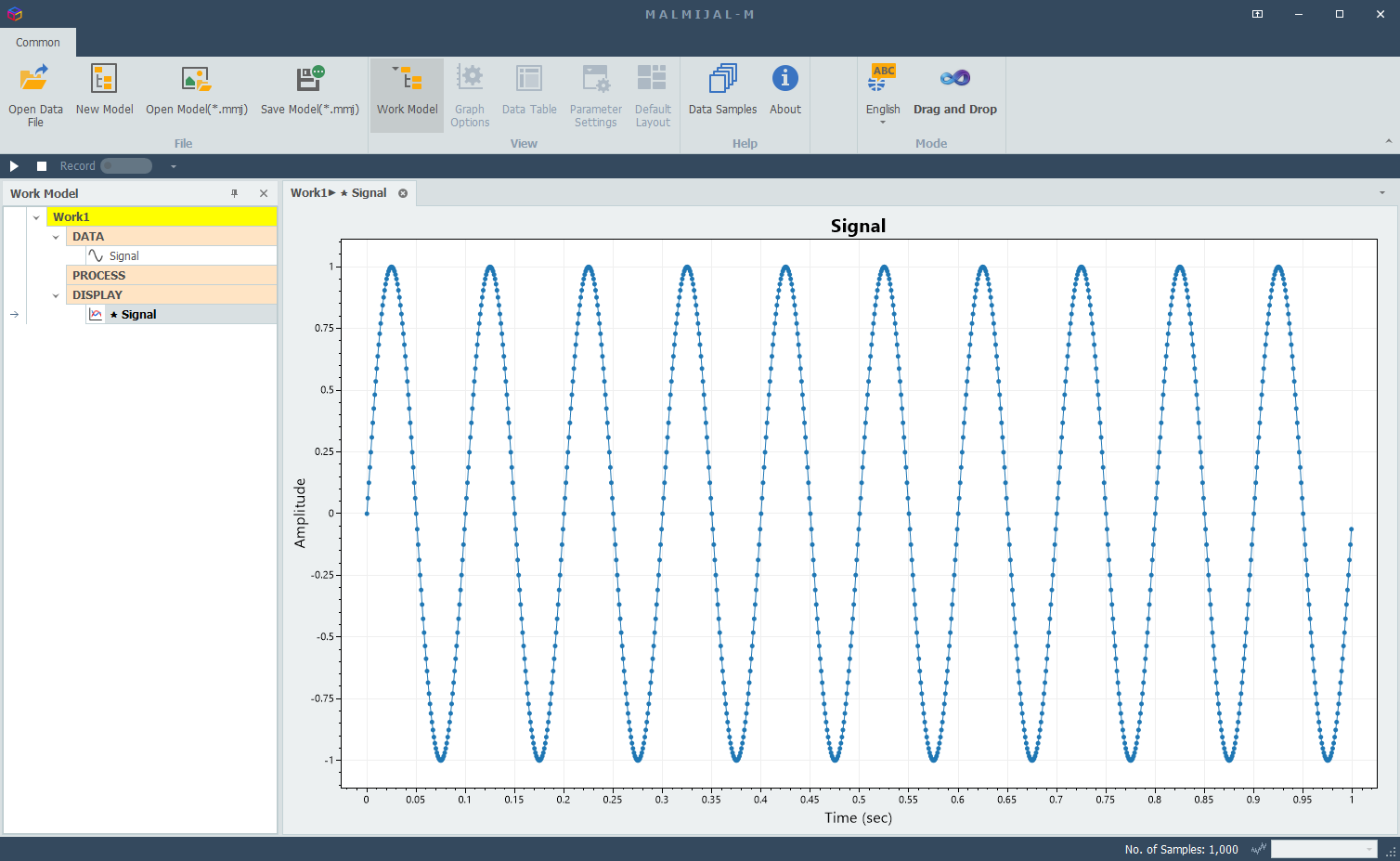

Raw waveform display
Real-World Examples
Time domain data is everywhere
- Audio signals → sound waveform
- Vibration signals → machine movement
- ECG signals → heart activity
All are measured over time.
Why Is Time Domain Important?
Time domain helps you
- See signal shape
- Detect sudden changes
- Identify trends
Key Insight
It is the first step before any advanced analysis
What Can You Do in Time Domain?
Basic Operations
- Detrend → remove baseline, long-term increases or decreases (trends/drifts)
- Resampling → change resolution, sampling rate
- Arithmetic → signal offset, scaling, and mathematical operations
- Differentiation → rate of change of value
- Integral → accumulated value

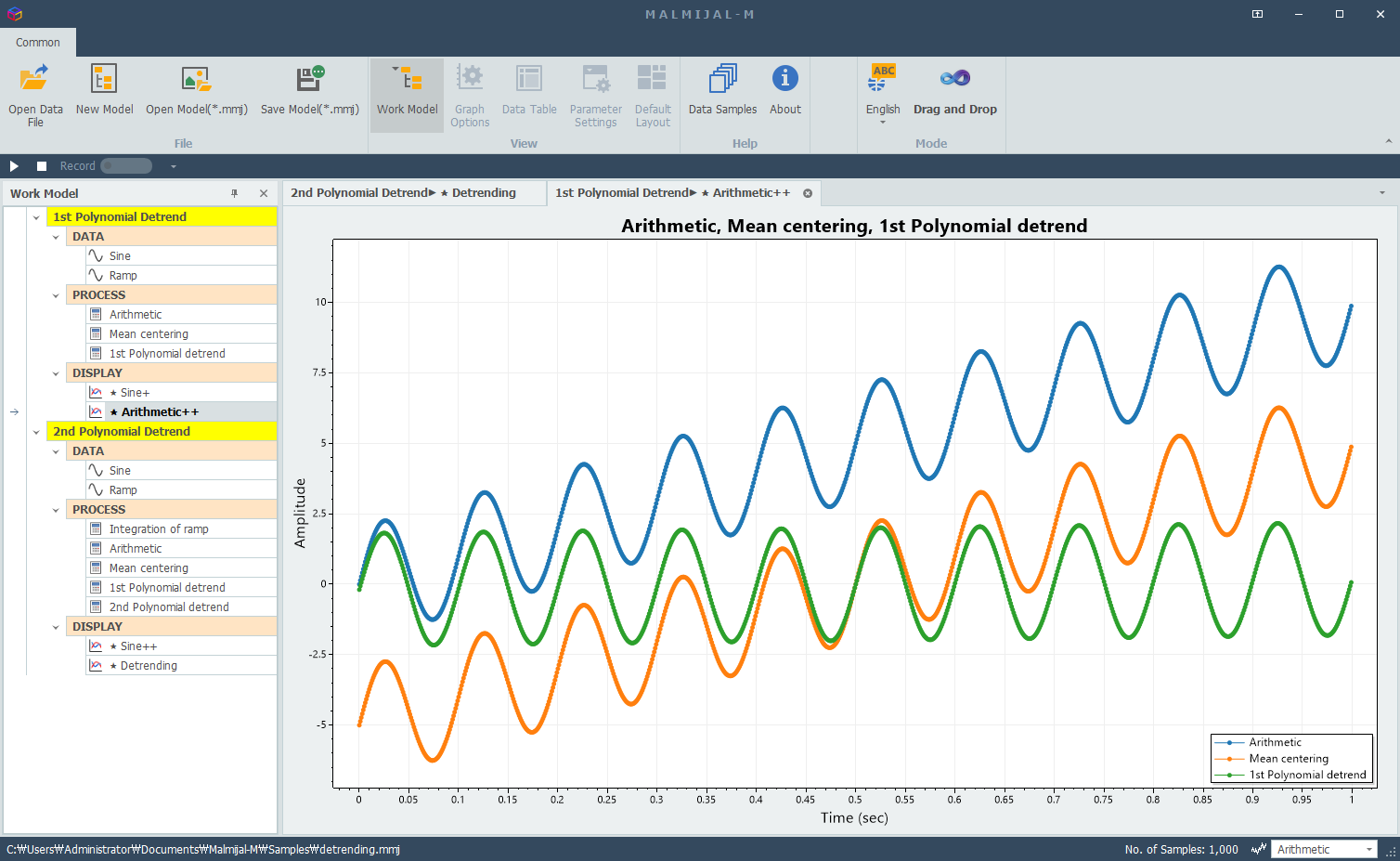

Mean centering and 1st Polynomial detrend (refer to Samples/detrending.mmj)

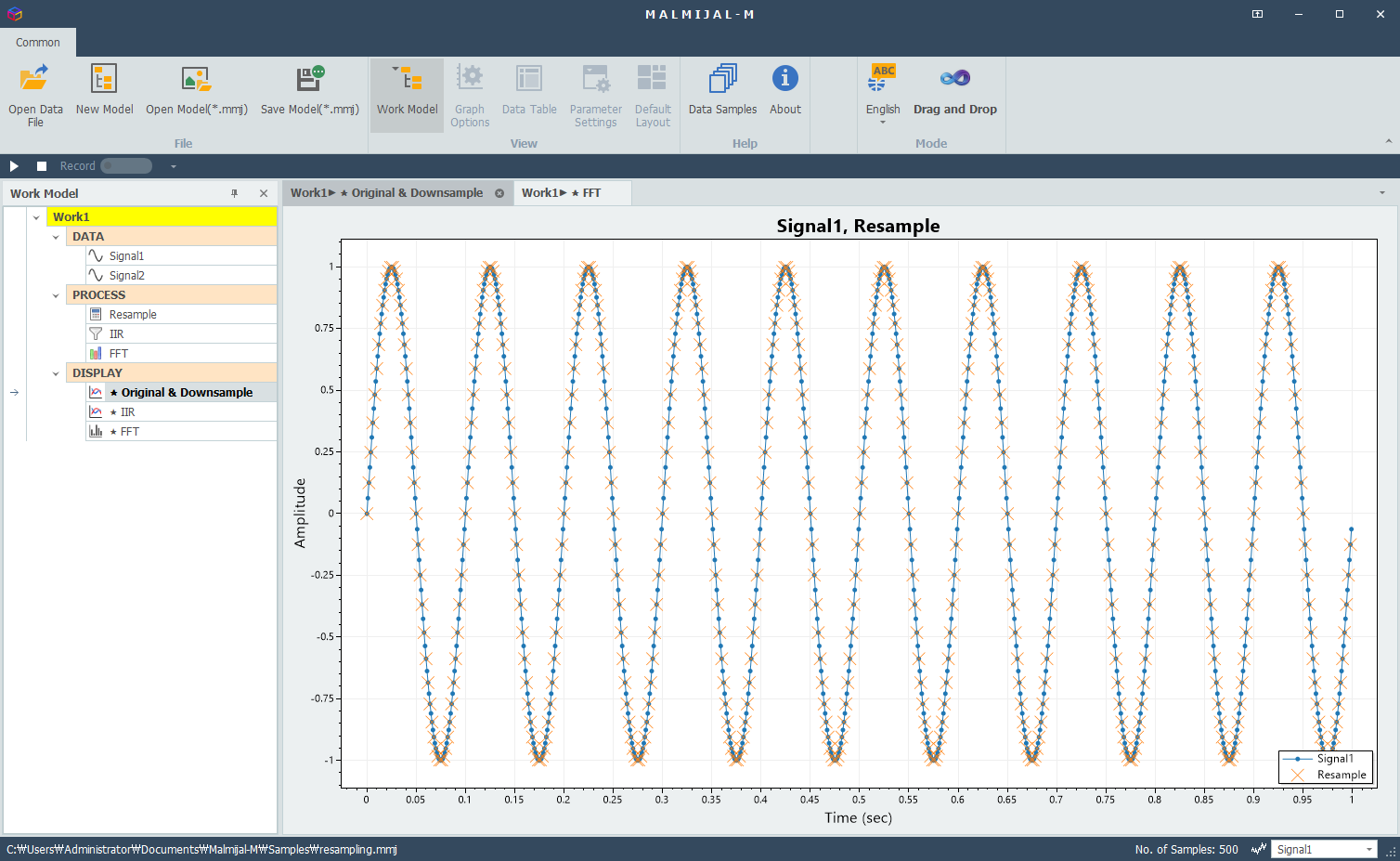

Resampling (refer to Samples/resampling.mmj)
Feature Extraction
- Peak detection → find events
- Envelope → amplitude variation
- RPM extraction → rotation analysis

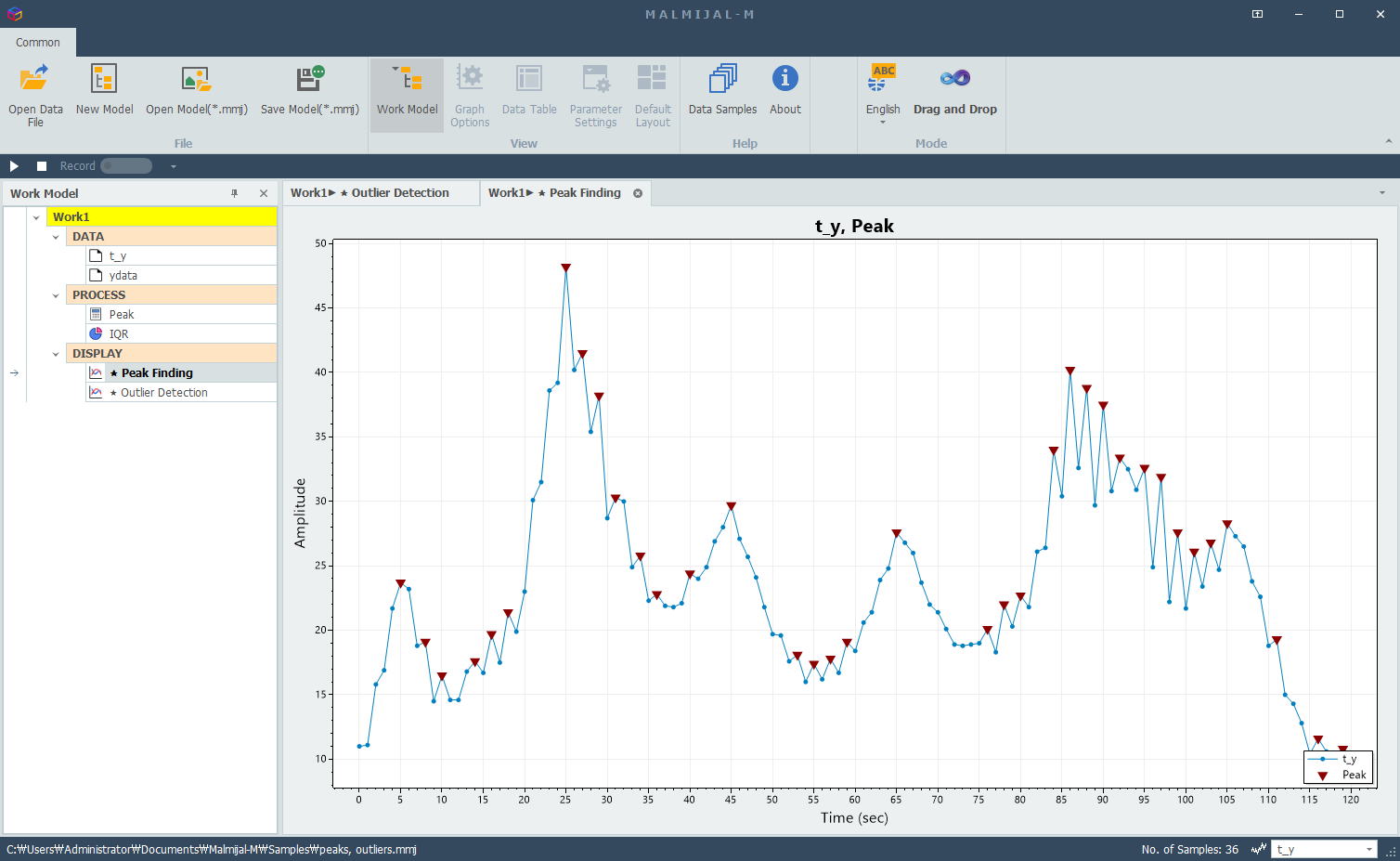

Peak detection (refer to Samples/peaks, outliers.mmj)

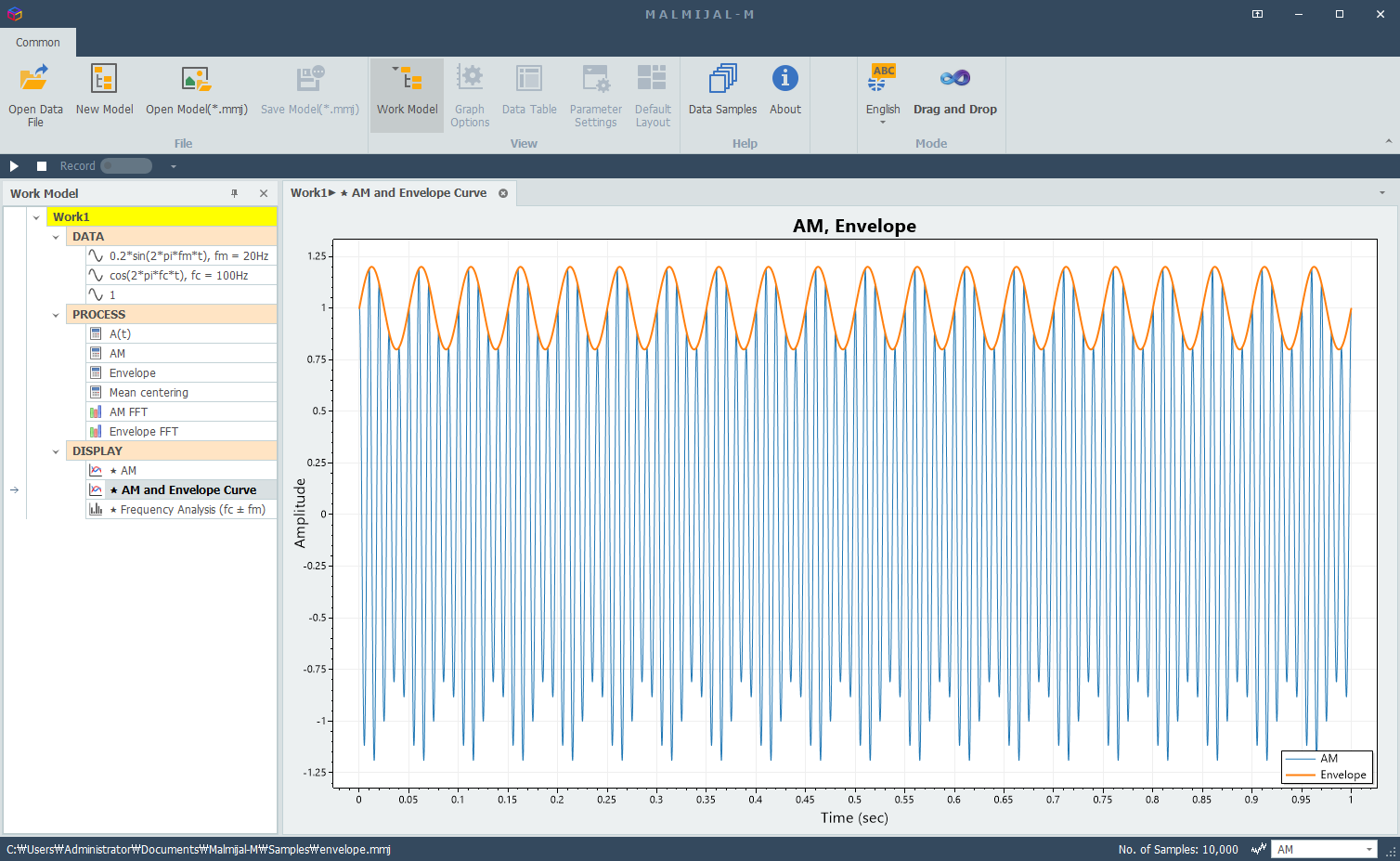

AM(Amplitude Modulation) Envelope (refer to Samples/envelope.mmj)
Limitations of Time Domain
Time domain cannot clearly show
- Frequency components
- Hidden periodic patterns in case of raw waveform itself
For that, we use in the frequency domain
- FFT
- Spectrogram
- Hidden periodic patterns can be also detected using auto-correlation in the time domain
Time Domain vs Frequency Domain
Domain | What It Shows |
|---|
Time domain | Signal vs time |
Frequency domain | Signal vs frequency |
Key Idea
Time = “when”
Frequency in signal = “what frequency”
Key Takeaways
- Time domain = signal vs time
- It is the starting point of signal analysis
- Useful for shape, trends, and events
- Limited for frequency analysis
Conclusions
Time domain data is the most fundamental representation of a signal, showing how it changes over time.
- It allows you to easily understand the signal shape, trends, and sudden events, making it the essential starting point for any signal analysis.
- Many practical operations—such as detrending, resampling, and feature extraction (peaks, envelope)—are performed directly in the time domain.
- However, it has limitations, especially in revealing frequency components or hidden periodic patterns with raw time data, which require frequency-domain methods like FFT.
In summary,
the time domain provides the foundation for understanding signals, and serves as the first step before moving to more advanced analyses.
