What Is Aliasing in Signal Processing and How to Prevent It
Aliasing is a fundamental concept in signal processing that arises when a signal is sampled or resampled at an insufficient rate. It results in high-frequency components being misrepresented as lower frequencies, leading to distortion in the signal’s spectrum.
In practical terms, aliasing occurs when the sampling process violates the Nyquist criterion, causing different frequency components to become indistinguishable.
We will also connect this concept to something many people already recognize anti-aliasing in 3D graphics and games.
Aliasing of a Signal: The Basic Idea

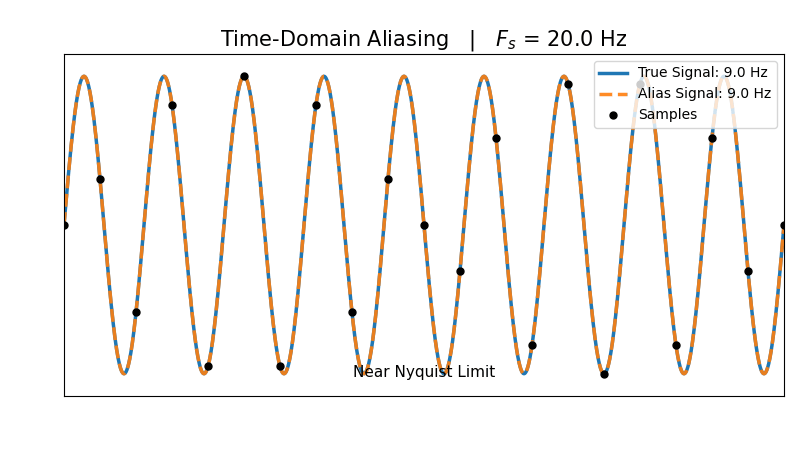

Aliasing happens when a signal is sampled at a rate that is too low relative to the signal's frequency content.
In digital signal processing, a continuous signal is converted into discrete samples using a sampling frequency Fs.
However, if the sampling frequency is not high enough, higher frequencies in the signal appear as lower frequencies in the sampled data.
This effect is called aliasing.
Mathematically, this occurs when signal frequencies exceed the Nyquist frequency, which is defined as:
Where,
Fs = sampling frequency
fN = Nyquist frequency
Any frequency component above fN will be folded back into the spectrum, creating incorrect frequency components.
What Actually Happens (Aliasing Mechanism)
Aliasing is not simply “loss” of high-frequency components.
Instead
- High-frequency components are folded back into the lower frequency range.
- This folding creates false frequency components in the observed spectrum.
A useful interpretation
The sampled system cannot distinguish between frequencies that differ by integer multiples of the sampling frequency.
Alias Frequency = | Signal frequency – Closest sampling frequency harmonic |
Case1: fsignal = 100Hz, Fs = 180Hz → falias = | 100 - 180 | = 80Hz
Case2: fsignal = 200Hz, Fs = 180Hz → falias = | 200 - 180 | = 20Hz
Case3: fsignal = 400Hz, Fs = 180Hz → falias = | 400 - 2*180 | = 40Hz

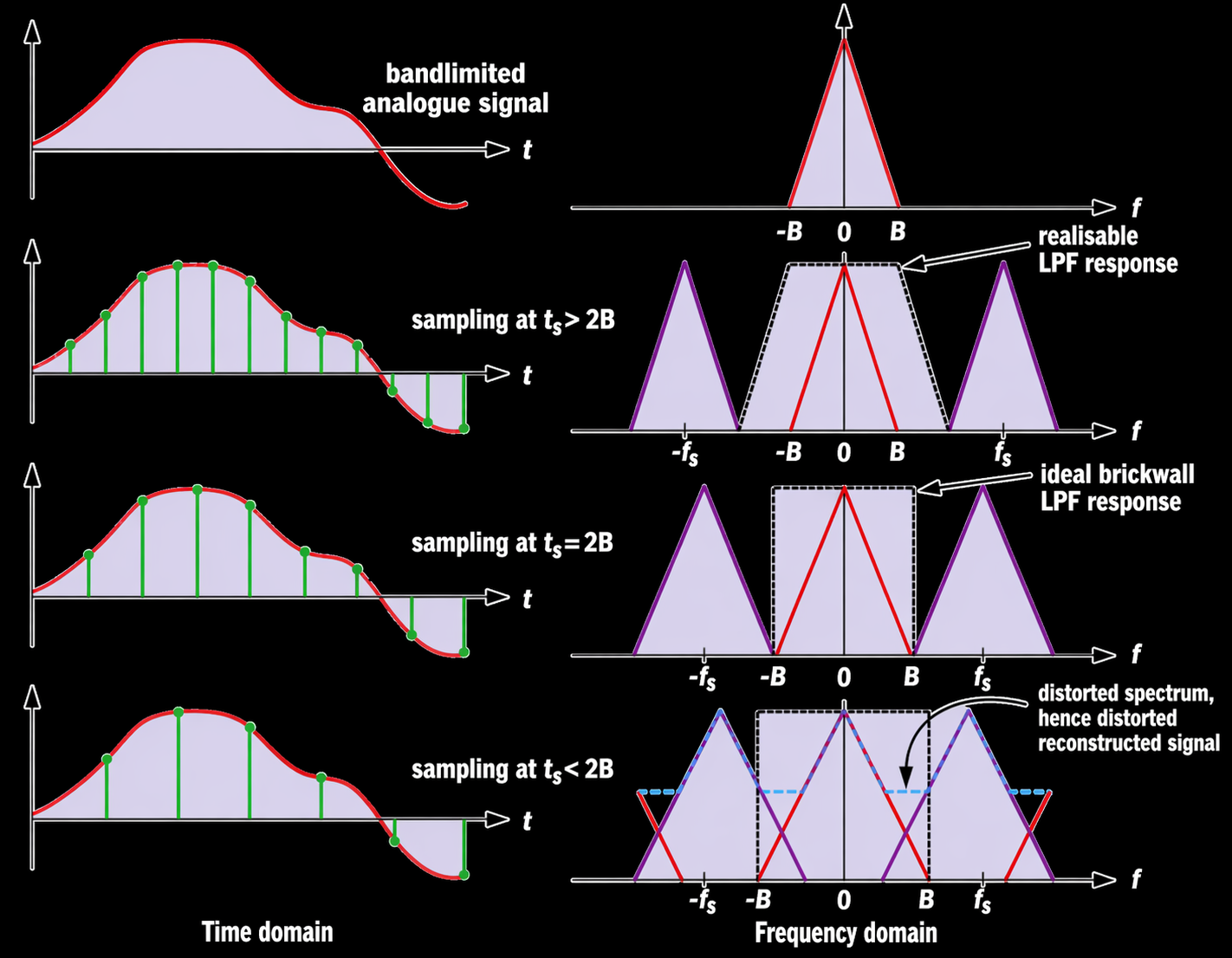

This graph illustrates aliasing in frequency domain
Why Aliasing Is Problematic
Aliasing introduces irreversible distortion.
- The original frequency cannot be recovered after aliasing occurs
- Multiple different signals can produce the same sampled data
- This leads to
- Incorrect spectral analysis
- Misinterpretation of physical phenomena (e.g., vibration, audio)
Where Aliasing of a Signal Occurs
Aliasing can appear in multiple stages.
During Sampling (ADC)
- When the analog signal contains frequencies above Fs / 2
During Downsampling
- When reducing sampling rate without proper filtering
In Discrete-Time Processing
- Improper resampling or interpolation
How to Prevent Aliasing of a Signal
Aliasing must be prevented before it occurs. Use Anti-Aliasing Filters.
In details, refer to What Is an Anti-Aliasing Filter?
Why Anti-Aliasing Is Also Used in 3D Graphics
Many people are already familiar with anti-aliasing from 3D graphics or video games.
In graphics, aliasing appears as jagged edges (stair-step artifacts) when rendering diagonal lines or curves on a pixel grid.
This happens because the scene is sampled onto a limited-resolution pixel grid.
Anti-aliasing techniques in graphics work by smoothing or filtering the sampled image, reducing these artifacts.
Although the context is different, the underlying principle is the same.
| Field | Problem | Solution |
|---|
| Signal processing | High frequencies misrepresented after sampling | Anti-aliasing filter |
| Computer graphics | High-frequency image details cause jagged edges | Anti-aliasing rendering techniques |
In both cases, aliasing occurs because the sampling resolution is insufficient to represent high-frequency information.
Practical Applications
Aliasing prevention is critical in many engineering fields.
Audio Processing
- Preventing distortion during digital audio recording.
Vibration Analysis
- Ensuring accurate frequency measurements from sensor data.
Communication Systems
- Avoiding spectral overlap during signal transmission.
Data Acquisition Systems
- Protecting measurements from aliasing errors.
Visualizing Aliasing with MALMIJAL
Tools like MALMIJAL allow engineers to visualize signal processing workflows without writing complex code.
Using MALMIJAL, it is easy to
This visual workflow makes it much easier to understand how aliasing occurs and how filtering prevents it.
Additional Insight
Aliasing is not always undesirable.
Under controlled conditions, it can be intentionally used in techniques such as bandpass sampling.
In bandpass sampling
- A band-limited high-frequency signal is sampled below the Nyquist rate
- The signal is intentionally aliased (folded) into a lower frequency band
- No information is lost as long as spectral overlap is avoided
This approach enables
- Reduced sampling rate
- More efficient data acquisition
- Practical implementation in RF and narrowband signal systems
Conclusion
Aliasing is a fundamental issue in digital signal processing that occurs when signals are sampled below the required rate.
If not handled properly, it can lead to severe distortions and incorrect signal interpretation.
The key ideas to remember are
Aliasing occurs when frequencies exceed the Nyquist limit
Downsampling without filtering causes spectral overlap
Anti-aliasing filters remove high-frequency components before sampling
Understanding and preventing aliasing is essential for accurate signal analysis in real-world applications.
