Why Do We Use Log Scale in Frequency Plots?
When analyzing frequency spectra (like FFT), we often use a logarithmic scale instead of a linear one.
But why?
What Is Log Scale?
A log scale represents values using orders of magnitude instead of equal steps.
Example
Linear scale
Log scale
- 100 = 1, 101 = 10, 102 = 100, 103 = 1000
Intuition
“Log scale compresses large differences”
Problem with Linear Scales
In real signals
- Some frequencies are very strong
- Other frequencies are very weak
On a linear scale
- Strong spectral peaks dominate
- Weak signals disappear
Why Log Scale Is Useful
Log scale solves this problem. It allows both strong and weak components to be visible
Key Benefits
1. Wide Dynamic Range
- Displays large and small values together
2. Better Visualization
- Reveals hidden frequency components
3. Easier Comparison
- Relative differences are clearer
Log Scale in Magnitude (dB)
Decibels (dB)
The decibel (dB) is a logarithmic measure of a ratio between two quantities. The formula depends on whether the quantity is power or magnitude.
Power-Based Definition
Magnitude-Based Definition
Meaning
- Converts power or magnitude to logarithmic scale
- Makes differences easier to interpret
Log Scale in Frequency domain Axis
Sometimes frequency domain axis is also logarithmic:
Used when
- Wide frequency range
- Octave band analysis uses frequency bands that are equally spaced on a logarithmic scale.
Example
- Audio: 20 Hz ~ 20 kHz

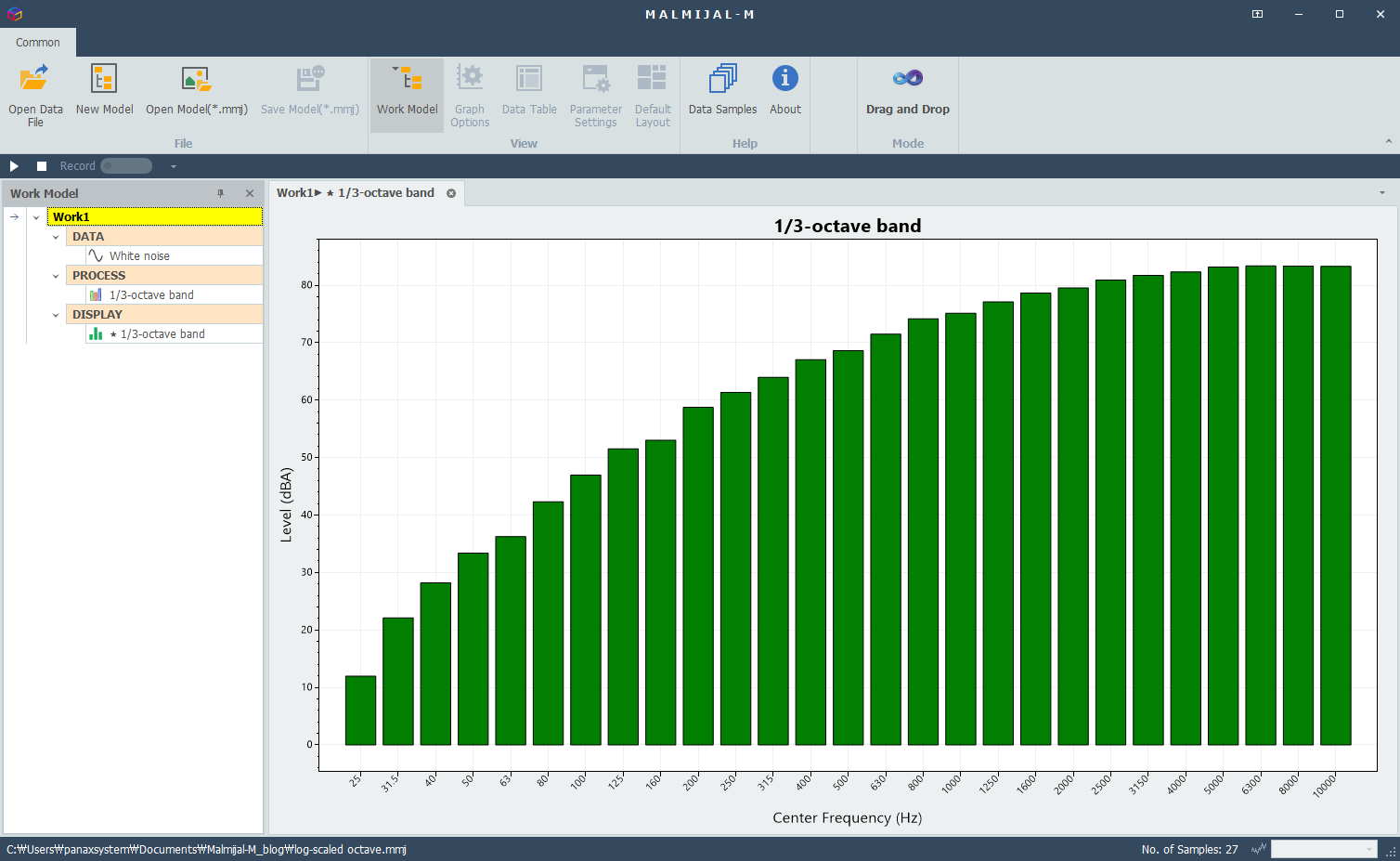

A-weighting 1/3-octave band analysis of white noise (from 25 to 10kHz center frequencies), Fs = 30kHz
Real-World Applications
- Audio analysis (human hearing is logarithmic)
- Vibration analysis
- RF / communication systems
MALMIJAL Workflow
Using Log Scale
- Generate/Load a signal
- Apply FFT / PSD
- Switch magnitude to dB scale
- Check magnitude

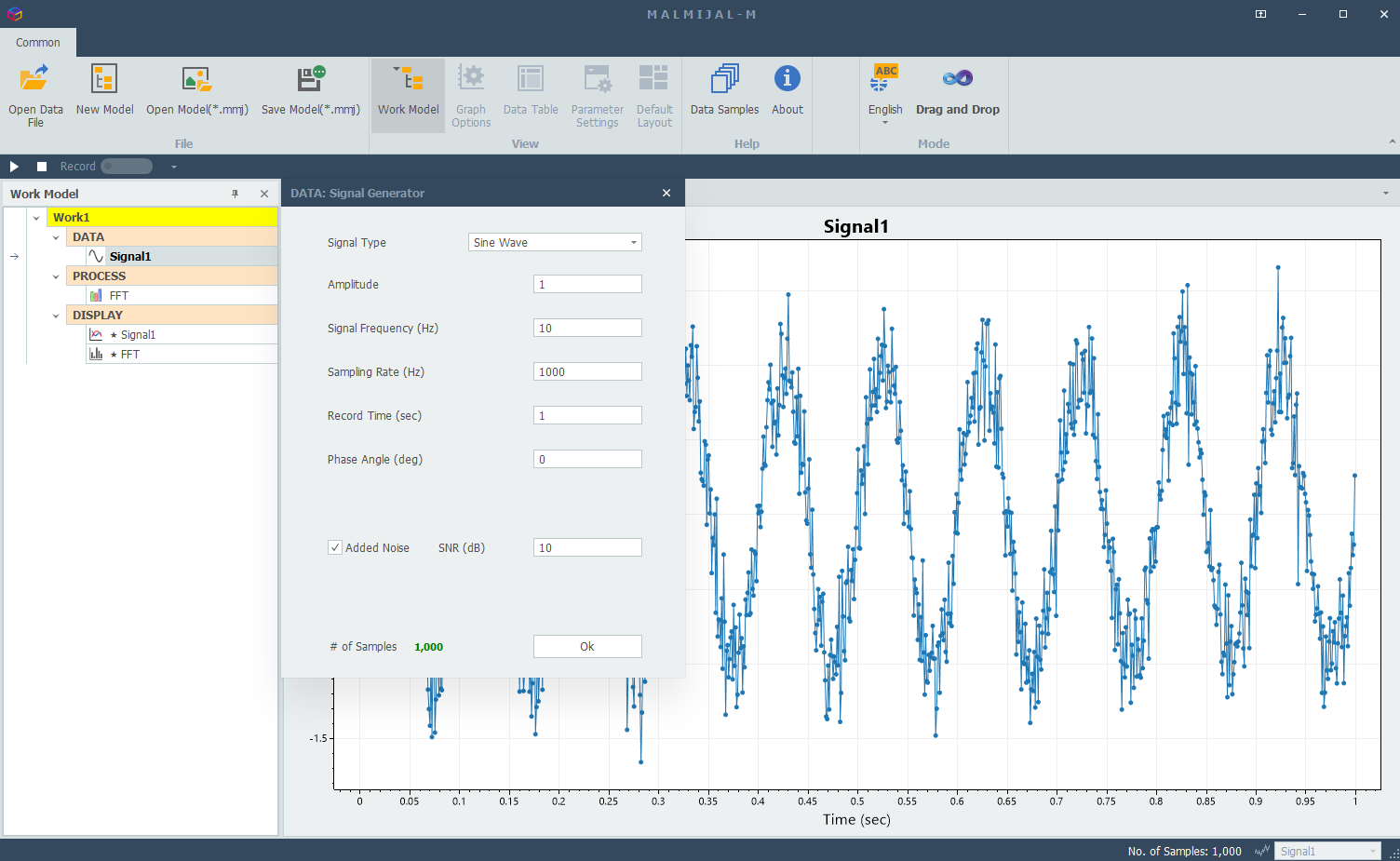

Generate signal

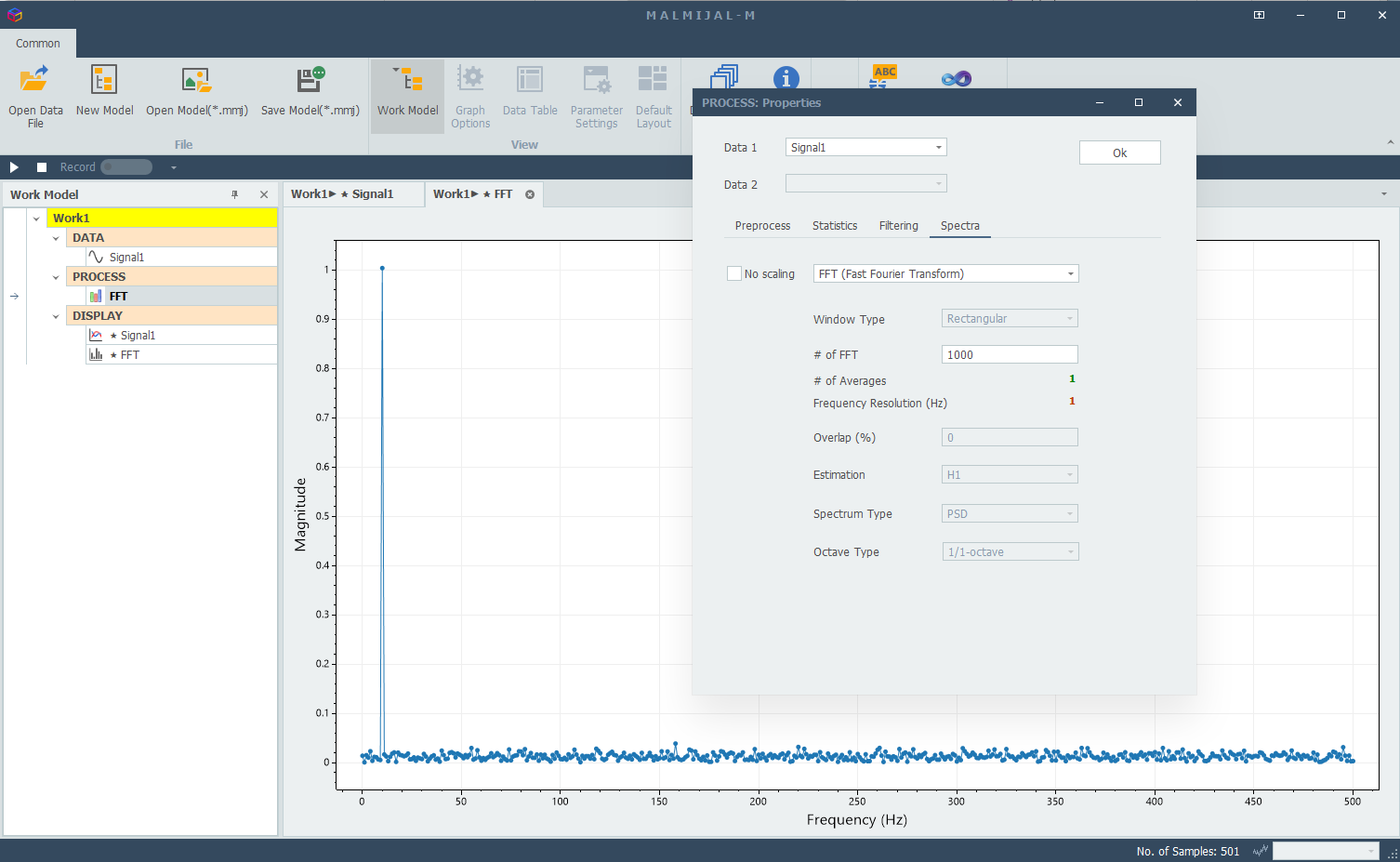

Apply FFT

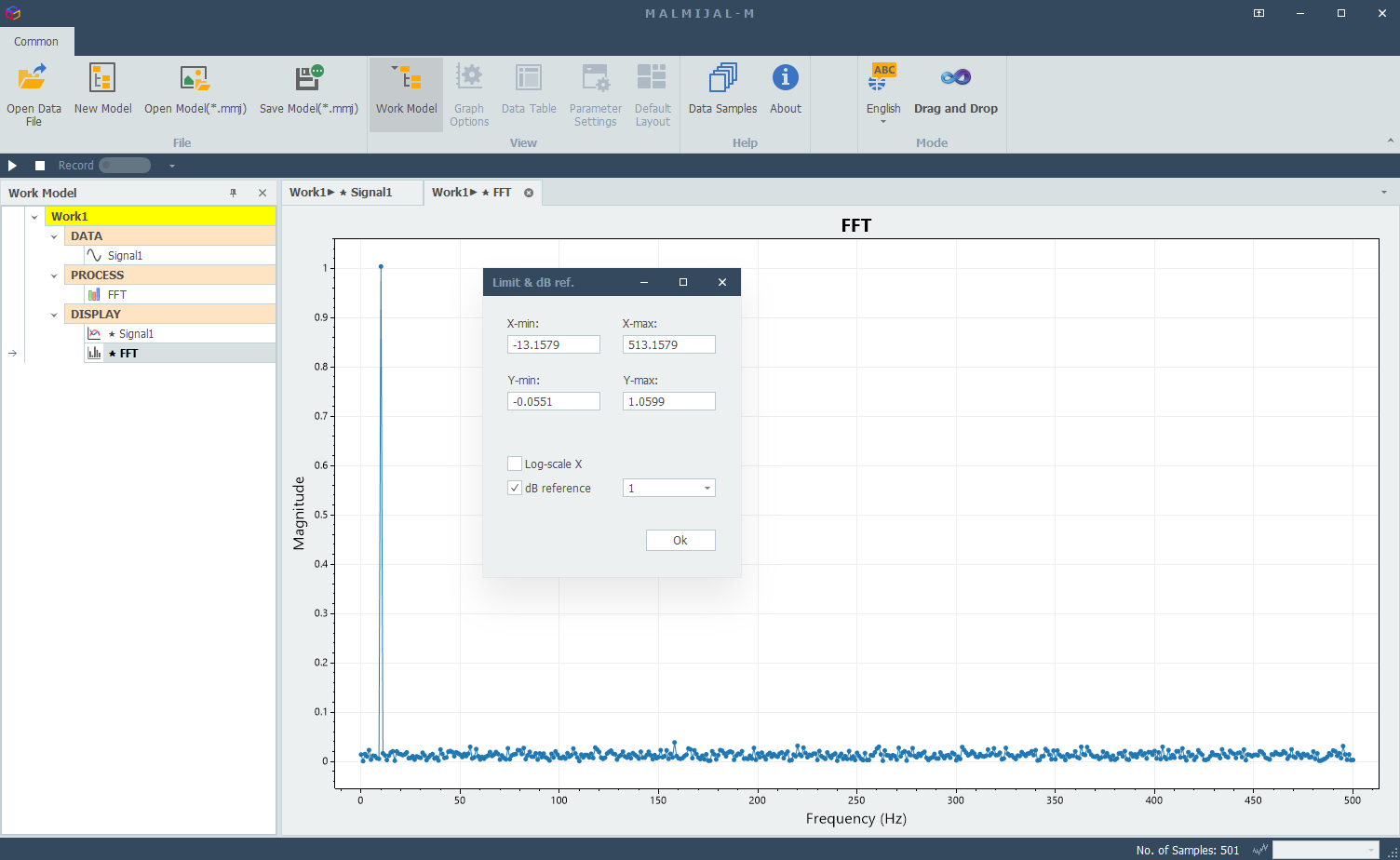

Switch magnitude to dB scale

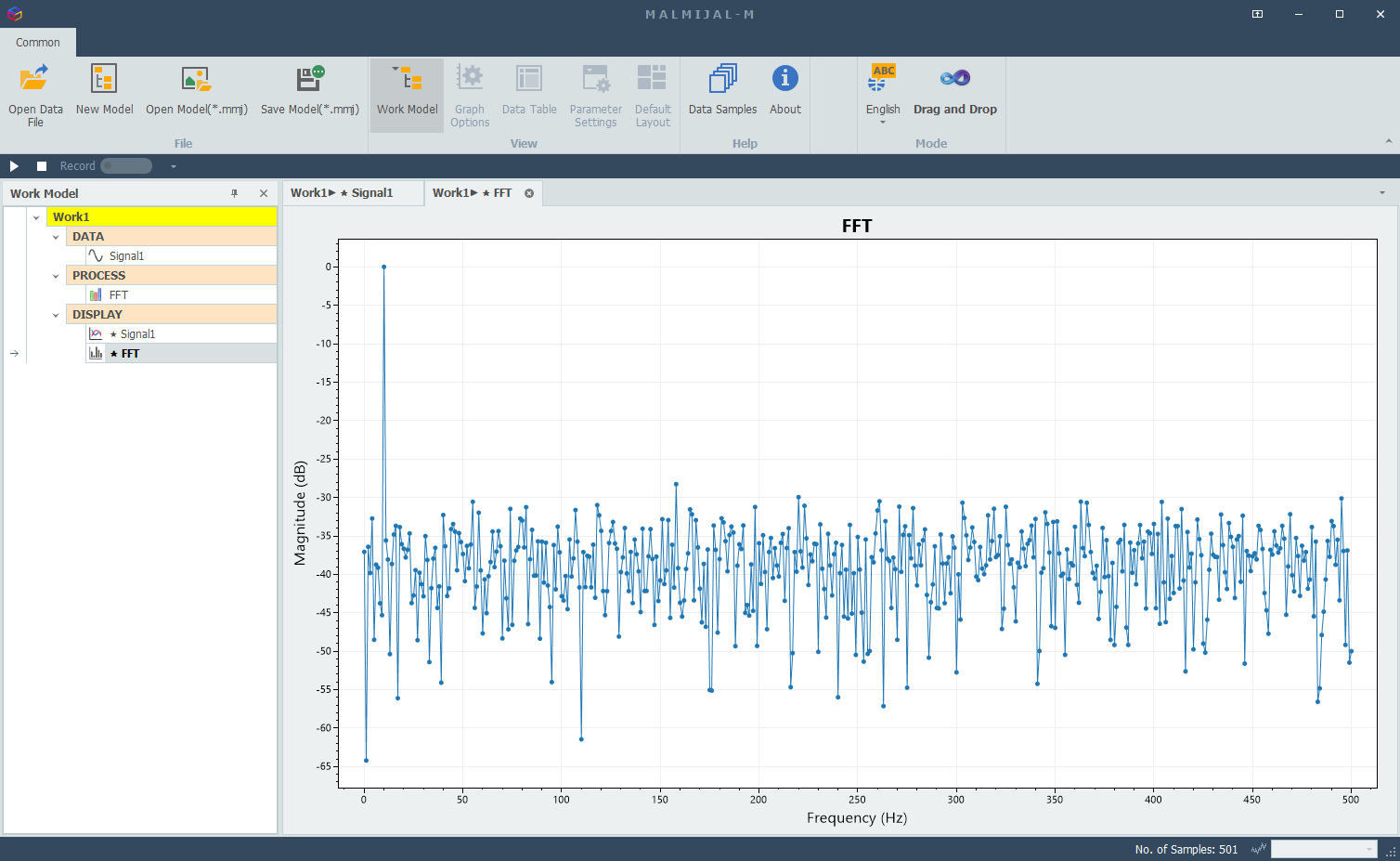

Check magnitude in dB
MALMIJAL Features
- FFT / Power Spectrum
- PSD (Power Spectral Density)
- FRF (Frequency Response Function)
- Octave Band Analysis
Key Takeaways
- Log scale handles large dynamic ranges
- Makes weak signals visible
- dB scale is standard in signal analysis
- Essential for real-world data
Conclusions
Log scale is an essential tool in frequency analysis for effectively representing signals with a wide dynamic range.
- In a linear scale, strong components can overshadow weaker ones, but a log scale allows both strong and weak signals to be observed simultaneously.
- Using dB (decibel) representation makes it easier to compare signal magnitudes intuitively and interpret differences clearly.
- Additionally, for wide frequency ranges, a logarithmic axis helps better visualize frequency characteristics.
In summary,
log scale is a fundamental representation in real-world signal analysis, enabling effective comparison and revealing hidden details across a wide range of signal magnitudes.
