What Happens When You Oversample a Signal?
Oversampling is often introduced as a technique where a signal is sampled at a rate significantly higher than the Nyquist rate. At first glance, it seems intuitive to assume that higher sampling rates always lead to better signal quality. After all, more samples should mean more accurate representation—right?
However, the reality is more nuanced.
Oversampling provides several powerful advantages in signal processing systems, but it also introduces trade-offs in computational cost, data size, and system design. Understanding what actually happens when you oversample a signal requires examining both the mathematical and practical implications.
Mathematical Perspective
Let a signal be band-limited to bandwidth B. According to the Nyquist theorem
This is the minimum sampling rate required to perfectly reconstruct the signal.
Oversampling occurs when
This means we are sampling the same signal with significantly more samples than strictly necessary.
From a mathematical standpoint
- The signal representation becomes redundant
- Adjacent samples become highly correlated
- No new frequency components are introduced
In other words, oversampling does not increase the inherent information content of the signal—it simply increases the number of data points used to represent it.
What Actually Changes When You Oversample?
1. Time Domain: Smoother Representation (But Not More Information)
Oversampling makes the waveform appear smoother when plotted, because more points are used to approximate the continuous signal.
However
- The underlying analog signal remains unchanged
- No new detail is captured beyond the original bandwidth
This is a key misconception
Oversampling improves visual resolution, not signal information.
2. Frequency Domain: Spectrum Replication Moves Outward
In discrete-time systems, sampling creates periodic replicas of the spectrum.
When you oversample
- The sampling frequency increases
- The spectral replicas move farther apart
This creates more empty space between replicas, which is extremely useful in system design such as anti-aliasing filter.

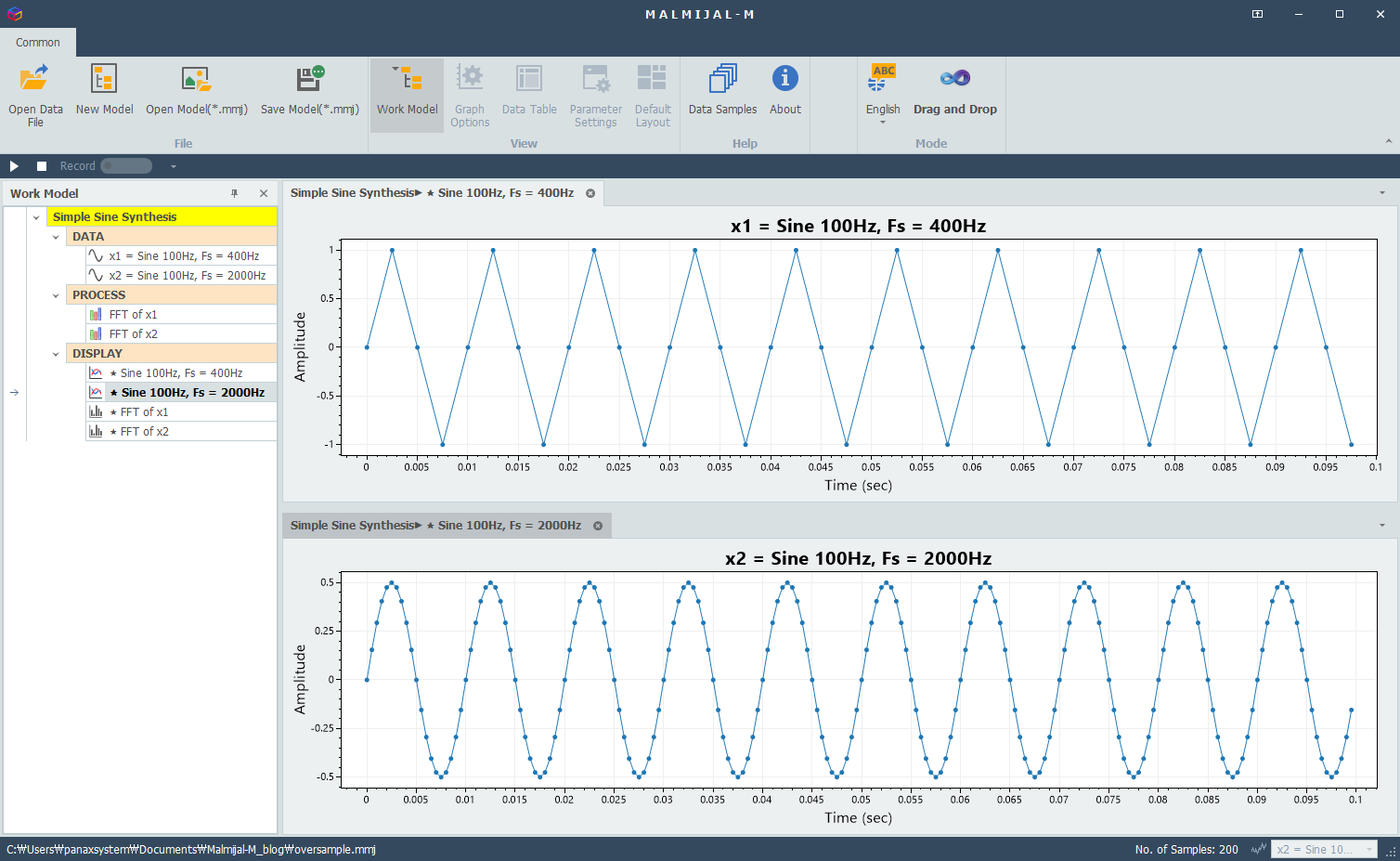

Same 100 Hz signal sampled at different rates. Higher sampling rate produces a smoother-looking waveform but does not introduce new information

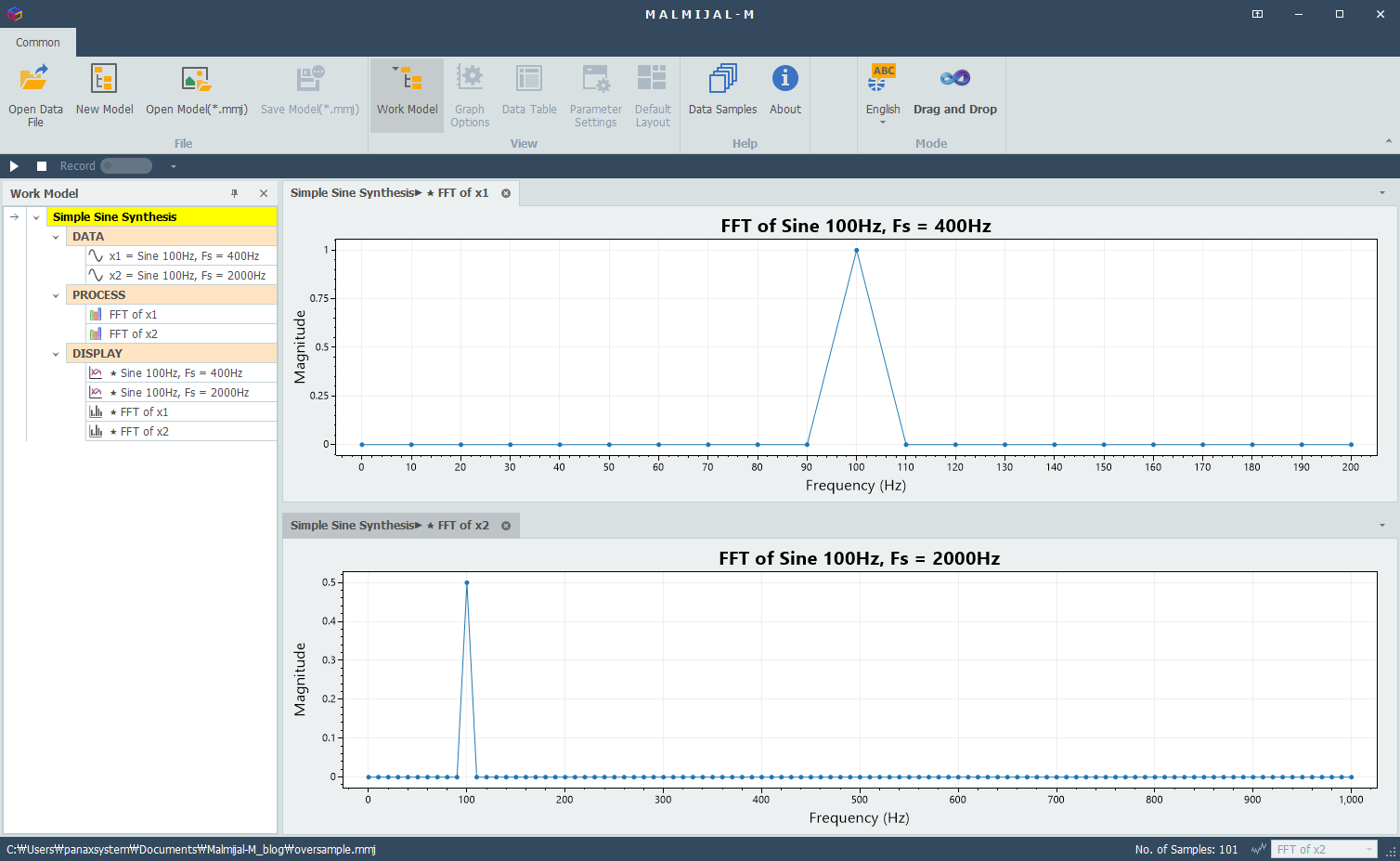

Oversampling increases the Nyquist frequency(200Hz to 1000Hz in this case), spreading spectral replicas farther apart and providing more room for anti-aliasing filtering
Critical insight
Oversampling does not change the original spectrum—it changes where the copies appear.
Although the oversampled signal appears more detailed in the time domain, both signals represent the same underlying analog waveform. The key difference lies in how frequency-domain artifacts are distributed, not in the amount of information captured.
Why Oversampling Is Used
Oversampling is not about “more is better”—it is about making system design easier and more robust.
1. Anti-Aliasing Filter Becomes Easier
Without oversampling
- The transition band between passband and stopband is very narrow
- Requires sharp, complex analog filters
With oversampling
- Transition band becomes wider
- Analog filter design becomes simpler and more stable
2. Quantization Noise Is Spread Over a Wider Band
Quantization noise is approximately uniformly distributed across frequency.
If you increase sampling rate
- Noise spreads over a larger bandwidth
- In-band noise (within signal bandwidth) decreases
This leads to
- Improved effective SNR (Signal to Noise Ratio)
- Better perceived signal quality after filtering
3. Enables Noise Shaping (Sigma-Delta Systems)
Oversampling is a core principle in sigma-delta ADC/DAC systems.
Key idea
- Push noise to high-frequency regions
- Remove it later using digital filtering
This allows
- High resolution using low-precision hardware
- Efficient implementation of high-performance converters
Noise Distribution Insight
When oversampling by a factor M
- Total quantization noise remains roughly constant
- But it is distributed across M times wider bandwidth
Therefore
- In-band noise power decreases roughly by 1/M
- SNR improves after low-pass filtering
This is one of the most important practical benefits of oversampling.
The Big Misconception: “Higher Sampling Rate Is Always Better”
This is the point that many people are confused about
When Higher Sampling Rate Helps
- ADC/DAC design
- Anti-aliasing filter simplification
- Noise shaping systems
- High-frequency signal capture
When It Doesn’t Help
- If the signal is already band-limited
- If reconstruction is already perfect at Nyquist rate
- If storage or computation is constrained
Oversampling does not
- Increase true resolution (bit depth does that)
- Recover lost information
- Improve a signal that is already properly sampled
Trade-offs of Oversampling
Oversampling comes at a cost
1. Increased Data Size
- More samples → more storage
- Higher memory bandwidth requirements
2. Higher Computational Load
- FFT, filtering, processing all become heavier
3. Power Consumption (in embedded systems)
- Critical in mobile or real-time applications
Practical Implications
Oversampling is widely used in
- Audio systems (DAC upsampling, interpolation)
- Sigma-delta ADCs
- Software-defined radio (SDR)
- Digital communication receivers
In audio
- Oversampling helps reduce aliasing artifacts
- Enables smoother reconstruction filters
But
- Beyond a certain point, increasing sampling rate yields diminishing returns
Intuition Summary
Let’s simplify the intuition.
| Concept | What Oversampling Does |
|---|
| Signal information | No increasing |
| Visual smoothness | Improves |
| Quantization noise | Spreaded out noise |
| Anti-aliasing filter | Easier design |
| Computational cost | Increases |
Key point
Oversampling is not about capturing more information—it is about redistributing constraints in a way that makes signal processing easier and more robust.
Conclusions
Oversampling is a powerful engineering tool, but it is often misunderstood.
It does not magically improve signal quality by adding new information. Instead, it shifts the problem space
- Moves spectral replicas
- Spreads noise
- Simplifies filtering
The real value of oversampling lies not in “more samples,” but in better system design flexibility.
