Room Acoustics Basics for Signal Processing Engineers

Room acoustics play a critical role in how signals are perceived, measured, and processed. Even if a signal is perfectly generated, the environment it propagates through can significantly alter its characteristics.

For signal processing engineers, this means that the “system” is not just the signal chain — it includes the physical space itself.

Illustration of sound waves reflecting absorbing and diffusing in a room between a speaker and a microphone

Understanding room acoustics is essential for

Accurate signal measurement
Audio system design
Noise, Vibration, and Harshness analysis (NVH)
Speech and audio processing

Key Phenomena in Room Acoustics

When sound propagates in an enclosed space, three primary phenomena occur.

Reflection

Sound waves bounce off surfaces such as walls, ceilings, and objects.

Creates delayed copies of the original signal
Leads to echo and reverberation

Absorption

Materials absorb part of the sound energy.

Reduces reflection strength
Depends on material properties (foam, fabric, etc.)

Diffusion

Irregular surfaces scatter sound in multiple directions.

Prevents strong directional reflections
Helps create a more uniform sound field

Mathematical Insight: Sound Propagation

In free space, sound pressure decreases with distance

Interpretation

Energy spreads over space
Amplitude decreases as distance increases

In Real Rooms

This model becomes more complex.

Reflections create delayed signals
Multiple paths interfere
Standing waves may form

Time-Domain Effects

Direct Sound vs Reflections

Direct sound → arrives first
Early reflected signals → arrive shortly after
Late reflected signals → form reverberation(reverb)

Direct vs Reflected Signal

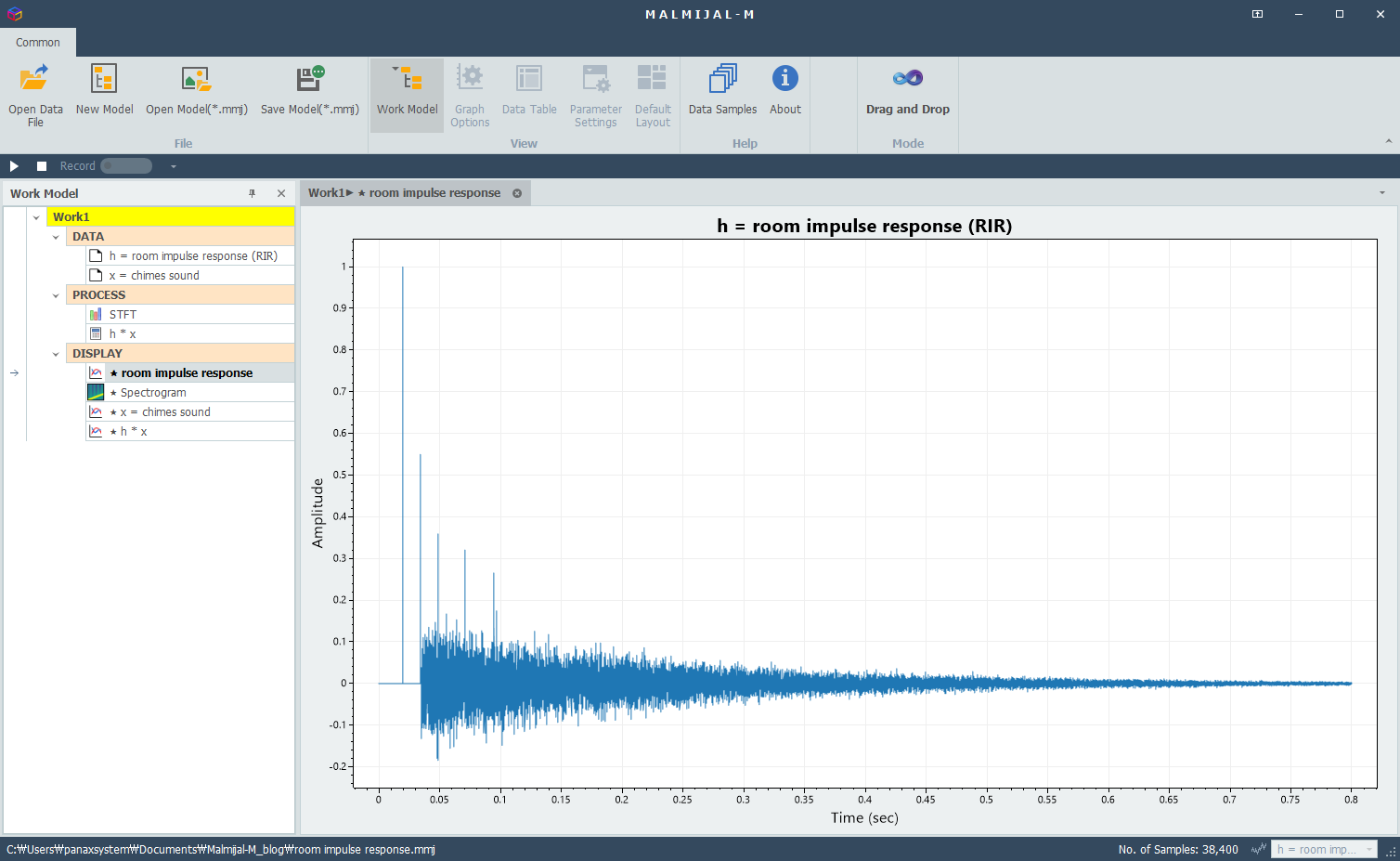

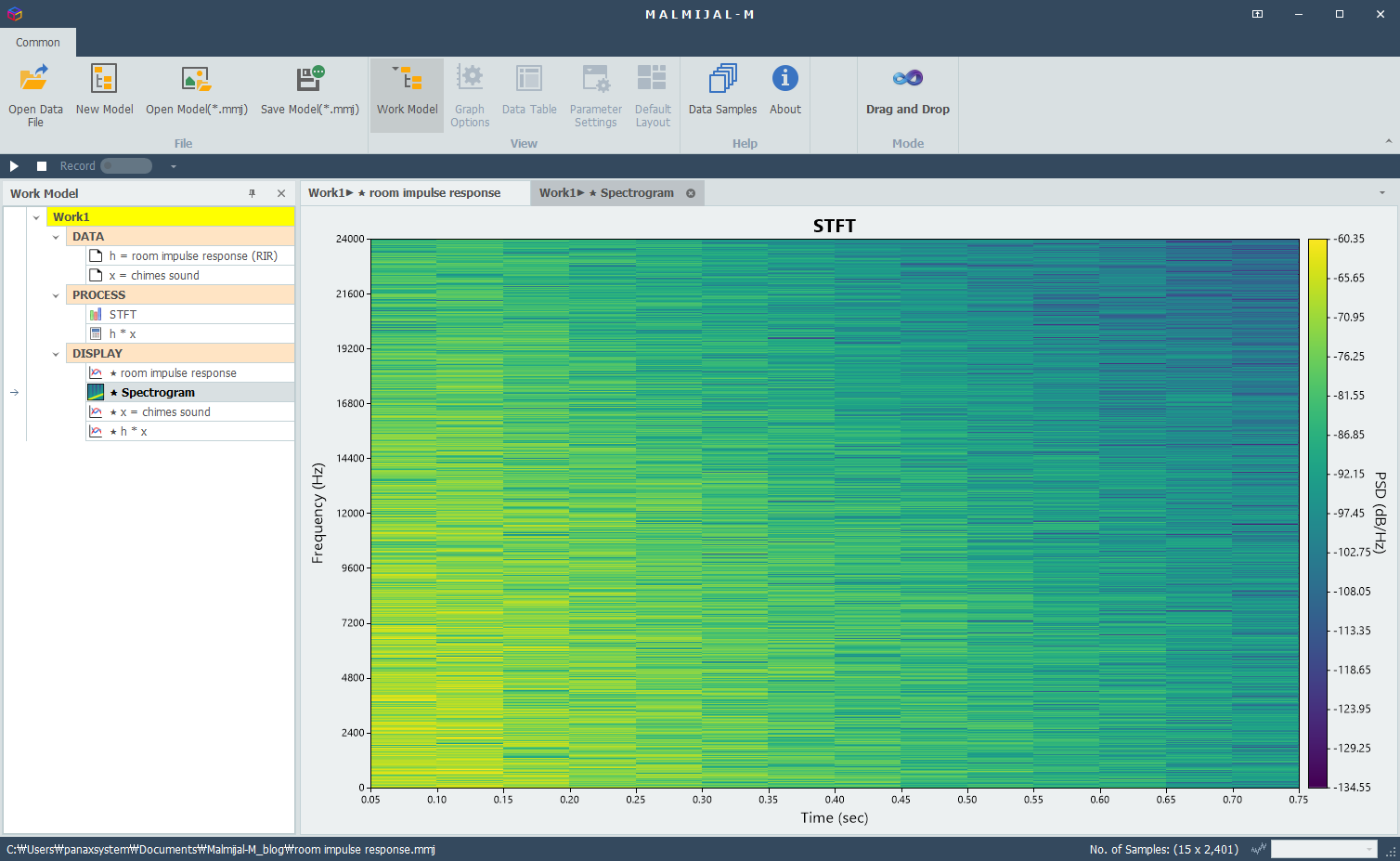

Impulse response and spectrogram showing direct sound followed by early reflections and reverberation tail

First large peak: direct sound
Following discrete peaks: early reflections from nearby surfaces
Decaying noisy tail: late reflections / reverberation

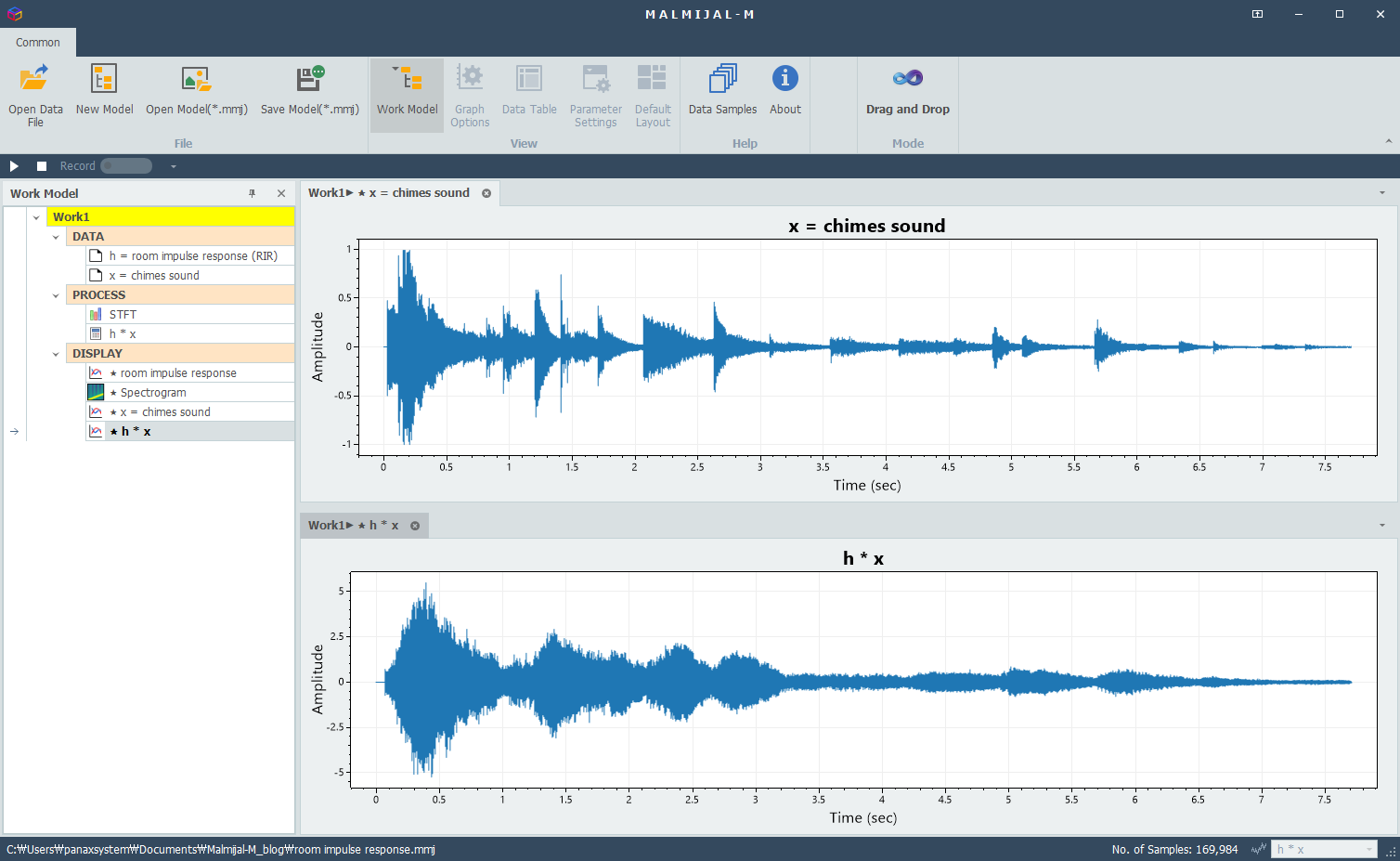

Original sound: x(t)

Sound as if played in that room: h(t) * x(t)

You can try playing back the convolution result in MALMIJAL

You can try playing back the convolution result in MALMIJAL

Frequency Domain Effects

Room acoustics strongly affect frequency response.

Standing Waves

Occur at specific frequencies
Caused by constructive interference
Depend on room dimensions

Resonances

Certain frequencies are amplified
Others are attenuated

Effects on Signal Processing

Room acoustics introduce several challenges.

Reverberation(Reverb)

Smear signal over time
Reduces clarity

Echo

Causes delayed repetitions
Affects intelligibility

Spectral Coloring

Alters frequency balance
Introduces bias in measurements

Practical Implications

Microphone Placement

Distance affects direct vs reflected ratio
Position changes frequency response

Speaker Design

Must consider room-interaction
Directivity becomes important

Measurement Accuracy

Room effects can distort results
Requires calibration or compensation

Engineering Perspective

A room can be modeled as a system

Where,

x(t) : input signal
h(t) : room impulse response (RIR)
y(t) : measured signal

Key Insight

Room acoustics act as a convolution system, fundamentally altering signals.
