Distortion, Leakage, and Smearing in FFT : Understanding Why Frequency Analysis Can Mislead You
Fast Fourier Transform (FFT) is one of the most widely used tools in signal processing. However, in practice, FFT results often appear misleading due to several fundamental limitations.
Three key phenomena frequently affect FFT results
- Distortion
- Spectral Leakage
- Smearing (Resolution Loss)

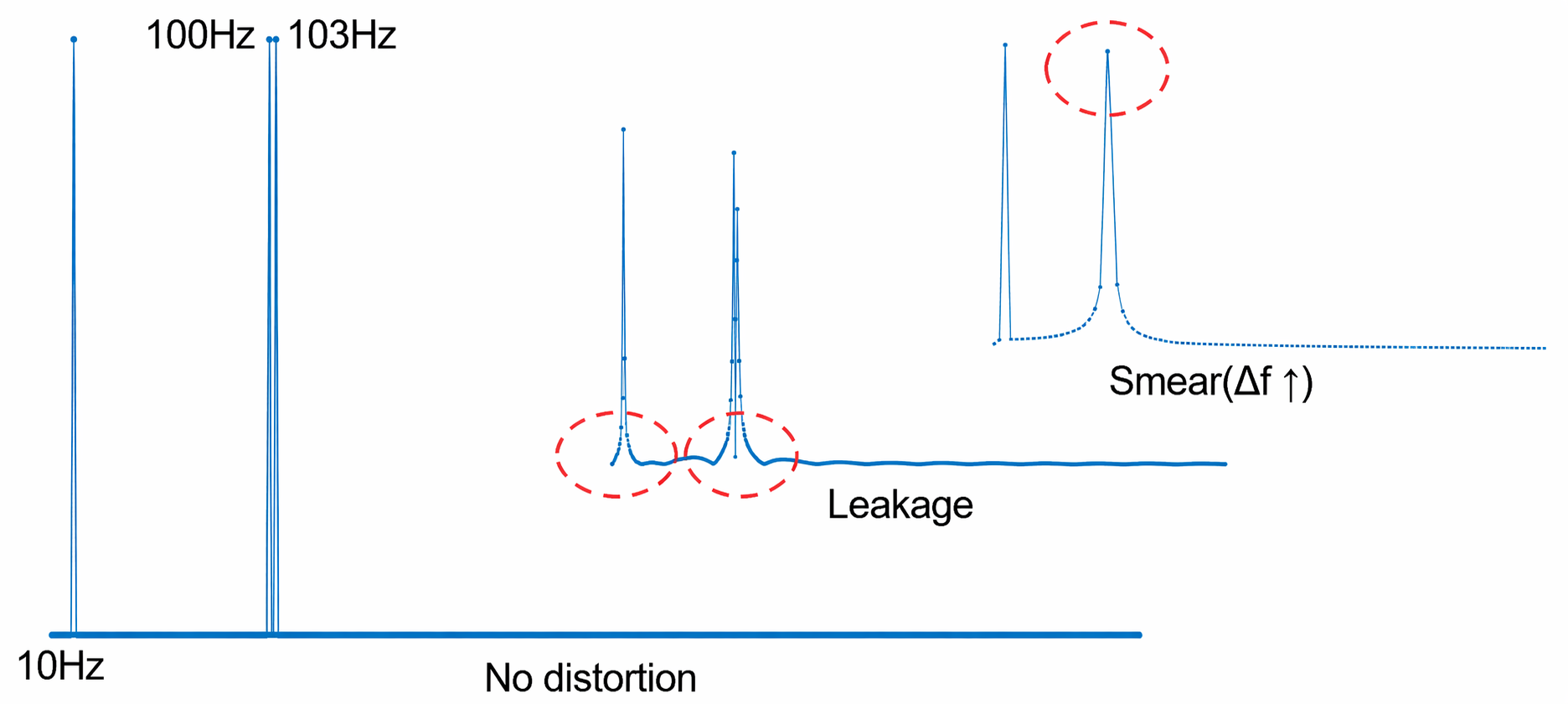

In this article, we analyze these effects using controlled examples in MALMIJAL, comparing
- Ideal case (No Distortion)
- Distortion with Leakage
- Distortion with Smearing and Leakage
Test Signal Configuration
The input signal consists of three sinusoidal components
Key point
- The 100 Hz and 103 Hz components are intentionally close
- This makes the example sensitive to resolution and leakage effects
Case 1: Ideal FFT Representation (Bin-Aligned Condition)
Time Domain Signal

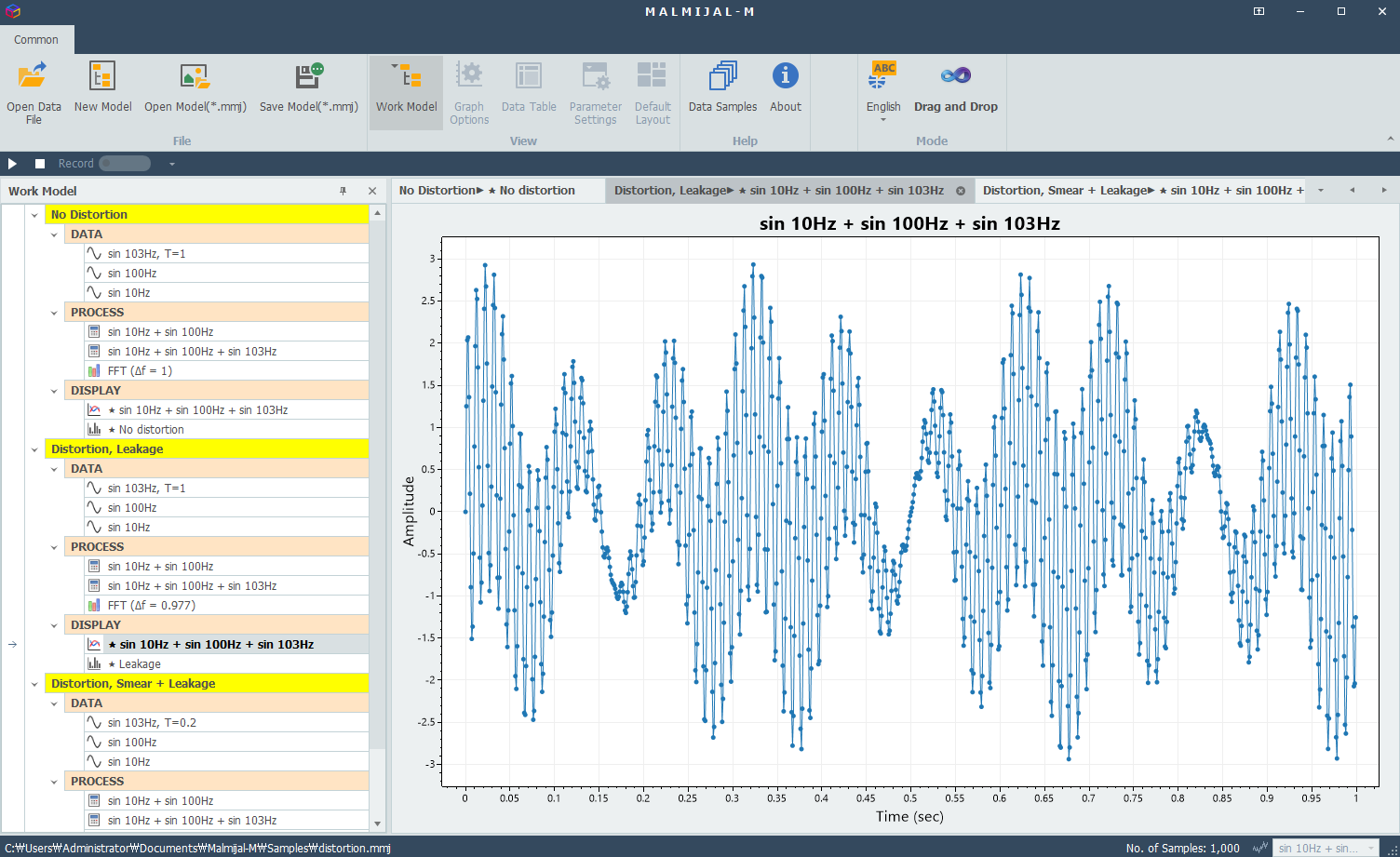

Time-domain signal composed of 10 Hz, 100 Hz, and 103 Hz components (refer to Samples/distortion.mmj)
FFT Result

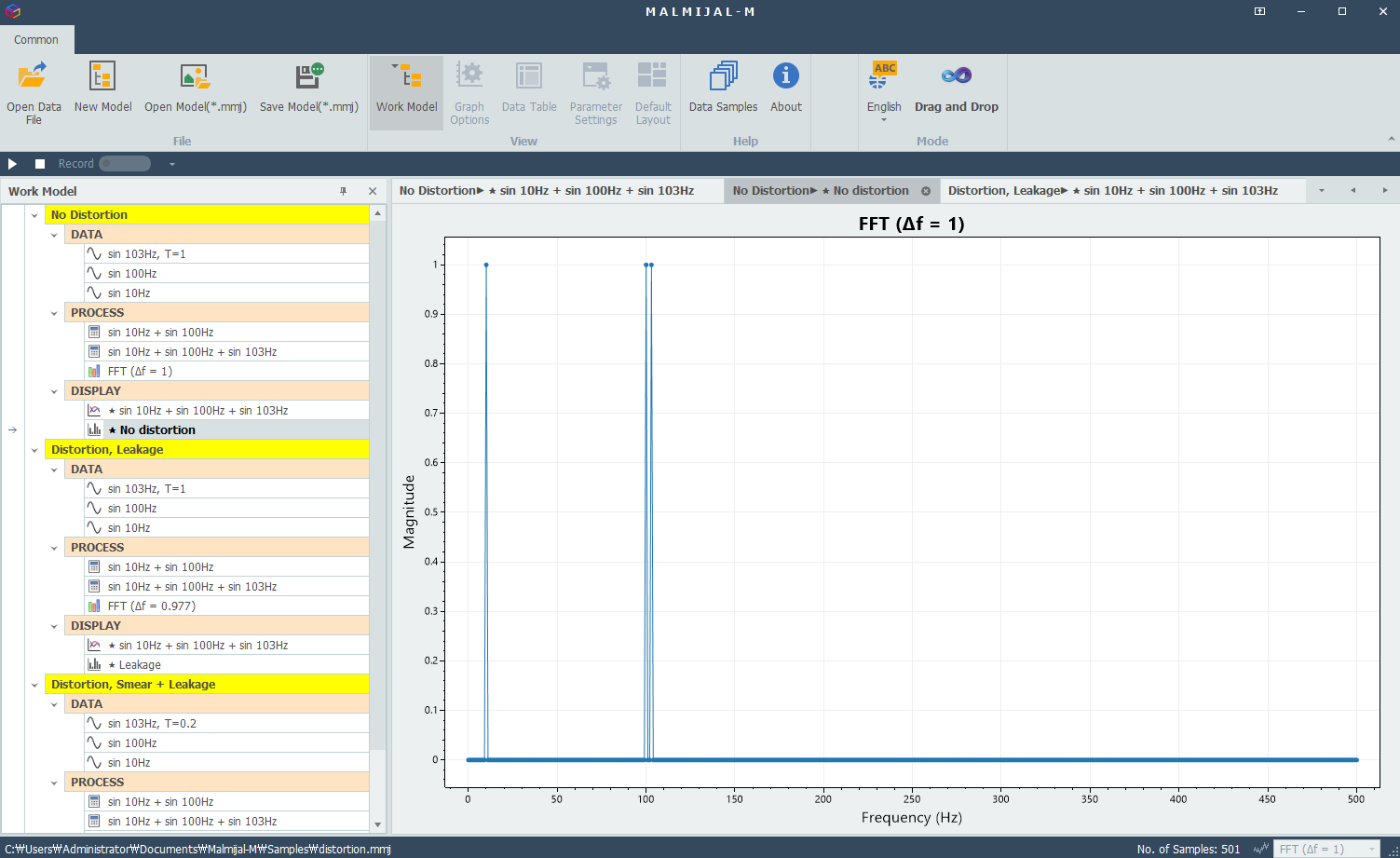

FFT result with perfectly resolved frequency components (no leakage or distortion)
In this first case, the time-domain signal is simply the sum of three sinusoidal components
There is nothing unusual about the signal itself.
What makes this case “ideal” is the FFT condition, not the waveform.
Here, the FFT is configured so that the frequency resolution is
This means the signal components at 10 Hz, 100 Hz, and 103 Hz fall exactly on FFT bin locations. As a result, the spectrum is represented with sharp and well-separated peaks.
Observations
- The signal itself is not special or “cleaner” than in other cases.
- The important point is that the FFT bins align with the signal frequencies.
- Under this condition, spectral leakage is minimized and the frequency components appear exactly where expected.
Key Insight
This ideal result occurs only when:
- The signal length T matches integer multiples of each frequency period
- The FFT bin spacing aligns with signal frequencies
Case 2: Spectral Leakage Due to Frequency-Bin Mismatch
Time Domain Signal

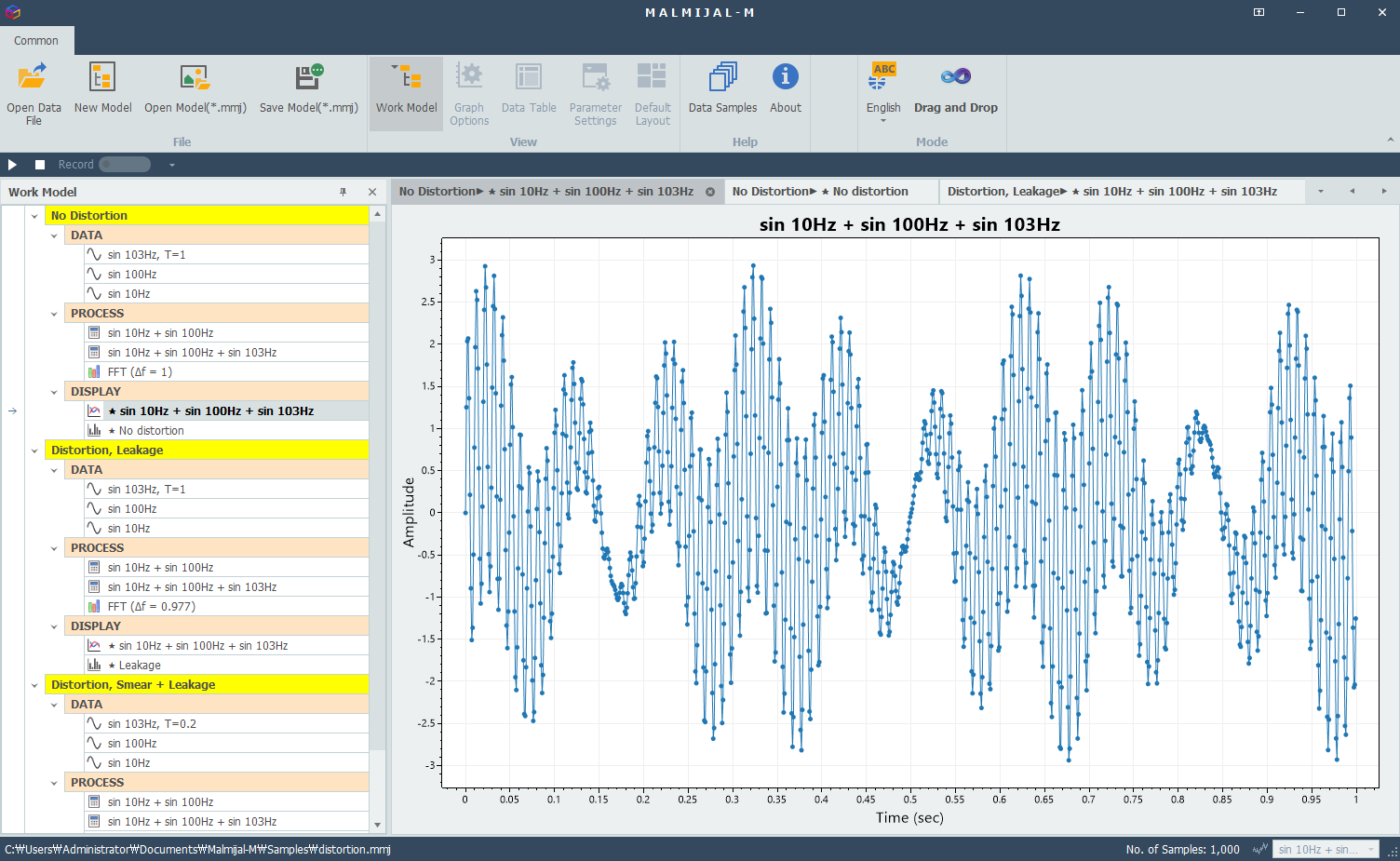

Time-domain signal composed of 10 Hz, 100 Hz, and 103 Hz components
FFT Result

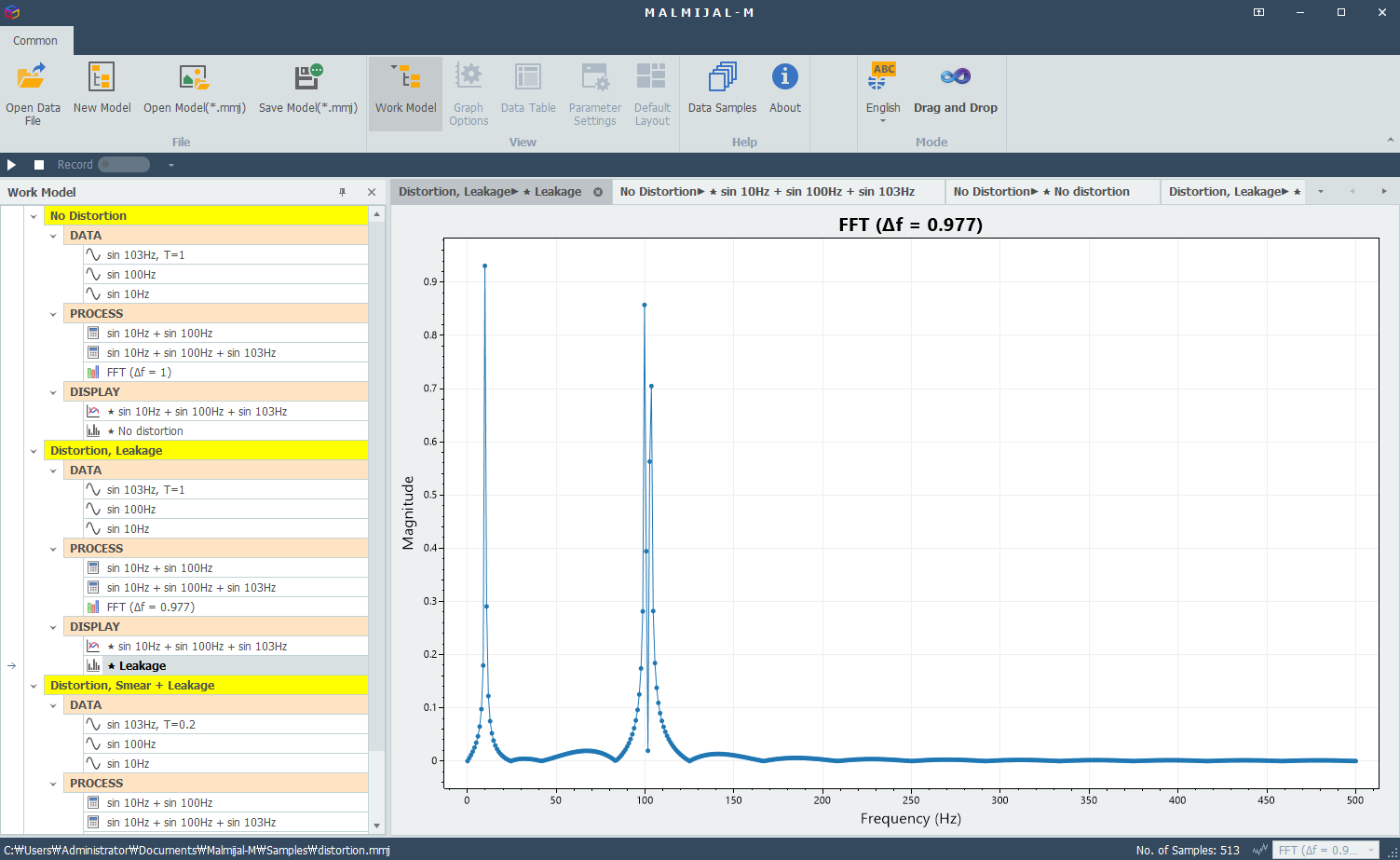

FFT result showing spectral leakage around the 10 Hz and 100 Hz components
At first glance, the time-domain waveform in this case looks essentially identical to Case 1.
That is expected, because the underlying signal is still the same combination of 10 Hz, 100 Hz, and 103 Hz components.
The difference is not in the signal itself. The difference is in the FFT setup. In this case, the FFT size is changed from 1000 to 1024, which changes the frequency resolution from
Δf = 1 Hz to Δf ≈ 0.977 Hz
Now the 10 Hz, 100 Hz and 103 Hz components no longer fall exactly on FFT bin centers. Because of this mismatch, their energy spreads into neighboring bins, producing spectral leakage.
Observations
- The time-domain signal is not distorted.
- The distortion appears in the frequency-domain representation.
- This is better described as FFT-induced spectral distortion or spectral leakage, not waveform distortion.
Spectral Leakage Explained
FFT assumes that the signal is periodic within the observation window
If this condition is violated
- The signal is effectively truncated
- This introduces discontinuities at the window edges
- Resulting in energy spreading across frequencies
Case 3: Smearing and Leakage Under Reduced Observation Time
Time Domain Signal

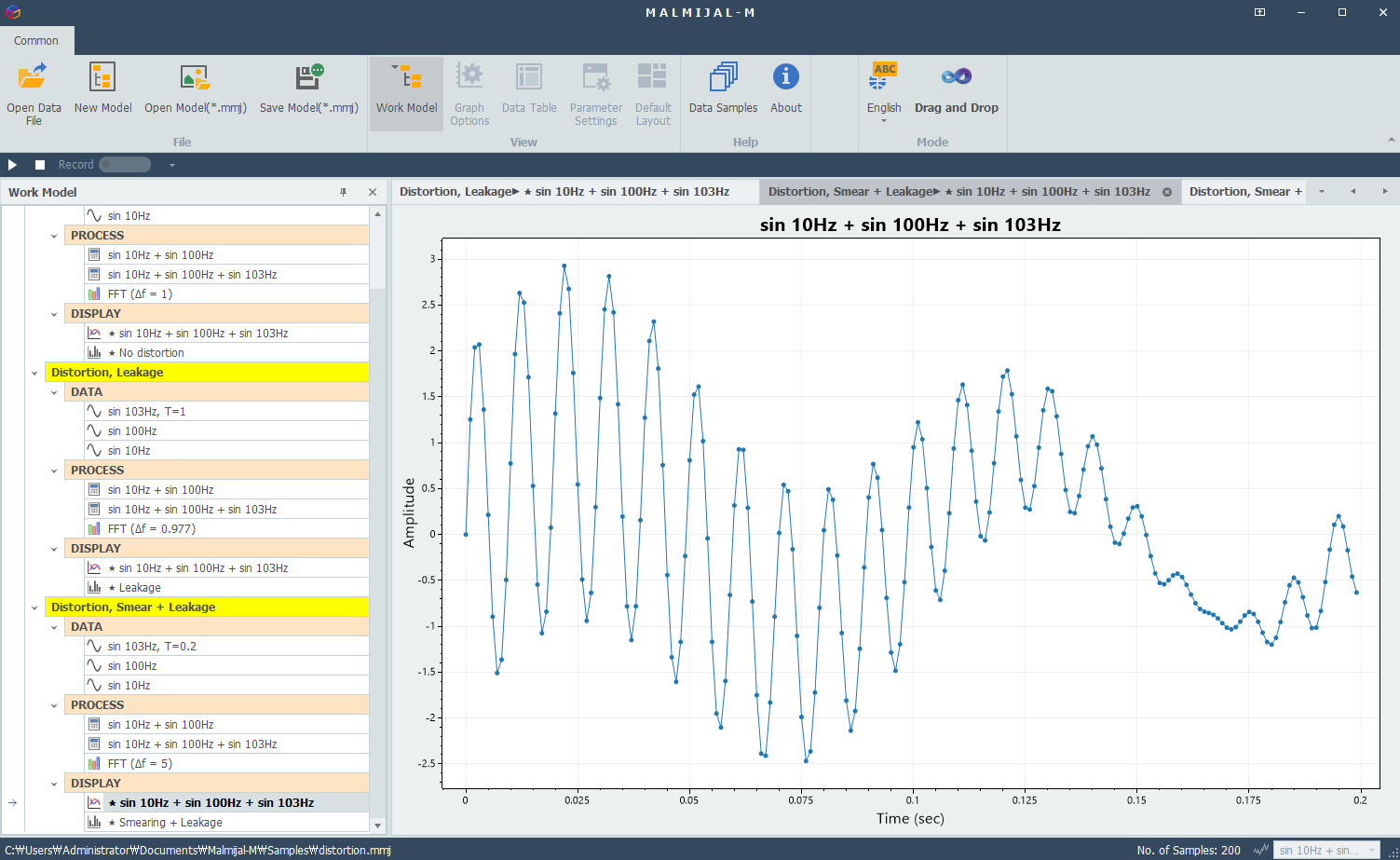

Time-domain signal with reduced observation length leading to poor resolution
FFT Result

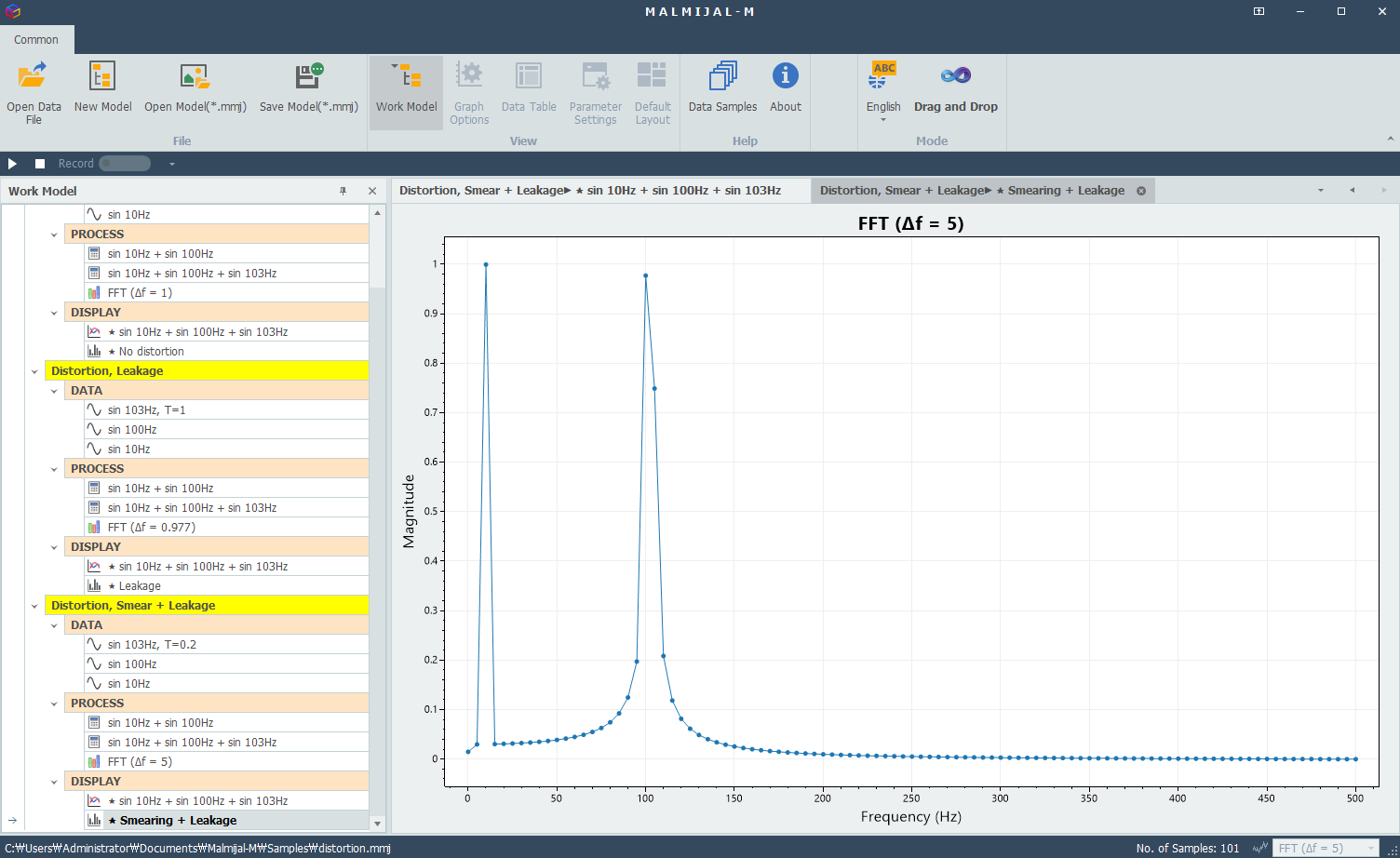

FFT result showing both smearing and leakage, making frequency separation difficult
Observations
- Spectral peaks become broader.
- Close frequencies (100 Hz and 103 Hz) are difficult to distinguish.
- Overall spectrum appears blurred.
Smearing (Resolution Loss)
Frequency resolution is determined by
Where,
- Trecord : observation time, record length
- Δf : frequency resolution
- Fs: sampling frequency
- N: number of samples
Interpretation
- Shorter Trecord → larger Δf
- Larger Δf → lower ability to separate close frequencies
Practical Impact
| Condition | Result |
|---|
| Long observation time | High resolution |
| Short observation time | Smearing |
| Misaligned window | Leakage |
Practical Implications
In real-world signal analysis
- Apparent “noise” is often spectral leakage
- Unexpected frequency components may be spectral artifacts
- Poor resolution may hide critical features
How to Mitigate These Effects
1. Increase Observation Time
- Improves frequency resolution
- Reduces smearing
2. Apply Window Functions
Common choices
These reduce discontinuities and minimize leakage.
3. Align Sampling Conditions (Coherent Sampling)
- Ensure signal contains integer number of cycles
- Match FFT bin spacing to signal frequencies
Key Takeaways
- FFT results are not absolute truth
- They are highly dependent on sampling and processing conditions
Always interpret FFT results in the context of
- Signal length
- Windowing
- Frequency resolution
Suggested Further Reading
You may also find these topics helpful:
