What Is a Peak in Signal Analysis? (And Why It Matters)
In signal analysis, a peak represents a point where the signal reaches a local maximum.
Peaks often indicate important events or features in a signal.
What Is a Peak?
A peak is a point where the signal is higher than its neighboring values.
Mathematical Idea
Intuition
“The highest point in a small region”

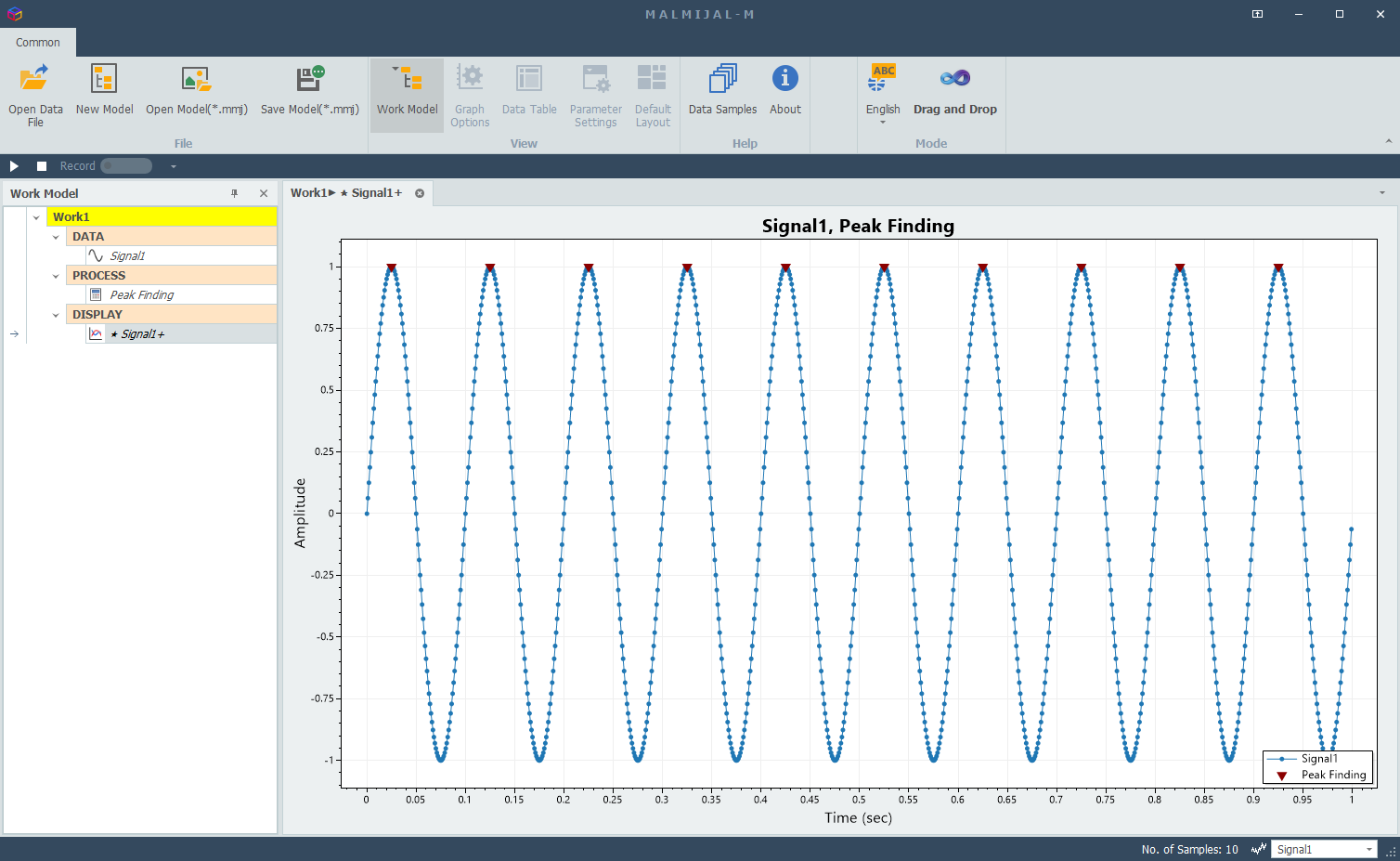

Peak Finding result
Types of Peak values
1. Local Peak value
- Small peaks within neighborhood values
2. Global Peak value
- Highest value in entire signal
3. Sharp vs Broad Peak values
- Sharp → sudden event
- Broad → gradual change
Why Peak values Matter
Peaks help identify.
Machine Faults
- abnormal vibration spikes
Biomedical Signals
- ECG → heartbeat detection
Audio Signals
Peaks = key events in signals
Peak Detection Methods
Simple Method
- Compare neighboring values
Threshold Method
- Detect peaks above a certain value
Advanced Methods
- Smoothing + detection
- Statistical methods (IQR, Z-score) → Outlier detection
MALMIJAL Application
- Peak Detection function
- IQR (Inter-Quartile Range) outlier detection

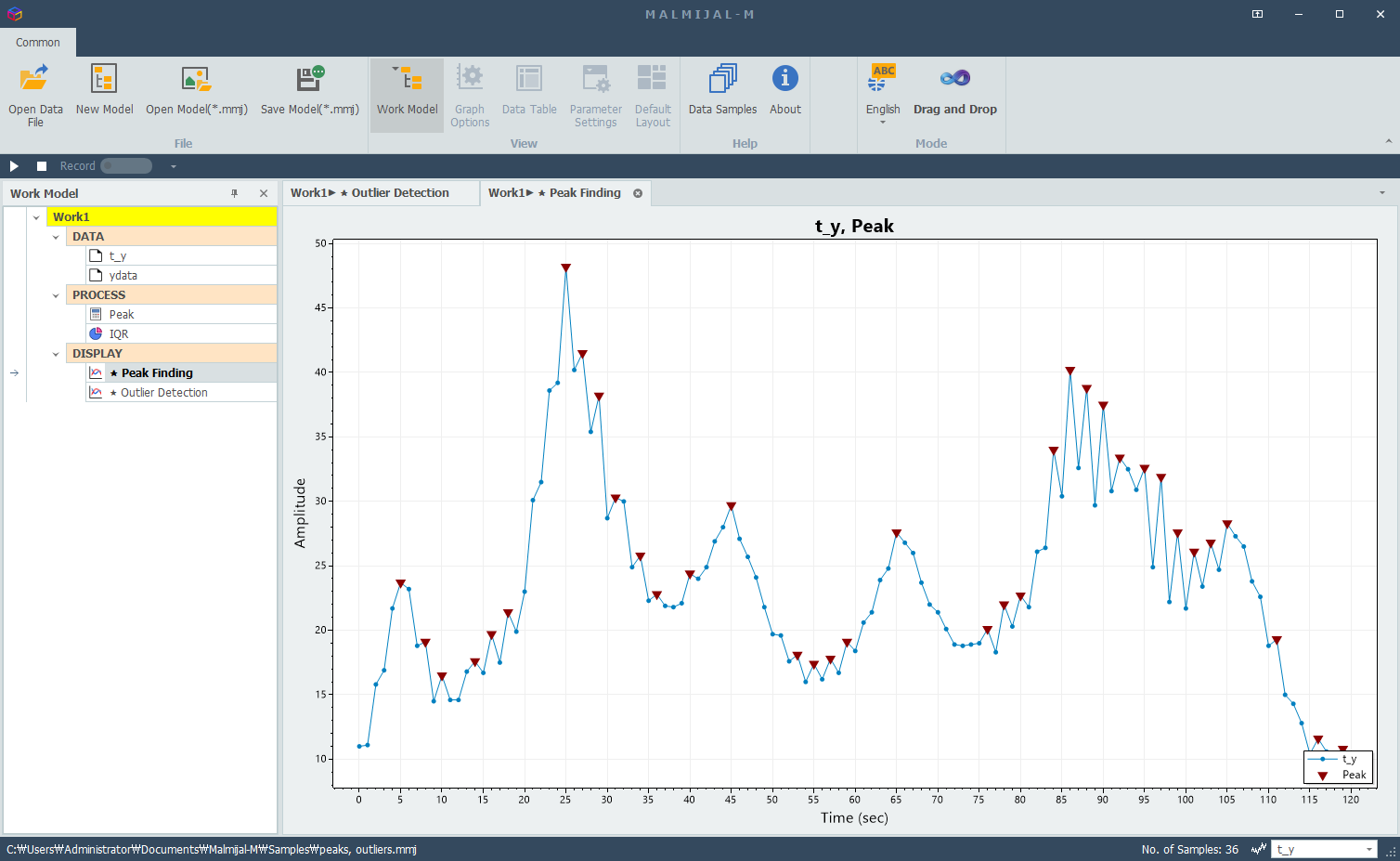

Detected peaks highlighted (refer to Samples/peaks, outliers.mmj)

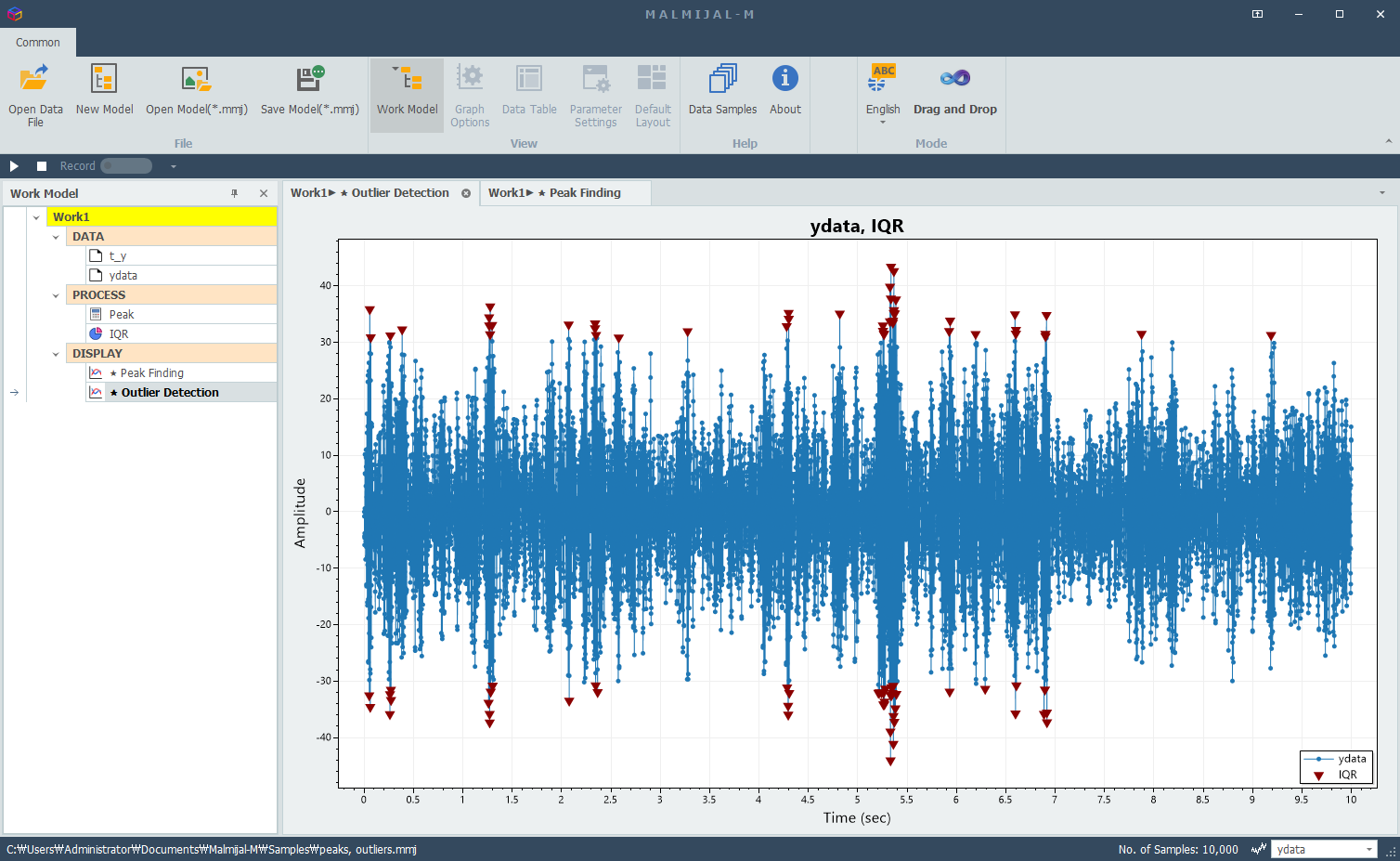

Outlier detection using IQR (refer to Samples/peaks, outliers.mmj)
Peak Parameters
Important features
- Peak height → amplitude
- Peak position → time
- Peak width → duration
Challenges in Peak Detection
- Noise can create false peaks
- Overlapping peak values
- Weak signals
Solution
- Filtering (MA, EMA, FIR, IIR)
- Envelope(amplitude) detection
MALMIJAL Workflow
Peak Analysis
- Load a signal
- Apply filtering (optional)
- Run peak detection
- Extract peak features

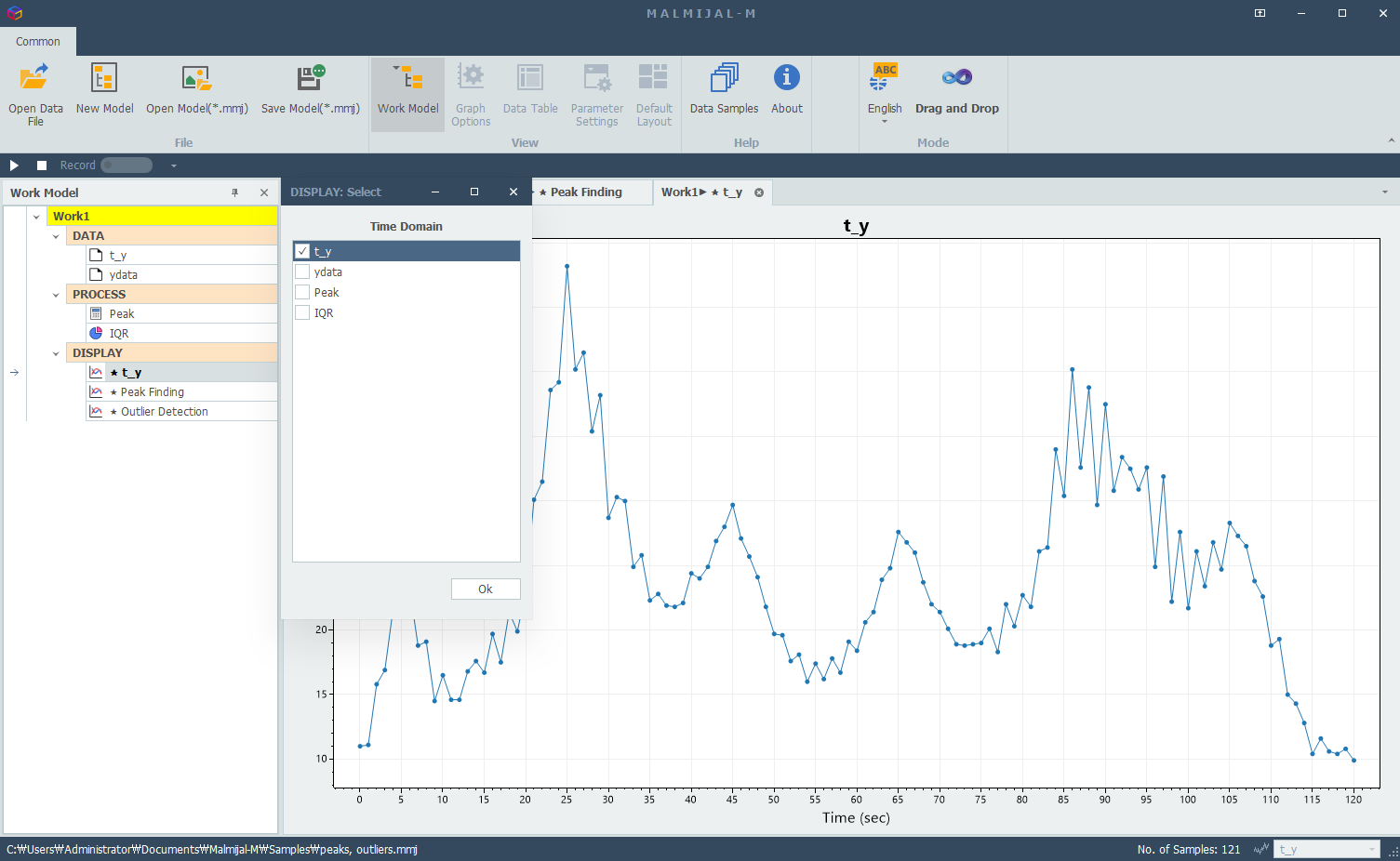

Load a signal (t_y.out) and display

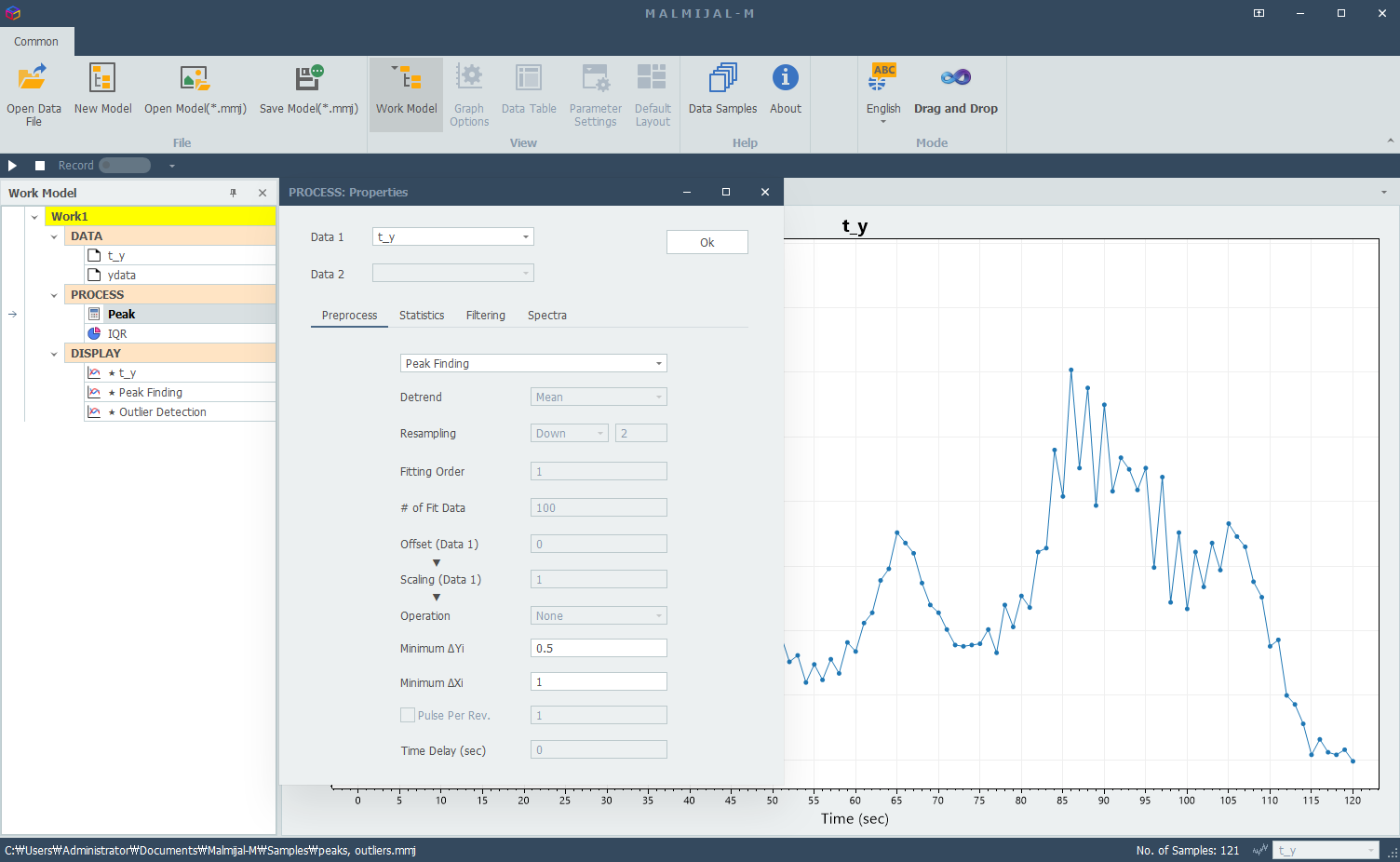

Peak Finding by clicking Ok

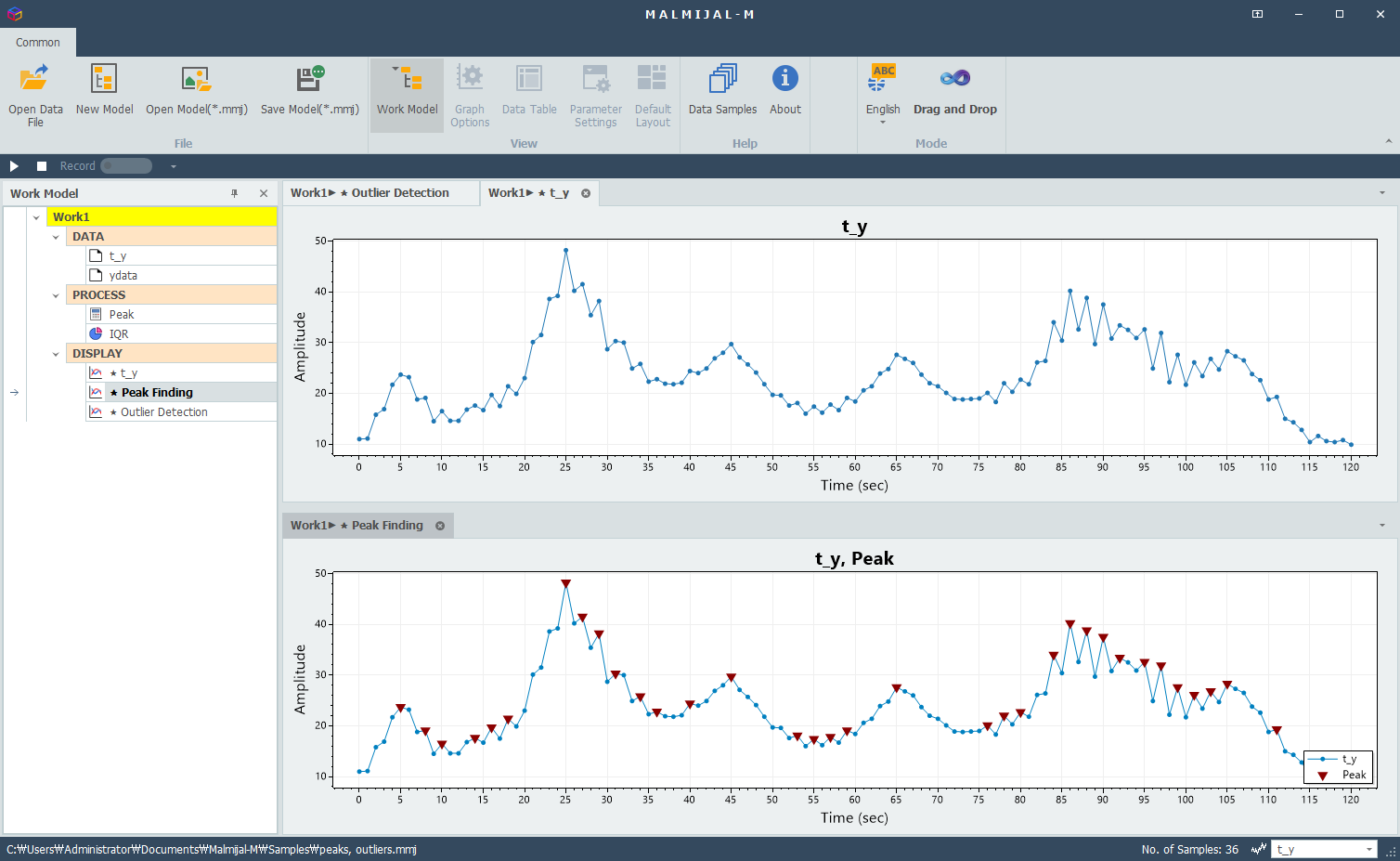

Extract peak features
Key Takeaways
- Peak = local maximum
- Represents important events
- Used in many real-world applications
- Detection requires careful tuning
Conclusions
A peak represents a local maximum in a signal and serves as a key indicator of important events or features.
- Peaks provide valuable insights in many real-world applications, such as machine fault detection, biomedical signals, and audio analysis.
- They can be detected using various methods, including simple comparison, thresholding, and statistical approaches like Z-score, IQR, depending on the situation.
- However, noise and overlapping signals can cause false detections, so proper filtering and preprocessing are essential.
In summary,
peak detection is a fundamental technique for identifying significant events in signals, and accurate results depend on careful tuning and preprocessing.
