What Is Signal Clipping? And Why Does It Happen?
In signal processing, signal clipping occurs when a signal exceeds the system’s maximum or minimum limit.
The signal gets “cut off” at a certain level.
What Is Signal Clipping?
Signal clipping happens when the amplitude goes beyond allowed limits.
Instead of continuing naturally, the signal is flattened.
Mathematical Idea
Intuition
“The signal hits a ceiling and gets cut”
Clean vs Distorted Signal

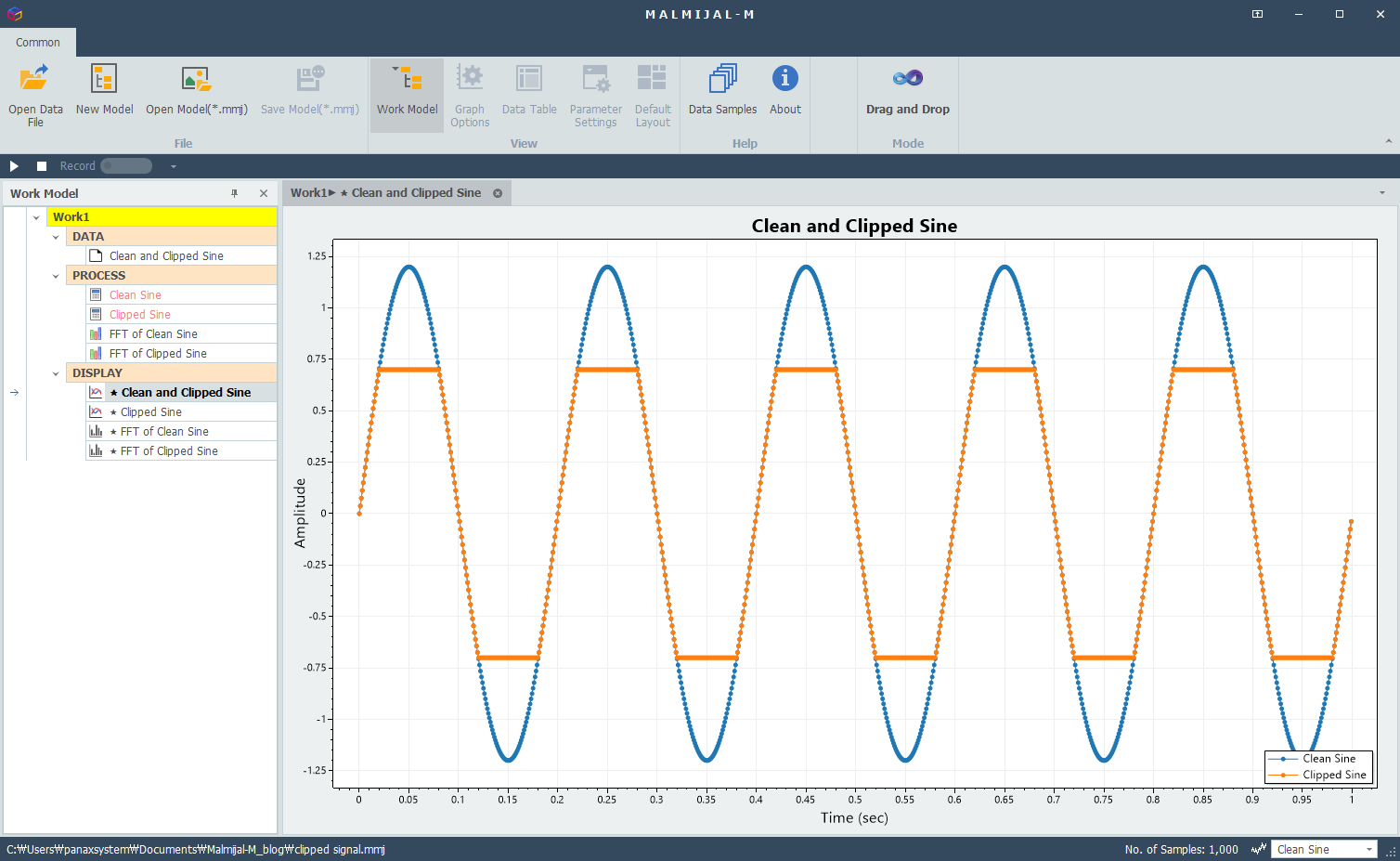

Clean vs clipped sine wave
Why Does Clipping Happen?
1. System Limits
- Hardware has maximum voltage range
2. Amplification Too High
- Gain increases signal beyond limits
3. ADC Saturation
- Analog-to-digital converter range exceeded
4. Poor Signal Scaling
- Input not properly normalized
Types of Clipping
1. Hard Clipping
- Sharp cutoff
- Severe distortion
2. Soft Clipping
- Gradual compression
- Less distortion
Effects of Clipping
Clipping causes
- Signal distortion
- Loss of information
- Harmonic generation
Key Insight
A pure sine wave becomes a distorted waveform.
Clipping in Frequency Domain
Clipping introduces new frequency components (harmonics).

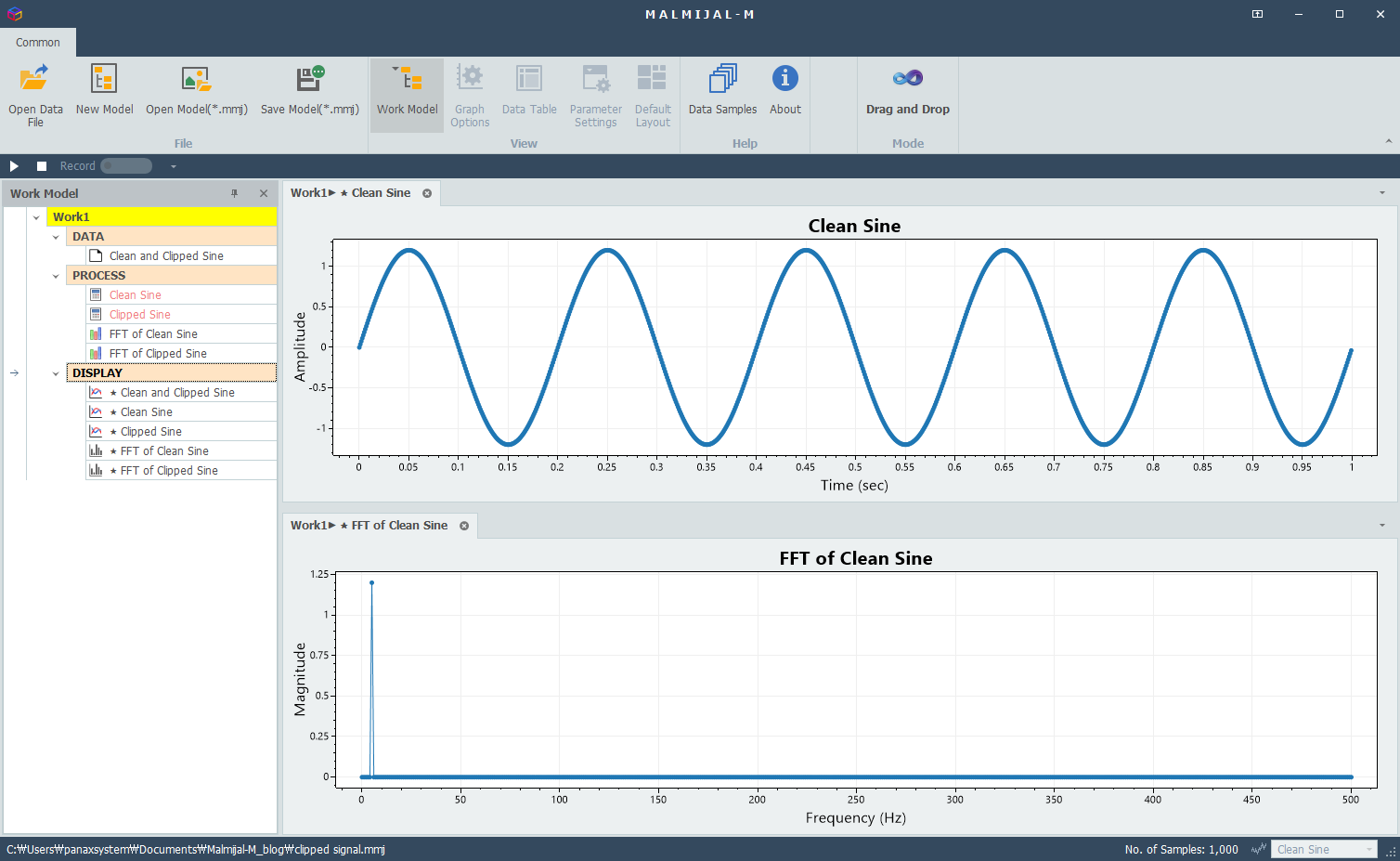

Clean sine wave and its FFT

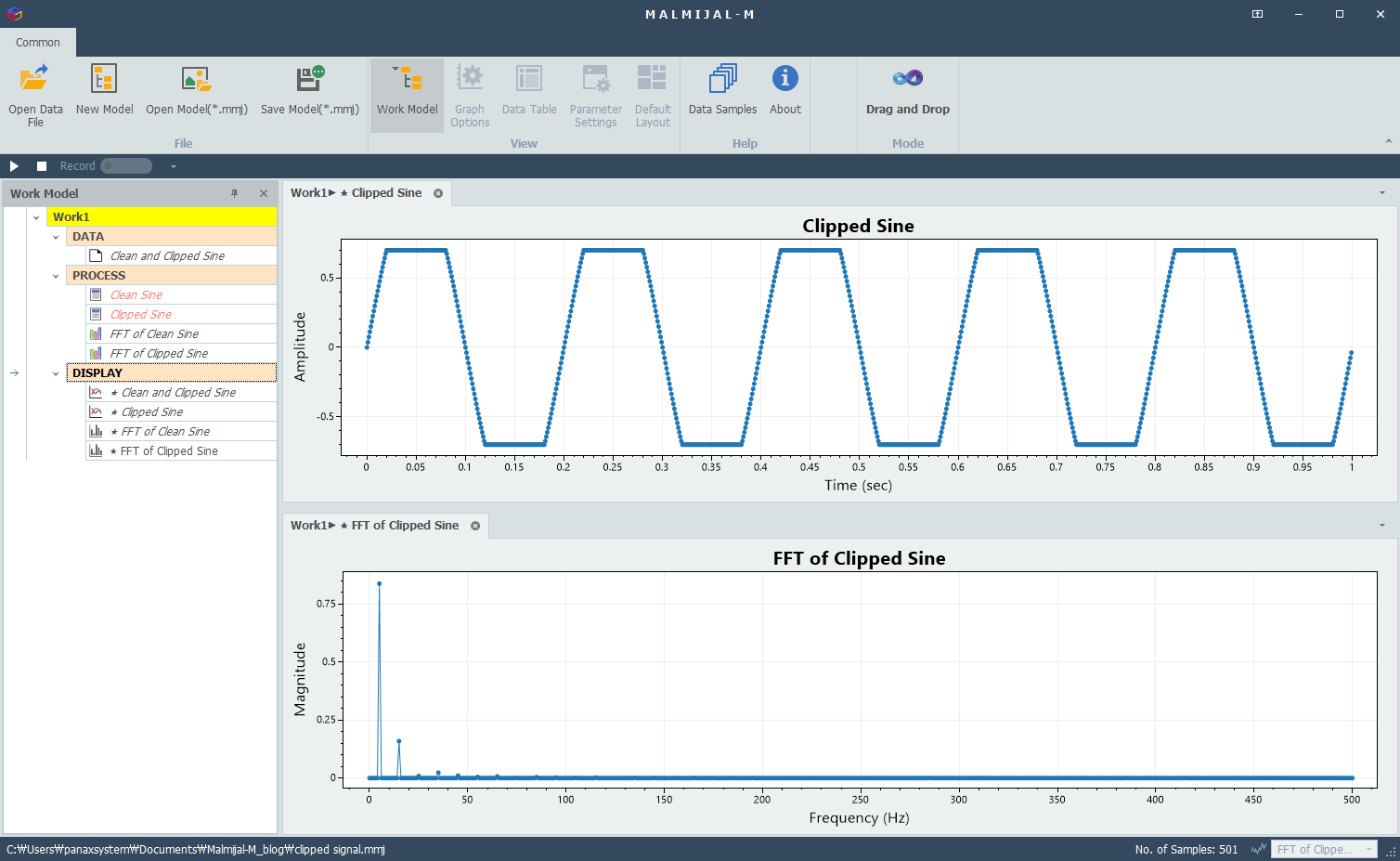

Clipping-induced harmonic distortion and its FFT
How to Detect Clipping
Method
- Peak detection at limit
- Flat regions in waveform
- Histogram saturation
How to Prevent Clipping
- Reduce gain
- Normalize signal
- Increase dynamic range
- Use proper ADC range
Key Takeaways
- Clipping = signal cutoff
- Caused by system limits
- Leads to distortion and harmonics
- Must be avoided in signal processing
Conclusions
Signal clipping occurs when a signal exceeds the system’s allowable amplitude limits, causing the waveform to be cut off and distorted.
- It is typically caused by system limitations, excessive gain, ADC saturation, or improper signal scaling.
- Clipping leads to loss of information and signal distortion, and introduces harmonics in the frequency domain, significantly altering the original signal characteristics.
- It can be detected through flat regions in the waveform, peak limits, or statistical analysis.
In summary,
clipping severely degrades signal quality and must be avoided through proper gain control, normalization, and appropriate system configuration.
