Spectral Leakage in FFT: Why It Happens and How Window Functions Fix It
Fast Fourier Transform (FFT) is one of the most widely used techniques in signal processing for analyzing frequency components of time-domain signals. Engineers frequently use FFT to analyze vibration signals, acoustic data, electrical waveforms, and many other real-world measurements.
However, when performing FFT analysis, an important issue often appears: spectral leakage.
Spectral leakage causes the energy of a signal to spread across multiple frequency bins instead of remaining concentrated at the true frequency. This can distort the frequency spectrum and make interpretation more difficult.
In this article, we explain:
what spectral leakage is
why spectral leakage occurs in FFT analysis
what happens if spectral leakage is ignored
how window functions help reduce the problem
What Is Spectral Leakage?
Spectral leakage occurs when the FFT assumes that the analyzed signal is periodic within the observation window, but the actual signal does not satisfy that assumption.
FFT mathematically treats the sampled signal as if it repeats infinitely. If the signal does not end at the same value where it started, a discontinuity occurs at the boundaries of the observation window.
This discontinuity introduces additional frequency components in the spectrum.
As a result, the energy of a single frequency spreads into neighboring frequency bins instead of appearing as a single sharp peak.
Why Spectral Leakage Happens
When computing an FFT, we analyze only a finite number of samples:
x [n], n = 0 ... N-1
If the signal completes an integer number of cycles within this window, the FFT produces a clean spectral peak.
However, real-world signals rarely satisfy this condition.
When the signal frequency does not perfectly align with the FFT window length, the signal is effectively cut off at the boundaries, creating a discontinuity between the beginning and the end of the sampled segment.
This abrupt transition introduces additional frequency components in the spectrum, producing spectral leakage.
When truncation does not align with an integer number of periods (non-coherent sampling),
the DTFT remains sinc-shaped spectrum due to the windowing effect,
while the FFT distributes energy beyond the main lobe into neighboring frequency bins, resulting in spectral leakage
What Happens If Spectral Leakage Is Ignored?
If spectral leakage is ignored, the FFT spectrum can become misleading and difficult to interpret. Several problems may occur.
Incorrect Frequency Identification
Instead of a sharp peak at the true frequency, the signal energy spreads across nearby frequency bins. This can make it difficult to identify the exact frequency of the signal.
Reduced Frequency Resolution
Spectral peaks become wider and less distinct (smearing), making it harder to separate multiple nearby frequency components.
Incorrect Amplitude Estimation
Leakage distorts amplitude measurements in the spectrum. This can cause incorrect conclusions in applications such as vibration analysis, acoustic measurement, or system identification. Because of these issues, engineers rarely perform FFT analysis without considering spectral leakage.
Example: Spectral Leakage in a 30.5Hz Sine Wave
The figure below demonstrates spectral leakage using a simple sine signal having signal frequency 30.5Hz

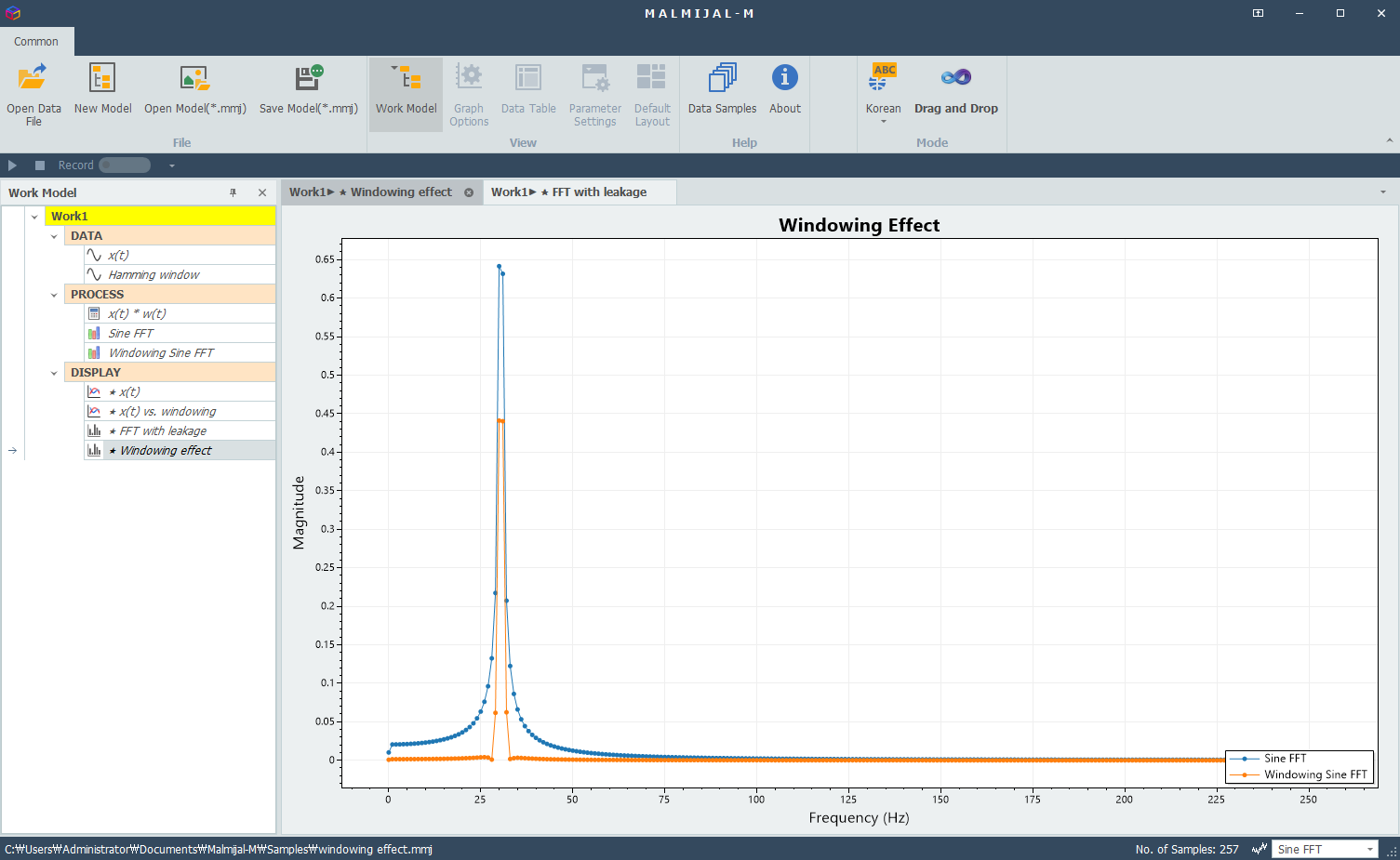

Comparison of FFT results for a sine wave without and with windowing, no scaling factor applied (for simplicity)
Windowed signal reduces spectral leakage (refer to Samples/windowing effect.mmj)
In the figure:
Without windowing, the energy of the signal spreads across nearby frequencies due to spectral leakage. After applying a window function, the spectral peak becomes more concentrated and easier to interpret.
This example clearly illustrates how windowing improves FFT analysis of real-world signals.
How Window Functions Reduce Spectral Leakage
Window functions reduce spectral leakage by gradually tapering the signal toward zero at the edges of the observation window.
Instead of abruptly truncating the signal, the window function smoothly reduces the signal amplitude near the boundaries.
The windowed signal is computed as:
x[n] is the original signal
w[n] is the window function
xw[n] is the windowed signal used for FFT analysis
The FFT is then computed on the windowed signal:
By smoothing the signal boundaries, window functions reduce discontinuities and minimize spectral leakage.

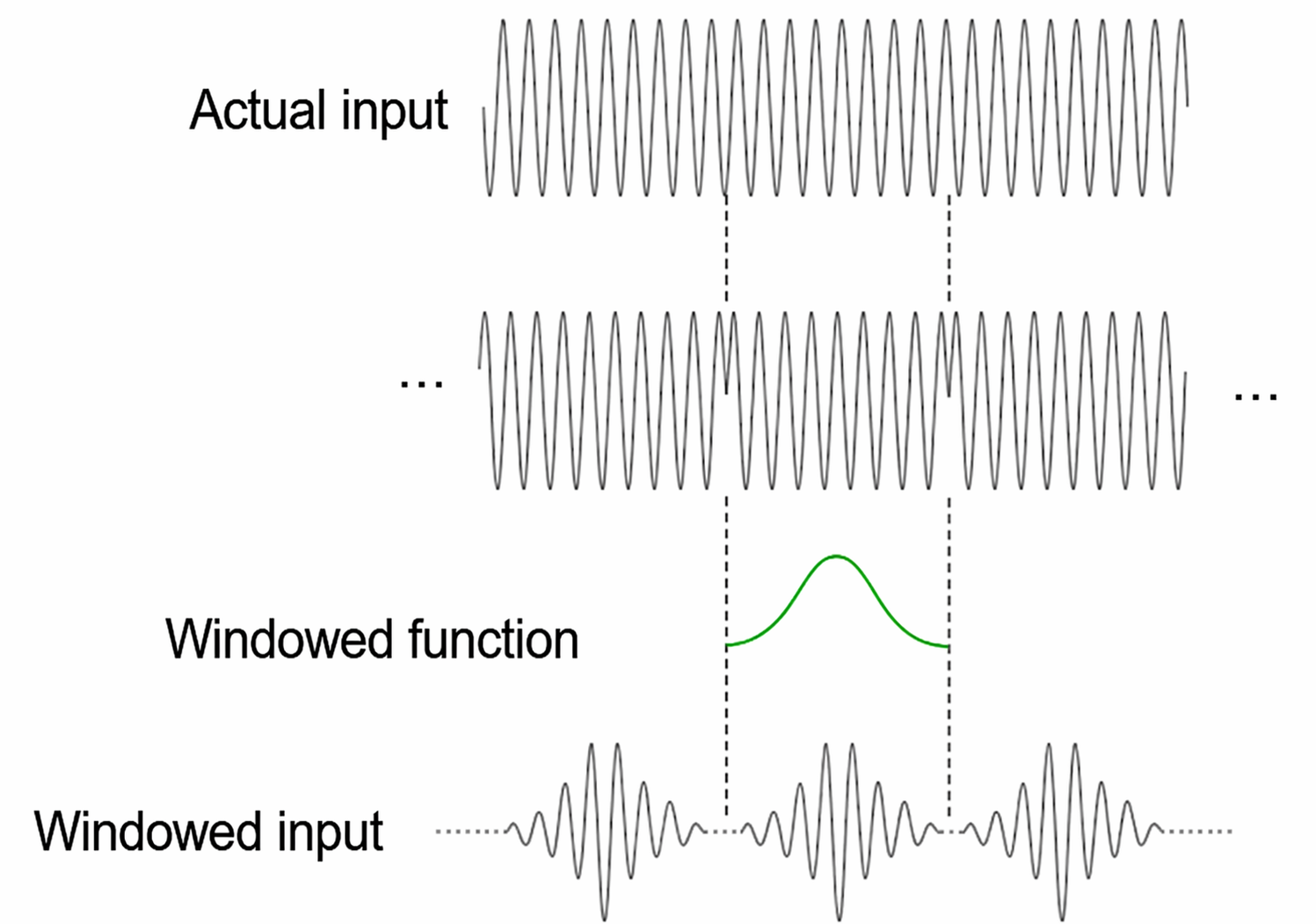

Effect of Windowing on Signal Segmentation
Benefits of Applying Window Functions
Applying window functions before computing an FFT provides several important advantages.
Reduced Spectral Leakage
Window functions suppress discontinuities at the boundaries of the observation window.
Clearer Frequency Peaks
Signal energy becomes more concentrated around the correct frequency, making the spectrum easier to interpret.
More Reliable Measurements
Windowing improves the accuracy of both frequency and amplitude measurements in practical signal analysis.
Better Visualization of Frequency Content
When analyzing signals with multiple components, windowing makes spectral peaks easier to distinguish.
Practical Tip for FFT Analysis
In practical signal processing tasks, spectral leakage is almost unavoidable because real-world signals rarely align perfectly with the FFT observation window.
For this reason, applying a window function before computing the FFT is often considered a standard step in frequency-domain analysis.
Modern signal processing tools allow engineers to easily apply window functions and compare results.
Tools such as MALMIJAL enable users to quickly visualize spectral leakage and evaluate how windowing improves FFT results.
Conclusion
Spectral leakage is a common phenomenon in FFT analysis caused by discontinuities at the boundaries of the observation window.
When a signal does not complete an integer number of cycles within the FFT window, its energy spreads across multiple frequency bins, making the frequency spectrum harder to interpret.
Window functions help reduce this problem by smoothing the signal near the boundaries of the observation window.
Understanding spectral leakage and applying appropriate window functions is essential for accurate frequency-domain signal analysis.
Suggested Further Reading
You may also find these topics helpful:
