Update Details (v2.6.0)
This update includes new features, performance improvements, and bug fixes to enhance the stability and signal processing capabilities of MALMIJAL-M.
1. [Preprocess Panel]

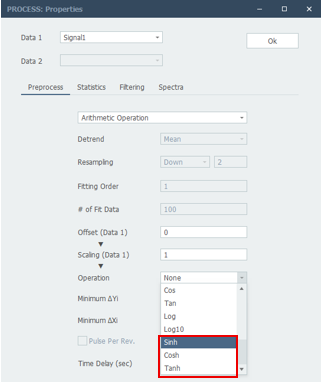

- Added hyperbolic trigonometric functions: sinh, cosh, tanh

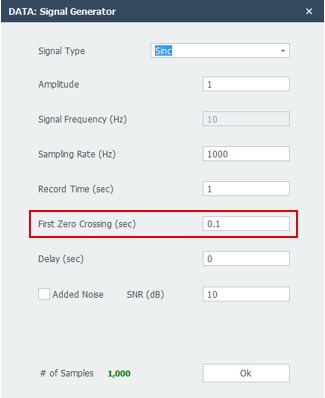

- Added First Zero Crossing option for Sinc signal generation
2. [Statistics Panel]

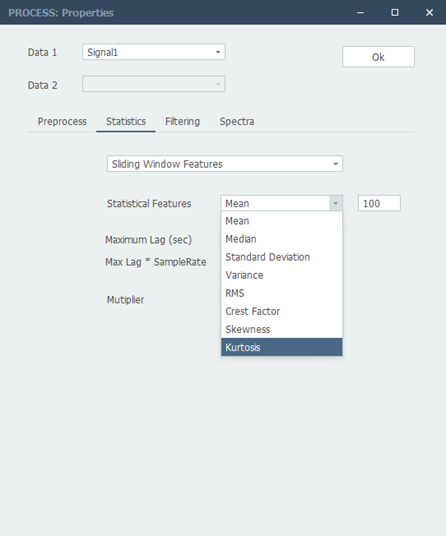

- Added Sliding Window Features to the Statistics Method:
- Statistical features include:
- Mean
- Median
- Standard Deviation
- Variance
- RMS
- Crest Factor
- Skewness
- Kurtosis

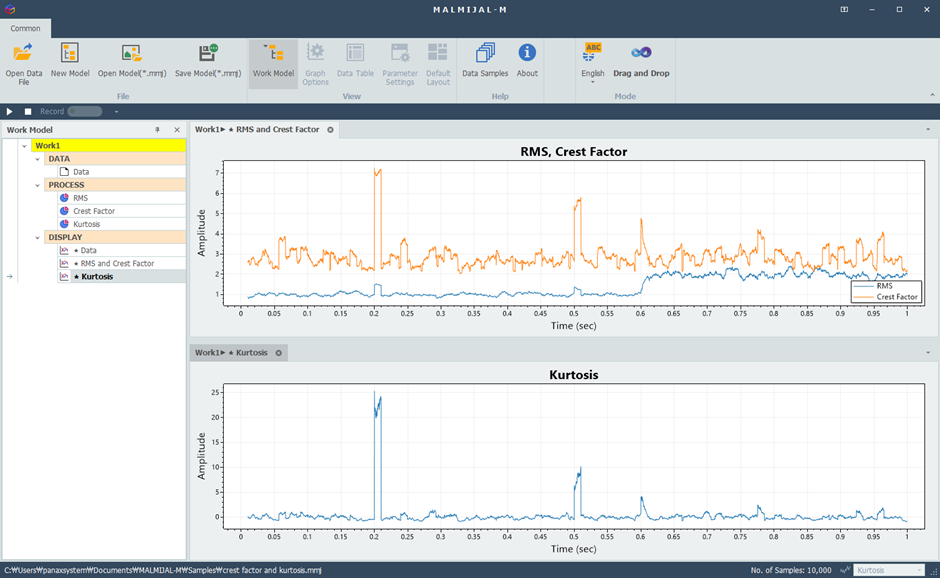

3. Added dataset: crest_kurtosis.csv, Added example file: crest factor and kurtosis.mmj

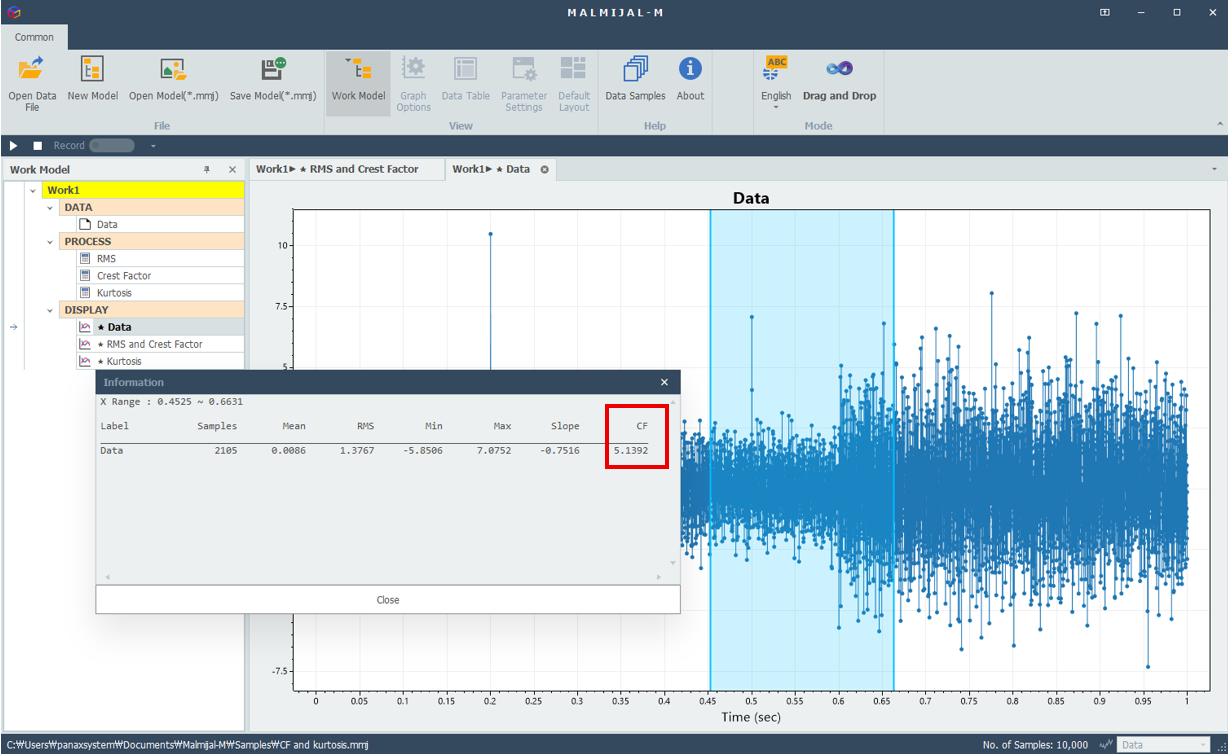

4. Added CF (Crest Factor) display when using: Ctrl + Shift + Mouse Click + Drag & Drop selection
5. Added support for 24-bit/sample IEEE float format when loading audio files
6. Updated audio recording hotkeys: Start recording: F2 → Ctrl + R, Stop recording: Ctrl + R, Enter, or Space

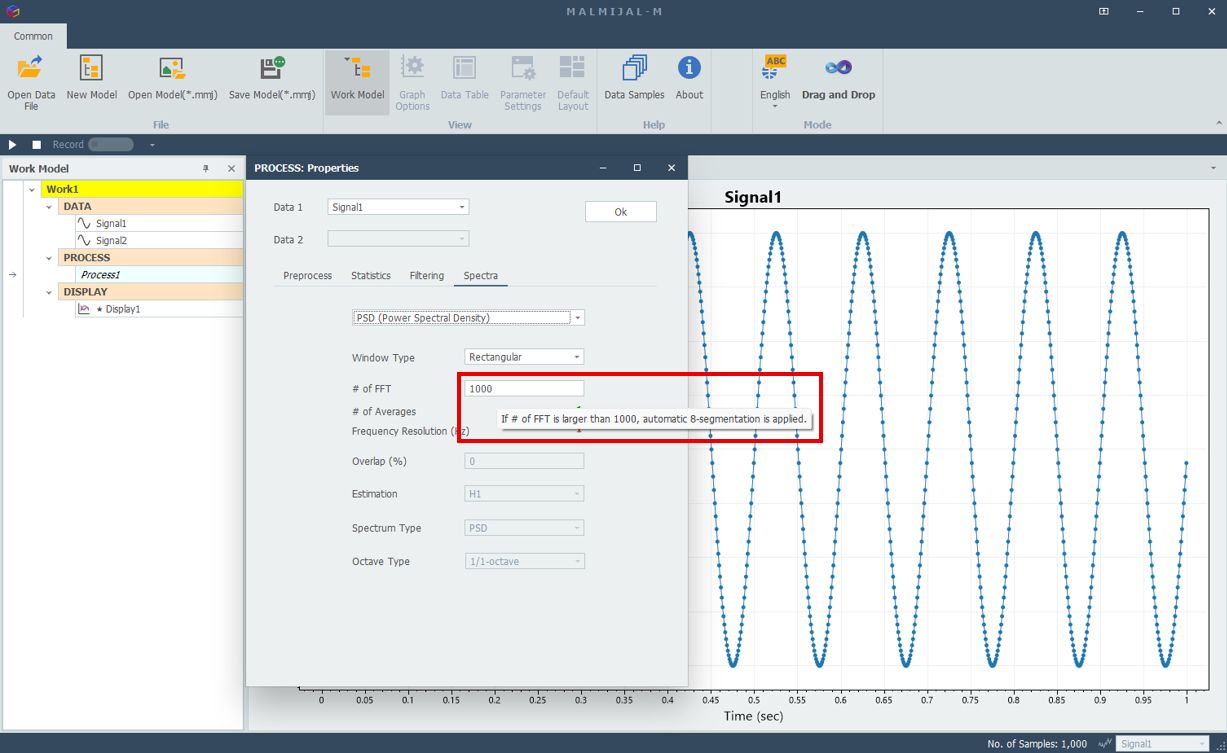

7. [PROCESS Panel] Added tooltip for # of FFT setting in Spectra:
- For FFT, Power Spectrum, Cross Spectrum:
→ If # of FFT > 1000, automatic zero-padding is applied - For Short-Time FT, PSD, CSD, FRF, Coherence (Welch method):
→ If # of FFT > 1000, automatic 8-segmentation is applied
8. Updated model: Samples/order spectrum.mmj, Updated corresponding data file: vibration.dat
9. Fixed errors when loading certain MATLAB MAT-files
Update Details (v2.6.0)
This update includes new features, performance improvements, and bug fixes to enhance the stability and signal processing capabilities of MALMIJAL-M.
1. [Preprocess Panel]
- Added hyperbolic trigonometric functions: sinh, cosh, tanh
- Added First Zero Crossing option for Sinc signal generation
2. [Statistics Panel]
- Added Sliding Window Features to the Statistics Method:
3. Added dataset: crest_kurtosis.csv, Added example file: crest factor and kurtosis.mmj
4. Added CF (Crest Factor) display when using: Ctrl + Shift + Mouse Click + Drag & Drop selection
5. Added support for 24-bit/sample IEEE float format when loading audio files
6. Updated audio recording hotkeys: Start recording: F2 → Ctrl + R, Stop recording: Ctrl + R, Enter, or Space
7. [PROCESS Panel] Added tooltip for # of FFT setting in Spectra:
→ If # of FFT > 1000, automatic zero-padding is applied
→ If # of FFT > 1000, automatic 8-segmentation is applied
8. Updated model: Samples/order spectrum.mmj, Updated corresponding data file: vibration.dat
9. Fixed errors when loading certain MATLAB MAT-files
