Update Details (v2.7.1)
This release introduces new features, performance enhancements, and bug fixes designed to improve the stability, usability, and signal processing performance of MALMIJAL-M.
1. [Work Model]

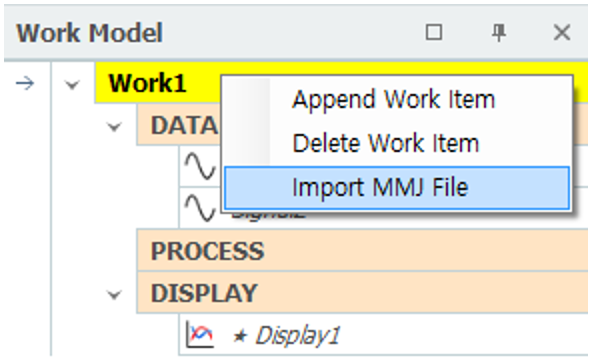

- Added "Import MMJ File" to the Work node context (right-click) menu.

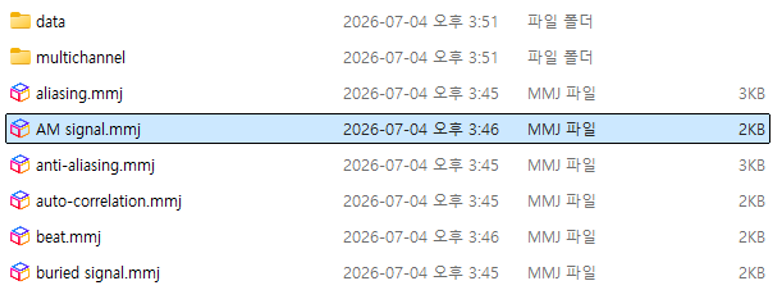

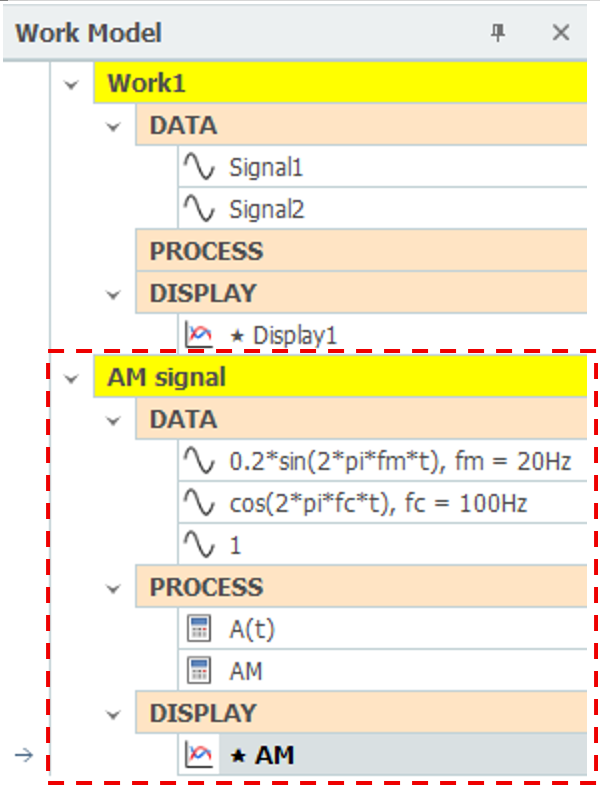

Import result of the AM signal.mmj file under the Work1 model.
2. [Preprocess Panel]
Arithmetic Operation:

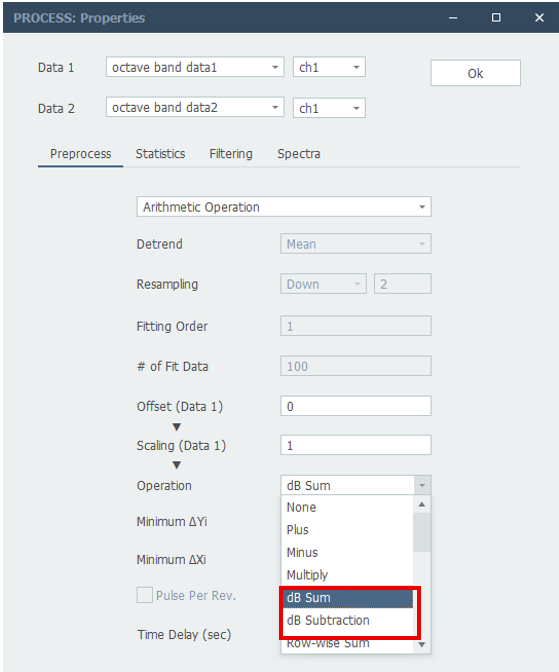

- Added support for dB Sum and dB Subtraction.

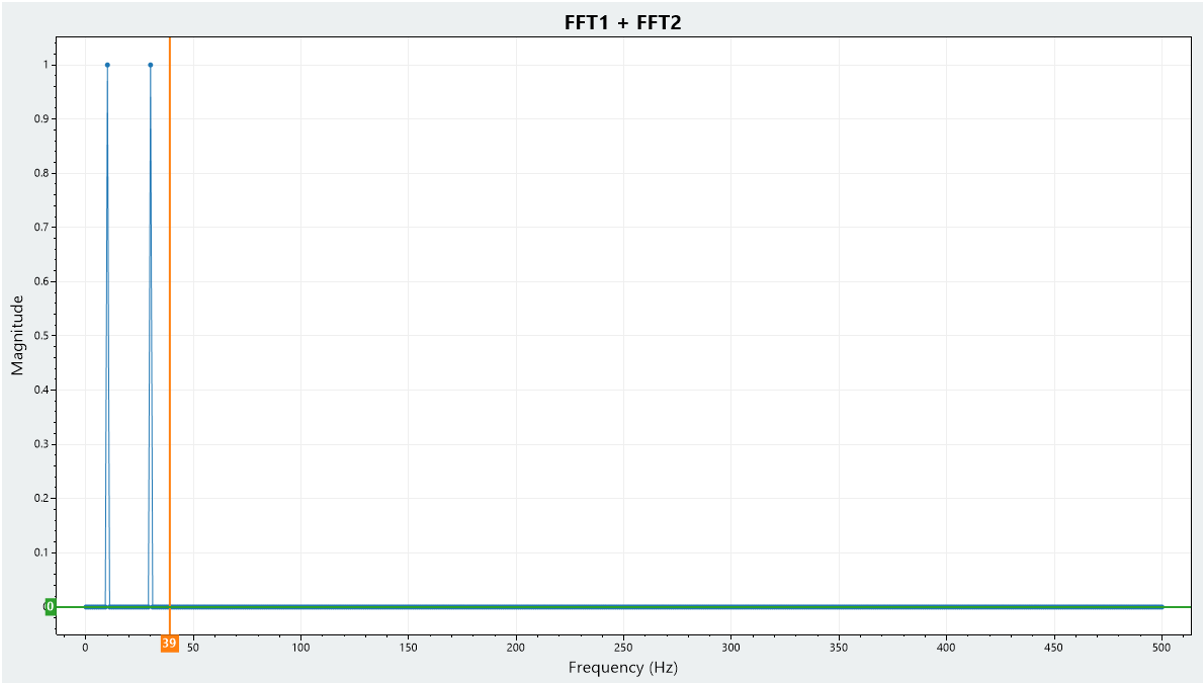

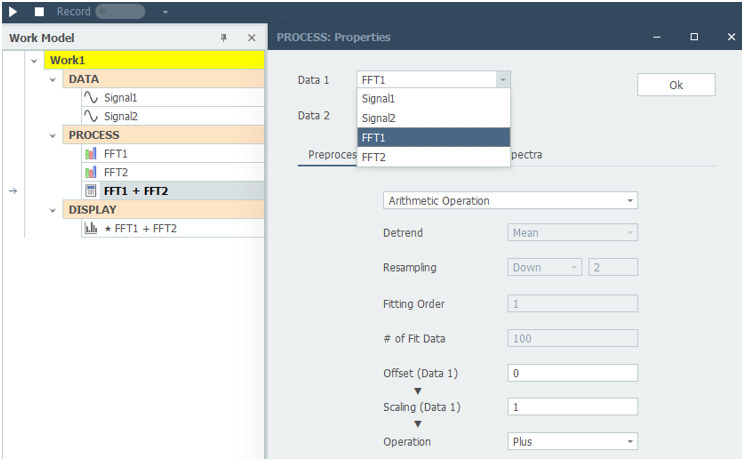

- Added support for using time-domain data and selected frequency-domain data (FFT, Power Spectrum, PSD, and Octave Band) as input to DATA and PROCESS operations.

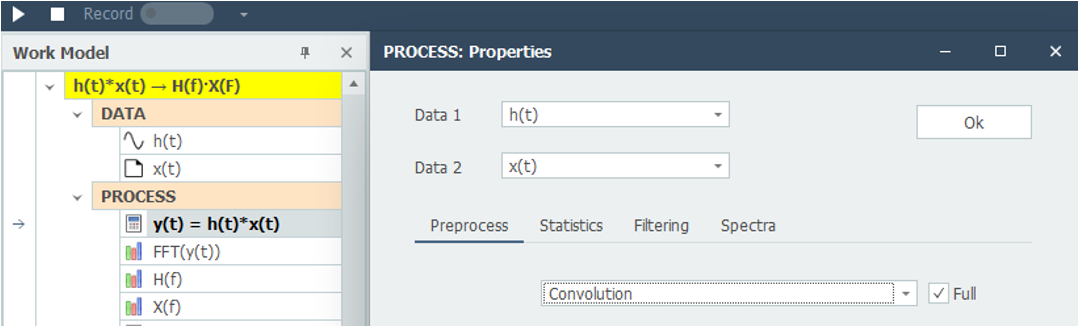

Convolution:
- Full Option: Added a Full option to control the processing mode.
- Checked: Use for frequency analysis
- Unchecked: Use for filtering
Refer to Samples/convolution theorem.mmj for an example.

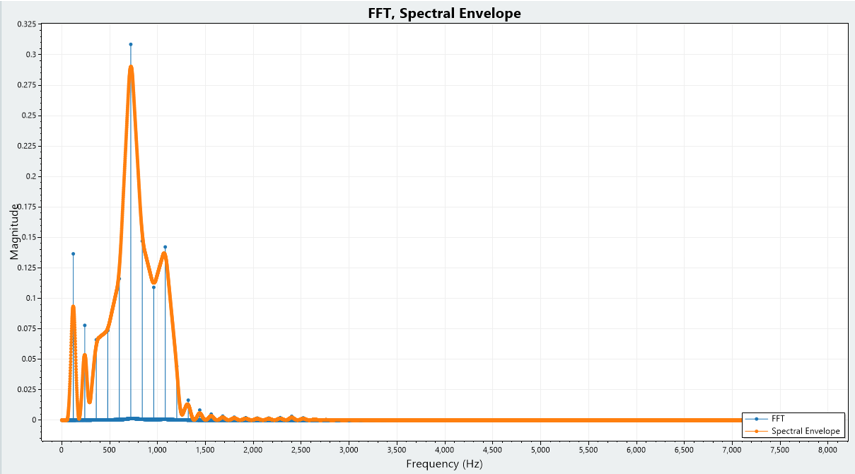

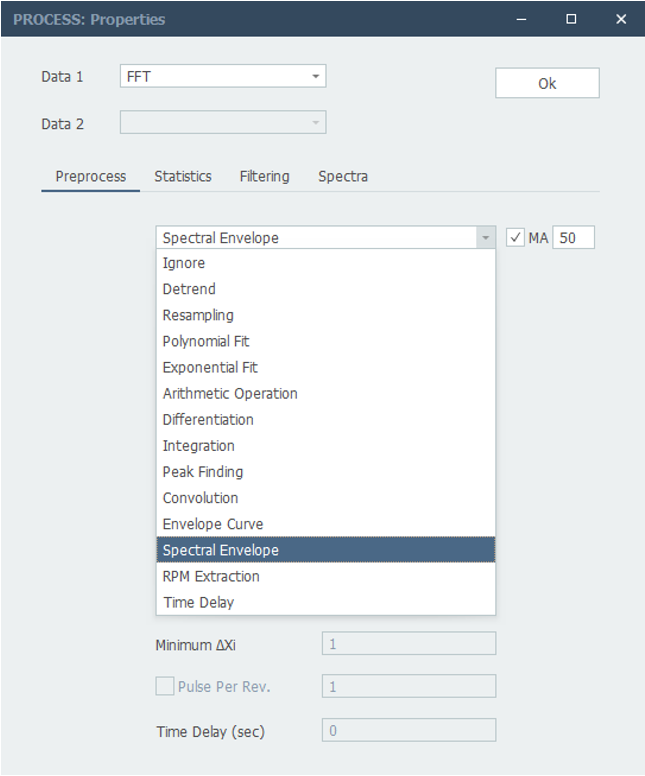

- Spectral Envelope
- Added Spectral Envelope.
- Applies envelope smoothing to FFT results using a Moving Average filter with a user-defined window size (order).
3. [Spectra Panel]
Octave Band Analysis

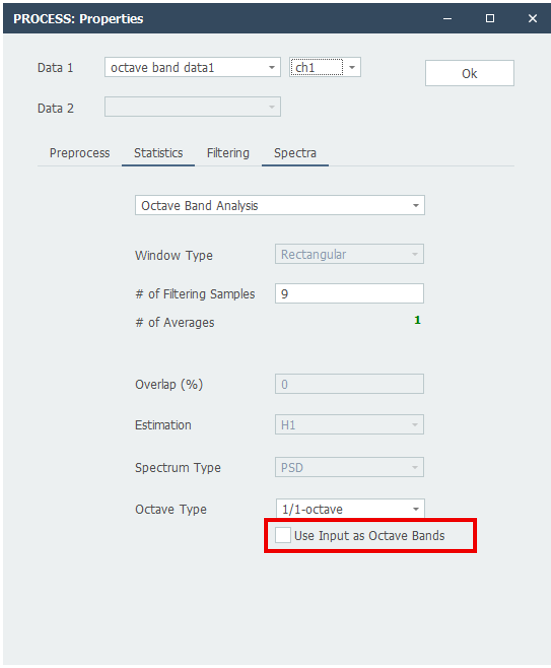

- Added the "Use Input as Octave Bands" checkbox.
- Use this option when the input data is Octave Band data instead of time-domain data.
4. [General Graphics Options]
- Added Left (←) and Right (→) arrow key navigation for the Data Cursor.

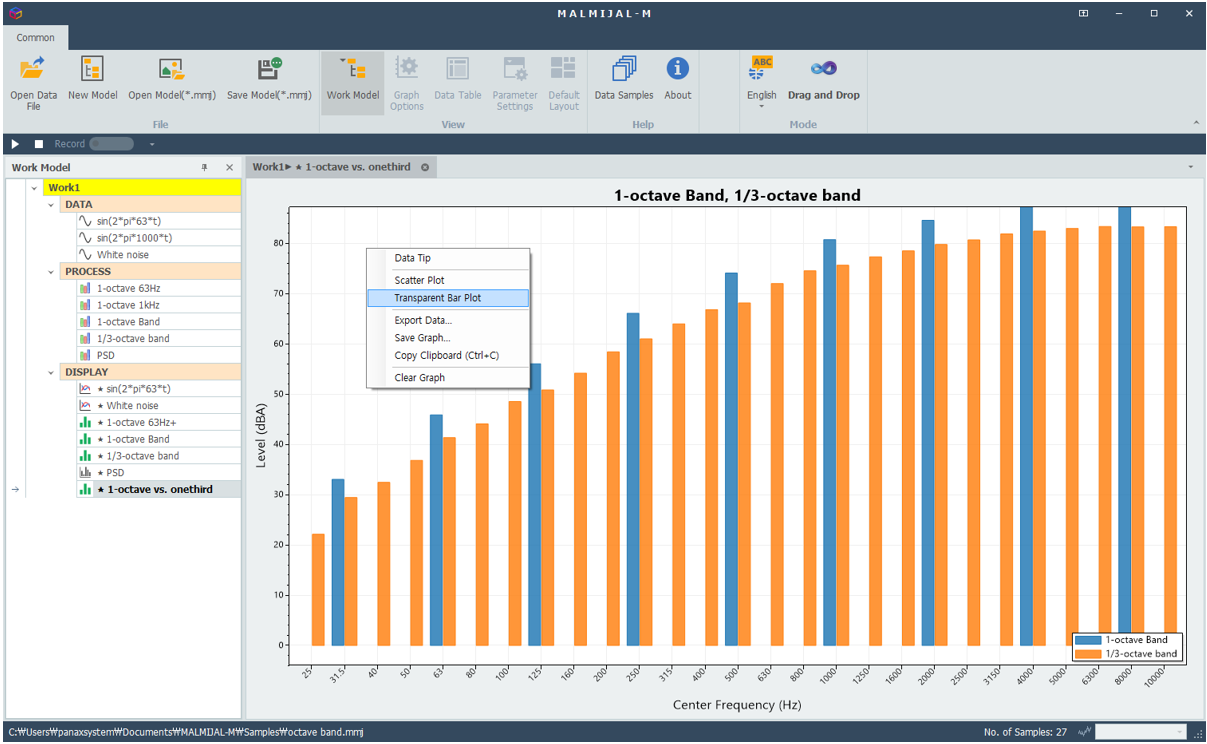

- When plotting multiple Octave Band analysis results together, you can now choose from three visualization types:
- Grouped Bar Graph (default)
- Transparent Bar Plot
- Scatter Plot

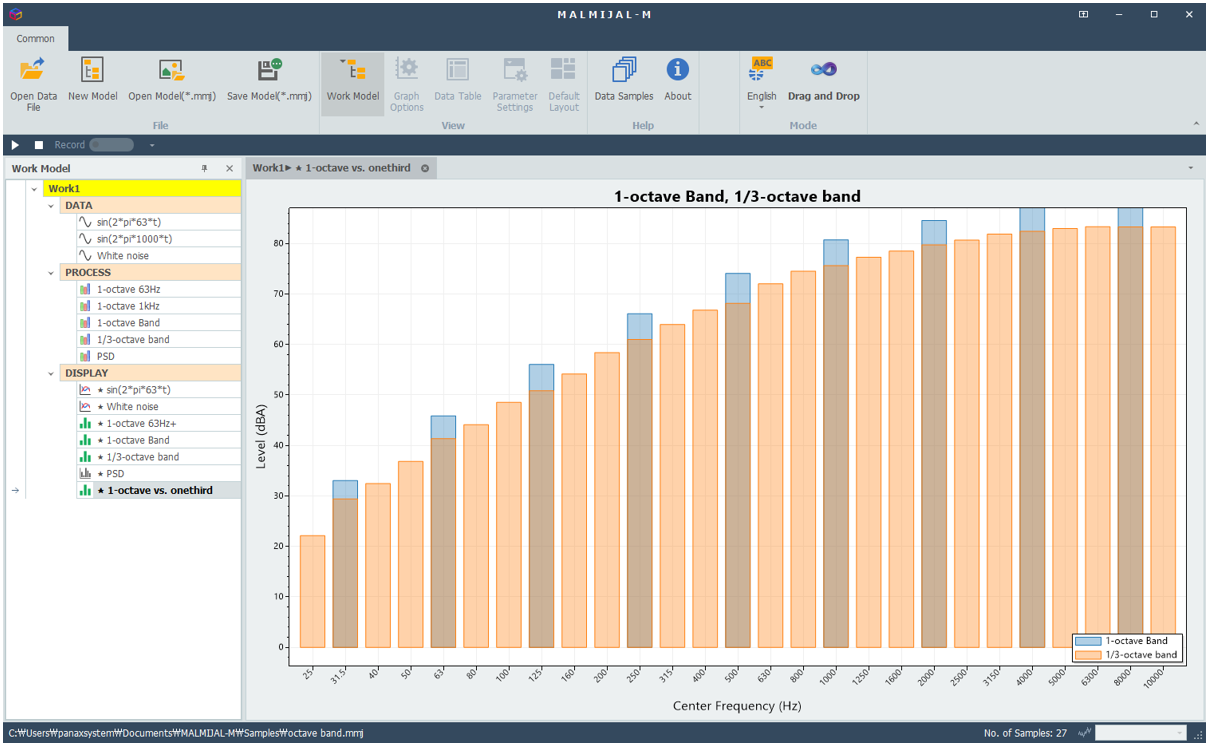

Default Grouped Bar Graph
Transparent Bar Graph

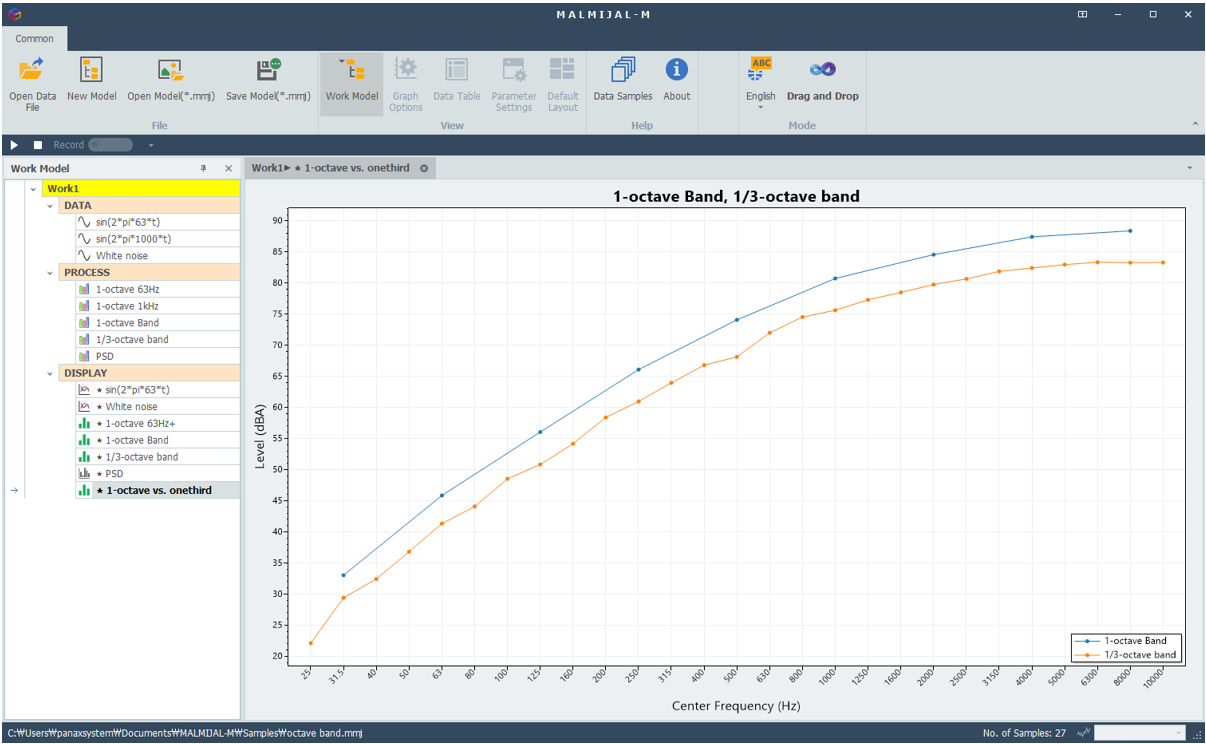

Scatter Plot

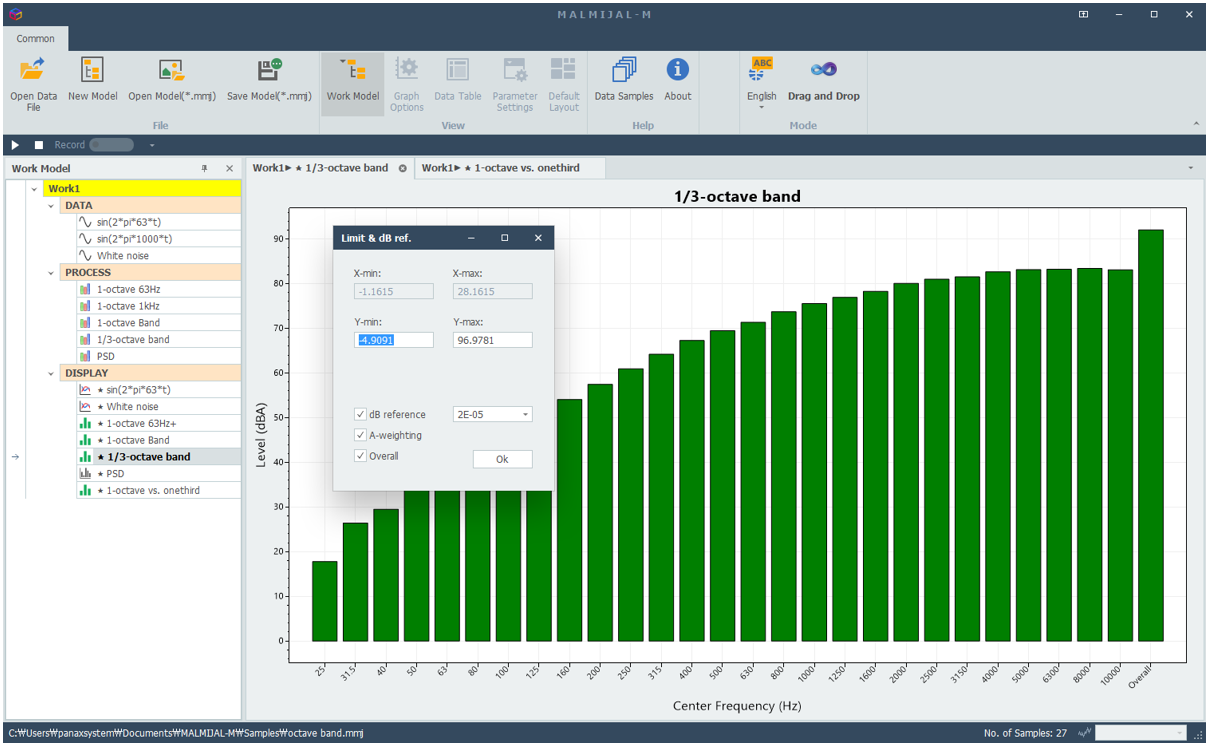

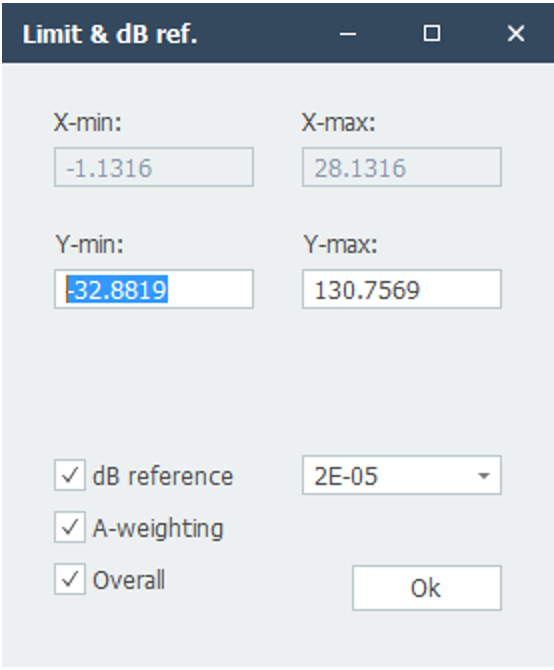

- Added support for displaying Overall dB and dBA values.
